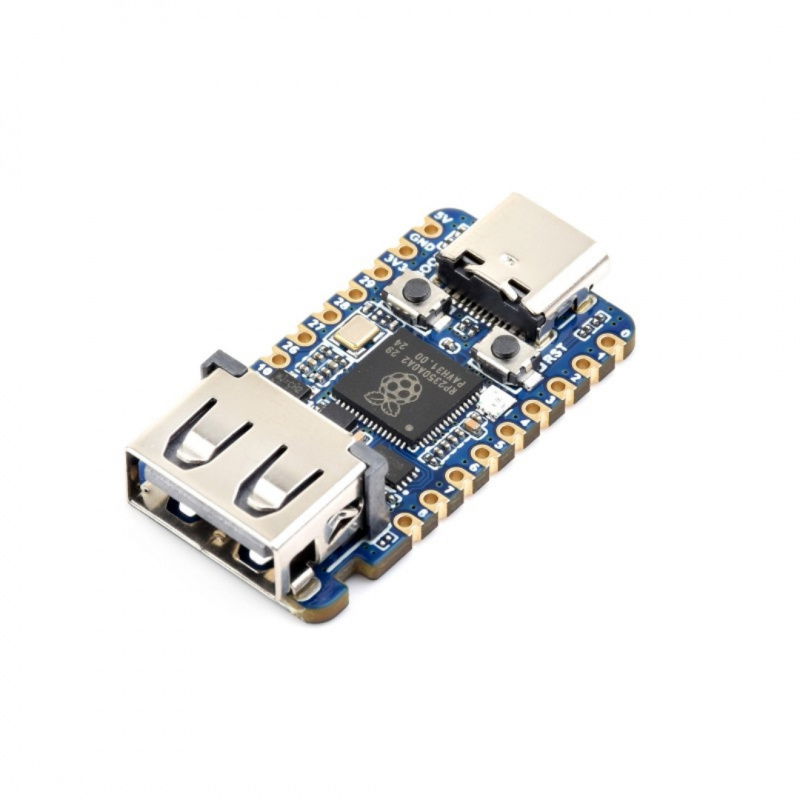

Product description: RP2350-USB-A - mini development board with RP2350A microcontroller - Waveshare 30274
The RP2350-USB-A board combines flexibility and processing power. It's based on the RP2350A microcontroller designed by Raspberry Pi , which features dual-core ARM Cortex-M33 and dual-core Hazard 3 RISC-V architectures, running at up to 150 MHz. Its onboard 2 MB Flash and 520 KB SRAM allow for the development of advanced applications. The module offers 15 multifunction GPIO pins , SPI, I2C, and UART interfaces, 12-bit ADCs, 14 PWM channels, and programmable PIOs for supporting custom peripherals. The board supports drag-and-drop programming via USB, the Arduino IDE , and C/C++ . An integrated WS2812 RGB LED provides status indication. Its compact design makes it ideal for projects with limited space.

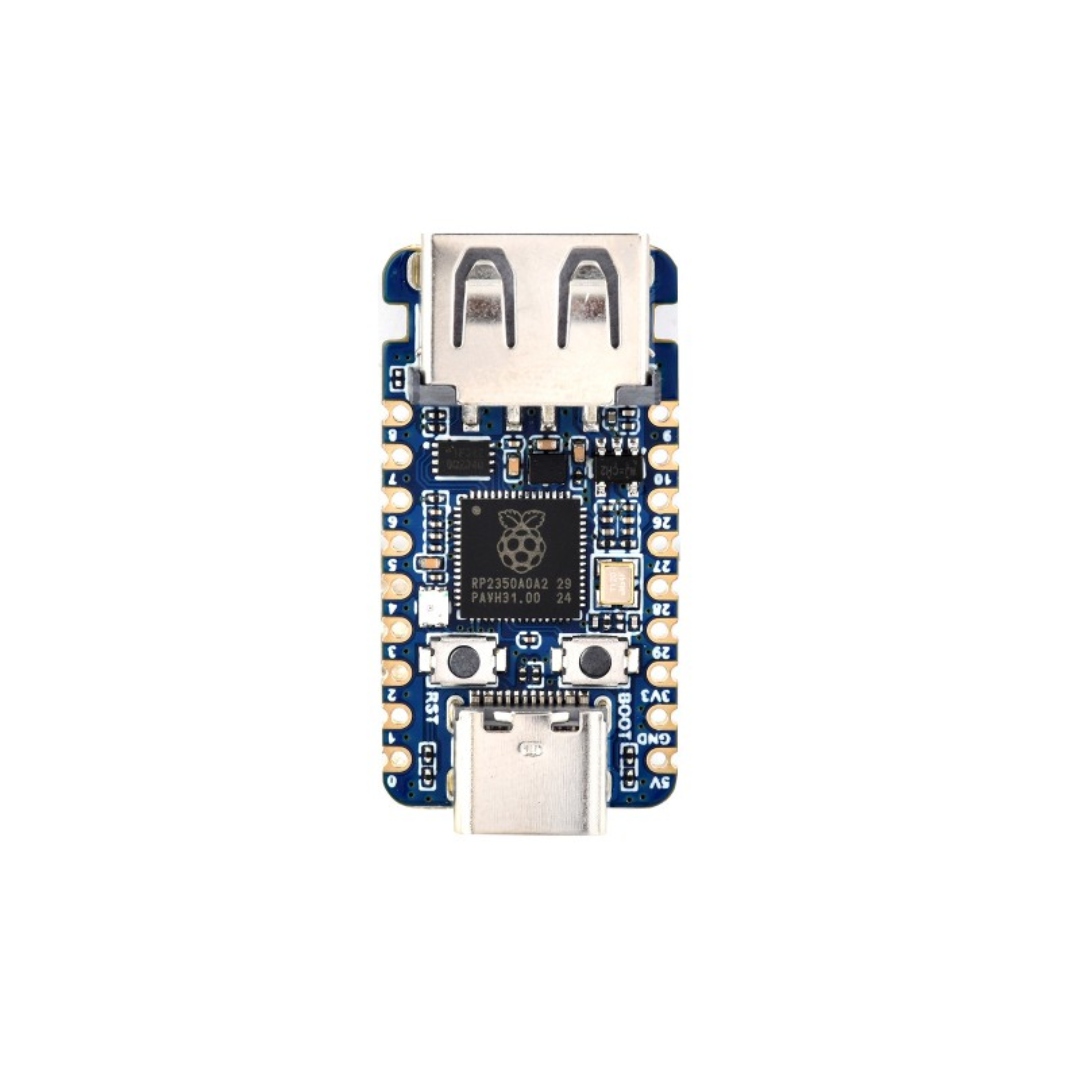

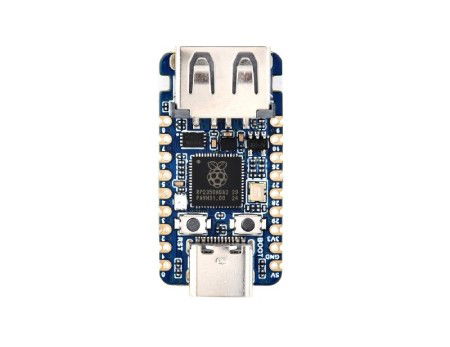

RP2350-USB-A - mini developer board - Waveshare 30274.
The RP2350-USB-A board combines flexibility and computing power.Special features
- Powerful and versatile microcontroller: The RP2350A combines a dual-core ARM Cortex-M33 and a dual-core Hazard3 RISC-V, operating at up to 150 MHz for high performance in demanding applications
- Integrated USB ports: The board has a USB Type-C connector for programming and power, and a USB Type-A port for connecting devices or acting as a host
- Large memory: 2 MB Flash memory and 520 kB SRAM allow for handling extensive projects and storing data
- Rich communication interfaces: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADCs and 14 PWM channels enable the connection of many devices and sensors
- Built-in RGB LED WS2812: enables system status indication and visual information about the board's operation
- Low-power sleep and dormant modes save energy in low-power applications

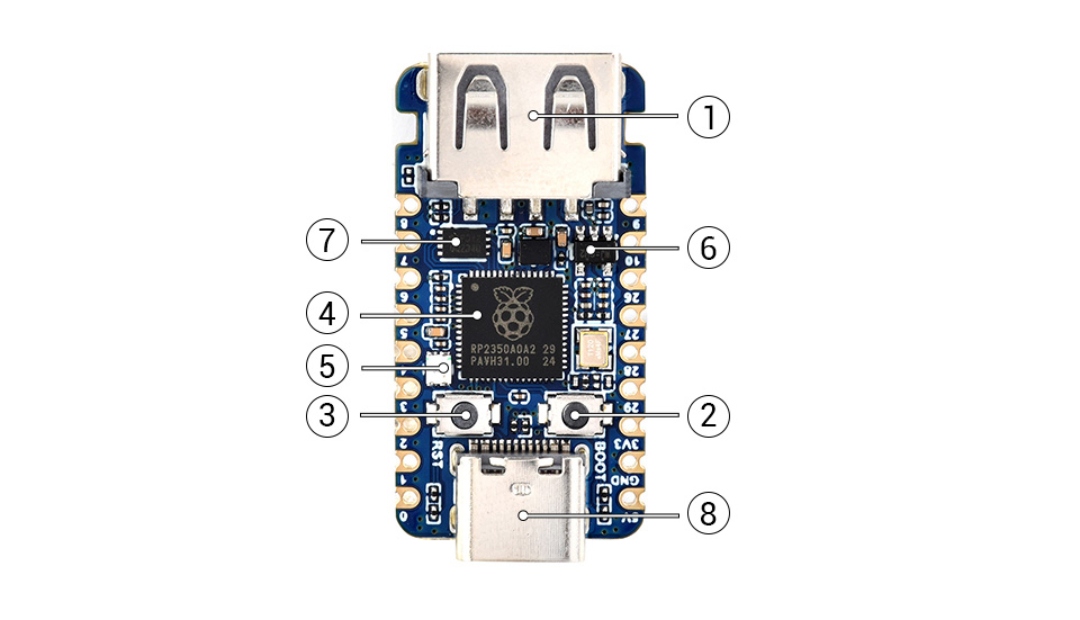

Arrangement of components on the board
- USB Type-A port
- BOOT button
- RESET button
- RP2350A microcontroller
- RGB LED diode
- Voltage Stabilizer RT9013-33GB
- Flash memory
- USB Type-C port for programming
Component layout on the RP2350-USB-A board.
The whole thing has a compact design, making it ideal for projects with limited space.Technical specifications of the board
- Microcontroller: RP2350A
- Processor: dual-core ARM Cortex-M33 + dual-core Hazard3 RISC-V
- Clock speed: 150 MHz
- Memory:
- Flash: 2MB
- SRAM: 520 kB
- USB ports: USB Type A and USB Type C
- Interfaces: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 14x PWM, 12x PIO, 15x GPIO
- Additional features: temperature sensor, on-chip clock and timer, accelerated floating-point libraries
- Dimensions: 33 x 17.5 mm
Contents of the set
- 1x RP2350-USB-A Development Board
