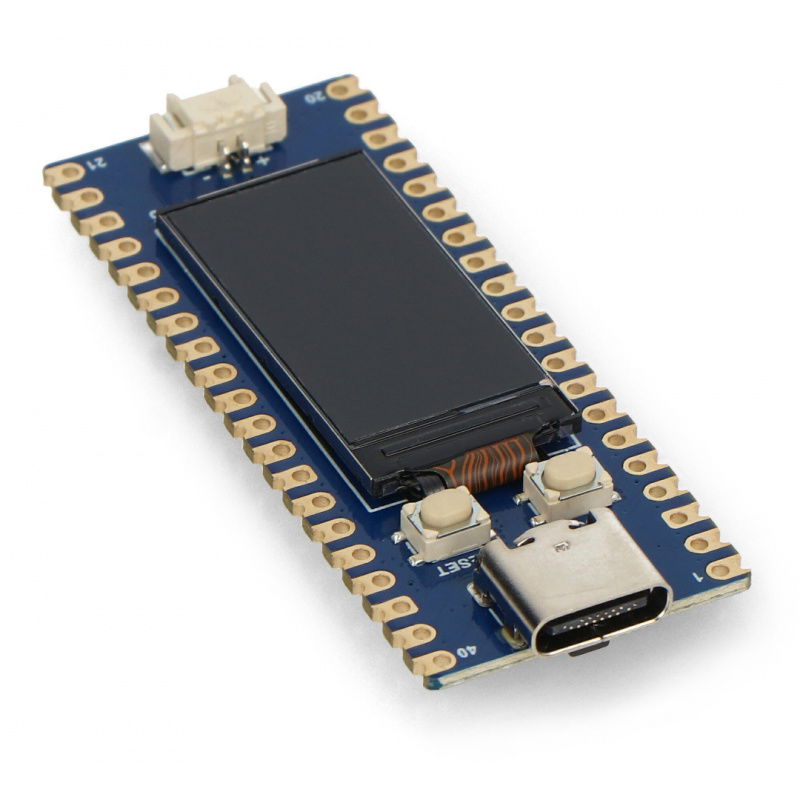

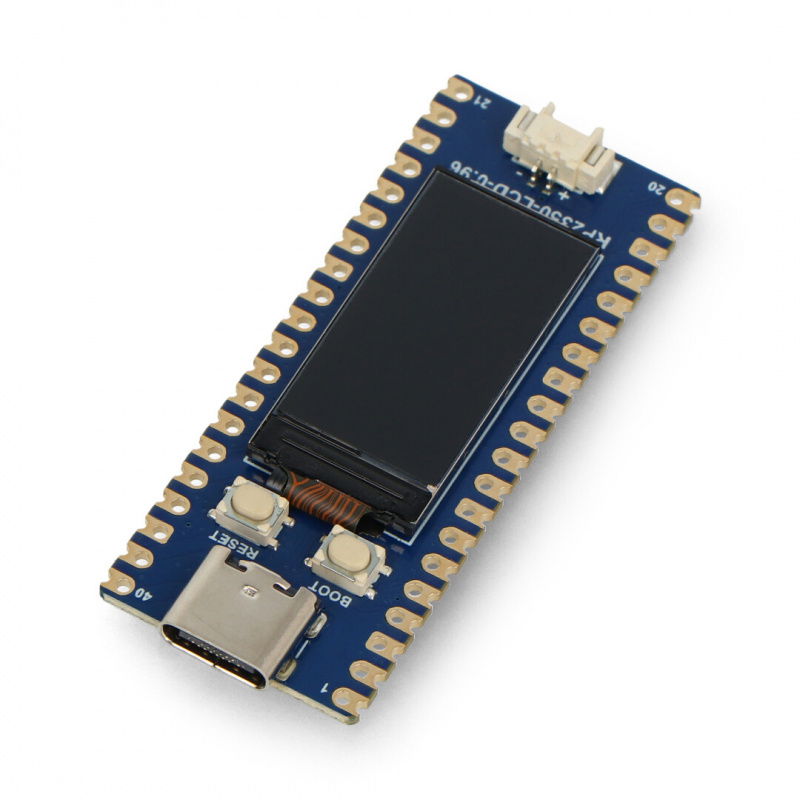

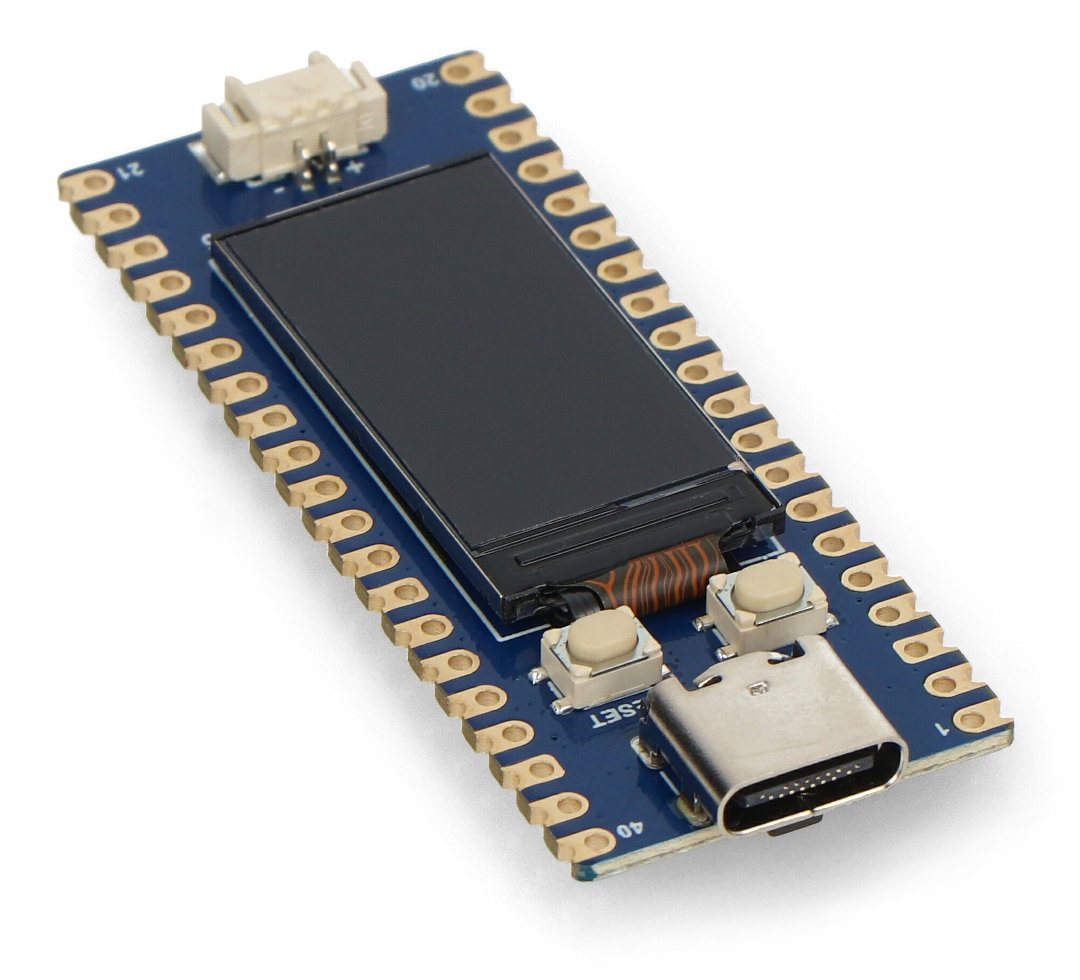

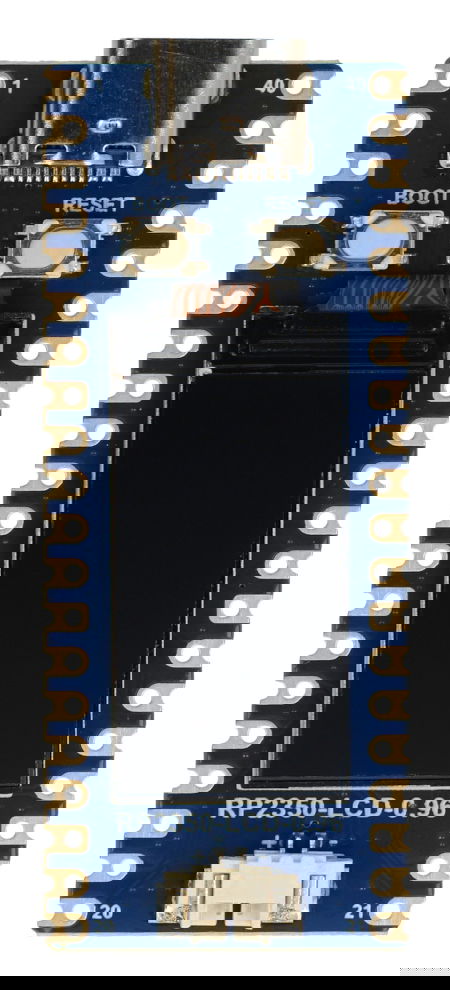

Product description: RP2350-LCD-0.96 - development board with RP2350A microcontroller and 0.96'' LCD display - Waveshare 28822
The RP2350-LCD-0.96 is a high-performance, compact Pico development board based on the Raspberry Pi RP2350A microcontroller. The board offers a rich set of digital interfaces and support for C/C++ and MicroPython . It features a 0.96-inch IPS display with a resolution of 160 x 80 pixels and 65k colors , enabling the presentation of information in a clear and visually appealing manner. Combined with a lithium-ion battery connector (MX1.25), the RP2350-LCD-0.96 can function as a portable device while simultaneously charging the battery and powering the board.

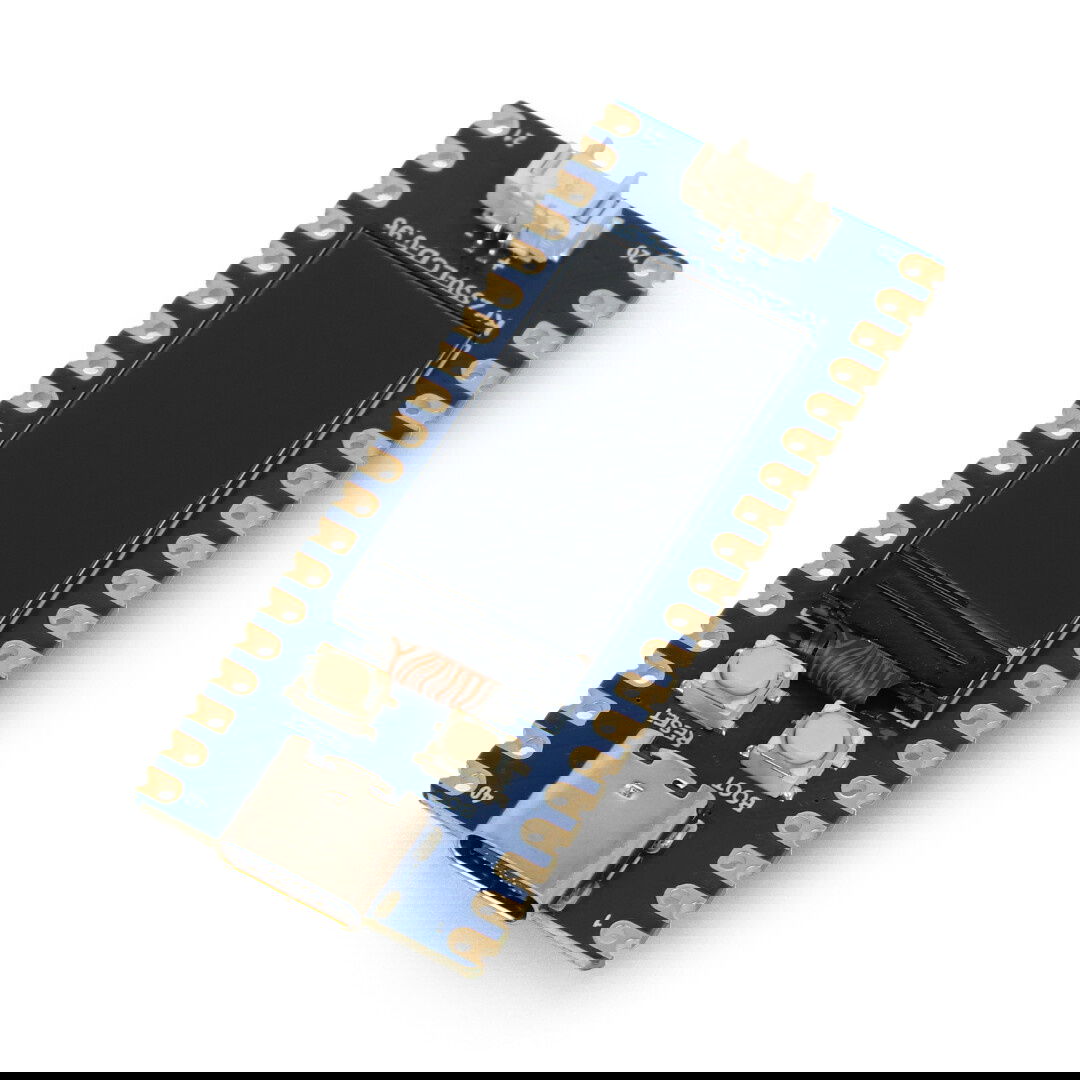

RP2350-LCD-0.96 - development board with RP2350A microcontroller and 0.96'' LCD display - Waveshare 28822.
Special features
- High-performance microcontroller: dual-core ARM Cortex-M33 and dual-core Hazard 3 RISC-V combination, clocked up to 150 MHz
- 0.96-inch IPS color display: 160 x 80 pixel resolution, 65K colors, ideal for data visualization and user interface development
- Lithium battery support: the board can be charged and powered via the MX1.25 connector
- Rich digital interfaces: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x PWM
- Programmable PIO: 12 state machines enabling the implementation of your own peripherals and custom functions
- USB Type-C port: used for programming and power supply, supports host and device modes in the USB 1.1 standard
- Energy efficiency: sleep and dormant modes to reduce energy consumption
- Compact design: the module is easy to mount on SMD boards
- RGB LED WS2812: enables board status indication via programmable LEDs

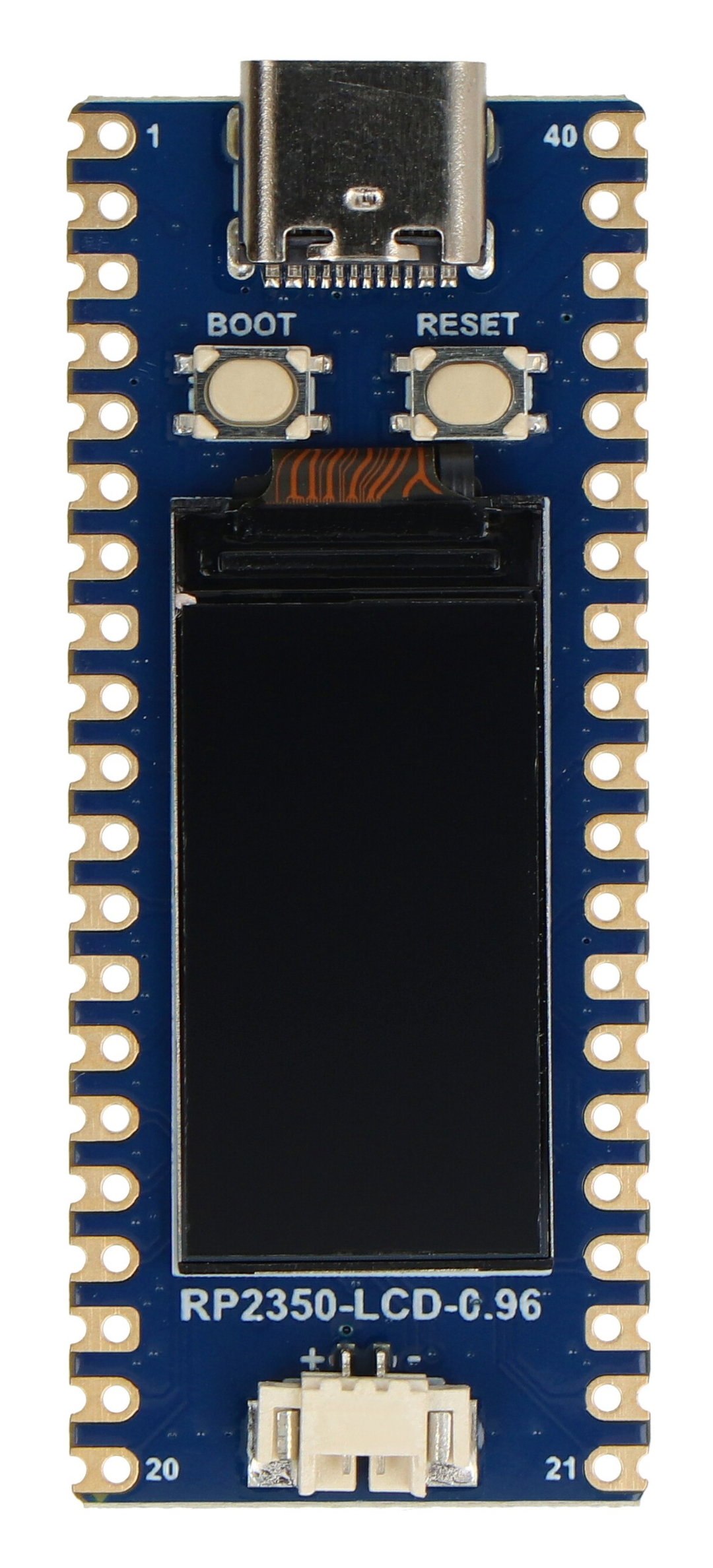

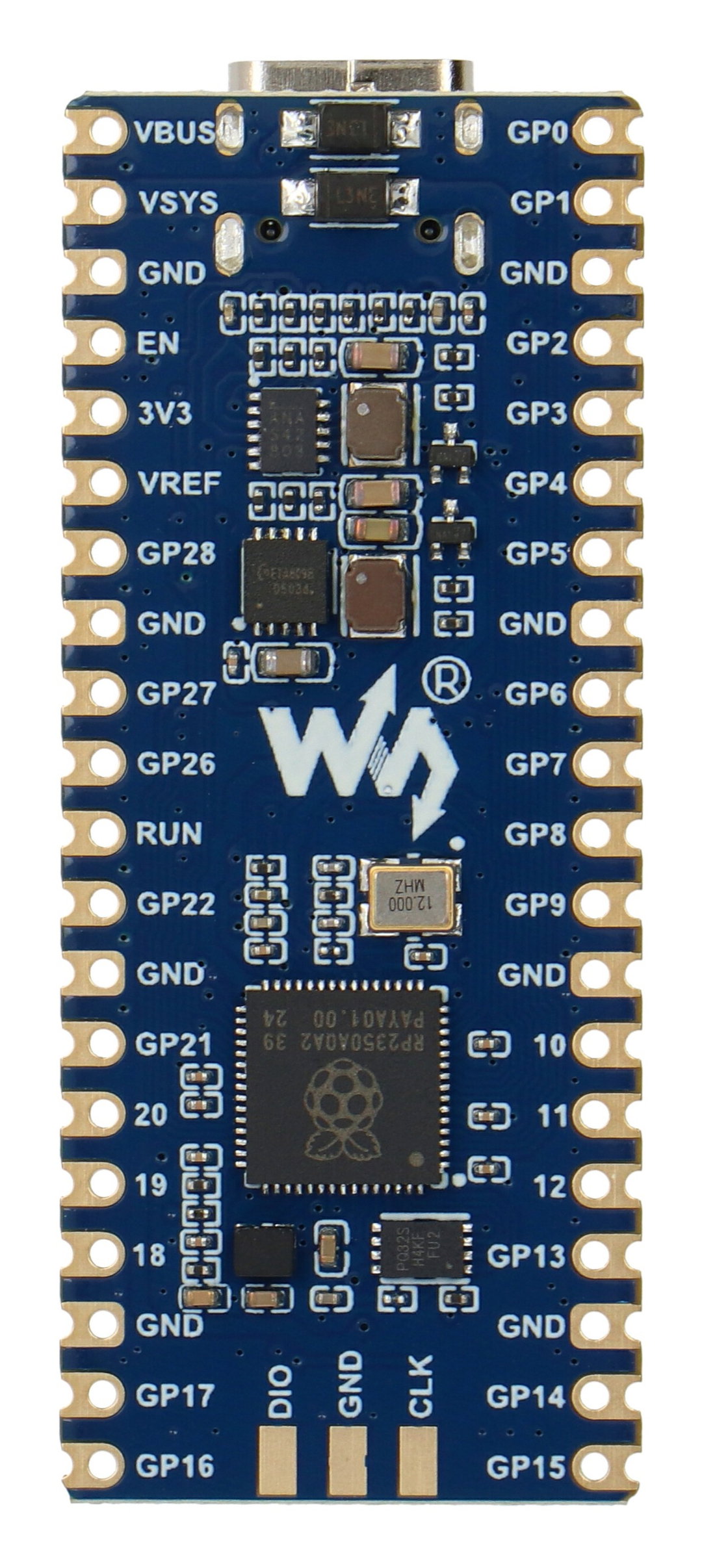

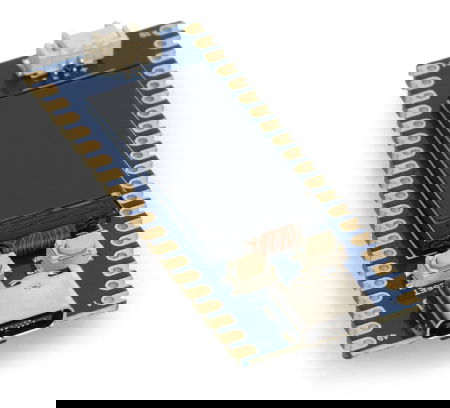

Layout of components on the RP2350-LCD-0.96 board
- USB Type-C
- Boot button
- Reset button
- IPS display
- 3.7V Li-Ion battery connector
- MP28164 - buck-boost DC-DC converter
- ETA6096 - battery charge management system
- RP2350A microcontroller
- P25Q32SH-UXH memory
- Test points for debugging
The compact design makes the module easy to mount on SMD boards.
Technical specifications of the board
- Microcontroller: Raspberry Pi RP2350A
- Processor: dual-core ARM Cortex-M33 + dual-core Hazard 3 RISC-V
- Maximum clock speed: up to 150 MHz
- Flash memory: 4 MB
- SRAM memory: 520 kB
- Interfaces: 2x SPI, 2x I2C, 2x UART, 4x ADC 12-bit, PWM: 16 channels, GPIO (26 multifunction configurable pins)
- Display: 0.96-inch IPS, 160 x 80 px, 65K colors
- Power supply: USB Type-C, 3.7V lithium battery, DC-DC MP28164
- Additional features: built-in clock and timer, temperature sensor, drag-and-drop programming via USB
- Dimensions: 21 x 51 mm
Contents of the set
- 1x RP2350-LCD-0.96 Development Board
