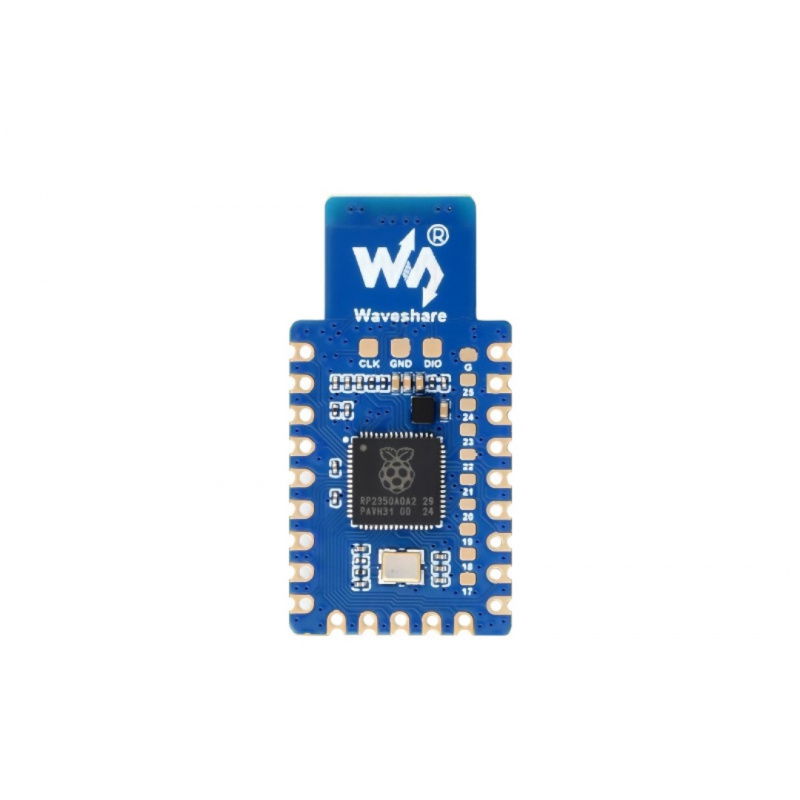

Product description: RP2350-One - development board with RP2350A microcontroller - Waveshare 29453
The P2350-One is a modern MCU board based on the Raspberry Pi RP2350A chip. Its unique dual-core architecture combines ARM Cortex-M33 and Hazard 3 RISC-V processors, clocked at up to 150 MHz , providing powerful computing power even for demanding projects. The board features a built-in USB Type-A connector for plug-and-play operation, eliminating the need for additional cables. With 29 multifunction GPIO pins and 12 programmable PIOs, you can easily control external devices and create custom peripherals. The RP2350 -One supports low-power modes (sleep and dormant), making it energy-efficient, while the WS2812 RGB LED allows for status indication without additional components. The board's compact design and dedicated pinout make it ideal for SMD designs and integration into off-the-shelf devices.
RP2350-One - development board with RP2350A microcontroller - Waveshare 29453.
The P2350-One is a modern MCU board based on the RP2350A chip from Raspberry Pi.Special features
- Powerful microcontroller: The combination of dual-core ARM Cortex-M33 and dual-core Hazard 3 RISC-V with clock speeds up to 150 MHz ensures high computing performance
- USB Type-A port built into the board: ready to use immediately, no additional cables required
- Large memory: 4 MB Flash and 520 kB SRAM allow for extensive projects
- Wide set of interfaces: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC and 16 PWM channels
- Programmable PIO: 12 state machines allowing you to create your own peripherals and custom functions
- Extensive GPIO: 29 multi-function pins for flexible connection of sensors and modules
- Energy-saving operating modes: sleep and dormant functions allow you to minimize energy consumption

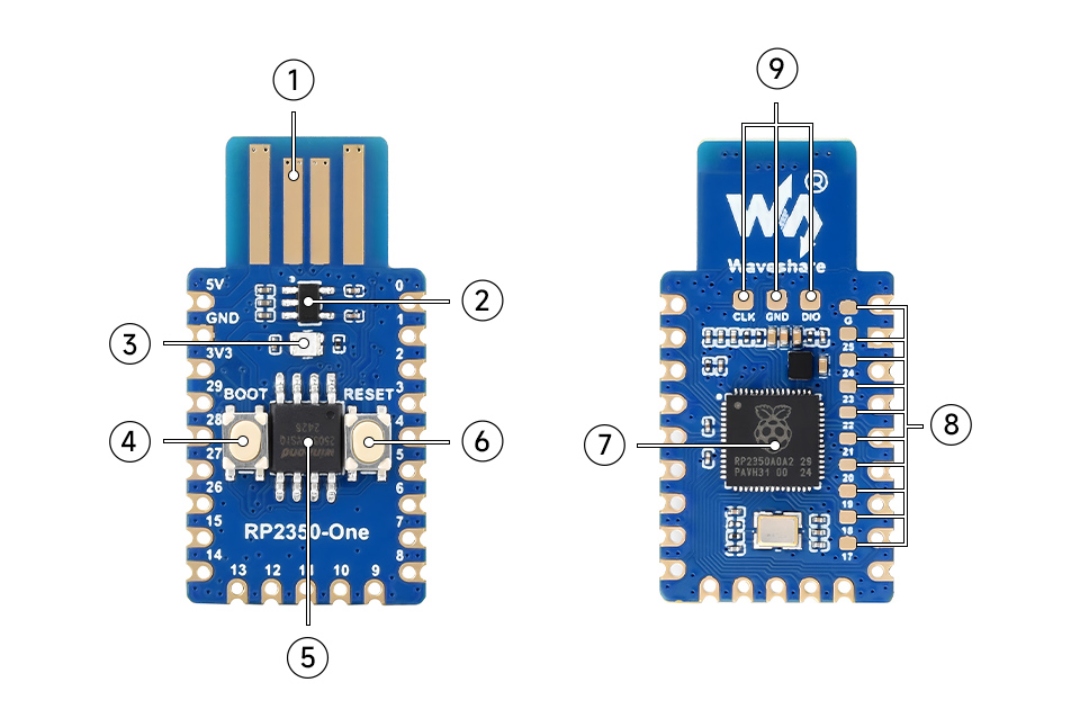

Component layout on the RP2350-One board
- USB Type A PCB Connector
- LDO stabilizer RT9013-33GB 3.3 V / 500 mA
- WS2812 RGB LED
- Boot button
- 4MB NOR Flash Memory W25Q32JVSSIQ
- Reset button
- RP2350A microcontroller
- RP2350A pinout pins (10 solder points, including 9 GPIO lines)
- Debug pins (CLK, GND, DIO)
Arrangement of components on the board.
It has a unique dual-core architecture, combining ARM Cortex-M33 and Hazard 3 RISC-V processors, with a clock speed of up to 150 MHz.Technical specifications of the board
- Microcontroller: RP2350A
- Processor: dual-core ARM Cortex-M33 and dual-core Hazard 3 RISC-V
- Clock speed: up to 150 MHz
- Memory:
- Flash: 4MB
- SRAM: 520 kB
- GPIO: 29 multi-function pins
- Programmable PIO: 12 state machines
- Interfaces: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x PWM
- USB ports: USB type A (host/device)
- Power saving modes: sleep, dormant
- LED: RGB WS2812
- Dimensions: 18 x 25.5 mm
Contents of the set
- 1x RP2350-One Development Board
