Product description: ProtoMate universal printed circuit board for XIAO and QT Py - PiHut 106565

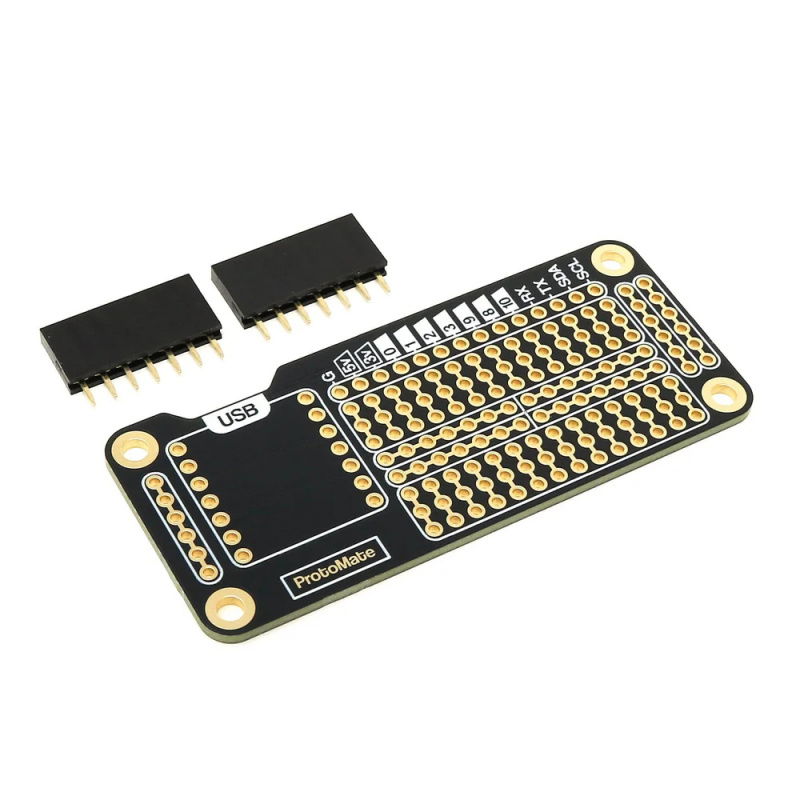

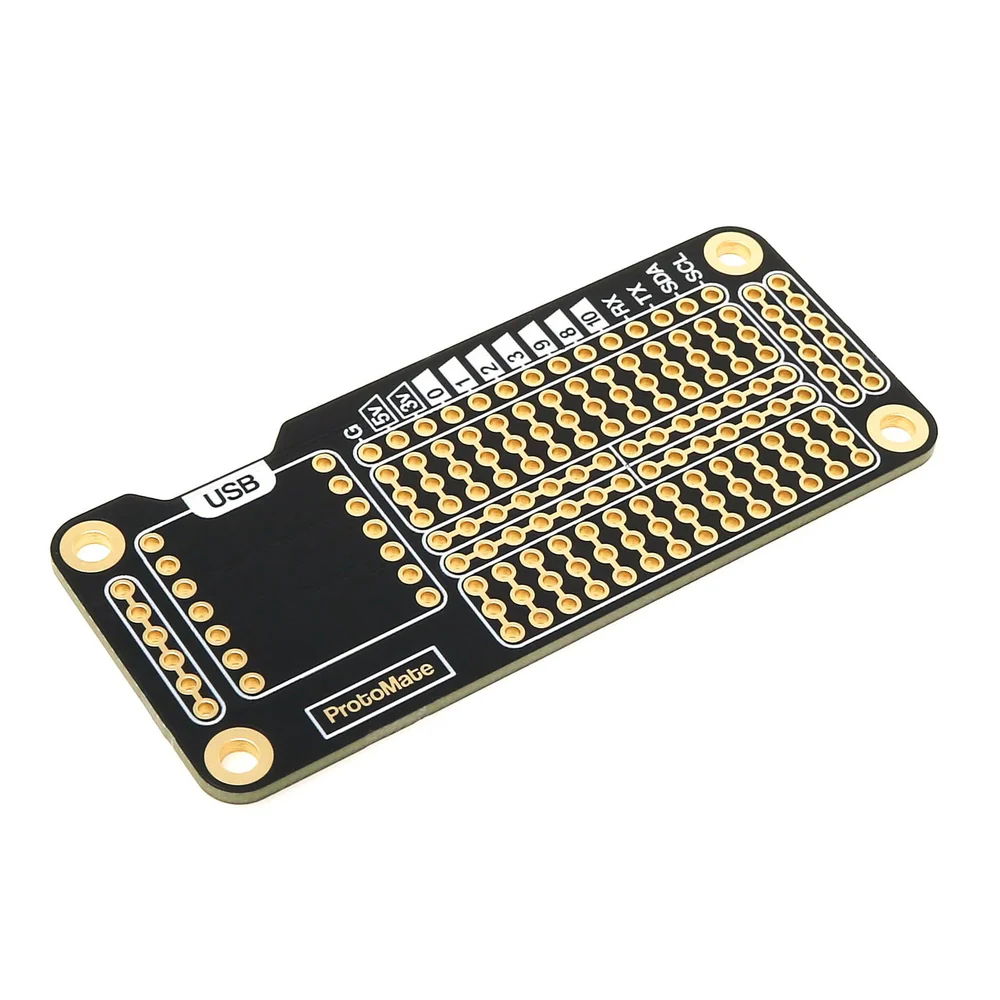

ProtoMate for XIAO and QT Py is a solderable, breadboard-style prototyping board designed for Seeed XIAO and Adafruit QT Py development boards (sold separately). It allows you to easily transition from non-permanent breadboard connections and jumper wires to a robust, solderable PCB prototype suitable for long-term and utility projects . The center of the board offers a breadboard-style solder pad. (14 x 8 fields) divided into tracks, making the layout intuitive and easy to understand. The XIAO/QT Py GPIO pins are arranged in a logical order along the edges of the workspace, significantly simplifying planning and routing connections. Additional side tracks allow for the convenient creation of shared power lines, such as 5V or GND.
ProtoMate universal printed circuit board for XIAO and QT Py - PiHut.
ProtoMate for XIAO and QT Py is a prototyping board designed for the Seeed XIAO and Adafruit QT Py.Special features
- Seeed XIAO and Adafruit QT Py compatible prototyping board
- Large solder area (14 x 8) with split center tracks

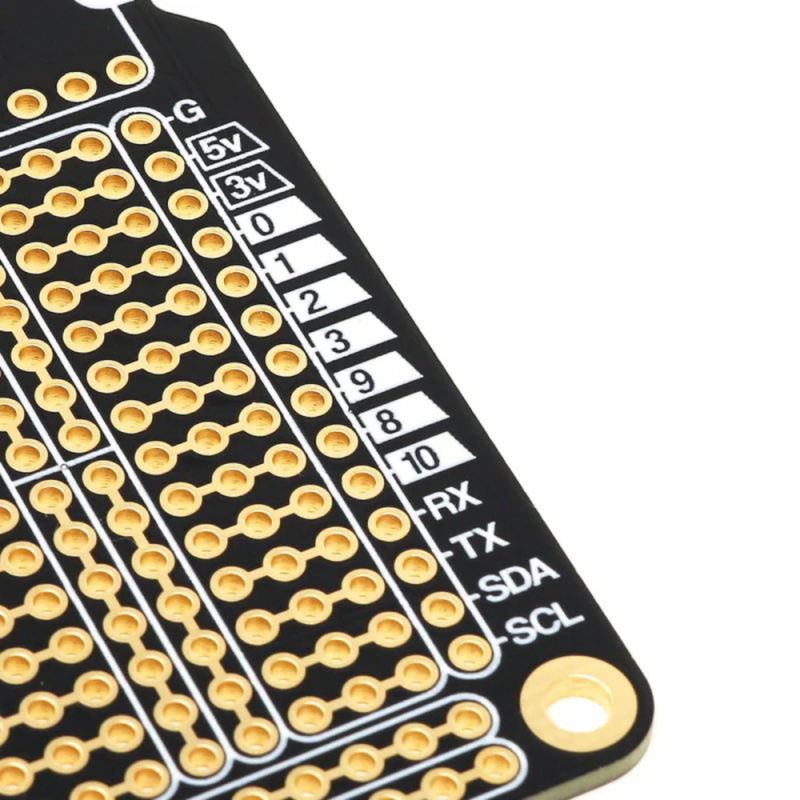

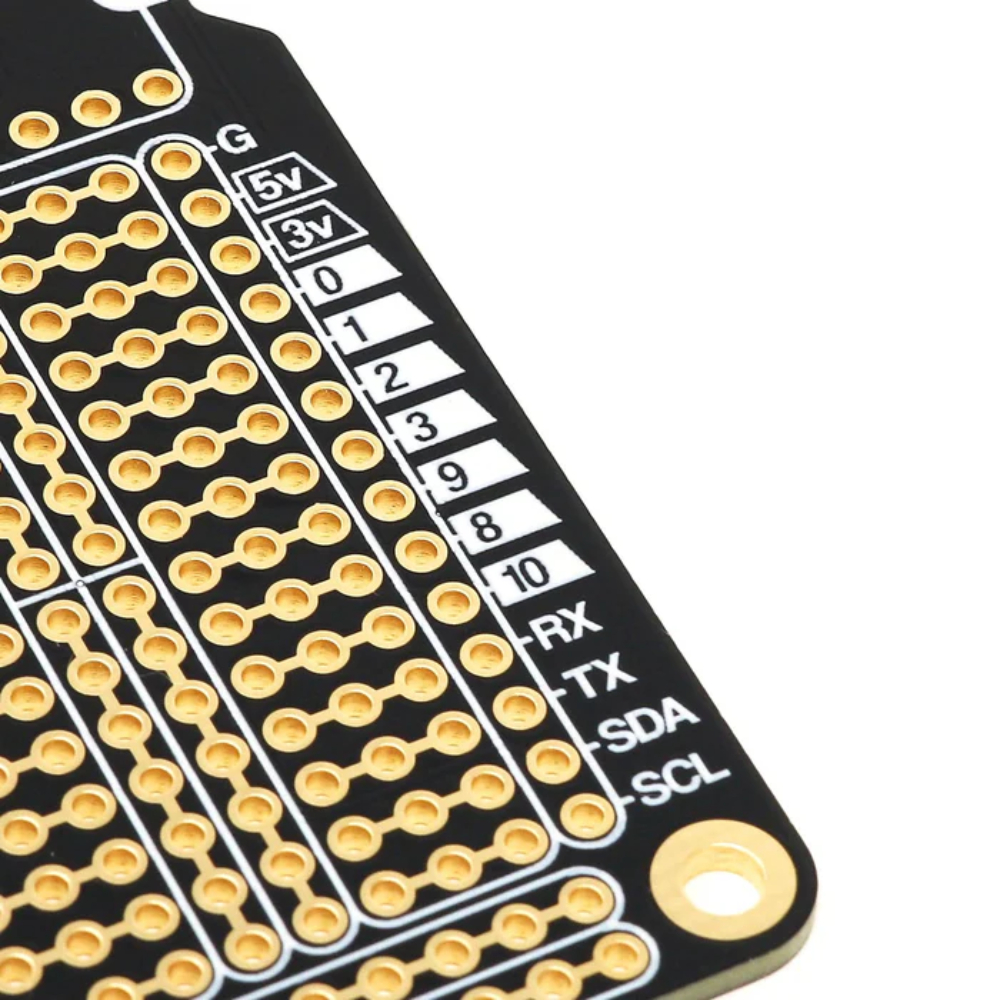

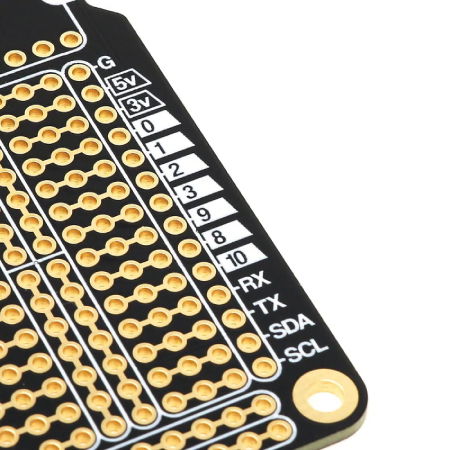

- GPIO pins arranged in board pin order
- Side connection paths for creating power banks or signals
- Possibility to modify connections by cutting or bridging paths
- ENIG PCB coating (gold plating) for increased durability and oxidation resistance
- M2.5 mounting holes for easy installation in the case

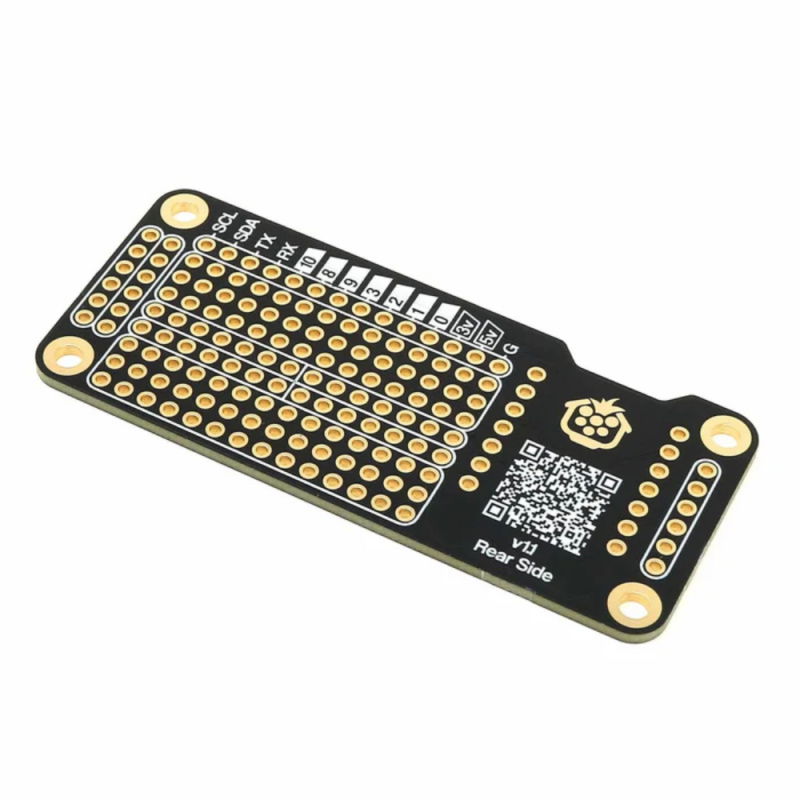

- Rear Side marking to prevent soldering errors
- The set includes female sockets enabling the installation of the XIAO in a removable form
Practical applications
ProtoMate is ideal for projects requiring durable and aesthetically pleasing prototyping, such as consumer electronics, IoT, wearable devices, home automation, and education. It's the perfect choice for those looking to transition their project from breadboard testing to a compact, reliable PCB, without having to design their own board from scratch.
Technical specifications of the board
- Product type: Solderable prototyping board
- Compatibility: Seeed XIAO, Adafruit QT Py
- Soldering area: 14 x 8 pads
- Central rails: split, bridgeable
- Side rails: connected, can be cut apart
- PCB finish: ENIG (gold plating)
- Mounting holes: M2.5
- Module mounting: direct or via female sockets
- Dimensions: 67 x 29 mm
Contents of the set
- 1x ProtoMate for XIAO / QT Py Protoboard
- 2x 7-pin female connector
Additional side rails allow for convenient creation of shared power lines, such as 5V or GND.
