Fermion - Distance sensor 2.5-300cm - ToF VL53L3CX - DFRobot SEN0378

Index: DFR-19461 EAN: 5904422346584
ToF Time-of-Flight technologydistance sensor with integrated VL53L3CX chip from STMicroelectronics. It uses ST's third-generation FlightSense technology in its measurement path, which makes the accuracy of object detection and distance to the object extremely precise. The sensor offers a measurement range of 2.5 cm to 300 cm, and is additionally resistant to glass penetration. It has a viewing angle of 25°.
€9.66
€7.85 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino Raspberry Pi

Product description: Fermion - distance sensor from 2,5 to 300 cm - ToF VL53L3CX - DFRobot SEN0378

A distance sensormade withToF Time-of-Flighttechnology with integratedVL53L3CXchip from STMicroelectronics. It uses ST's third-generation FlightSense technology in its measurement path, which makes the accuracy of object detection and distance to the object extremelyprecise. The sensor offers a measurement range of2.5 cm to 300 cm, and is additionally resistant to glass penetration. It has a viewing angle of25°.

Contents of the set

  • Fermion - VL53L3CX ToF distance sensor
  • 1x6 goldpin strip - 2.54 mm pitch
Fermion - czujnik odległości 2,5-300cm - ToF VL53L3CX

Fermion - distance sensor from 2,5 to 300 cm - ToF VL53L3CX.

Product compatible with Arduino

A detaileduser guideis available on the manufacturer's website to help you get started with the module. It contains, among others,libraryand sample program codes. You will also learn how to connect the distance sensor to Arduino.

Schemat połączenia czujnika z przykładowym modułem.

Schematic of connecting the sensor to the sample module.

Overview of the module functions

  • Enables distance measurement with high precision
  • Measuring range up to 300 cm
  • Full 25° field of view
  • Range of distances for many purposes (achievable under certain conditions, more on this in themanual)
  • Resistant to glass penetration
  • Built-in smear compensation function

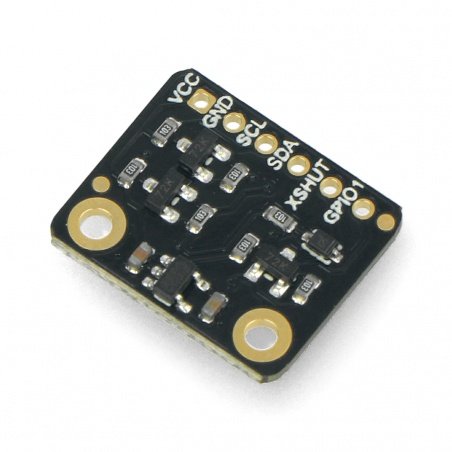

Pin-outs and wiring diagram

  • VCC - power pin from 3.3 V to 5 V
  • GND - system ground
  • SCL - I2C interface clock line pin
  • SDA - I2C data line pin
  • XSHUT - RESET pin
  • GPIO1 - interrupt pin

Technical specification of the distance sensor

  • Technology: ToF Time-of-Flight
  • Embedded chip: VL53L3CX
  • Power supply range: 3.3 V to 5 V
  • Operating current: < 20 mA
  • Measuring range: from 2.5 cm to 300 cm
  • Emitter: 940 nm VCSEL laser (invisible to the human eye)
  • Field of view: 25°
  • Communication interface: I2C
  • Interface address: 0x29
  • Operating temperature range: -20°C to 85°C
  • Module dimensions: 18 x 15 mm
Czujnik odległości wyposażony w układ VL53L3CX.

Distance sensor equipped with VL53L3CX chip.

Sensor - type distance
Sensor - distance to 300 cm
Sensor - distance from 2.5 cm
