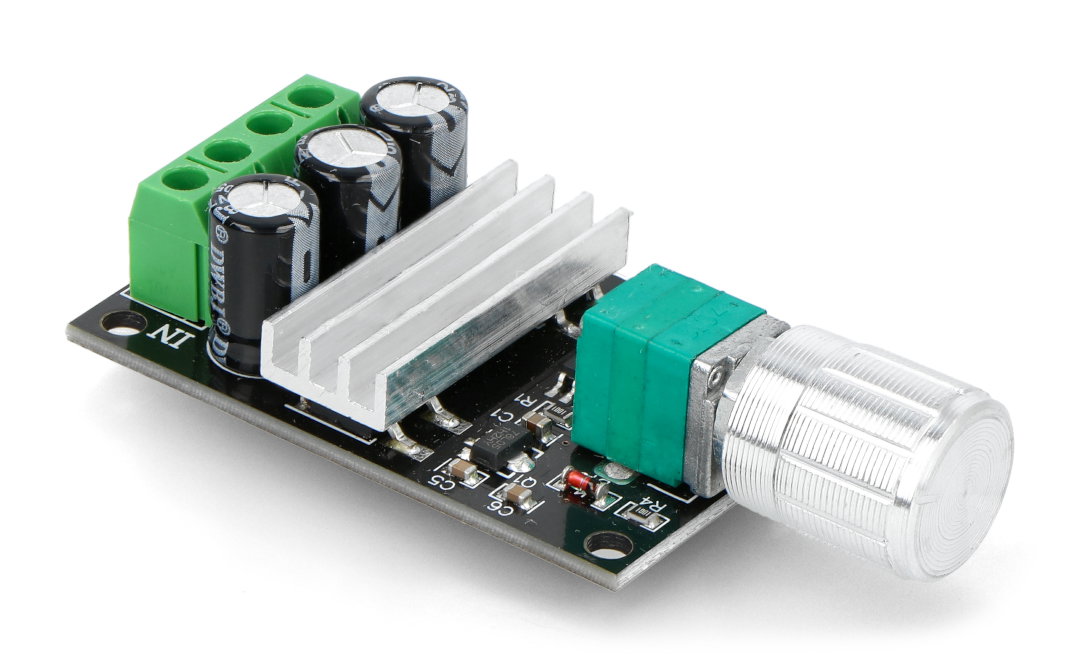

Product description:Simple DC 28 V / 3 A motor controller - knob module
Extremely easy to use, single-channel direct current motor controller with speed control knob. The device works on the basis of PWM signal. Power supply voltage is from 8 V to 36 V, maximum current is 3 A.
Connection
The device has four leads in the form of ARK screw connectors, which allows the wires to be fixed with a screwdriver. For proper operation it is enough to connect the power supply to thePower+ and Power-inputs and the motor to the connectors markedMotor+ and Motor-. The speed is adjusted by means of a knob. The controller is not able to change the direction of rotation.

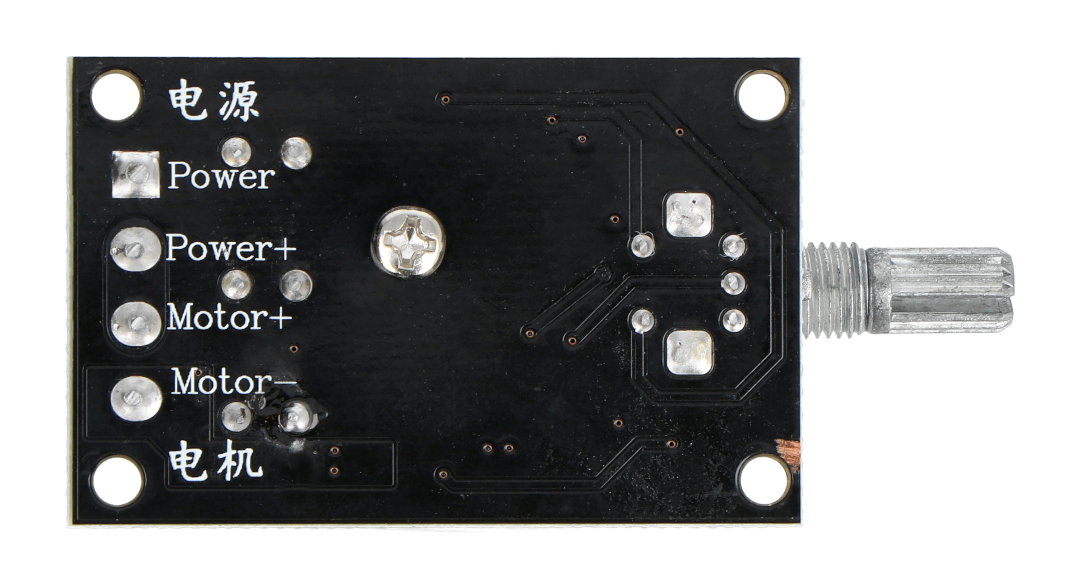

The module has screw connectors, which are signed on the back of the board.
Specification
- Number of channels: 1
- Power supply voltage: 8 V to 28 V
- Current: up to 3 A
- Controller: timer NE555(documentation)
- Connectors: ARK-type screw sockets
- Dimensions: 15.3 x 15.3 mm
Video
Film describing the operation of the H-bridge - direct current motor controller.
