Product description: ENC28J60 Ethernet network module

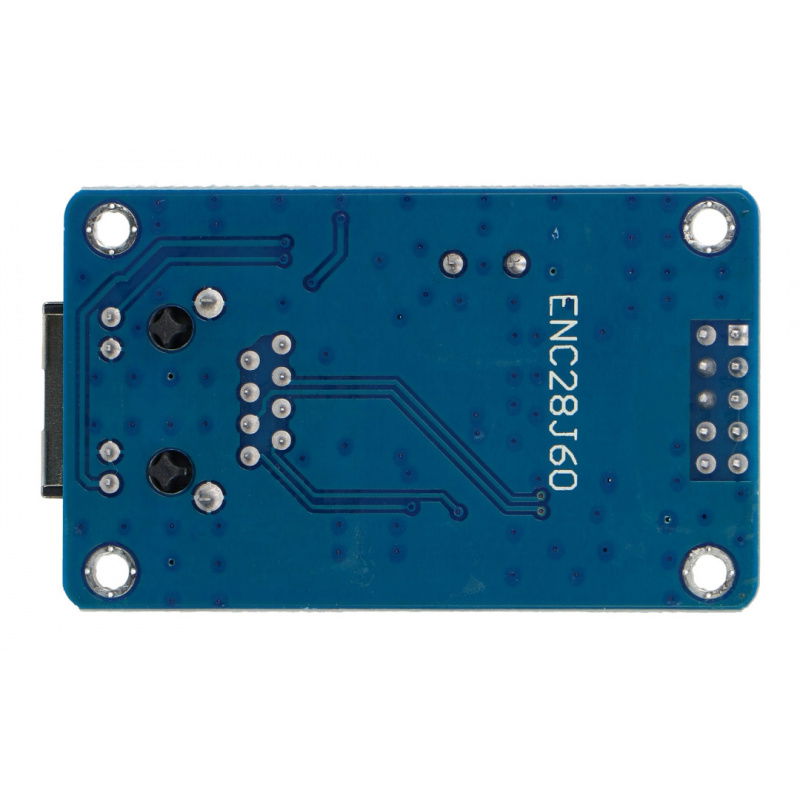

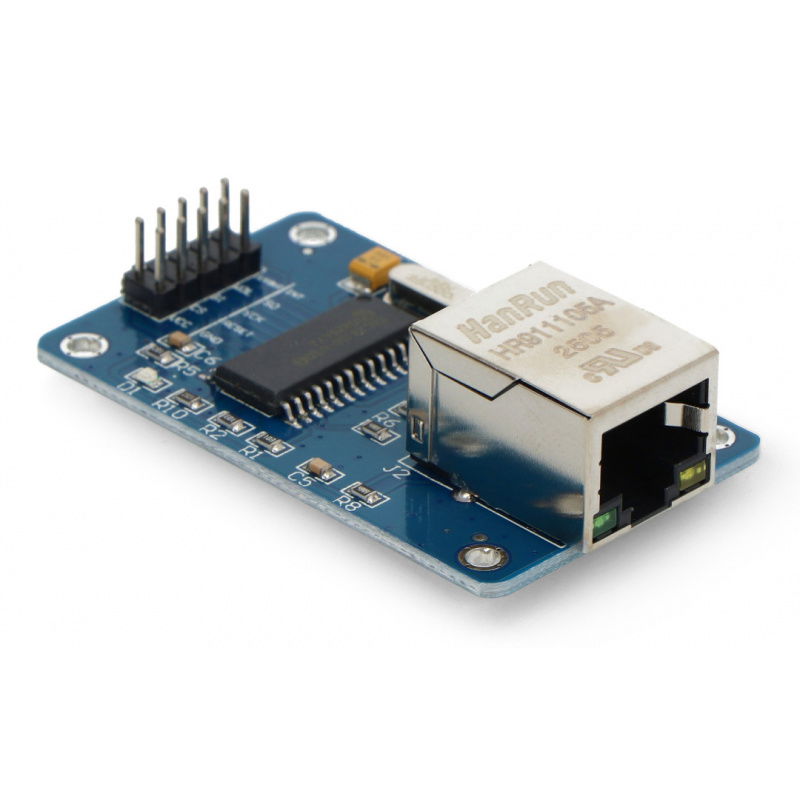

A module that allows you to connect microcontrollers, development kits (including Arduino ) to the Ethernet network. The communication interface is the popular, digital SPI bus. The board has an Ethernet RJ-45 socket for a network cable and goldpin leads for connecting to the main board. The system's supply voltage is 3.3 V, and the dimensions of the whole: 56 x 34 x 16 mm.

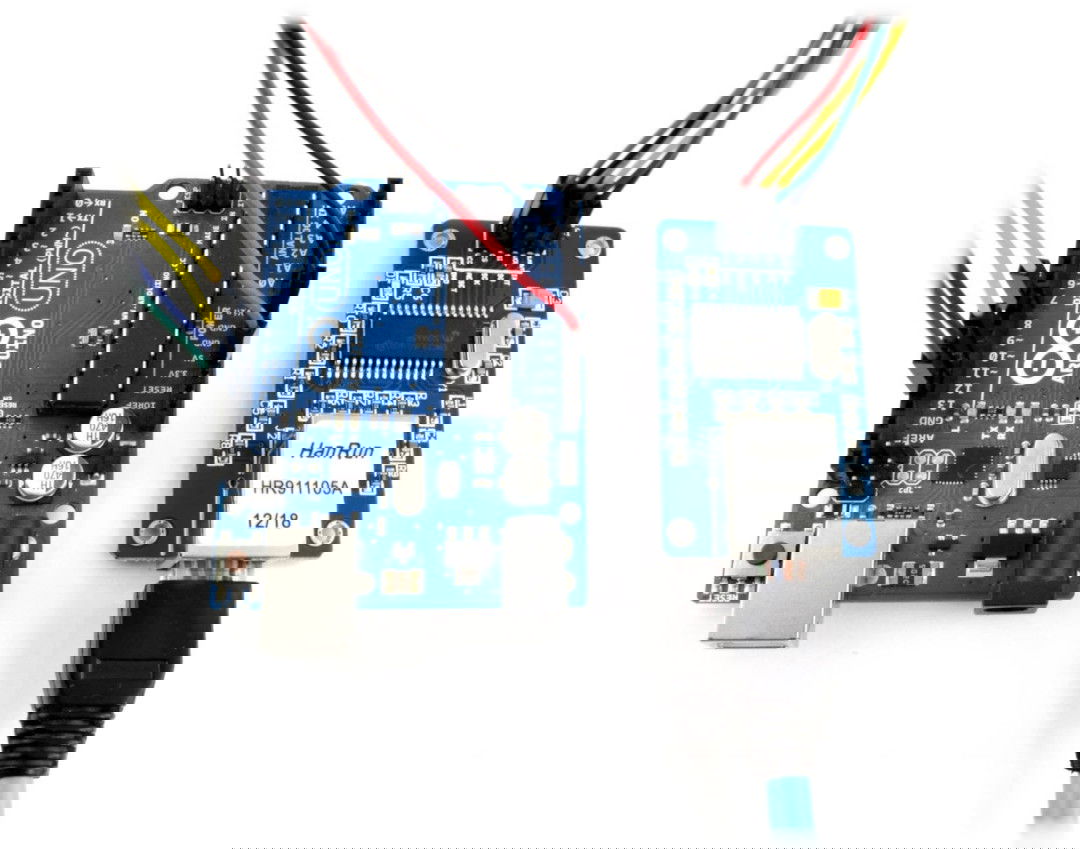

A library for the Arduino module is available along with connection instructions . |

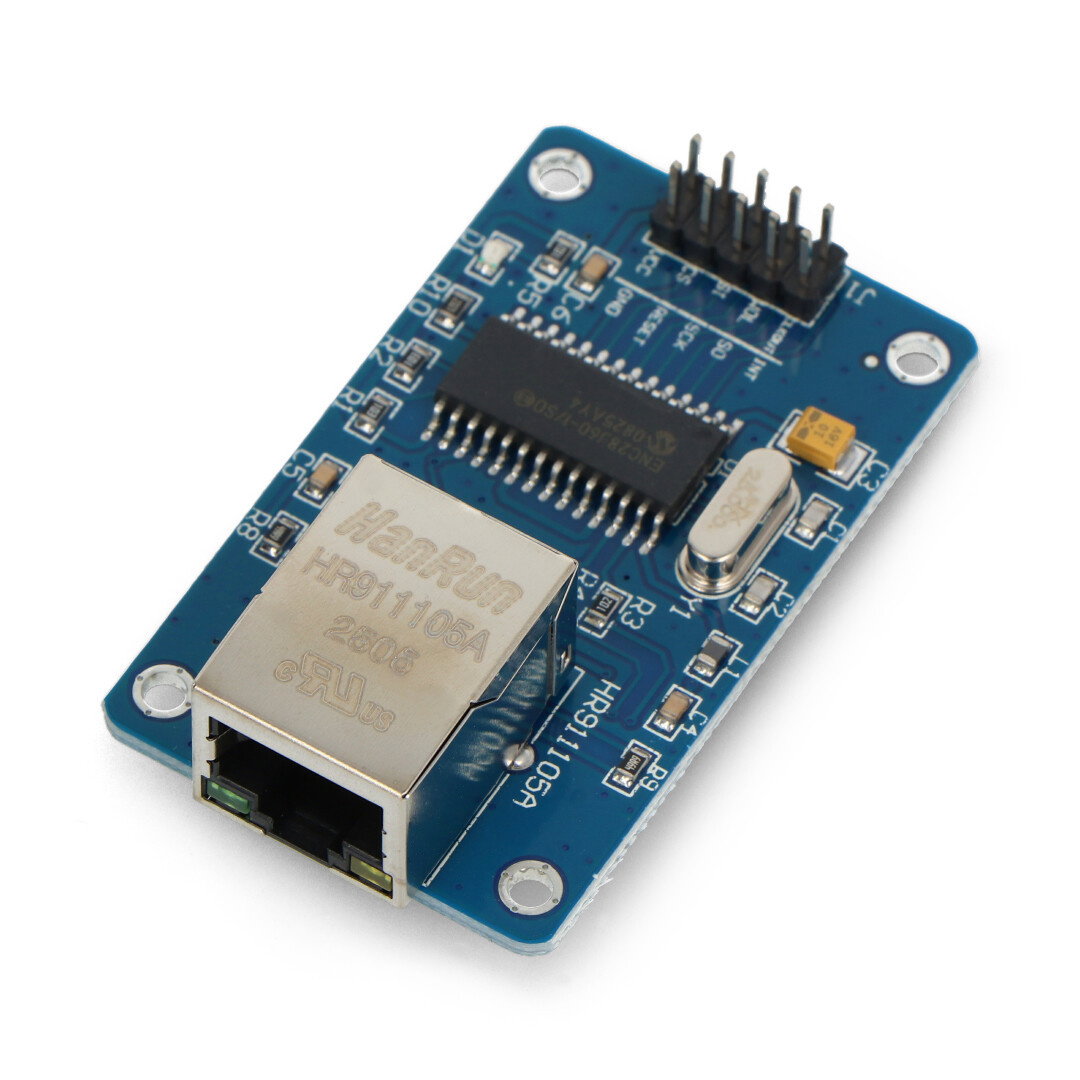

ENC28J60 Ethernet network module.

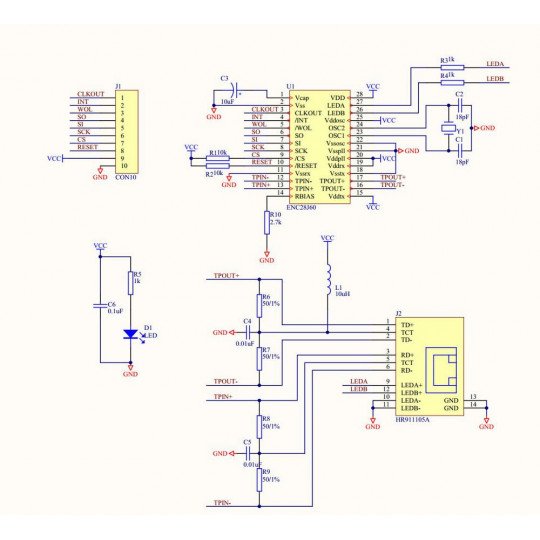

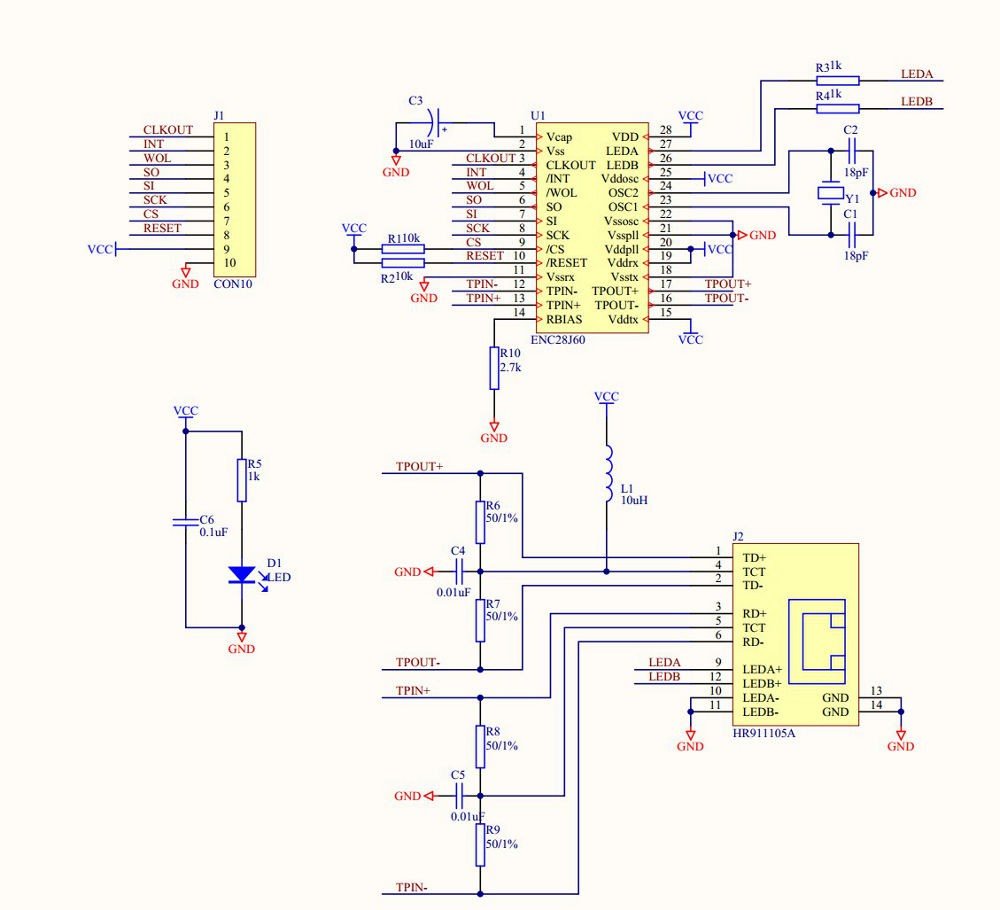

The table shows the pinout description of the ENC28J60 Ethernet module.
Derivations

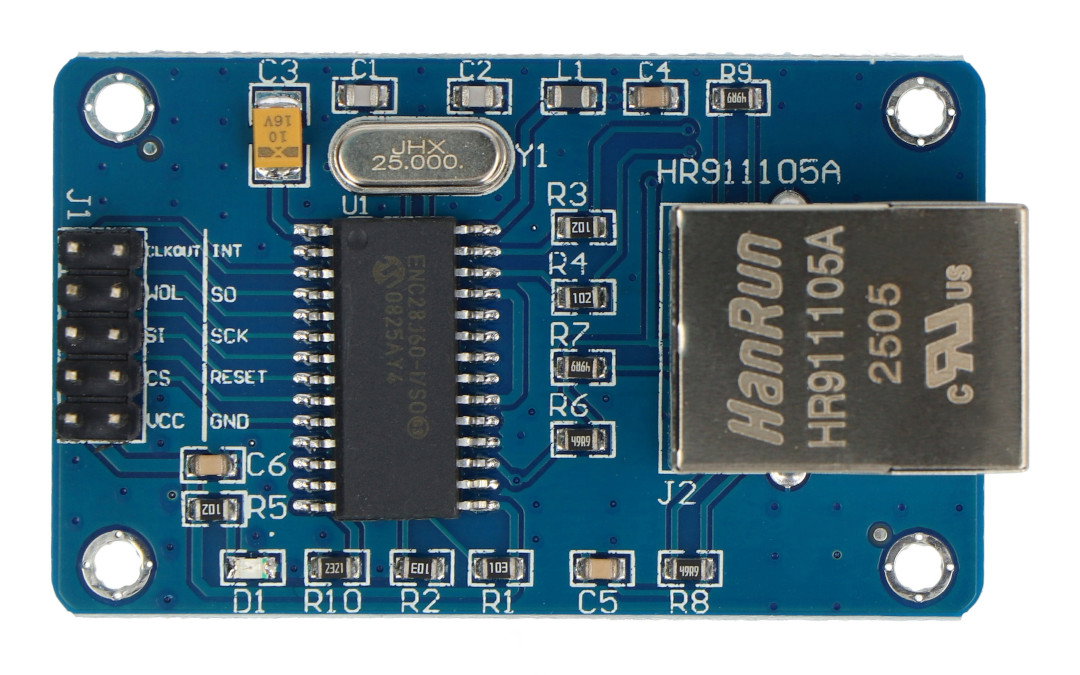

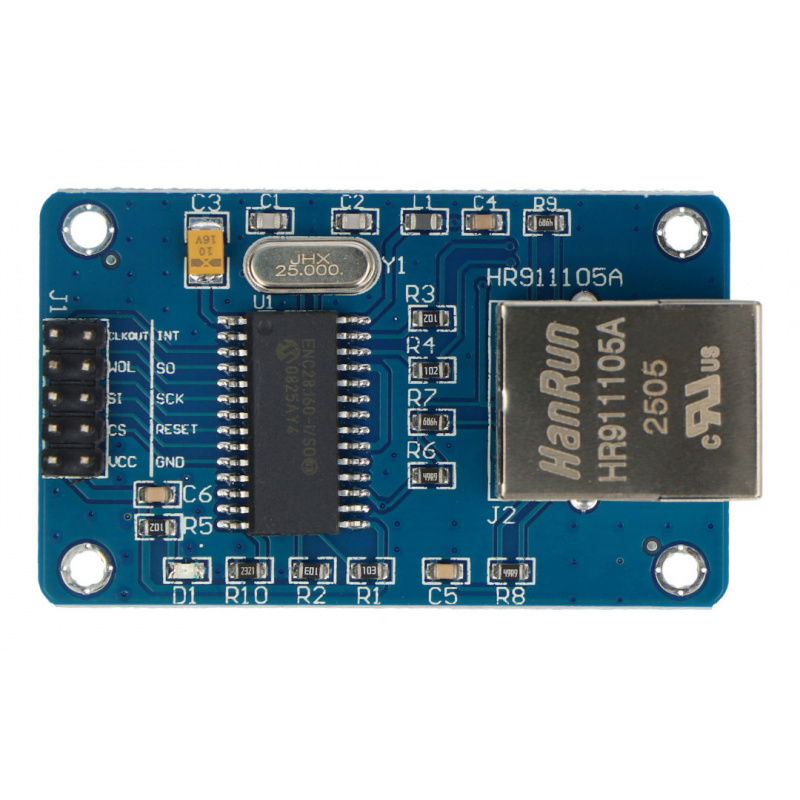

The module has goldpin leads, allowing connection to any development kit or dedicated printed circuit board using available cables . The pinout is shown in the figure below.
Ethernet Module Specification
- Supply voltage: 3.3 V
- Maximum transmission speed: 25 MHz
- Communication interface: SPI
- The MAC address must be assigned in the program
- Module type: 10Base-T
- Operating temperature: -40°C to 85°C
- Dimensions: 56 x 34 x 16 mm
Details in the ENC28J60 documentation .
Name | Description |
|---|---|
VCC | Supply voltage 3.3V. |
GND | Mass potential of the system. |
RESET | Reset of the system, activated by low state. Default high state - internally pulled up to VCC (pull-up). The pin tolerates 5V voltage. |
CS | Chip select - SPI bus device selection. activated by low state. Default high state - internally pulled up to VCC (pull-up). Pin tolerates 5V voltage. |
SCK | SPI bus clock input. The pin tolerates 5V. |
AI | SPI bus input data line. The pin tolerates 5V. |
SO | SPI bus output data line. The pin tolerates 5V. |
CLKOUT | Programmable output clock line. |
OX | Should be left unconnected. |
INT | Internal interrupt output. |
