Product description: Fermion - high precision temperature sensor - STS35 - DFRobot SEN0434
Temperature sensor with built-in STS35 system. It enables temperature measurement in the range from -40 ° C to + 125 ° C with high measurement precision ± 0.1 ° C. The obtained measurement has a resolution of 0.01 ° C. The module is characterized by reliability and durability , as well as low power consumption.
The product is compatible with Arduino
The manufacturer provides a user guide that contains instructions for connecting the module and sample program code.

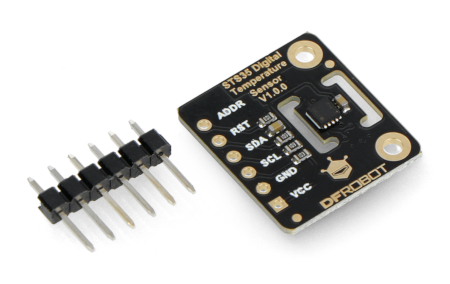

The set also includes a 1x6 goldpin strip, 2.54 mm pitch for self-soldering.

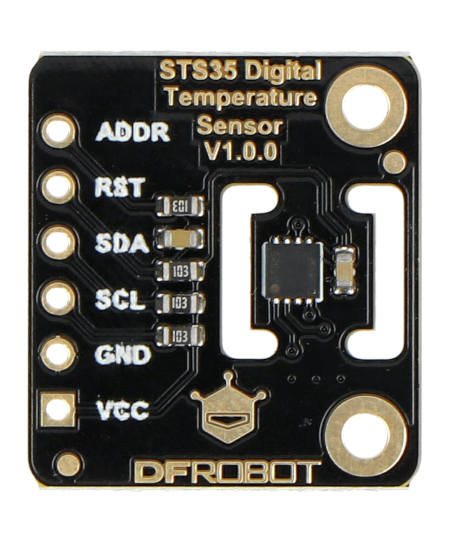

Fermion - high precision temperature sensor - STS35 - DFRobot SEN0434.
Special features of the sensor
- Factory calibrated, with I2C signal at the output
- Wide temperature measurement range from -40 ° C to + 125 ° C
- High measurement accuracy with a resolution of 0.01 ° C and a maximum error of ± 0.1 ° C
- High reliability, long-term stability
Temperature sensor application
- Temperature monitoring in the grain / harvest hopper
- Precise temperature control in the laboratory
- Detection of the ambient temperature in the greenhouse
- Temperature measurement in an environment with variable humidity
How to connect the temperature sensor - pinout and connection diagram
- ADDR - configuration jumper to change the I2C address
- RST - RESET pin
- SDA - data line of the I2C bus
- SCL - clock line of the I2C bus
- GND - the ground of the system
- VCC - power pin
More information can be found in the user guide .

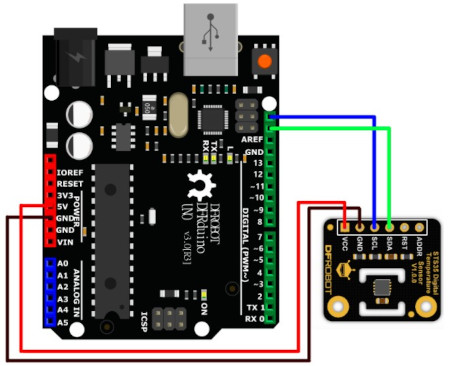

An example of connecting the sensor with the DFRduino board . The plate is not part of the set, it can be purchased separately.

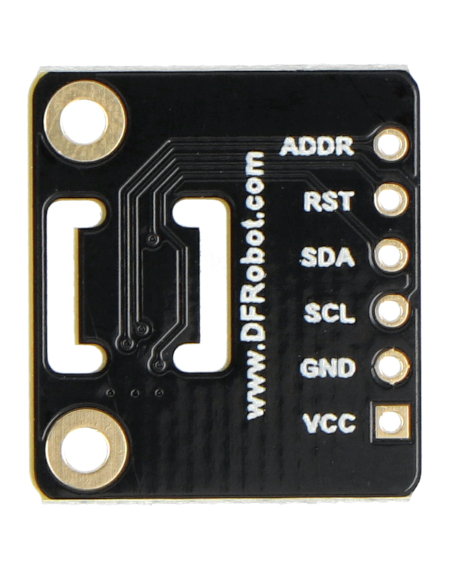

The module has two mounting holes with a diameter of 2 mm each.
Technical specification of the module
- Type: high precision temperature sensor
- Built-in chip: STS35
- Operating voltage range: 2.15 V to 5.5 V DC
- Power consumption: from 3.6 mW to 33 mW
- Communication interface: I2C bus
- I2C address:
- default - 0x4B
- configurable - 0x4A
- Measuring range: -40 ° C to + 125 ° C
- Measurement accuracy: ± 0.1 ° C
- Measurement resolution: 0.01 ° C
- Response time:> 2 sec
- Communication speed: up to 1 MHz
- Working temperature: from -40 ° C to + 125 ° C
- Conclusions: pads
- Tile sizes: 20 x 17.5 x 2 mm
Kit contents
- Fermion - high precision temperature sensor - STS35 - DFRobot SEN0434 - 1 piece
- Goldpin strip 1x6 pin - 2.54 mm raster - 1 piece
