Linear Actuator CAR+ 1000N 10mm/s 12V - 15cm stroke

Index: ELB-19963 EAN: 5905644490253
A linear electric actuator designed for 12 V systems. The maximum current consumption is 3 A. The device works at a speed of approx. 10 mm/s without load, its maximum load capacity is 100 kg (1000 N). The extension value is 15 cm and can be adjusted by means of limit switches. The housing of the actuator is entirely made of metal. The protection class is IP53. The CAR+ series models are equipped with rear mounting brackets. The product can be applied in such fields as agriculture, automotive, home automation and industry.
Linear Actuator CAR+ 1000N 10mm/s 12V - 15cm stroke
€64.90
€52.76 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Elektrobim

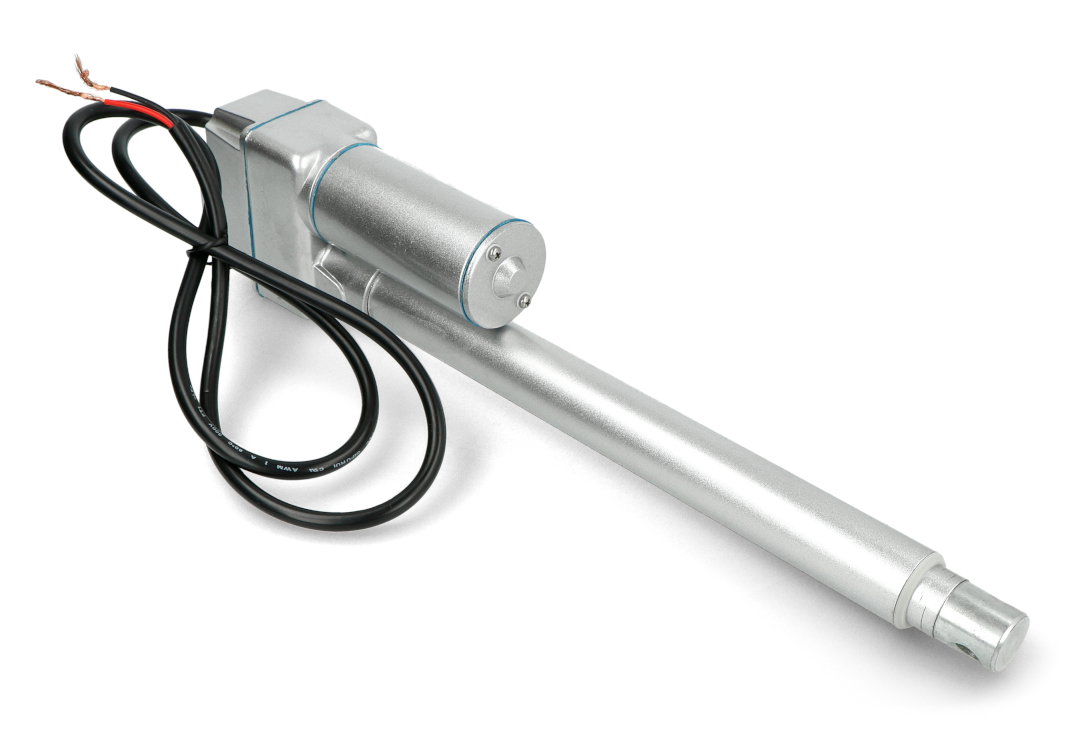

Product description: Electric actuator CAR+ 1000 N 10 mm/s 12V - 15 cm stroke

This linearelectric actuator is designed for 12 V systems. The maximum current consumption is 3 A. The actuator operates at a speed of approx. 10 mm/s, its maximum load capacity is 100 kg (1000 N). The extension value is 15 cm and can be adjusted by means of limit switches. The housing of the actuator is entirely made of metal. The protection class is IP53. The CAR+ series models are equipped with rear mounting brackets. The product is applied, among others, in such fields as agriculture, automotive, home automation and industry.

CAR+ series rope actuators are available with extension lengths of: 15 cm, 20 cm, 25 cm, 30 cm, 40 cm.

Siłownik elektryczny CAR+ 1000 N 10 mm/s 12 V - wysuw 15 cm

Electric actuator CAR+ 1000 N 10 mm/s 12 V - extension 15 cm.

Siłownik liniowy CAR+ - wysuw 15 cm
Linear actuator CAR+ - extension 15 cm.

Advantages of the CAR+ actuator

  • Robust manufacture using high quality materials
  • Stable operation for high extension precision
  • A mounting bracket at the back of the housing facilitates correct installation of the actuator
  • Designed for use in 12 V systems
  • Protection class IP53 ensures resistance to weather conditions
  • Extension can be adjusted (from several mm to nominal value) using limit switches

Examples of actuator applications

  • Agriculture - moving elements of ploughs, orchard platforms, sprayers, henhouse doors
  • Home automation - DIY projects, lifting elements of: desks, tables, beds, flaps, tilt windows
  • Vehicles - opening the trunk lid, gas control
  • Industry - use as an executive element in various production lines

Specification for linear actuator CAR+
Wymiary siłownika

Dimensions of CAR+ actuators.

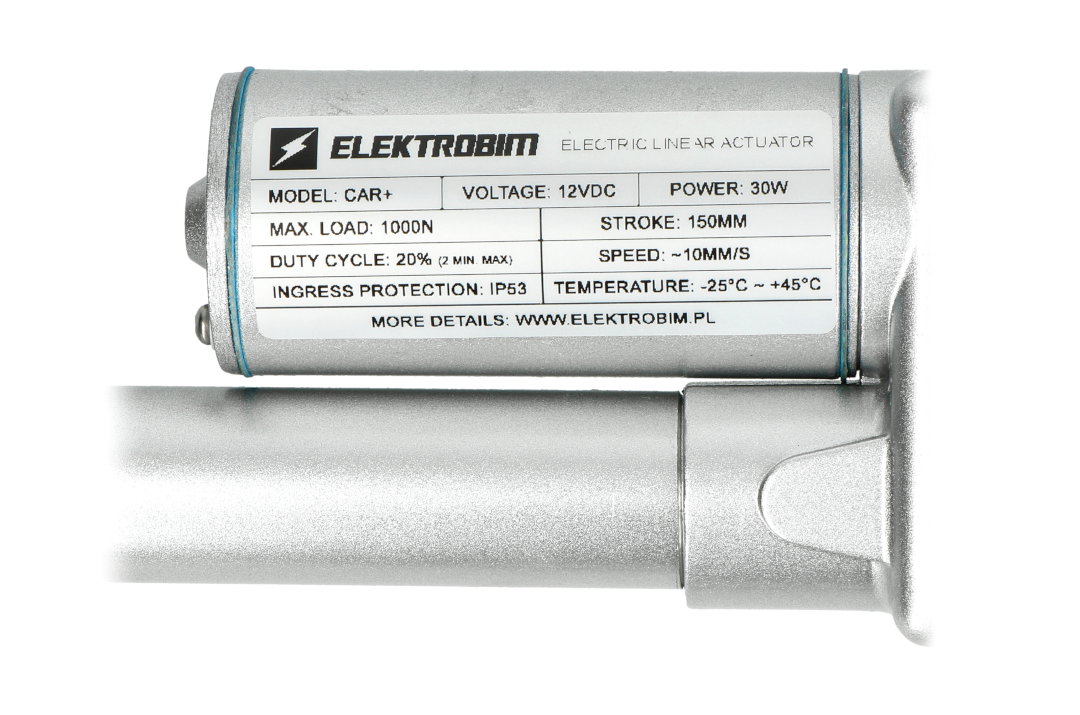

Technical specifications
Supply voltage 12 V
Maximum current 3 A
Load capacity 1000 N (100 kg)
Extension 15 cm
Pull-out speed (no load) approx. 10 mm/sec.
Protection class IP53
Protections limit switches
Duty cycle 20% (max. 2 min. continuous operation)
Working temperature from -25°C to 45°C
Torque 100 kg*cm
Voltage nominal 12 V
Motor - linear speed 10 mm/s
Motor - eject 15 cm
Package width 8 cm
Package height 4.5 cm
Package depth 39 cm
Package weight 0.96 kg
