Product Description: M5Stamp C3 Mate with goldpin strips
The M5Stamp C3 module from M5Stack, features the Espressif ESP32-C3 Risc-V microcontroller with WiFi and Bluetooth wireless connectivity for IoT devices. The combination of RSA-3072-based secure boot chip and AES-128-XTS-based Flash memory encryption ensures the secure use of Bluetooth communication, thus it is also an optimal device for industrial IoT and data collection applications.
The Stamp C3 is based on a 32-bit microcontroller clocked at 160 MHz and has 400 kB of RAM and 4 MB of Flash memory. It supports Bluetooth 5 LE communication and long-range and mesh networking features.

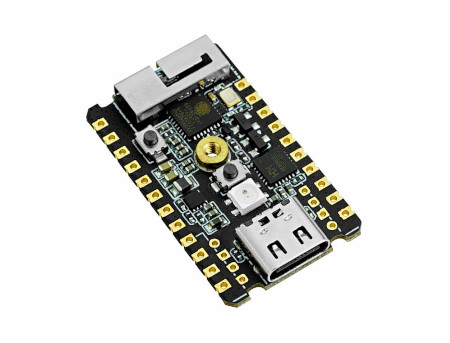

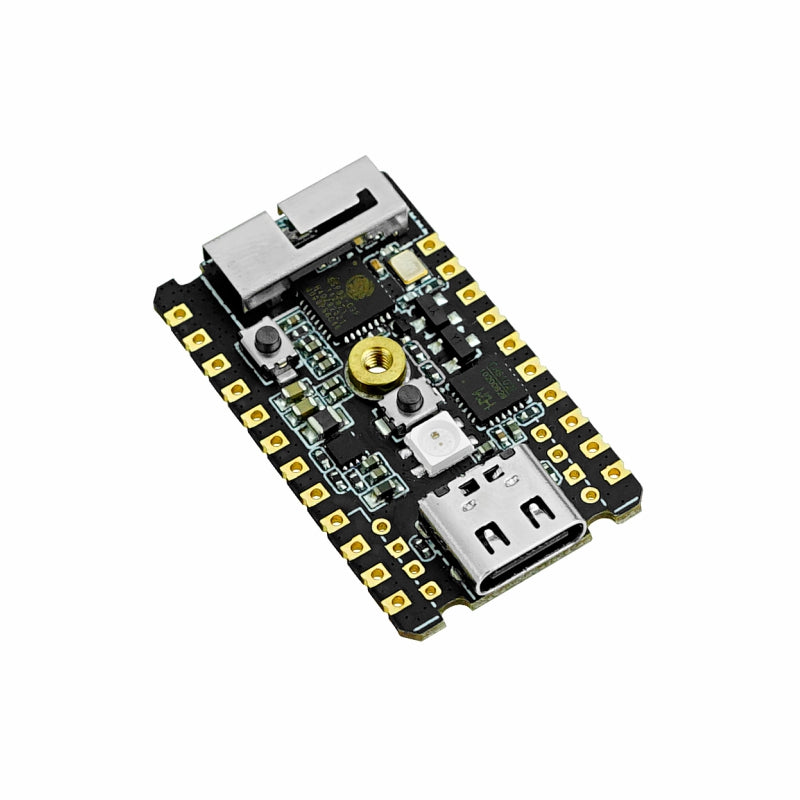

M5Stamp C3.

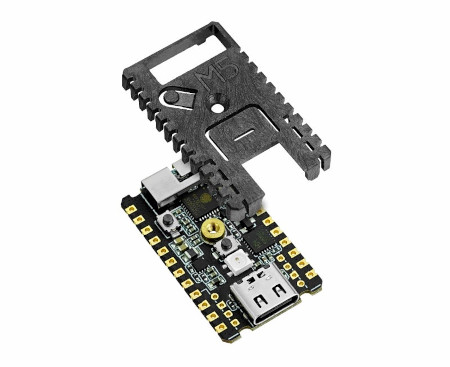

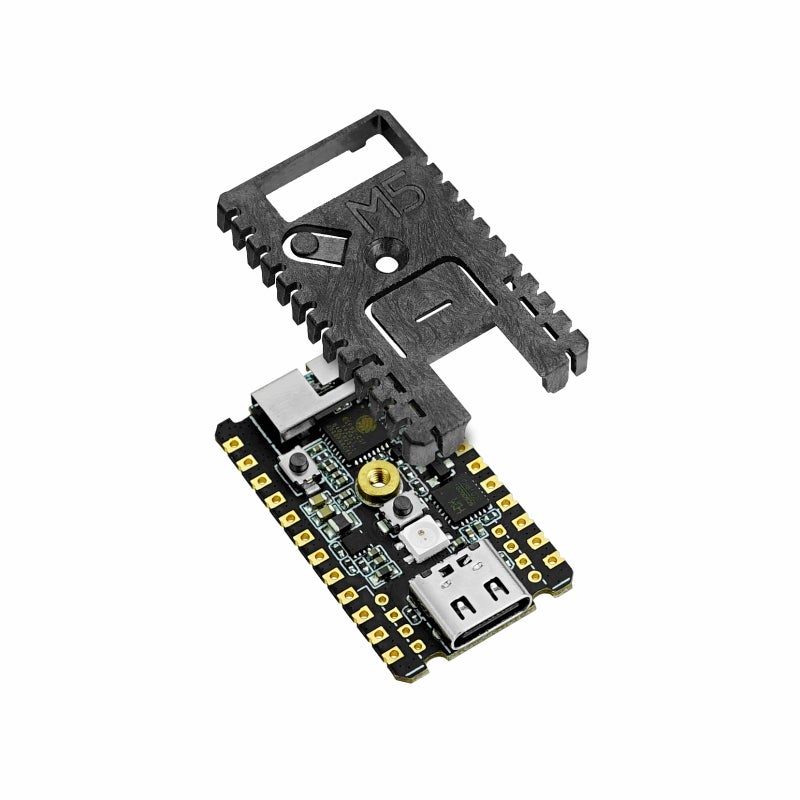

Module with overlay.
Features of the M5Stamp C3 module
- Three types of soldering options are available (SMT, DIP, flywire), with heat-resistant plastic housing, maximum temperature of 230°C,
- Stamp C3 has 5V - 3.3V DC/DC voltage converter, GPIOx13, programmable RGB LED x1, Reset button x1, push button x1, 3D antenna, providing stable and reliable wireless communication,
- Stamp C3 is fully compatible with Arduino, ESP32-IDF and other popular development platforms to quickly create various applications (UIFlow support coming soon).
M5Stamp C3 Mate Kit Contents:
- 1 x M5Stamp C3
- 1 x heat resistant cap
- 2 x 9 pin strip - 2.54 mm pitch
- 2 x 6 pin strip - 2.54 mm pitch
- 2 x 90° Grove connector
- 1 x hexagonal wrench M2
Practical use of the M5Stamp C3 Mate kit
- DIY
- Home Appliances
- Industrial automation

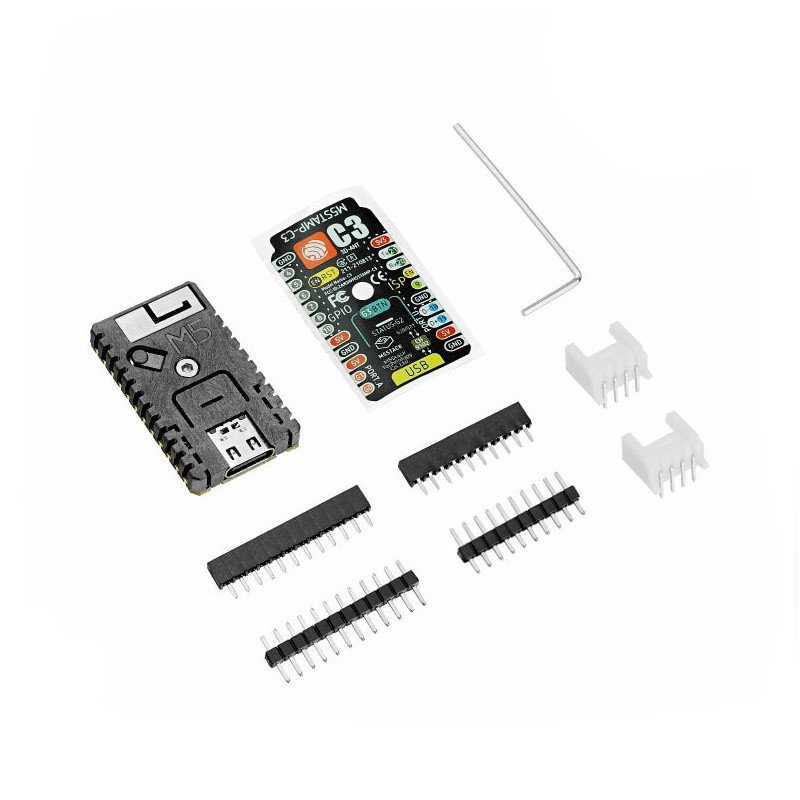

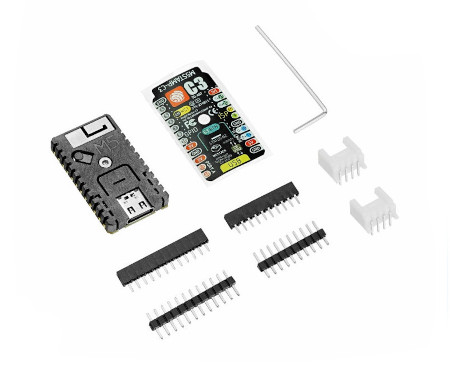

Kit contents.

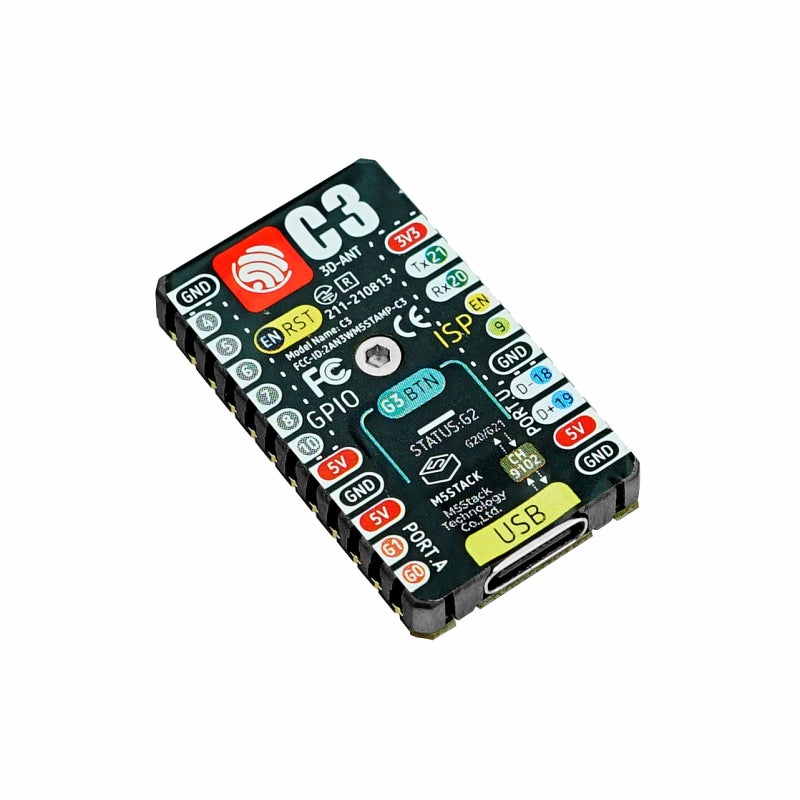

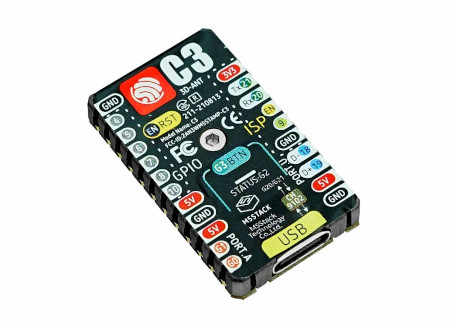

M5Stamp C3.
M5Stamp C3 Mate kit specification
- ESP32-C3: 32-bit single core RISC-V processor clocked at 160 MHz
- Memory: 384 kB ROM, 400 kB SRAM, 8 kB RTC SRAM, 4 MB Flash
- WiFi: 2.4 GHz band supports 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n protocol, data rate up to 150 Mbps
- Bluetooth 5, supported data rates 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
- Input voltage: 5 V / 500 mA
- HMI: Programmable physical button x 1, debug reset button x 1, programmable RGB LED (SK6812) x 1
- 1 x USB C interface
- Antenna Type: 2.4 GHz 3D antenna
- Peripheral module interfaces: ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial port, TWAI
- IO interface x13: G21, G20, G9, G18, G19, G1, G0, G10, G8, G7, G6, G5, G4
- Raster: 2.54 mm
- Product Dimensions: 34 x 20 x 4.5 mm
- Weight: 3.8 g
