Product description: Motherboard for Elegoo Neptune 4 / 4 Pro 3D printers
This original Elegoo motherboard is designed specifically for the Elegoo Neptune 4 and 4 Pro 3D printers . An integrated, quad-core 64-bit ARM processor clocked at 1.5 GHz ensures high performance and stability. The board has 8 GB of ROM and preinstalled Klipper firmware , enabling print speeds of up to 500 mm/s and acceleration of up to 12,000 mm/s². It supports advanced features such as input shaping, pressure advance, and automatic resonance compensation thanks to vibration sensors on the X and Y axes. This is a genuine spare part for the Neptune 4 and 4 Pro printers, ensuring full compatibility and reliability.

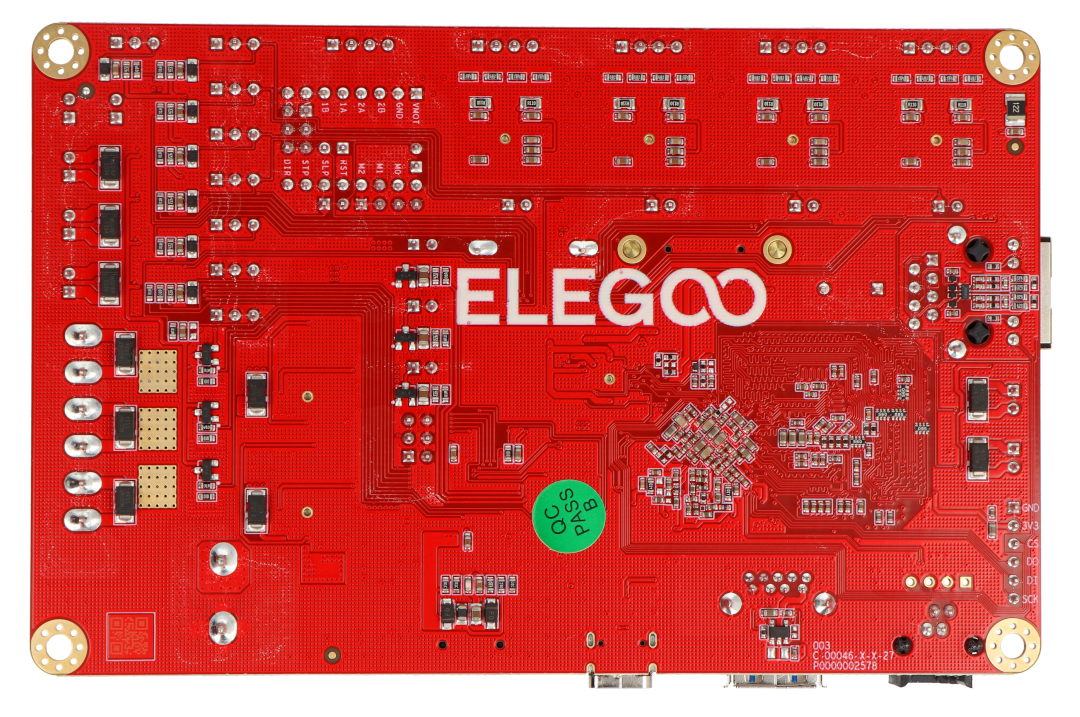

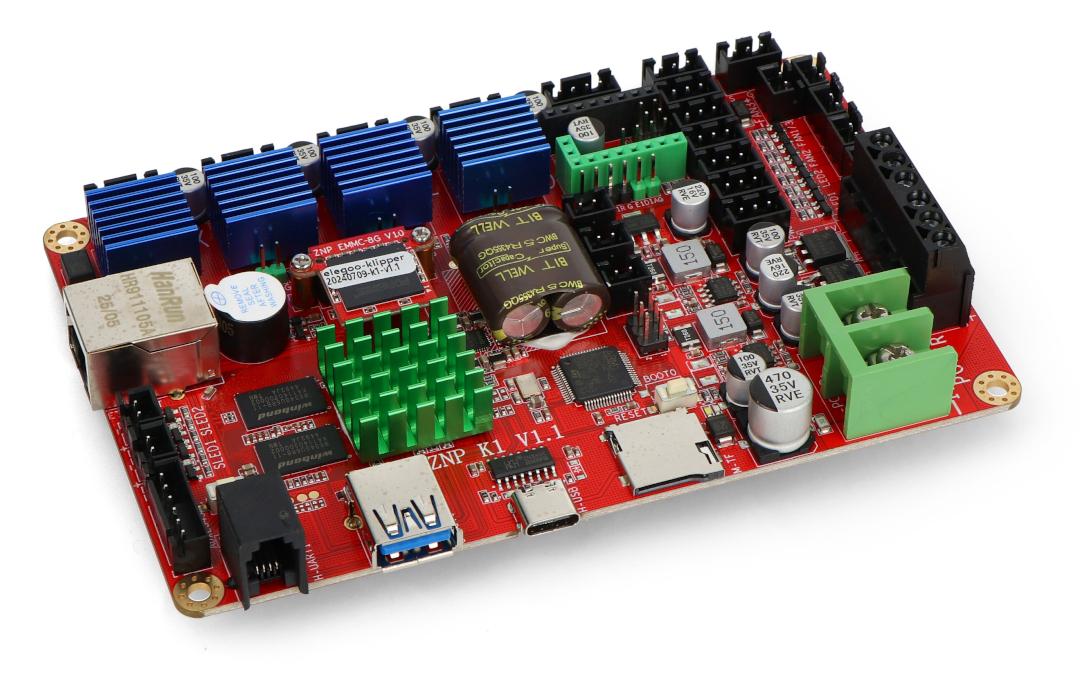

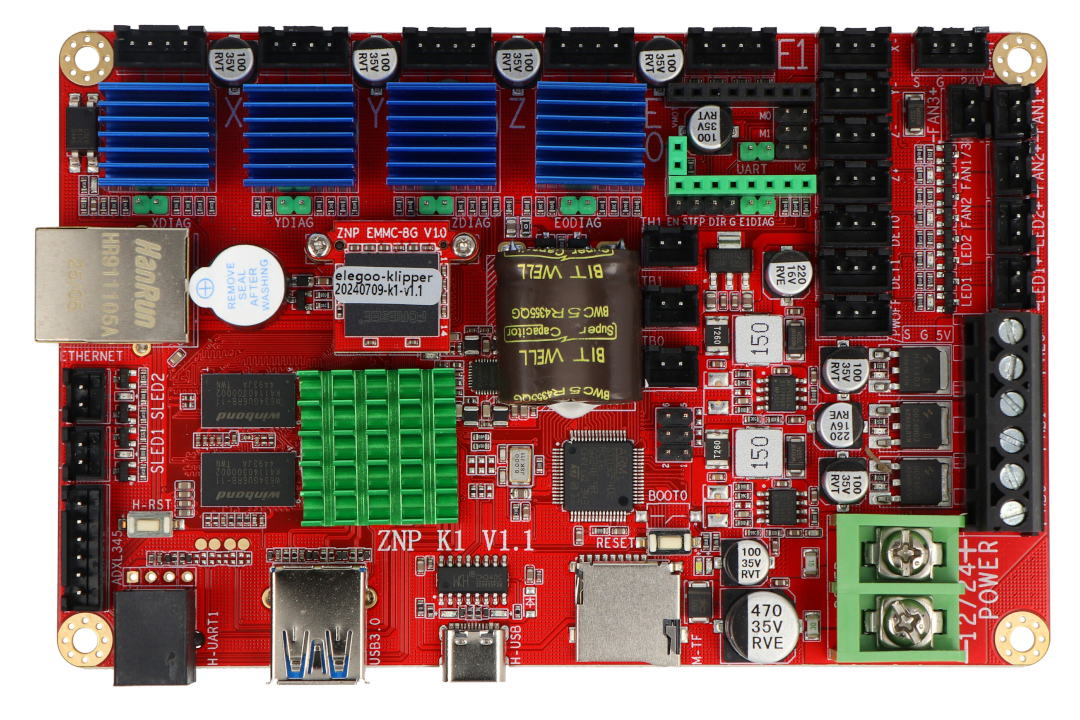

Motherboard for Elegoo Neptune 4 / 4 Pro 3D printers.
Original motherboard for Elegoo Neptune 4 and 4 Pro 3D printers.
Main features of the motherboard
- Quad-core ARM 64-bit processor, 1.5 GHz : guarantees fast data processing and smooth operation even with large models
- 8GB ROM : allows you to store multiple print files without having to constantly connect via USB
- Pre-installed Klipper firmware : advanced print control with greater precision and configurability
- Input shaping and pressure advance support : improve print quality by eliminating ghosting and excess filament
- X/Y accelerometer support : automatic resonance compensation for even better prints
- 24V power supply : compatible with Elegoo printer power supply system
- Fully compatible : designed for Neptune 4 and Neptune 4 Pro - ideal as a service part
Practical applications
The motherboard for Neptune 4 and 4 Pro 3D printers is used as an original spare part for repairing the electronics in this series of printers. Its high performance, Klipper compatibility, and advanced control features make it an essential component for maintaining or restoring the full functionality of the device . Ideal for home users, semi-professionals, and hobbyists.
Motherboard technical specifications
- Compatibility: Elegoo Neptune 4 / Neptune 4 Pro
- Processor: Quad-core, 64-bit, 1.5 GHz (ARM architecture)
- ROM: 8GB
- Firmware: Klipper (factory installed)
- Max. print speed: up to 500 mm/s
- Max acceleration: up to 12000 mm/s²
- Supported functions: input shaping, pressure advance, resonance auto-tuning
- Accelerometer support: X-axis, Y-axis
- Ports: USB, LAN, TF (microSD), USB type C
- Interfaces: stepper motors, thermistors, endstops, fans, heated bed, touchscreen
- Power supply: 24V DC
Contents of the set
- 1x Motherboard for Elegoo Neptune 4 / 4 Pro 3D Printers
The board is equipped with a quad-core ARM 64-bit 1.5 GHz processor, 8 GB ROM.
