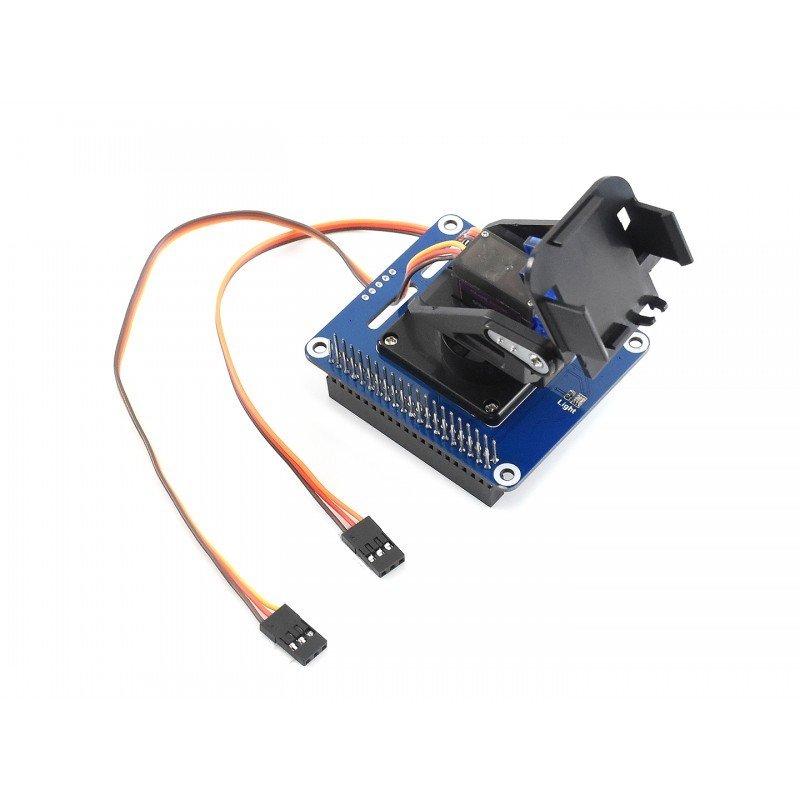

Product description: Pan-Tilt HAT - cap with camera holder for Raspberry Pi
DedicatedRaspberry PiPan-Tiltsetwitha basket for installing the camera.Two-axisbracket equipped with two servers, installed on a board compatible with R Pi mini-computer. Self-assembly kit. Thanks to it you can create, among others, face tracking system, motion monitoring and many other interesting projects.
An example of using Pan - Tilt bracket withmini-computerand camera.
The subject of sale is the cap itself. Raspberry and camera must be purchased separately.
Functionality of the overlay
The overlay offered is dedicated to Raspberry Pi Zero / Zero W / Zero WH / 2B / 3B / 3B+ minicomputers, so it fits perfectly. The board has a built-in PCA9685 chip providing 12-bit PWM signal resolution, which ensures accurate and smooth motion. It is also equipped with a light intensity sensor controlled together with a motion detection module via the I2C communication interface. Thus, only 2 pins are required to operate these functions. The board-mounted light converter TSL2581FN with integrated analog-digital converter ensures high sensitivity of the module.

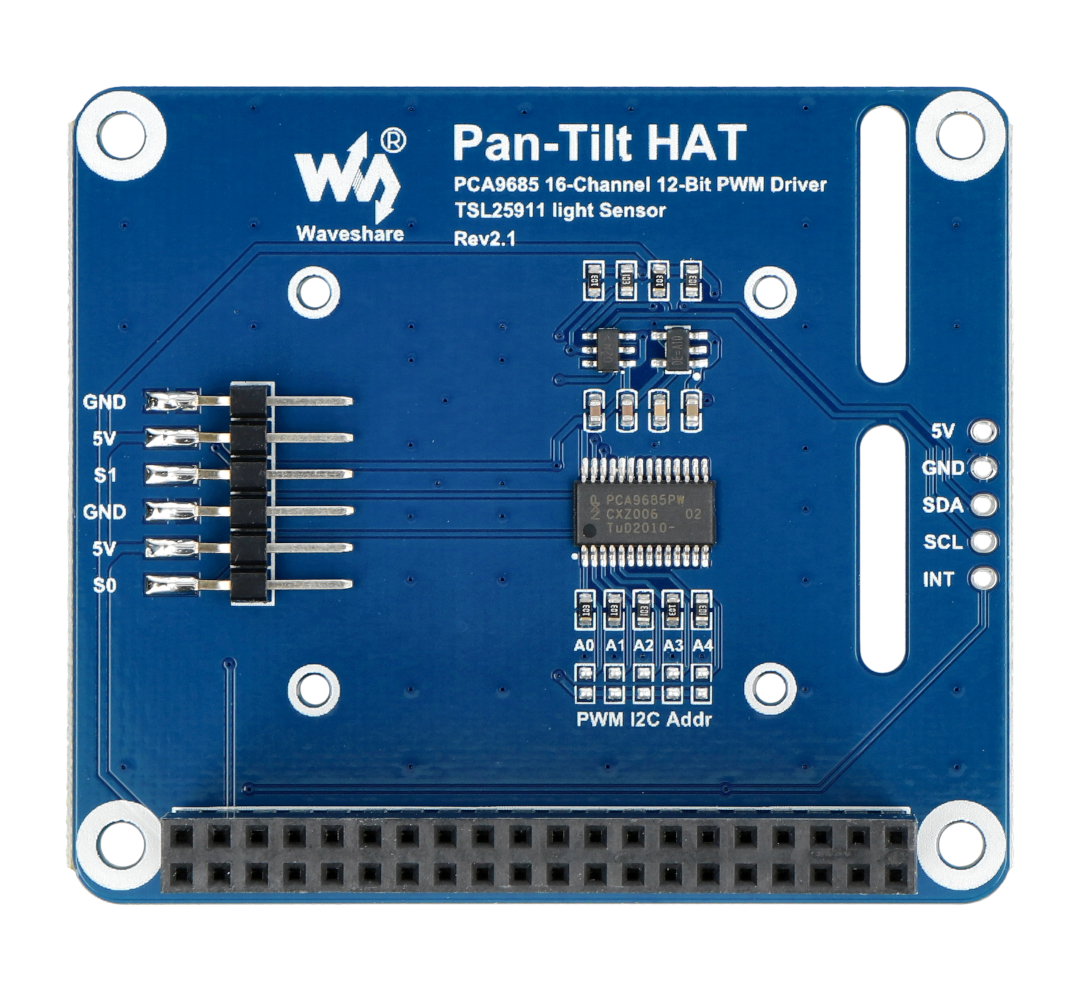

Pan-Tilt holder plate for Raspberry Pi.
Specification of the camera mount plate
- PWM controller: PCA9685
- PWM resolution: 12 bit
- Light sensor: TSL2581FN
- Sensor resolution: 16 bit
- Communication interface: I2C
- The tension of work: 3.3 V or 5 V
- Dimensions: 56.6 x 65 mm
The set includes
- Plate(s) Pan - Tilt - 1 pc.
- Two-axis servo holder Pan - Tilt - 1 pc.
- SG90 servo - 1 pc.
- MG90S servo - 1 pc.
- Acrylic plate for camera mounting - 1 pcs.
- Screws and nuts M2
- Pack of Raspberry Pi screws - 1 pc.
