Fermion - AS7341 11-channel visible light sensor - DFRobot SEN0365

Index: DFR-19201
A module manufactured by DFRobot with an embedded AS7341 chip. It is an 11-channel visible light sensor that uses a new generation of chip, the spectral sensor. The module has eight visible light channels, one near-infrared channel and one filterless channel. Additionally, it also has one channel dedicated to ambient light flicker detection. The sensor from DFRobot is equipped with 6 independent 16-bit ADC channels that allow parallel data processing.
€20.68
€16.81 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: DFRobot

Product description: Fermion - AS7341 11-channel visible light sensor - DFRobot SEN0365

A module manufactured byDFRobotwith an embeddedAS7341chip. It is an 11-channel visiblelightsensor that uses a new generation of chip -the spectralsensor. The module has eightvisible lightchannels, onenear-infraredchannel and onefilterlesschannel. Additionally, it also has one channel dedicated toambient light flicker detection. The sensor fromDFRobotis equipped with 6 independent16-bit ADC channelsthat allow parallel data processing.

Theproduct is compatible with Arduino
. The manufacturer prepared detaileduser guideandlibrary with sample program codefor Arduino IDE environment.

Fermion - AS7341 11-kanałowy czujnik światła widzialnego

Fermion - AS7341 11-channel visible light sensor.

Przykładowy schemat połączenia czujnika z wykorzystaniem płytki DFRobot, odpowiednika Arduino.


Example diagram of sensor connection using DFRobot board, Arduino equivalent. The board is not a part of the kit, you can buy it separately in our shop.

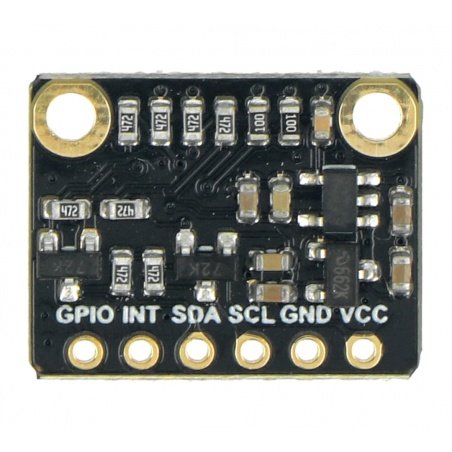

Leads description and example connection diagram

The module hasleadsin the form of solderfields, to which you should solder includedgoldpin connectors. Connect thesensorto the microcontroller module according to the following description:

  • VCC- power supply pin from 3,3 V to 5 V
  • GND- system ground
  • SCL- I2C interface clock line
  • SDA- I2C interface data line
  • INT- interrupt pin (activated by low state)
  • GPIO- general purpose input/output pin

Technical specification of the visible light sensor from DFRobot

  • Module: visible light sensor
  • Embedded chip: AS7341
  • Number of channels: 11
  • Visible light detection ranges:
    • F1 - from 405 nm to 425 nm
    • F2 - 435 nm to 455 nm
    • F3 - 470 nm to 490 nm
    • F4 - 505 nm to 525 nm
    • F5 - 545 nm to 565 nm
    • F6 - 580 nm to 600 nm
    • F7 - 620 nm to 640 nm
    • F8 - 670 nm to 690 nm
  • Input voltage range: 3.3 V to 5 V
  • Operating current (diode off): < 5 mA
  • LED control current: class 1-20 (4 mA to 42 mA)
  • Communication interface: I2C bus
  • Interface address: 0x39
  • Operating temperature range: from -30°C to 85°C
  • Operating humidity range: from 5% to 85% RH
  • Module dimensions: 18 x 14 mm

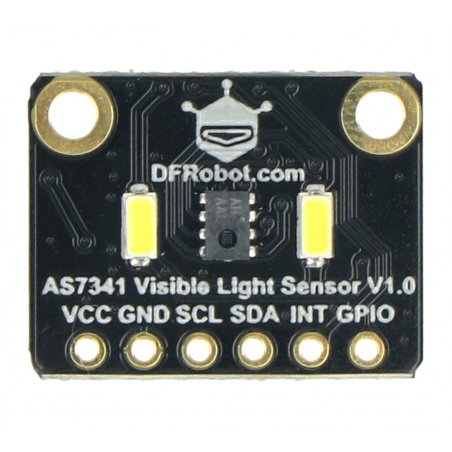

Czujnik z wbudowanym układem AS7341.Sensor with built-in AS7341 chip.
Zakresy światła widzialnego.

Visible light ranges.

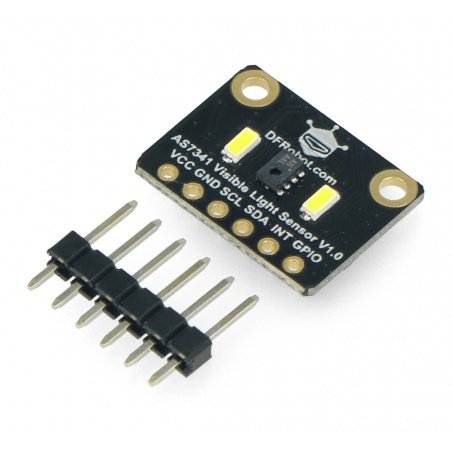

Zestaw zawiera dedykowane złącza goldpin przeznaczone do samodzielnego przylutowania.

Kit includes dedicated goldpin connectors for self-soldering.

Special features

  • 8 optical channels covering the visible spectral range
  • 50 Hz and 60 Hz ambient light flicker detection
  • 6 independent 16-bit ADC channels
  • Precision colour detection and matching
  • Detection of colour mixing effect
  • Can be used to adjust the color temperature of lighting, among other things

Kit contents

  • 11-channel visible light sensor AS7341
  • 1x6 goldpin strip - 2.54 mm pitch
