Product description: Double-sided PEI overlay - smooth + textured - no magnetic sticker - for Snapmaker Artisan 3D printer
The double-sided PEI build plate is designed specifically for the Snapmaker Artisan printer, offering a textured surface on one side and a smooth surface on the other , providing flexibility for 3D printing. The PEI surface ensures excellent first-layer adhesion , reduces warping, and improves print quality. Once the print is complete and the build plate cools, simply bend it slightly to release the model. The product is sold without a magnetic sticker , making it an ideal choice for users who already own a compatible magnetic base.

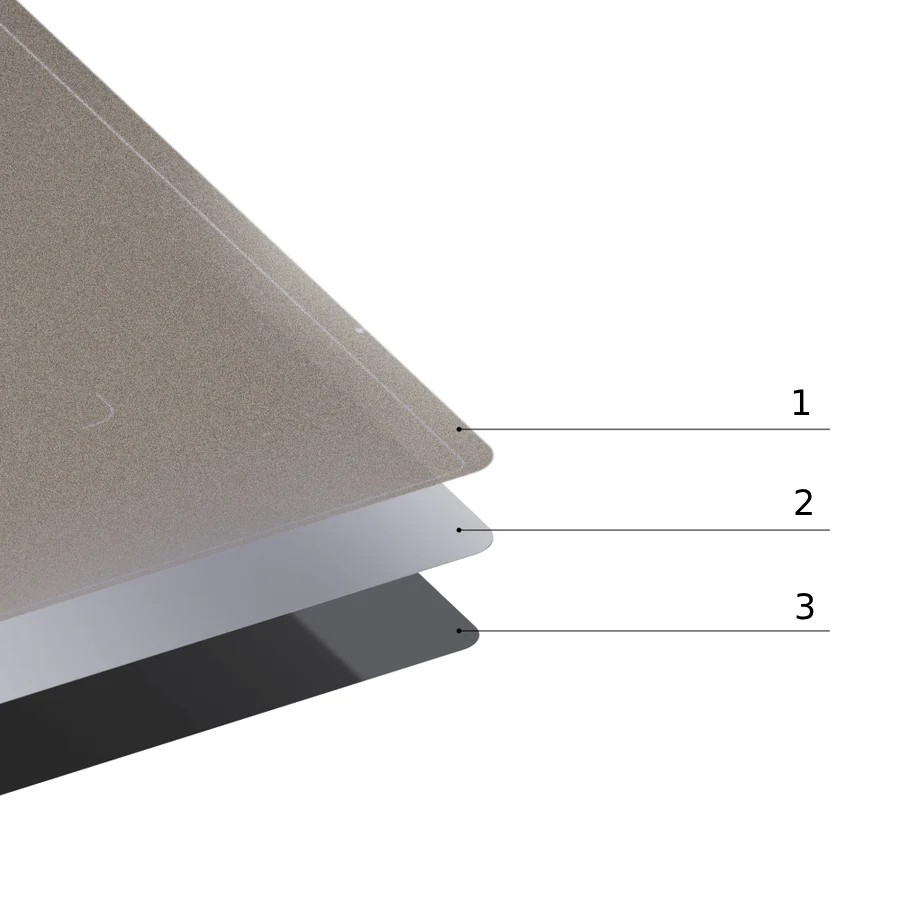

1 - Textured PEI, 2 - Stainless steel plate, 3 - Smooth PEI.
The models peel off automatically at room temperature, and larger prints can be easily removed by bending the sheet.
Main features of the overlay

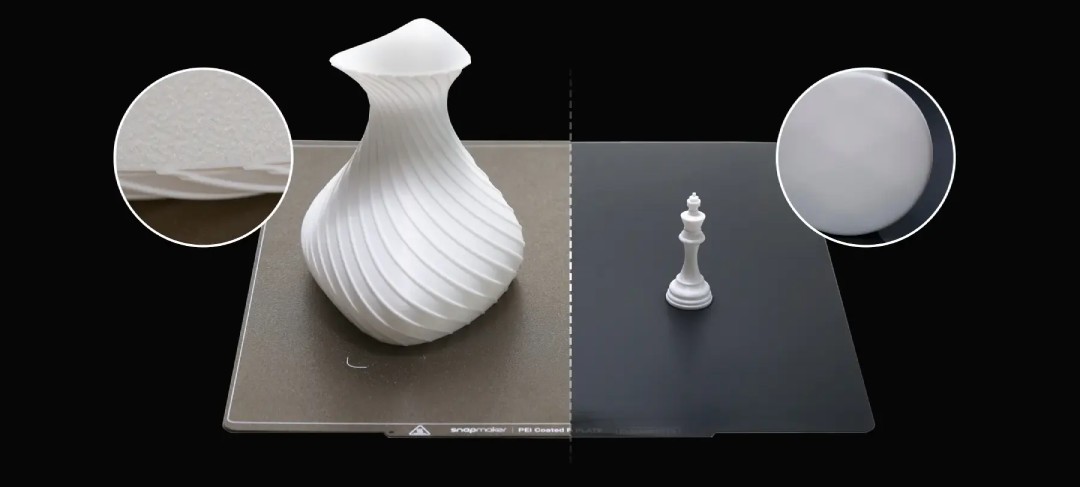

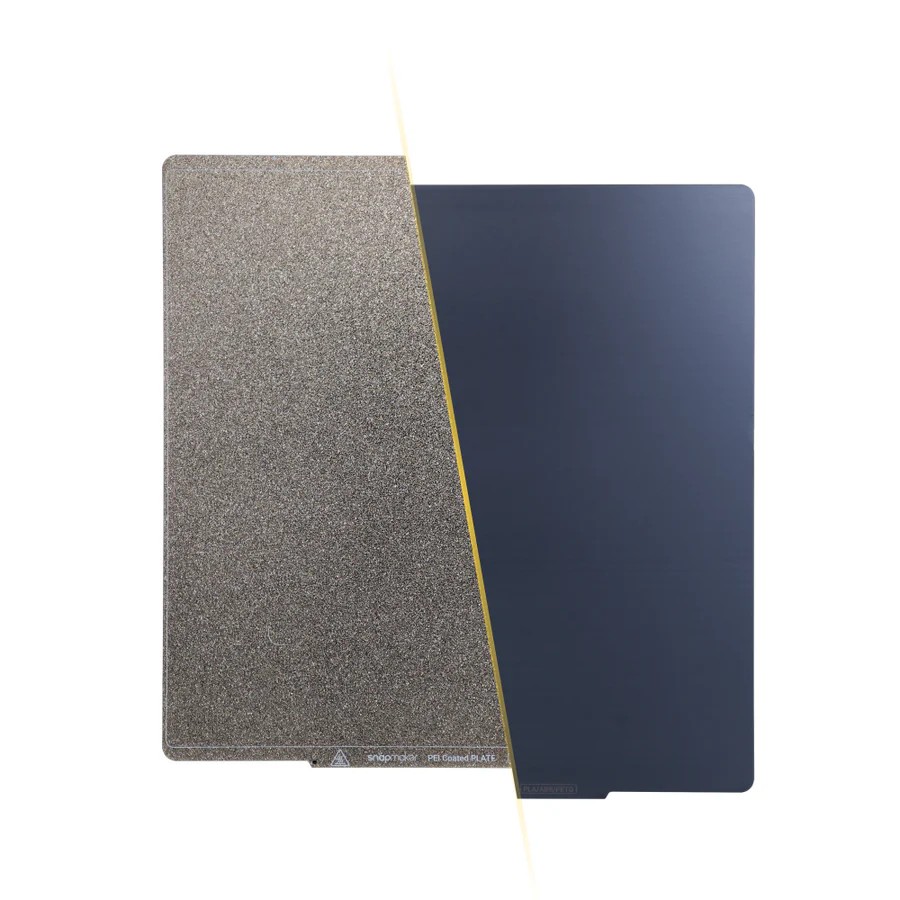

- Double-sided build surface : smooth for precise prints and textured for large models with high adhesion
- Convenient model removal : simply bend the plate to remove the print without damage
- Artisan Compatible : Perfectly matched to the Snapmaker Artisan heating platform system
- Heat resistance : up to 80°C for the smooth side and up to 110°C for the textured side
- Fast heating : reduced start-up time thanks to good thermal conductivity
Advantages of double-sided PEI board
The smooth PEI side is ideal for prints requiring high precision and a smooth surface, such as small-scale visual or mechanical components. The textured side, on the other hand, provides excellent adhesion for larger, functional models. The PEI steel plate not only simplifies work but also reduces the risk of damaging models or the build surface . It's recommended to avoid using highly adhesive filaments (PETG, TPU) on the smooth side and to cool the platform before removing the print.
Textured PEI supports heat up to 110°C, and smooth PEI up to 80°C.
Technical specifications of the double-sided PEI overlay
- Compatibility: Snapmaker Artisan
- PEI plate thickness: 0.5 mm
- Surface heat resistance: < 180°C
- Maximum operating temperature: smooth up to 80°C, textured up to 110°C
- Working dimensions: 400 x 400 mm
Contents of the set
- 1x Double-sided PEI steel plate (smooth + textured)
Recommended filament settings
| Textured PEI side (up to 110°C) | |||
|---|---|---|---|
| Filament | Table temperature | Using Snapmaker Glue | The fan in the housing is turned on |
| PLA | From 65°C to 70°C | NO | Yes |
| ABS | From 80°C to 110°C | NO | NO |
| PETG | From 75°C to 85°C | NO | NO |
| TPU (≥ 90 Shore A) | From 25°C to 45°C | NO | Yes |
| Breakaway PLA | From 65°C to 70°C | NO | Yes |
| PVA | From 65°C to 70°C | NO | Yes |
| HIPS | From 80°C to 110°C | NO | NO |
| Nylon | From 70°C to 80°C | NO | NO |
| Carbon/glass fiber reinforced nylon | From 60°C to 70°C | NO | NO |
| Smooth PEI side (up to 80°C) | |||
| Filament | Table temperature | Using Snapmaker Glue | The fan in the housing is turned on |
| PLA | From 65°C to 70°C | NO | Yes |
| ABS | From 75°C to 80°C | NO | NO |
| Breakaway PLA | From 65°C to 70°C | NO | Yes |
| PVA | From 65°C to 70°C | NO | Yes |
| HIPS | From 75°C to 80°C | NO | NO |
| Nylon | From 70°C to 80°C | NO | NO |
| Carbon/glass fiber reinforced nylon | From 60°C to 70°C | NO | NO |
