Product description: DFRobot servo SER0050 - standard - 2Kg 180°
The servo brandDFRobotfeatures such as high torque, stable operation, precise working angle and easy installation. The operating voltage rangesfrom4.8 V to 6 V. With 6 V supply, the torque of the servo is2 kg*cm. Inside this servo, you will find no mechanisms to limit its movement, which makes it smoothly rotate 360° (manual only). The servo can operate smoothly with minimal power, and it can be powered by a regular battery. Furthermore, users can directly control the servo using the servo libraries in theArduinoIDE and let it reach a maximum rotation angle of 180° within a pulse range of 500 to 2500 μsec.
We also offercablesandservo controllers.
The servo can be controlled by a microcontroller e.g. .Arduino.

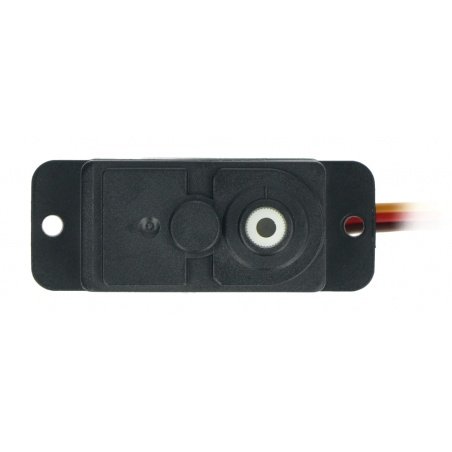

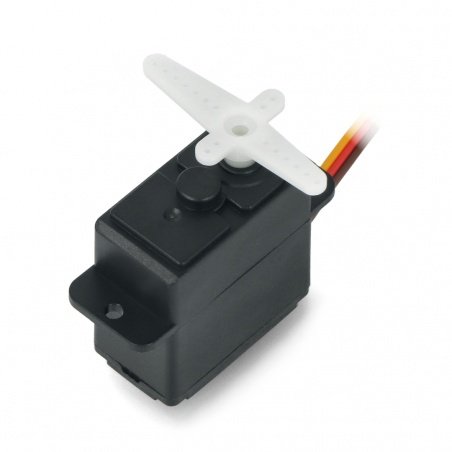

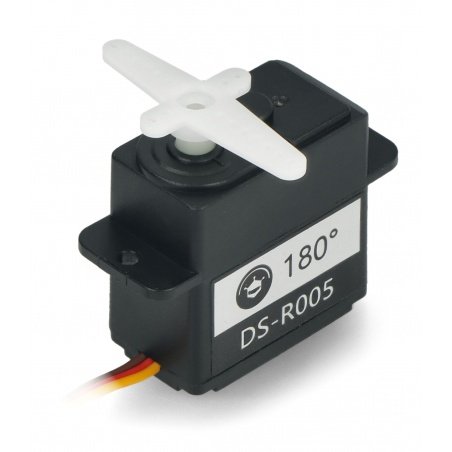

DFRobot servo SER0050 - 2Kg 180°

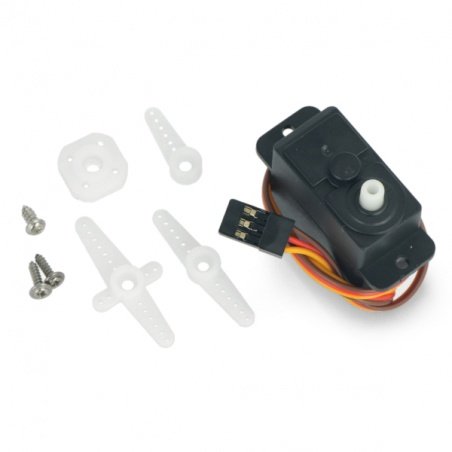

In the picture you can see the composition of the kit.
Technical specifications of the DFRobot servo SER0050
- Operating voltage: 4.8 V to 6 V
- Nominal current consumption: ≤8 mA at 6.0 V
- No-load current consumption:
- ≤110 mA at 4.8 V
- ≤120 mA at 6.0 V
- Current consumption when shaft is stopped:
- ≤700 mA at 4.8 V
- ≤800 mA at 6.0 V
- Rated torque:
- ≥0.45 kg*cm at 4.8 V
- ≥0.55 kg*cm at 6.0 V
- Torque:
- ≥1.6 kg*cm at 4.8 V
- ≥2.0 kg*cm at 6.0 V
- Working angle: 180° ± 10°
- Communication mode: PWM
- Pulse width range: 500 to 2500μs
- Dimensions: 42.4 x 16.6 x 31.5 mm
The kit includes
- Servo 2kg 180° x1
- Servo plate and accessories x1 (set of screws and orbs)
