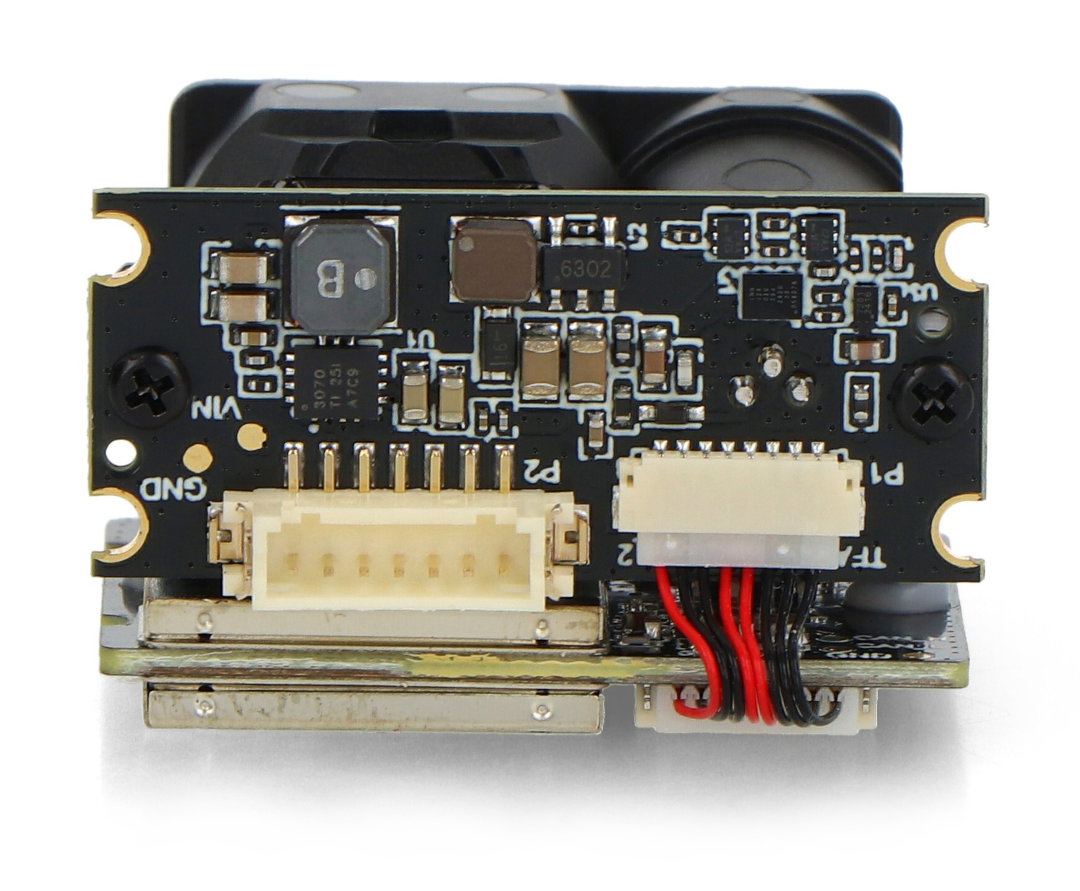

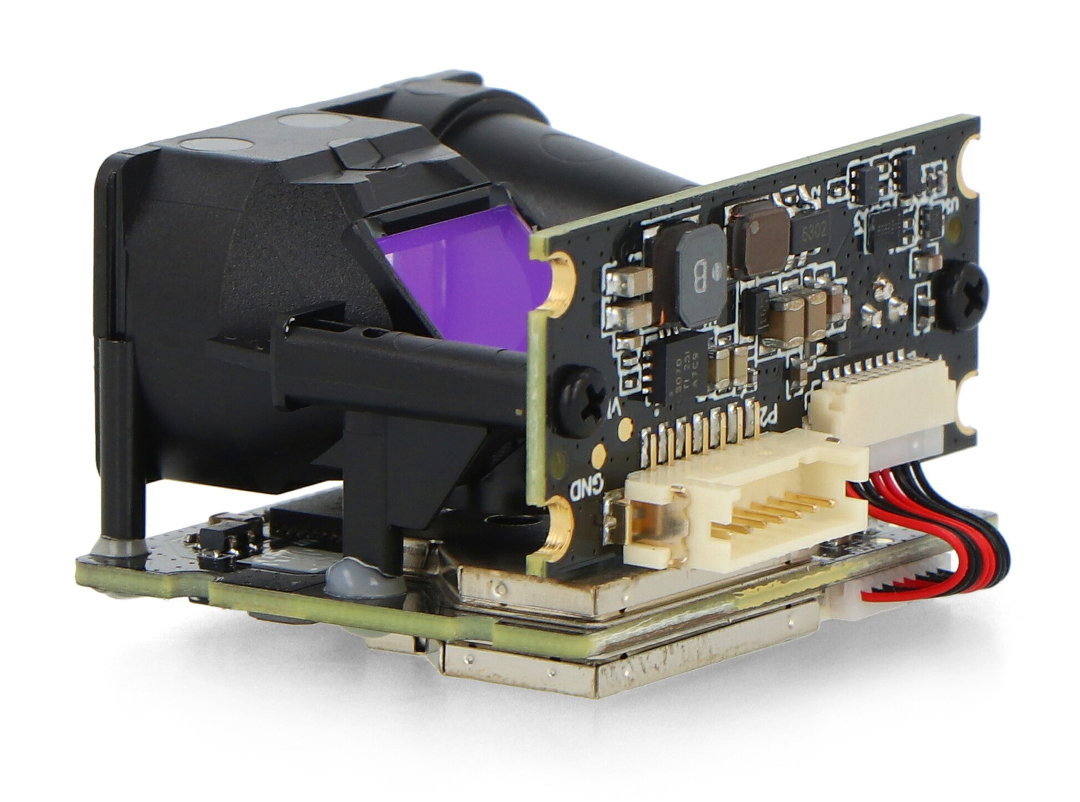

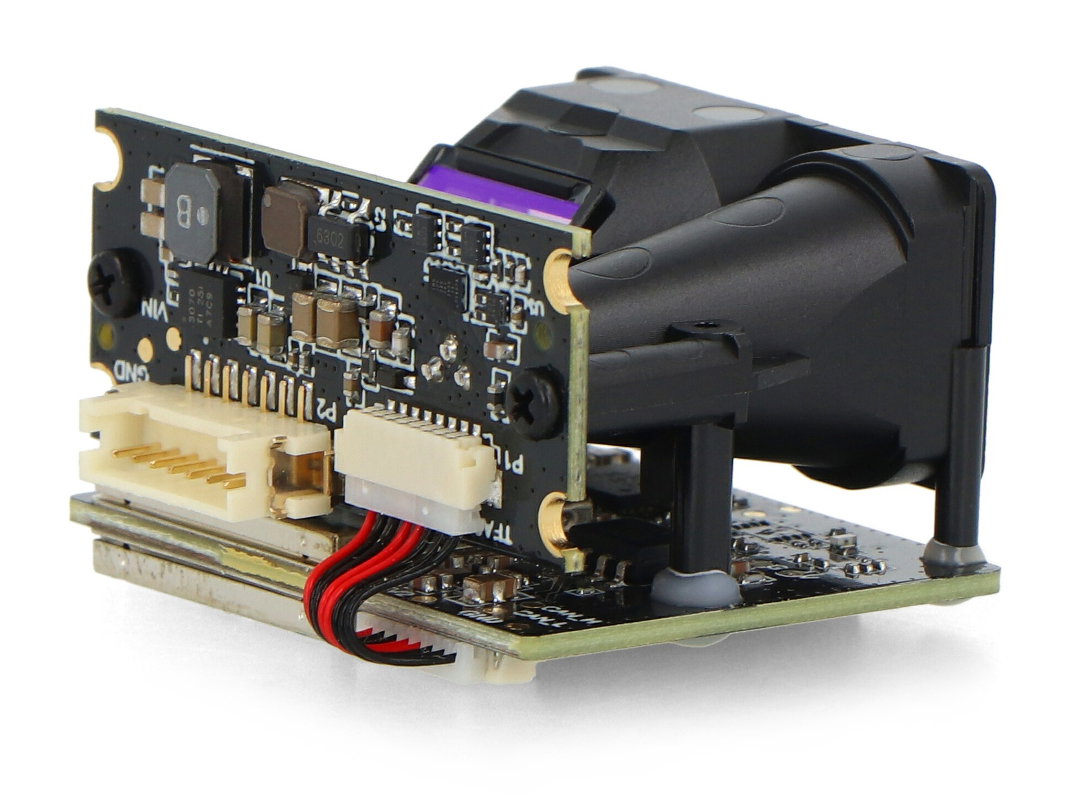

Product description: Lidar Laser Distance Sensor - UHF 10000 Hz - 290 m - UART / CAN - for Drones and UAVs - Benewake TFA300-L

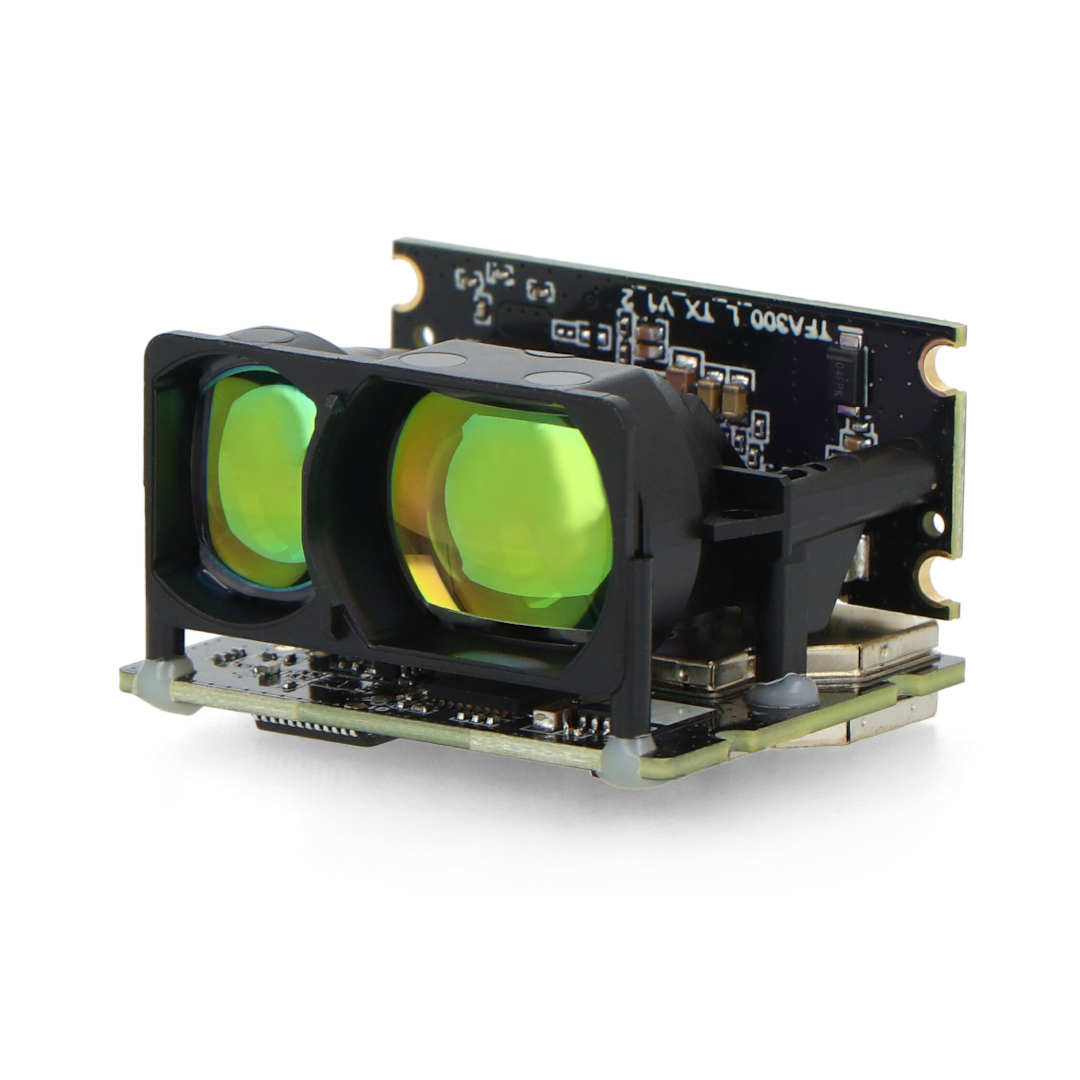

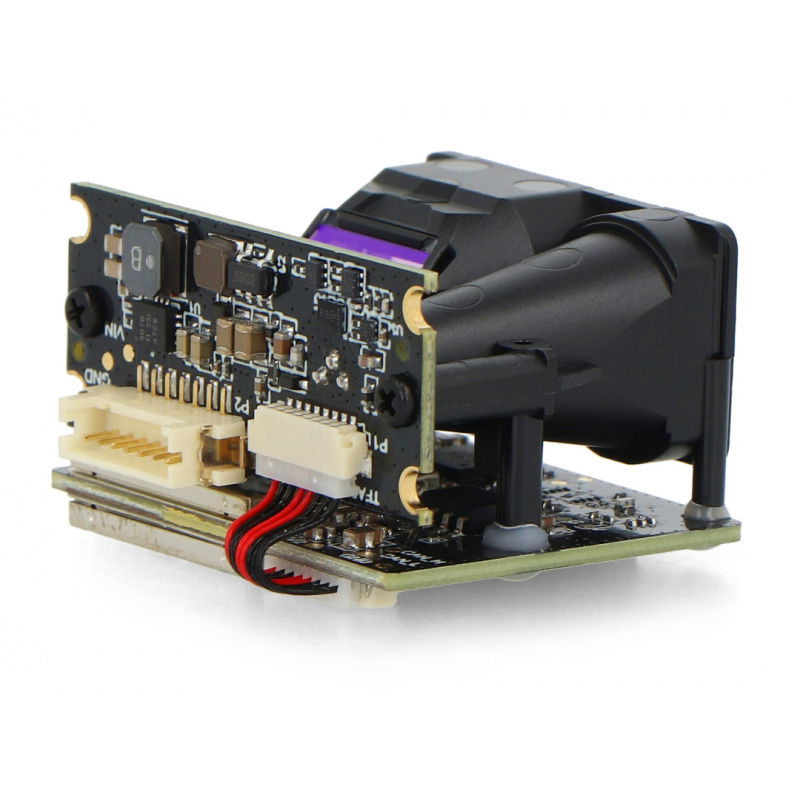

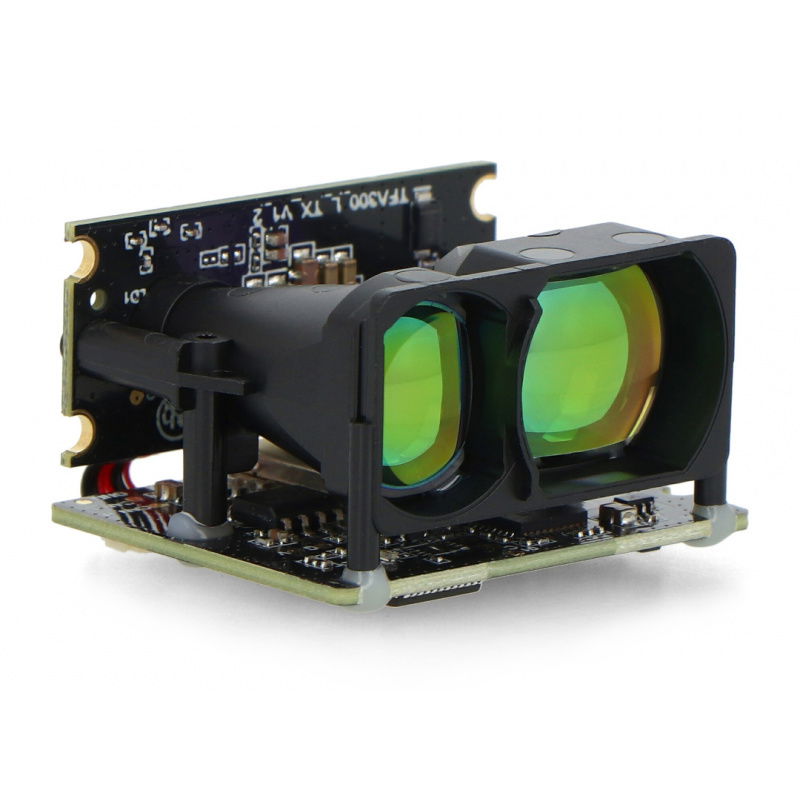

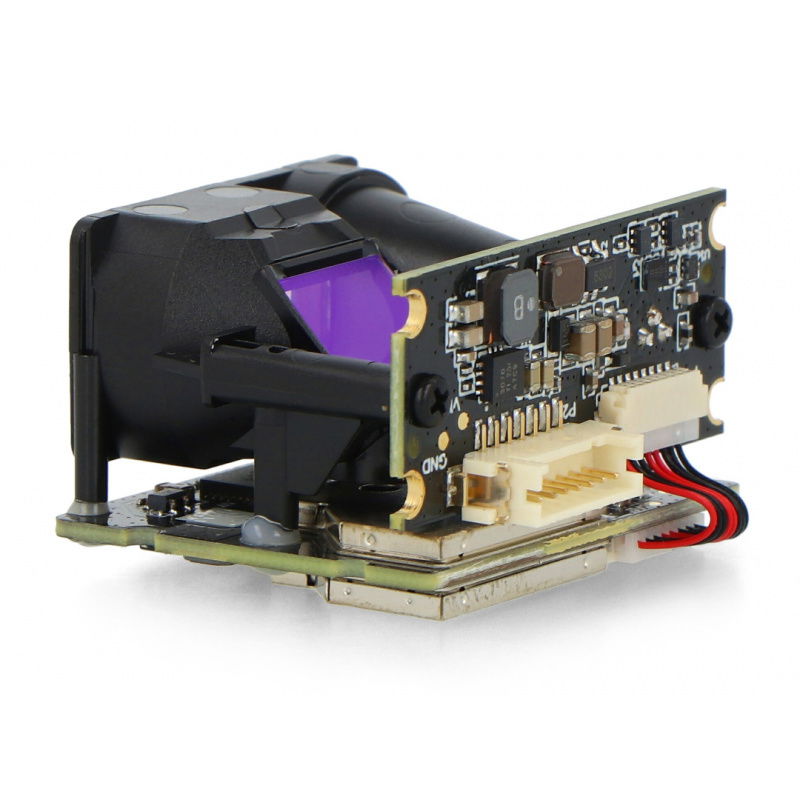

The TFA300-L LiDAR module combines lightweight design (10.5g) with high measurement frequency (up to 10,000Hz), enabling obstacle detection with exceptional speed and accuracy . The sensor monitors objects at a range of up to 290m and updates the distance in real time every 3.4cm , giving drones more time to react. The module's compact design facilitates integration with UAV platforms, EO/IR, FPV drones , and search and rescue (SAR) systems . It supports both CAN and standard JST GH connectors , offering full plug-and-play compatibility with popular flight controllers and a DroneCAN-compliant SDK. Resistant to harsh weather conditions, extreme temperatures, high light intensity, and dust, the TFA300-L ensures reliable operation in all conditions , minimizing false detections typical of conventional LiDAR systems.
Lidar Laser Distance Sensor - UHF 10000 Hz - 290 m - UART / CAN - for drones and UAVs - Benewake TFA300-L.
The TFA300-L LiDAR module combines lightweight design with high measurement frequency, allowing it to detect obstacles with very high speed and accuracy.Special features
- Ultra-high measurement frequencies: up to 10,000 Hz, enabling real-time object detection
- Lightweight design: weighs only 10.5g, easy integration into drones and EO/IR gimbals
- Compact dimensions: 32 x 30.2 x 20.2 mm, SWaP-C (Size, Weight, Power, Cost) optimization
- Long measurement range: up to 290 m with an accuracy of ±10 cm (<10 m), 1% (>10 m)
- Environmental resistance: operation at temperatures from -20°C to 60°C, resistant to light, dust, rain and fog
- Multi-interface: CAN, JST GH, SDK DroneCAN, enabling quick connection and integration
- High stability: minimizes false detections in challenging environments
Practical applications
- Automatic camera focus adjustment
- Precise location of drones and autonomous vehicles
- Maintaining stable altitude during flight
- Avoiding obstacles during high-speed flight
- Applications in SAR drones, FPV racing UAVs, and gimbal/pod positioning systems
The perfect solution for modern drones in difficult operating conditions
The TFA300-L module, thanks to its combination of high measurement frequency and compact design, is an ideal solution for modern drones and UAVs, where speed of response, detection precision, and minimal weight are essential. Whether used in rescue systems, transport drones, or FPV racing, the sensor ensures reliable operation and safe operations even in challenging weather conditions.
With resistance to harsh weather conditions, extreme temperatures, high light intensity and dust, the TFA300-L ensures reliable operation in all conditions.
It supports both CAN and standard JST GH connectors, offering full plug-and-play compatibility with popular flight controllers and a DroneCAN-compliant SDK.Technical specifications of the module
- Measurement frequency: 1 Hz to 1000 Hz (default 50 Hz), up to 10000 Hz in ultra-high-frequency mode
- Detection range:
- 290 m at 90% reflectance, 100 KLux
- 170 m at 30% reflectance, 100 KLux
- 100 m at 10% reflectance, 100 KLux
- Field of View (FoV): < 0.5°
- Accuracy: ±10 cm (<10 m), 1% (≥10 m)
- Ambient light resistance: 100 KLux
- Operating temperature: -20°C to 60°C
- Interfaces: UART / CAN

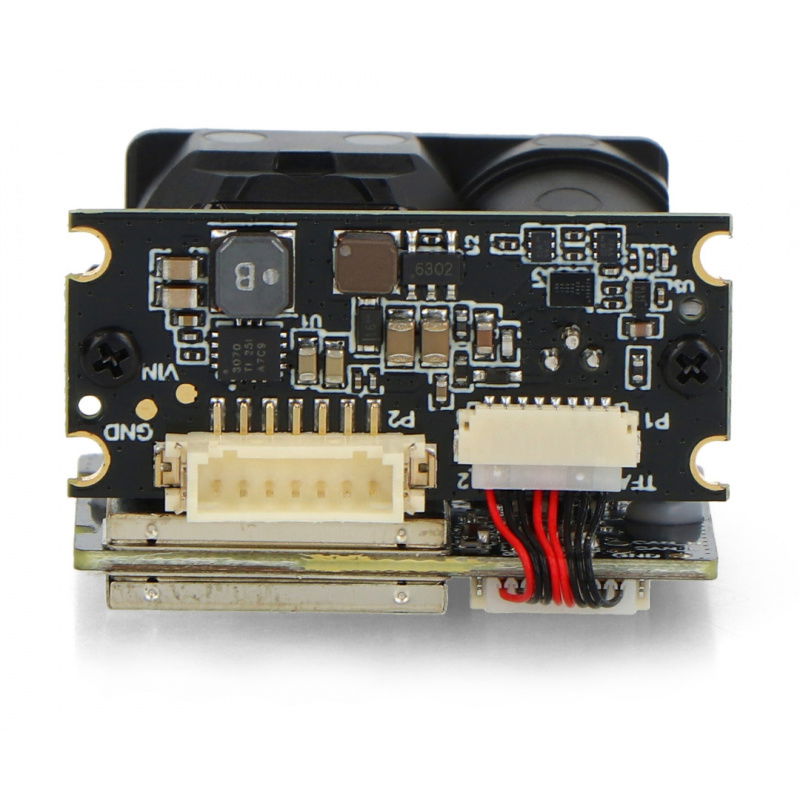

- Connector: JST GH 1.25 mm, 6 pins
- Environmental resistance: operation in rain, fog, dust, high light intensity
- Average power consumption: ≤ 0.45 W
Maximum current: < 0.75 A - Power supply: DC 5V
- Operating mode: continuous and duty cycling
- Distance accuracy: Updates every 3.4 cm in real time
- Weight: 10.5 g
- Dimensions: 32 x 30.2 x 20.2 mm

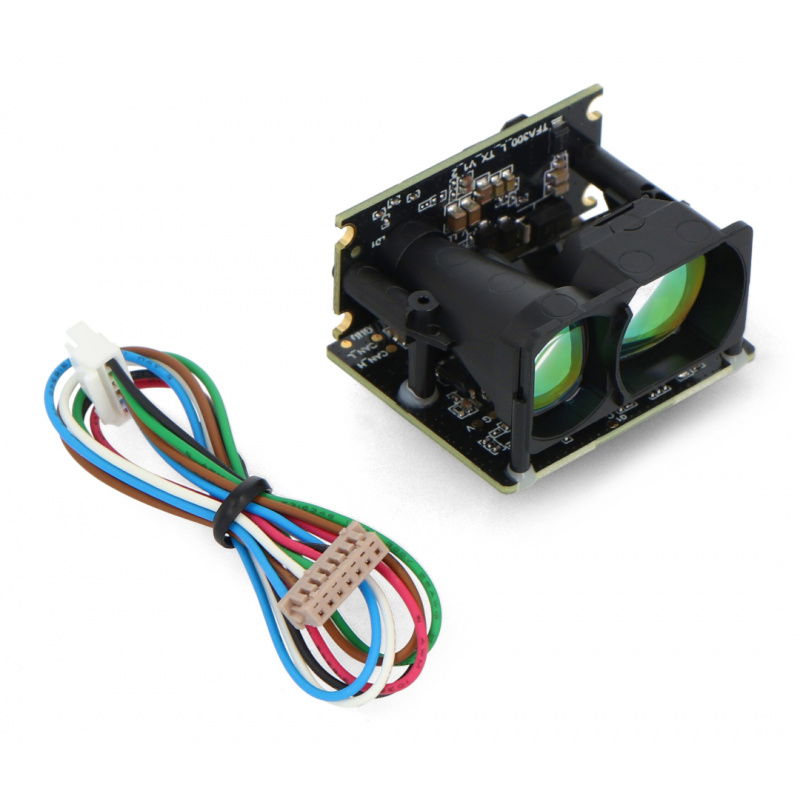

Contents of the set
- 1x TFA300-L LiDAR Module
- 1x Connection cable
