Product description: Tuya - microwave presence sensor 230 V - ZigBee - Android / iOS application - RTX ZPS3
The RTX ZPS3 sensor is an advanced microwave presence sensor designed for smart home installations . It operates in the ZigBee 3.0 standard and is fully compatible with the Tuya Smart and Smart Life apps. Using microwave technology, it detects the presence of even stationary people, ensuring accurate operation, for example, when automatically controlling lighting. The sensor can be surface- mounted and is powered directly from a 230 V AC mains supply. It is equipped with a 230 V / 2 A relay output, allowing for direct control of lighting or ventilation.
Attention!
To work correctly, the module requires connection to a ZigBee gateway , which can be purchased separately.
Tuya - microwave presence sensor 230V - ZigBee - Android / iOS application - RTX ZPS3.
The RTX ZPS3 sensor is an advanced microwave presence sensor designed for intelligent installations.Special features
Microwave technology: Reliable presence detection even when there is no movement
- ZigBee 3.0 communication: Tuya compatibility and operation via ZigBee central
- 230 V AC power supply: no need for additional power supplies
- Relay output 230 V / 2 A: possibility of direct connection of lighting or other receivers
- Wide detection angle of 120° and range up to 6 m: adjustable in the app
- Configurable operating parameters: sensitivity, activation time, light level, output operating mode
- Mobile notifications: presence detection information regardless of the user's location
- Day/night mode: can only be activated at low light levels
Practical applications
The RTX ZPS3 sensor is ideal for automatic lighting or ventilation control, ensuring energy savings and user comfort. By detecting presence—not just motion—it's ideal for bathrooms, hallways, offices, and rooms where maintaining light even when inactive is essential. Upon detecting presence, it can instantly activate the light while simultaneously triggering other scenarios within the smart home system thanks to ZigBee. The sensor can be configured to operate only at low light levels or 24/7.
It is equipped with a 230 V / 2 A relay output, which allows direct control of lighting or ventilation.
The sensor can be surface-mounted and is powered directly from the 230 V AC mains.Sensor technical specifications
Model: RTX ZPS3
- Sensor type: microwave (presence detection)
- Communication protocol: ZigBee 3.0
- Frequency: 24 GHz

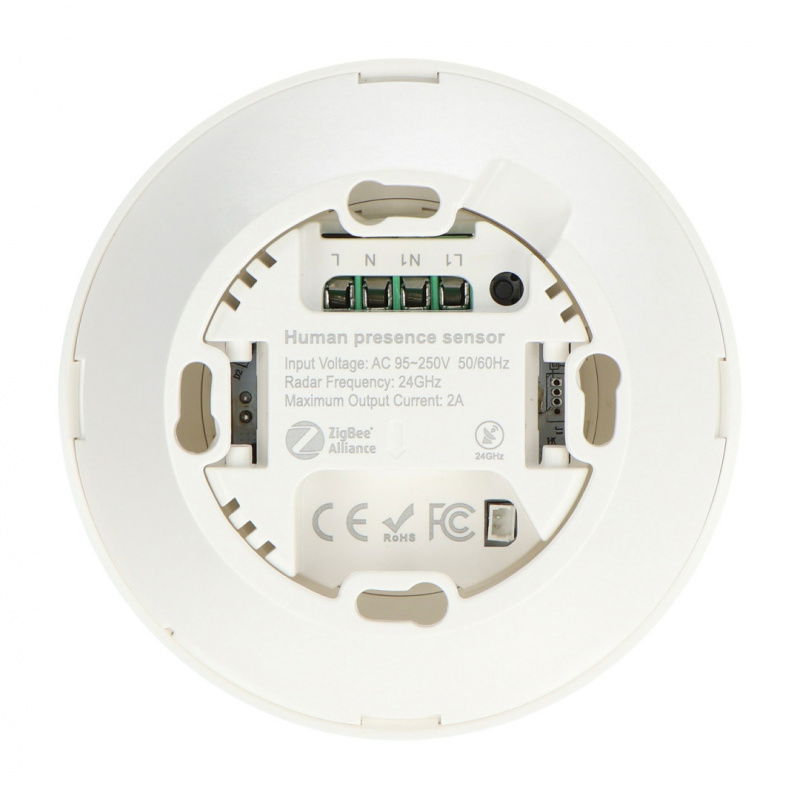

- Power supply: 230 V AC
- Control output: 230 V / 2 A (direct)
- Detection angle: 120°
- Detection range: up to 6 m (adjustable)
- Installation: surface-mounted
- Compatibility: Tuya Smart, Smart Life (ZigBee central required)
