Product description: TrueRMS multimeter with auto range and NCV - Aneng AN870 Pro
AN870 Pro is an advanced multimeter that combines functionality and handiness. Thanks to TrueRMS, it guarantees accurate measurement of alternating voltage , and the maximum reading of 19999 units ensures precision measurements even in professional applications. Equipped with a backlit display, HOLD, MAX / MIN, REL (relative measurement) and Auto Power Off functions with the possibility of switching off - it is ready to work in all conditions. Solid housing with a support function and an external thermocouple increase the ergonomics and usability of the meter. It is powered by two AA batteries .

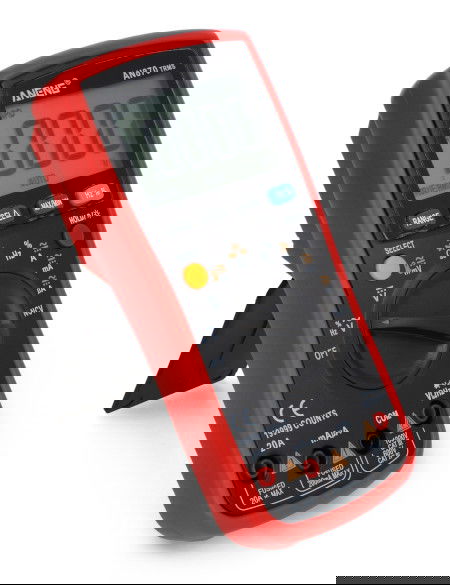

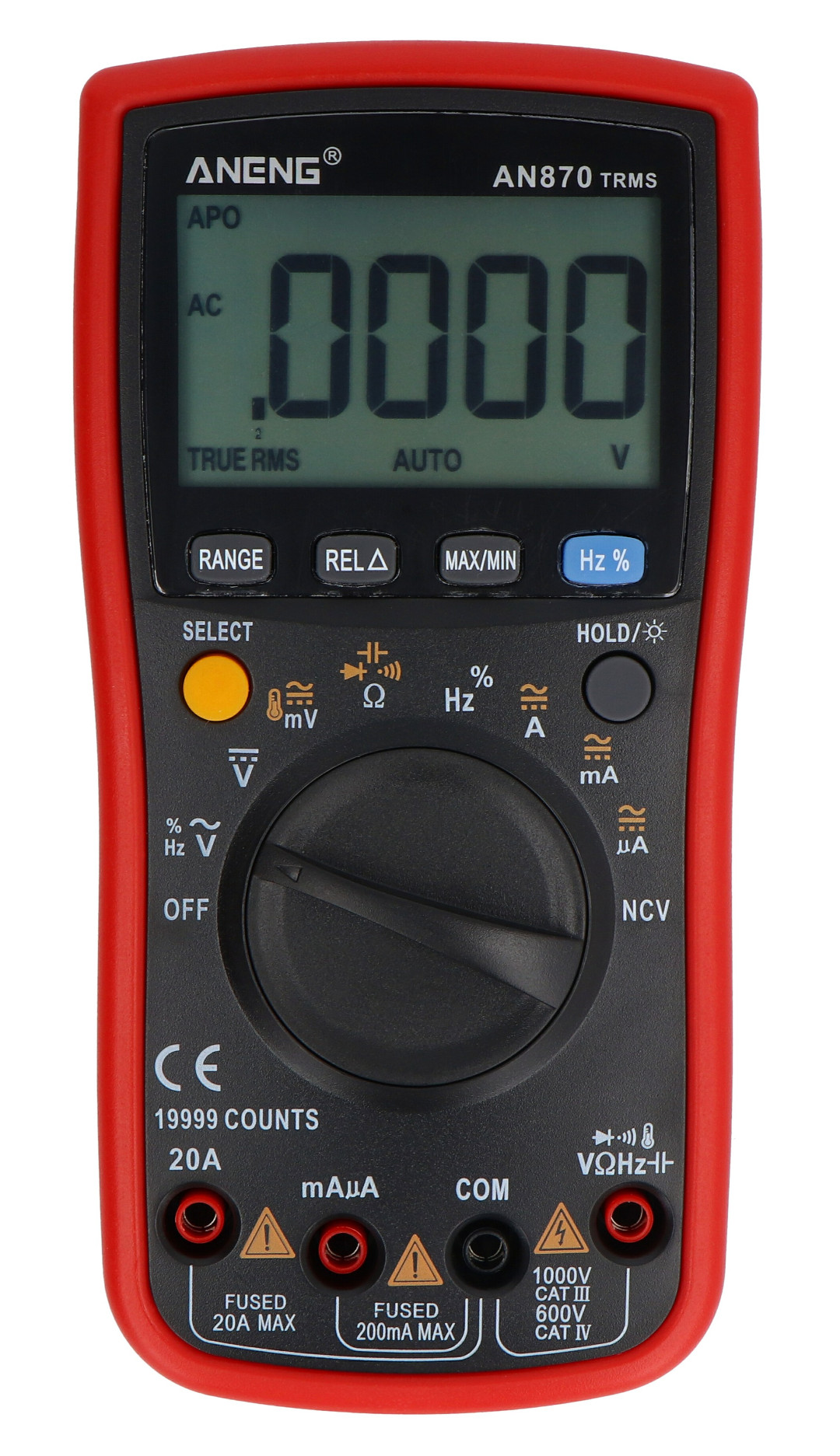

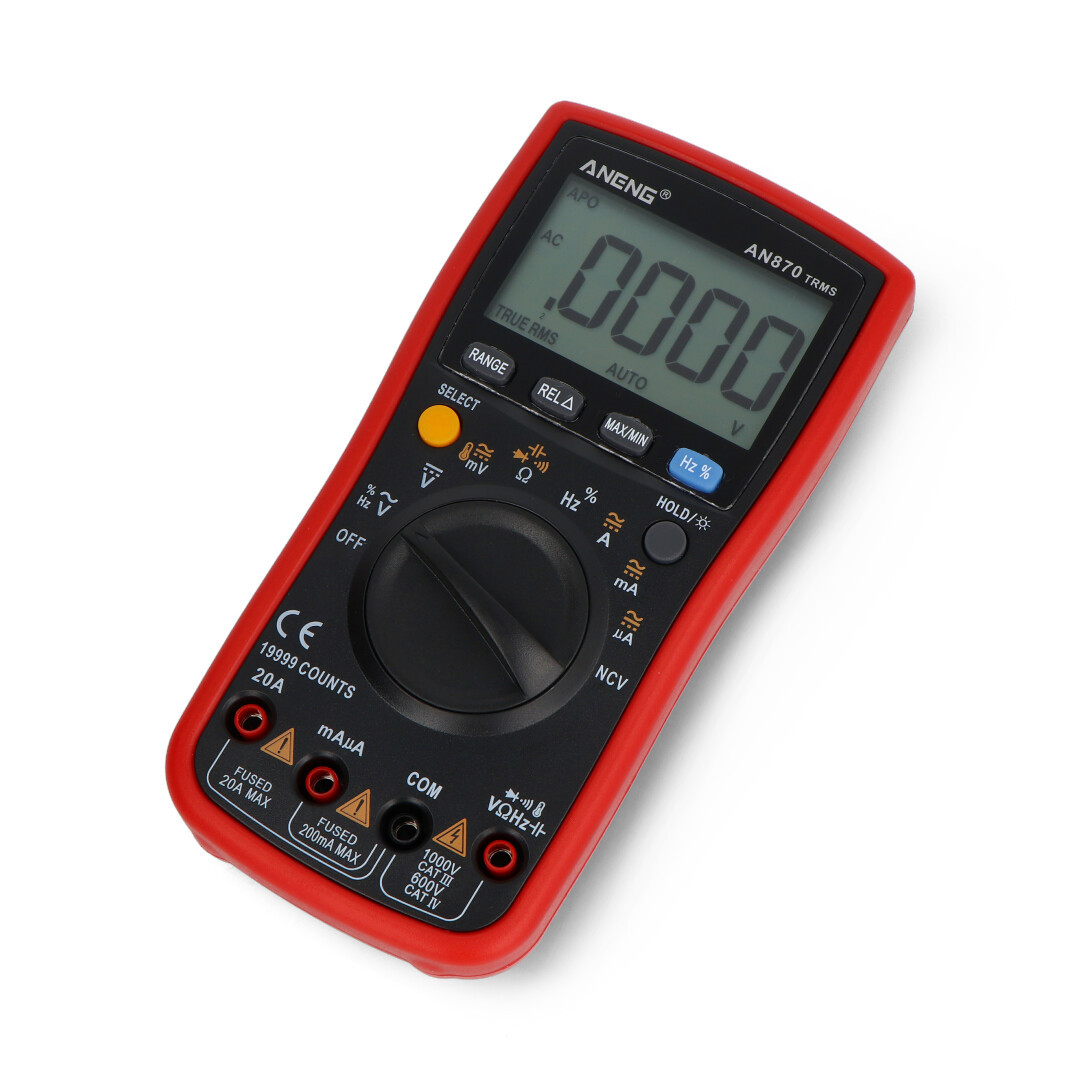

TrueRMS multimeter with auto range and NCV - Aneng AN870 Pro.

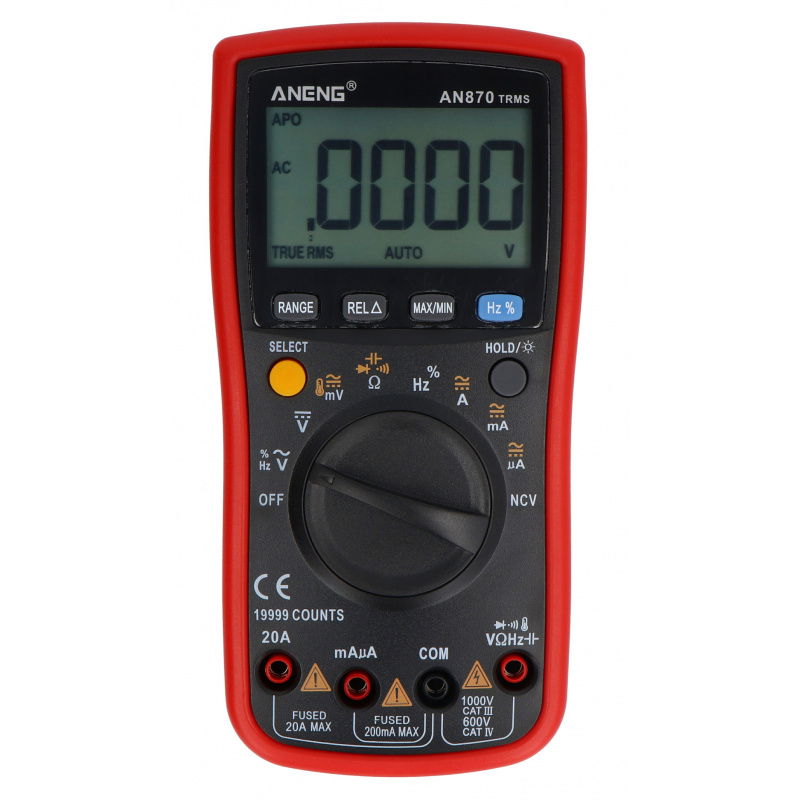

The large display with backlight ensures clear reading of the results.
Main features of the multimeter
- TrueRMS measurement : ensures accuracy when measuring AC voltage
- Automatic and manual ranges : flexibility and convenience of parameter setting
- LCD display with backlight : readable in all lighting conditions
- Highest resolution 1 µV / 1 µA : precise measurement of DC voltage and current
- Resistance measurement up to 199.99 MΩ : wide range of applications
- Capacitance measurement up to 9.999 mF : support for large capacitors
- Frequency measurement up to 9.999 MHz : for digital and radio applications
- NCV function : non-contact detection of alternating voltage
- Continuity test with buzzer and diode test : quick circuit diagnostics
- Temperature measurement using a thermocouple or internal diode
- Security Features : Auto Power Off, MAX/MIN memorization, REL
Possible measurements - versatility of applications
The AN870 Pro provides precise measurements of direct and alternating voltage (DC/AC) with a resolution of up to 0.0001 V and a maximum reading of 19999. Current measurement in three ranges (µA/mA/A) reaches up to 20 A. It measures resistance up to 199.99 MΩ, capacitor capacitance up to 9.999 mF, frequency up to 9.999 MHz and duty cycle (Duty Cycle from 1% to 99%). Built-in acoustic continuity tester (buzzer) and diode test function allow for quick checks of bridges and components. NCV (No Contact Voltage) function allows safe detection of voltage presence without the need for physical contact with the wire. AN870 Pro supports temperature measurement using the included thermocouple, displaying the result in °C or °F over a range of -20°C to 1000°C. When the thermocouple is disconnected, the meter uses the built-in semiconductor diode to measure the ambient temperature.

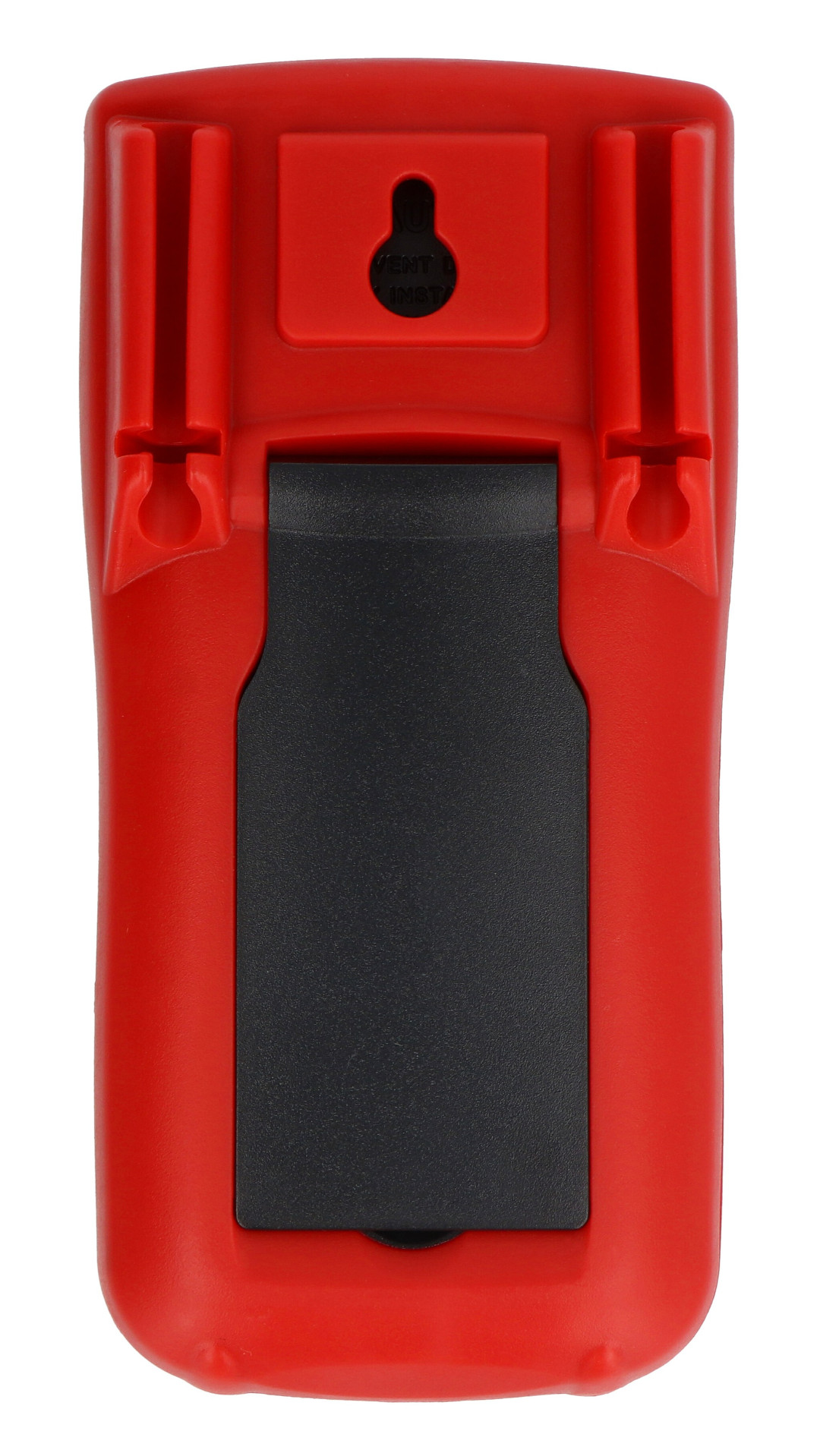

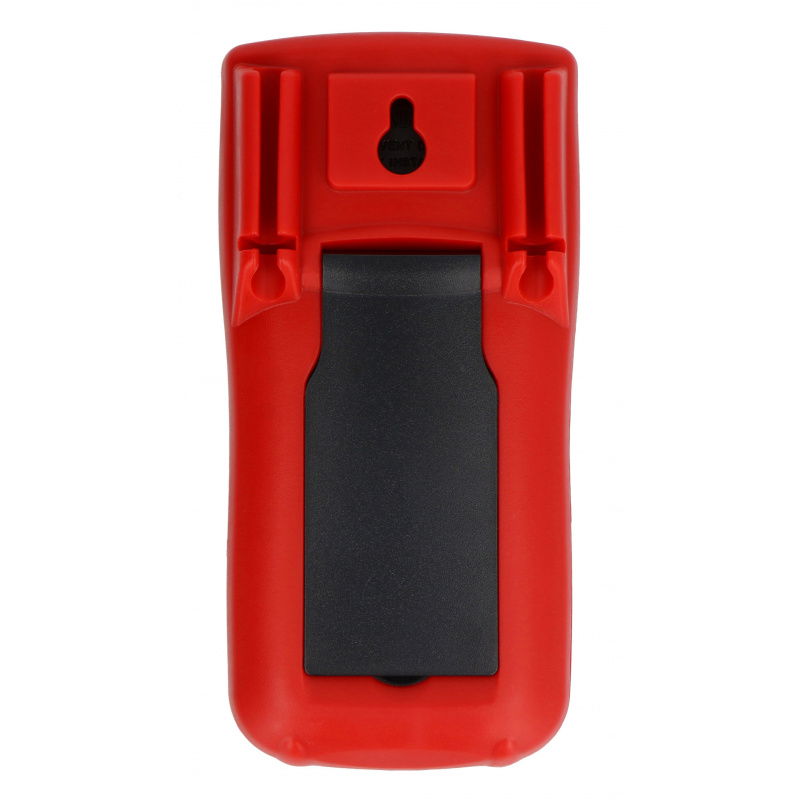

On the back of the housing there is a holder for measuring cables.

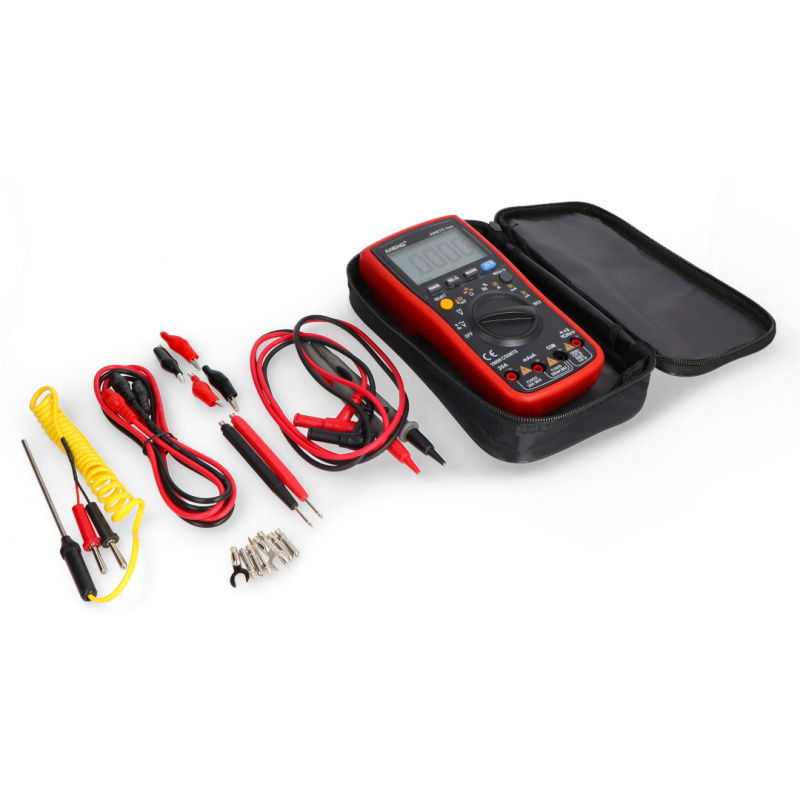

Items included in the set.
Comfort in use and additional functions
Large LCD display with backlight guarantees clear reading of results even in dark places. HOLD function allows you to freeze the measurement, and MAX / MIN records the highest and lowest values during measurements. REL (Relative) option is used for relative measurements with zeroing of the current value. Auto Power Off function turns the meter off after 15 minutes of inactivity , which saves the battery. It is possible to turn off this function during start-up (by holding the SELECT button) - then the meter will not turn off, even during long measurements. Compact, durable housing fits well in the hand and fits in a pocket. Built-in stand allows convenient positioning of the meter during work. On the rear panel there is a holder for test leads , which makes them easier to store and organize.
Technical specification of the Aneng AN870 Pro meter
- Model: AN870 Pro
- DC voltage measurement: 19.999 mV to 1000 V
- AC voltage measurement: 19.999 mV to 750 V
- DC Current Measurement: 199.99 µA to 19.999 A
- AC Current Measurement: 199.99 µA to 19.999 A
- Resistance measurement: 199.990 Ω to 199.99 MΩ
- Capacitance measurement of capacitors: from 9.999 nF to 9.999 mF
- Frequency measurement: 99.99 Hz to 9.999 MHz
- Duty Cycle Measurement: 1% to 99%
- Temperature measurement: -20°C to 1000°C
- Semiconductor Diode Tester: Yes
- Continuity Tester: Yes
- NCV: yes
- Display: LCD, backlit
- Maximum number of indications: 19999
- Power supply: 2x AA battery
- Dimensions: 168 x 88 x 44 mm
- Weight: 328.5 g
Kit Contents
- 1x AN870 Pro Digital Multimeter
- 1x Set of test leads
- 1x Thermocouple (temperature sensor)
- 4x Crocodiles
- 2x Forks
- 4x Interchangeable measuring tips
- 1x Cable with banana plugs
- 1x Protective case
- 1x User Manual

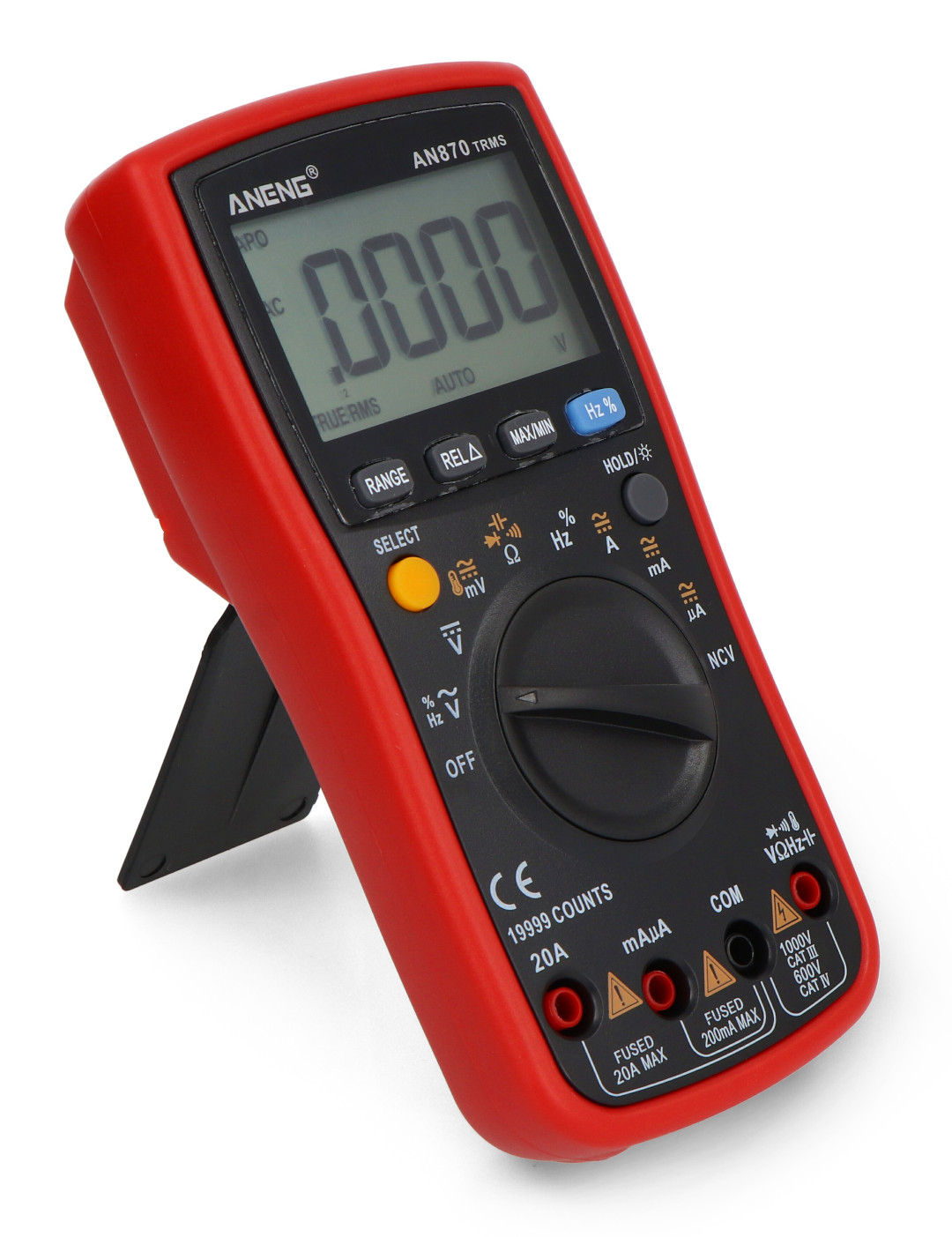

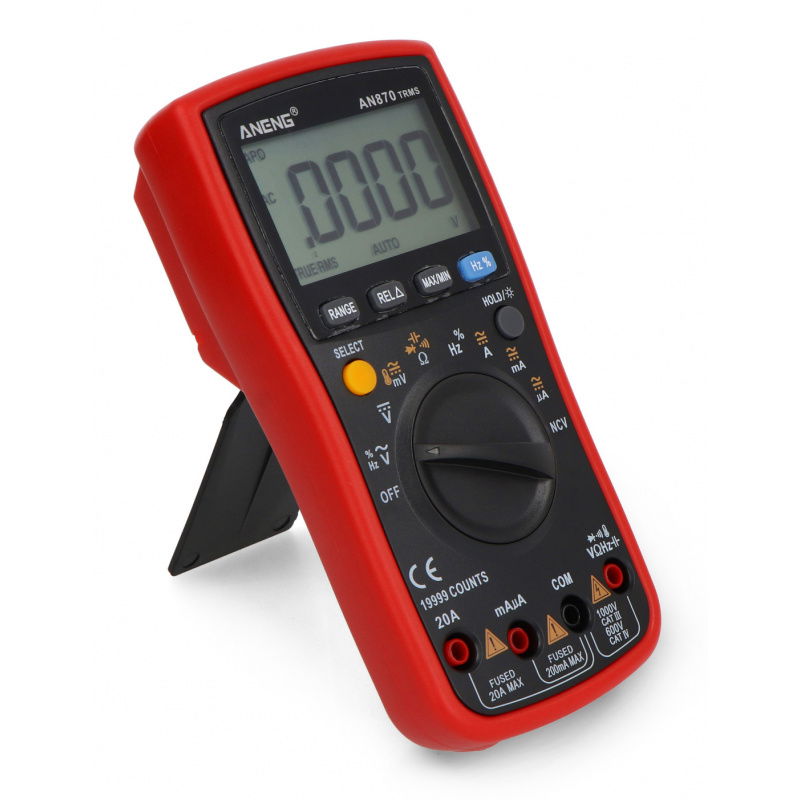

The meter can be stood up thanks to the built-in stand.
