Product description: Four-legged walking platform - robo dog - Unitree B2
Unitree B2 is a rugged, industrial-grade mobile platform designed for operation in extreme conditions, from factories to mountainous terrain. With 12 degrees of freedom of movement and joint modules with 360 Nm of torque, the robot easily navigates uneven terrain, climbs stairs, jumps over obstacles, and reaches speeds of over 6 m/s . A dynamic payload of up to 40 kg and a 45 Ah battery allow for up to 5 hours of continuous operation. Built-in 3D LiDAR , depth and RGB cameras , and an Intel Core i7 processor-based compute unit enable advanced environmental analysis and autonomous missions. The robot supports ROS and ROS 2 environments, making it an excellent choice for industrial inspections, research projects, rescue operations, and operations in hazardous areas.

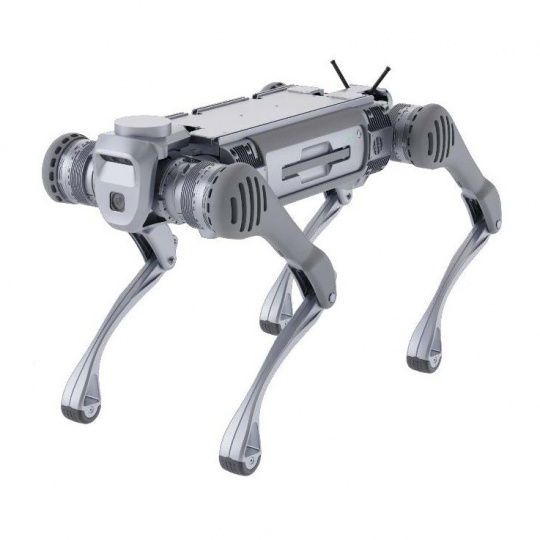

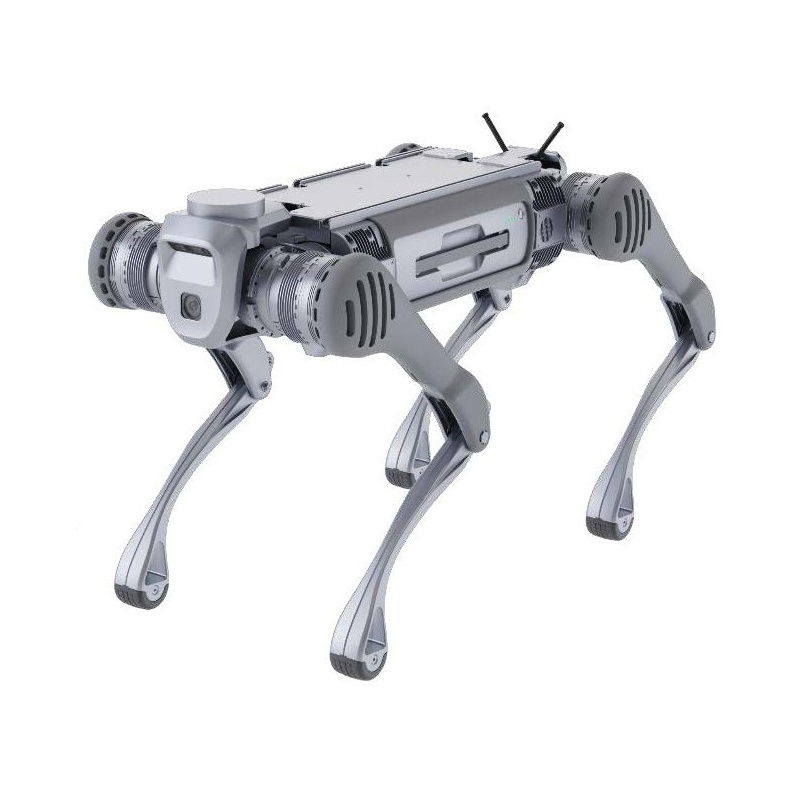

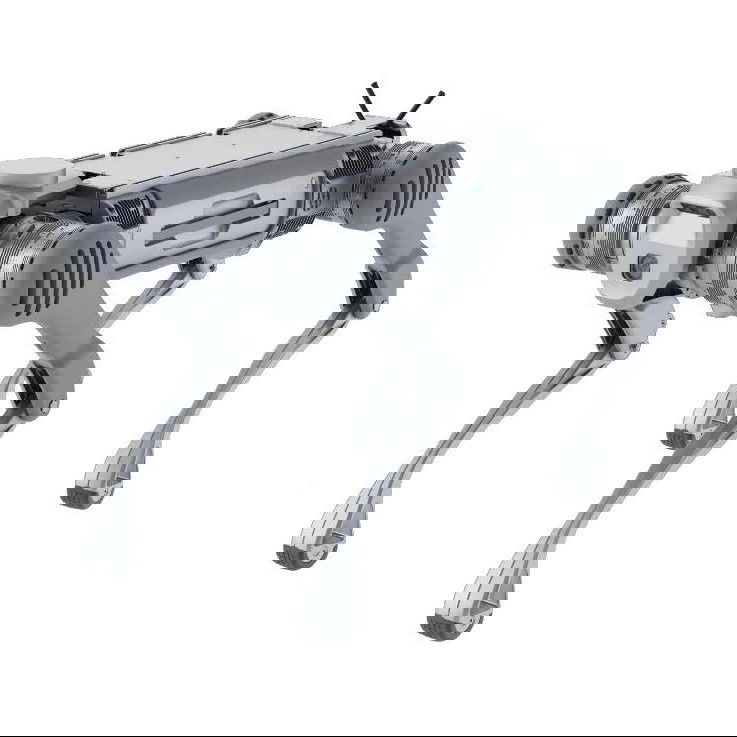

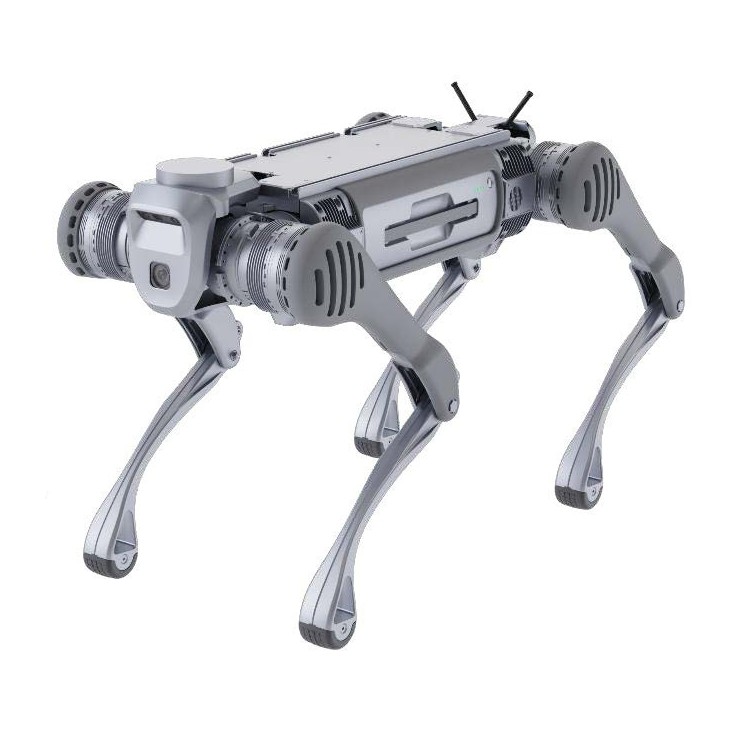

Four-legged walking platform - robo dog - Unitree B2.
LiDAR, depth and optical cameras, IMU - enable 3D mapping and autonomous navigation.
Main features of the Unitree B2 robot
- High running speed: up to 6 m/s : allows you to move quickly in the field
- 12 degrees of freedom of movement : guarantees flexibility and stability of walking
- Advanced sensors : 3D LiDAR, depth cameras, RGB and IMU for precise navigation
- IP67 waterproof and dustproof design : allows operation in harsh environments
- 45 Ah battery : up to 5 hours of operation without recharging
- ROS and ROS 2 support : allows you to create and test your own algorithms
Unitree B2 - an industrial-grade walking robot with enormous power
Unitree B2 is one of the most powerful and advanced four-legged mobile robots on the market. Thanks to powerful motors in each joint (torque up to 360 Nm) and 12 degrees of freedom of movement , it can run at speeds of over 6 m/s, climb stairs, leap obstacles up to 40 cm high , and even jump 1.6 meters . Designed for operation in difficult terrain, it is characterized by exceptional stability and fluidity of movement – even on slippery, wet, or uneven surfaces . These features make it an ideal mobile inspection, logistics, or rescue platform.
Reliability in all conditions
The Unitree B2 robot's housing is designed for use in demanding environments, as confirmed by the IP67 sealing standard . This means complete dust and water resistance , allowing the robot to be used in industrial, outdoor, and even emergency situations. Thanks to its 45 Ah (2250 Wh) battery, the B2 can operate continuously for 4-5 hours , and its maximum load capacity reaches 120 kg (static) and over 40 kg when moving . This allows not only for transporting tools or sensors but also for conducting autonomous operations for extended periods.

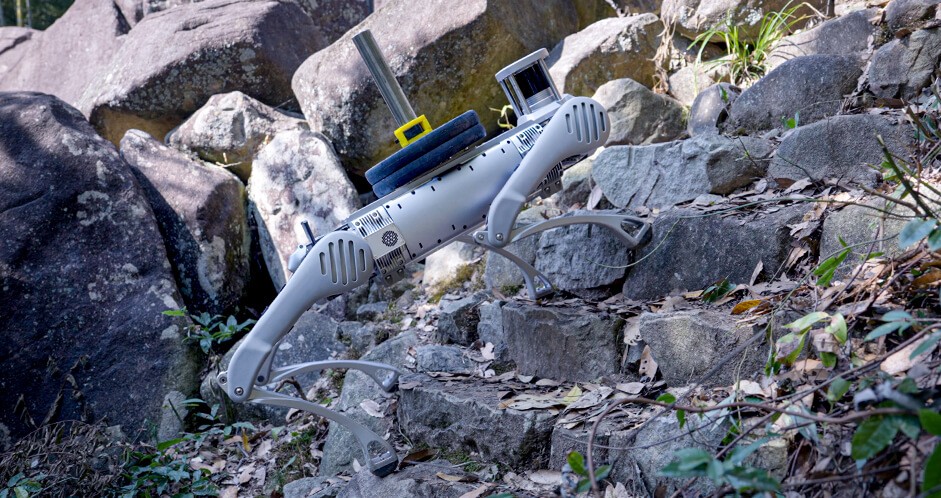

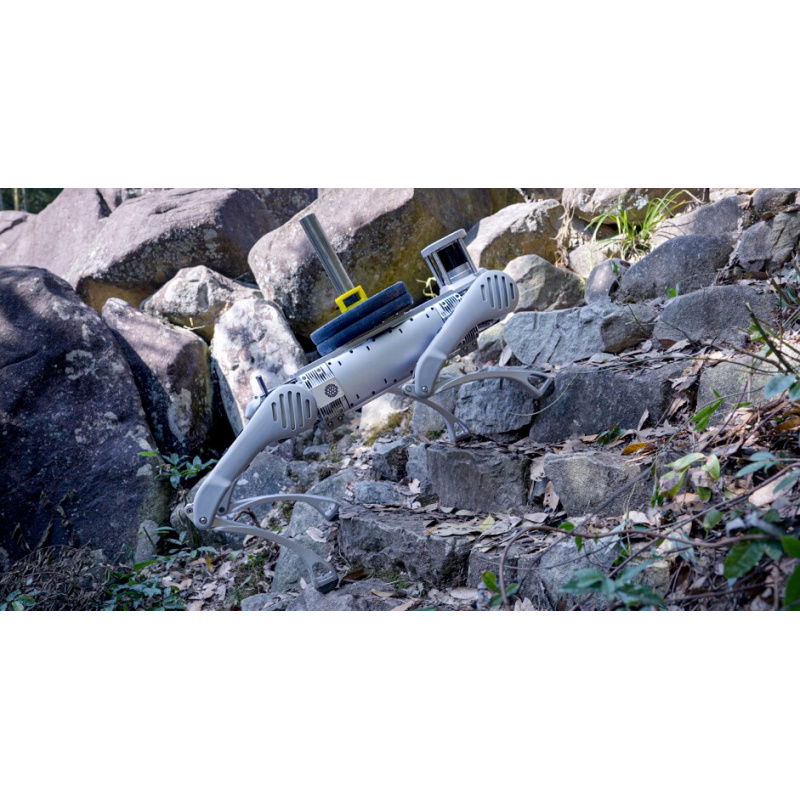

Thanks to its high load-bearing capacity (up to 120 kg when stationary) and the ability to dynamically transport loads of up to 40 kg, the B2 is perfect for tasks such as inspection, patrolling, transport in difficult terrain or emergency operations.

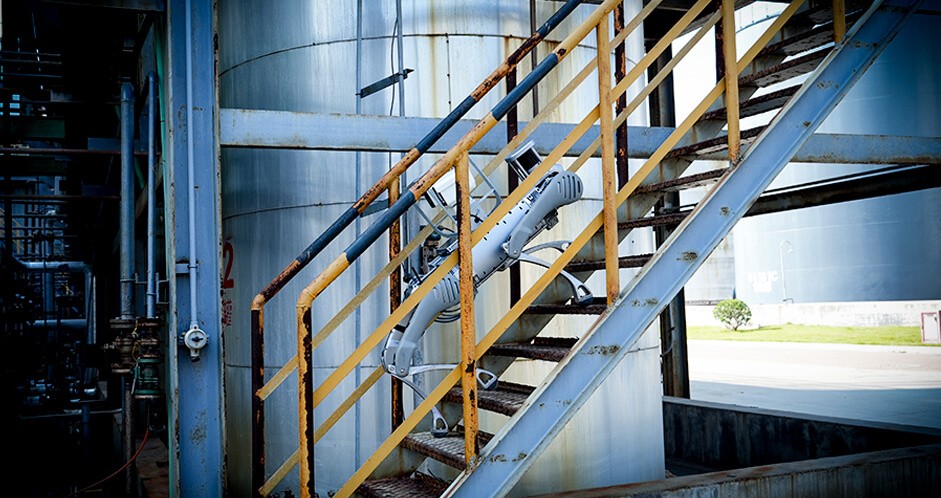

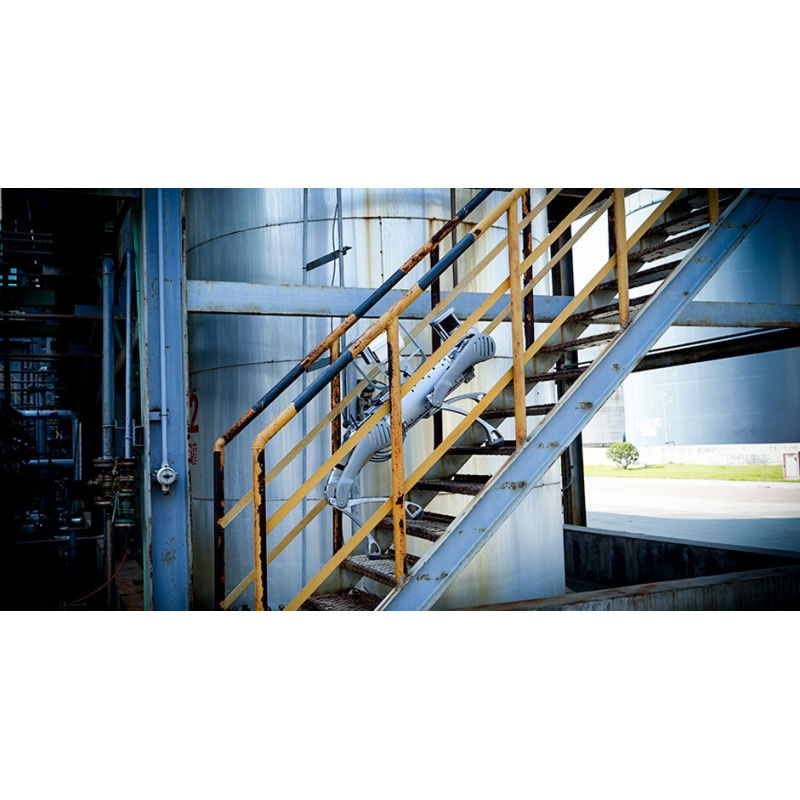

Thanks to drives with a torque of 360 Nm, the robot overcomes obstacles up to 40 cm, climbs stairs and even jumps up to 1.6 m.
Advanced sensors and an Intel Core i7 processor
The robot is equipped with a suite of next-generation sensors, including a 32-beam automotive-grade LiDAR, depth cameras , and high-resolution optical cameras . These work in conjunction with a precision IMU module, providing full 3D spatial awareness and the ability to precisely map the environment. The basic version of the robot uses a powerful computer with an Intel Core i7 processor that supports ROS and ROS 2 environments, paving the way for the development of custom algorithms, navigation, and integration with external systems. This makes the B2 a ready-made tool for engineers, scientists, and companies implementing mobile robotics.
Perfect for inspections, research and special operations in the field
Unitree B2 was created for real-world applications in the field—where other robots fail. With its extensive obstacle-crossing capabilities, long range, and comprehensive perception, it is ideal for infrastructure inspections, industrial facilities, rescue missions, and scientific research . It can also perform patrol, transport, or process automation functions in large facilities. Its modular design and open software allow for easy adaptation to specific tasks—a platform ready for real-world operation.
Contents of the set
- Unitree B2 Robot
- 45 Ah battery
- Standard charger

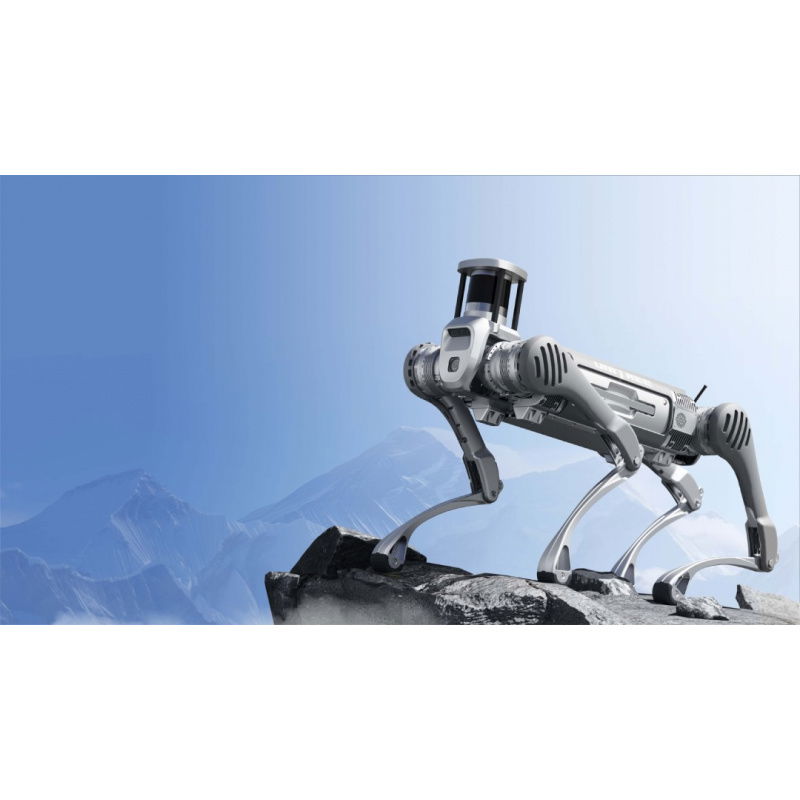

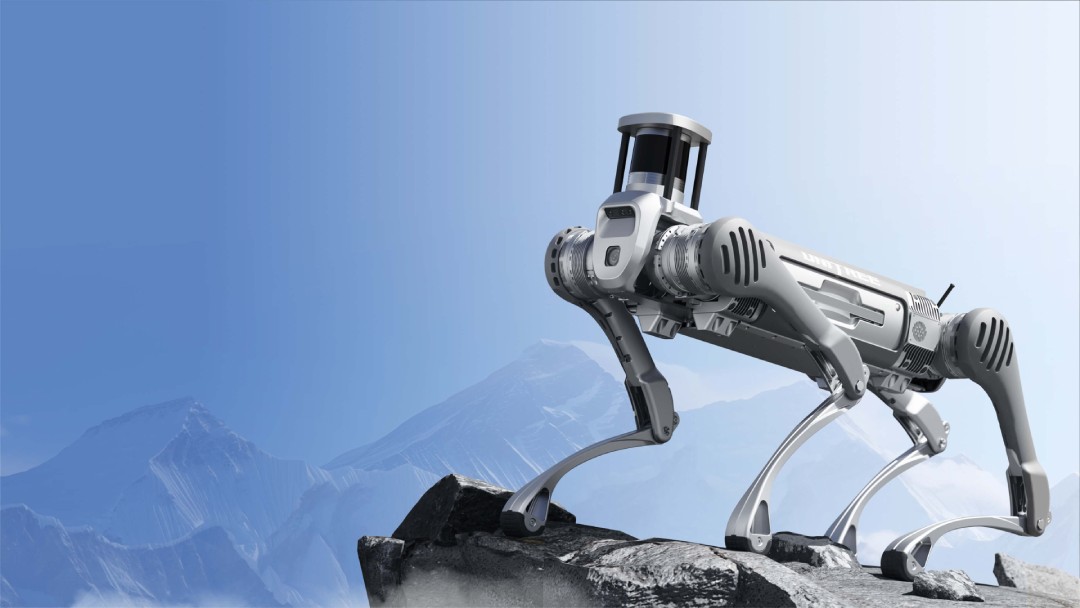

The B2 performs well in mountainous, industrial and urban environments - ideal for inspection, security, transport and research.
| Unitree B2 Technical Specifications | |
|---|---|
| Maximum speed | over 6 m/s |
| Maximum stroke | over 1.6 m |
| Overcoming obstacles | up to 40 cm |
| Dynamic load capacity | up to 40 kg |
| Static load capacity | up to 120 kg |
| Terrain slope angle | above 45° |
| Battery | 45 Ah (2250 Wh), 58 V |
| Working time | up to 5 h without load, up to 4 h with 20 kg load |
| Degree of protection | IP67 |
| Processor | Intel Core i7 (for software development), Intel Core i5 (for platform functions) |
| Systems | ROS, ROS 2 |
| Sensory modules | 3D LiDAR, 2x depth camera, 2x RGB camera, IMU |
| Ports | 4x USB 3.0, 4x Ethernet, 1x 5V, 4x 12V, 4x 24V connectors, 1x BAT |
| Dimensions (standing) | 1098 x 450 x 645 mm |
| Dimensions (lying down) | 880 x 460 x 330 mm |
| Mass | about 60 kg (with battery) |
