Product description: Carbon monoxide and gas sensor - Zamel CTG-02
The Zamel CTG-02 Carbon Monoxide and Gas Detector is a practical device that combines the detection of carbon monoxide and flammable gases such as natural gas and propane-butane . Using an electrochemical and semiconductor sensor , it responds to dangerous gas concentrations by triggering a 90 dB audible alarm and visual indication . The built-in LCD display indicates the type of gas detected and the current concentration level. The basic mains power supply from the included power supply is supplemented by an emergency battery backup , ensuring the sensor remains functional even after a power outage. A self-diagnostic system signals sensor damage and the end of its lifespan, and each unit is tested in a specialized chamber and certified to correctly detect carbon monoxide concentrations of 300 ppm in under 3 minutes.

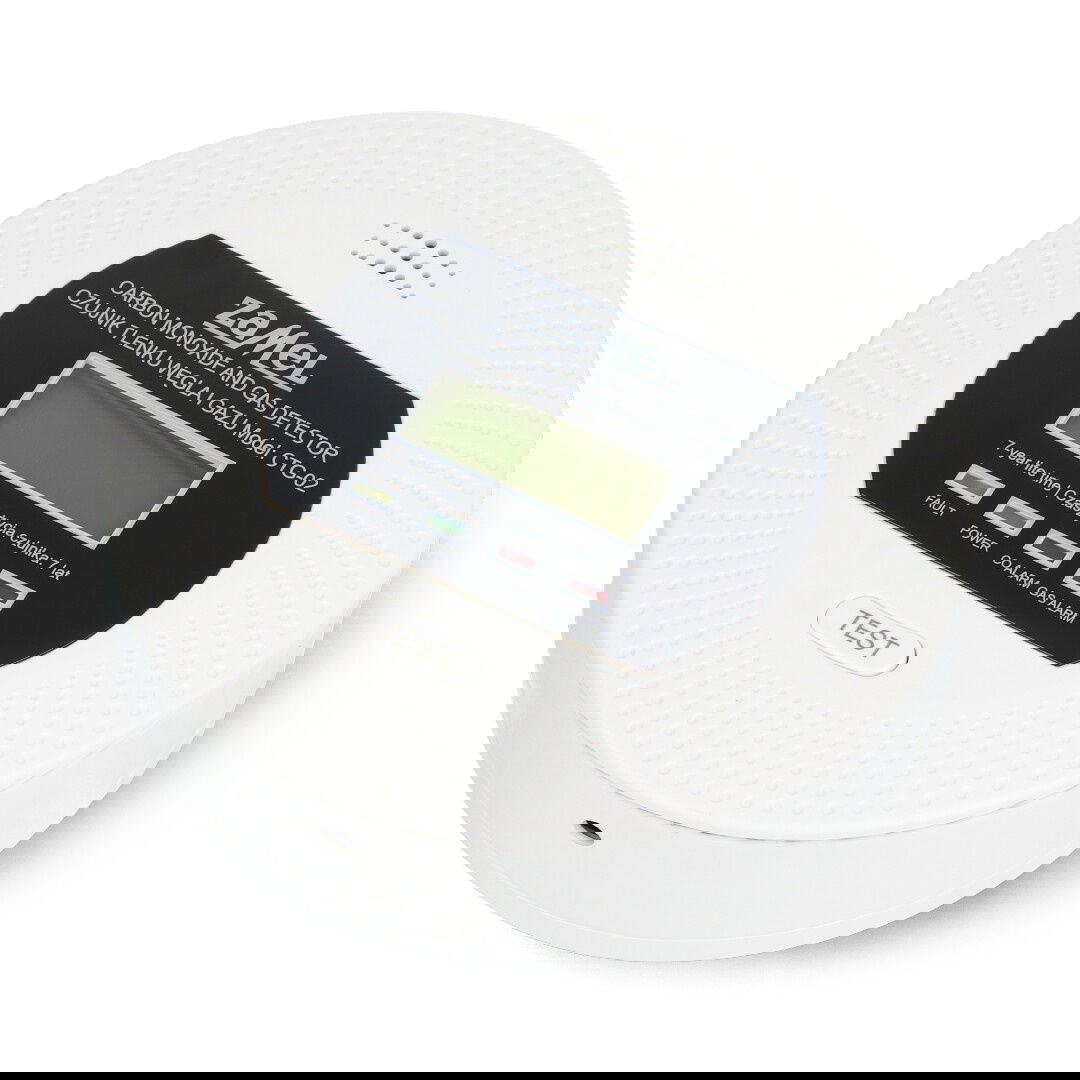

Carbon monoxide and gas sensor - Zamel CTG-02.

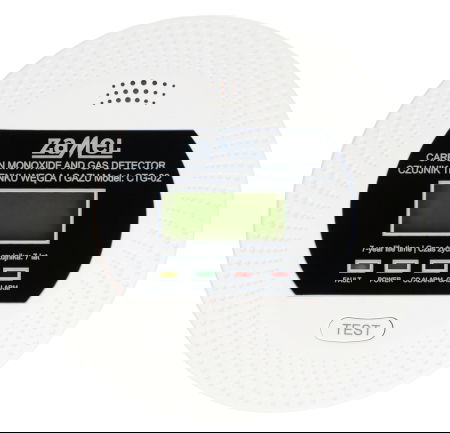

When a dangerous gas concentration is detected, the sensor triggers an audible and visual alarm and displays the concentration level and type of detected gas on the LCD display.
Main features of the Zamel CTG-02 sensor
- 2-in-1 sensor : detects dangerous concentrations of carbon monoxide, natural gas and propane-butane
- LCD display : shows the current carbon monoxide and gas concentration level and informs about the type of gas detected
- Mains power supply : uses the included power supply, ensuring stable operation of the device
- Emergency battery power supply : CR17450 battery keeps the sensor running in the event of a power outage
- 90 dB optical and acoustic signal : a light alarm and a loud sound signal inform about a detected threat
- Self-diagnostic system : indicates sensor damage and end of its life
- Sensor lifespan of 7 years : ensures long-term protection of rooms
- Compliance with the PN-EN50291-1:2018 standard : meets the requirements for carbon monoxide sensors
- Tested in Poland : each unit is certified to correctly detect a concentration of 300 ppm in less than 3 minutes
How does the CTG-02 carbon monoxide and gas sensor work?
The Zamel CTG-02 sensor combines an electrochemical sensor to detect carbon monoxide and a semiconductor sensor to detect flammable gases. The device continuously analyzes air composition and, upon detecting a dangerous gas concentration, triggers an acoustic and visual alarm . The carbon monoxide trigger threshold complies with the PN-EN50291-1:2018 standard, which means it responds at concentrations of 30 ppm, 100 ppm, and 300 ppm within specific time intervals. For natural gas and propane-butane, the sensor responds when a level corresponding to 10% LEL is exceeded. The LCD display informs about the current concentration and type of detected gas, and the self-diagnostic system monitors the correct operation of the entire device.

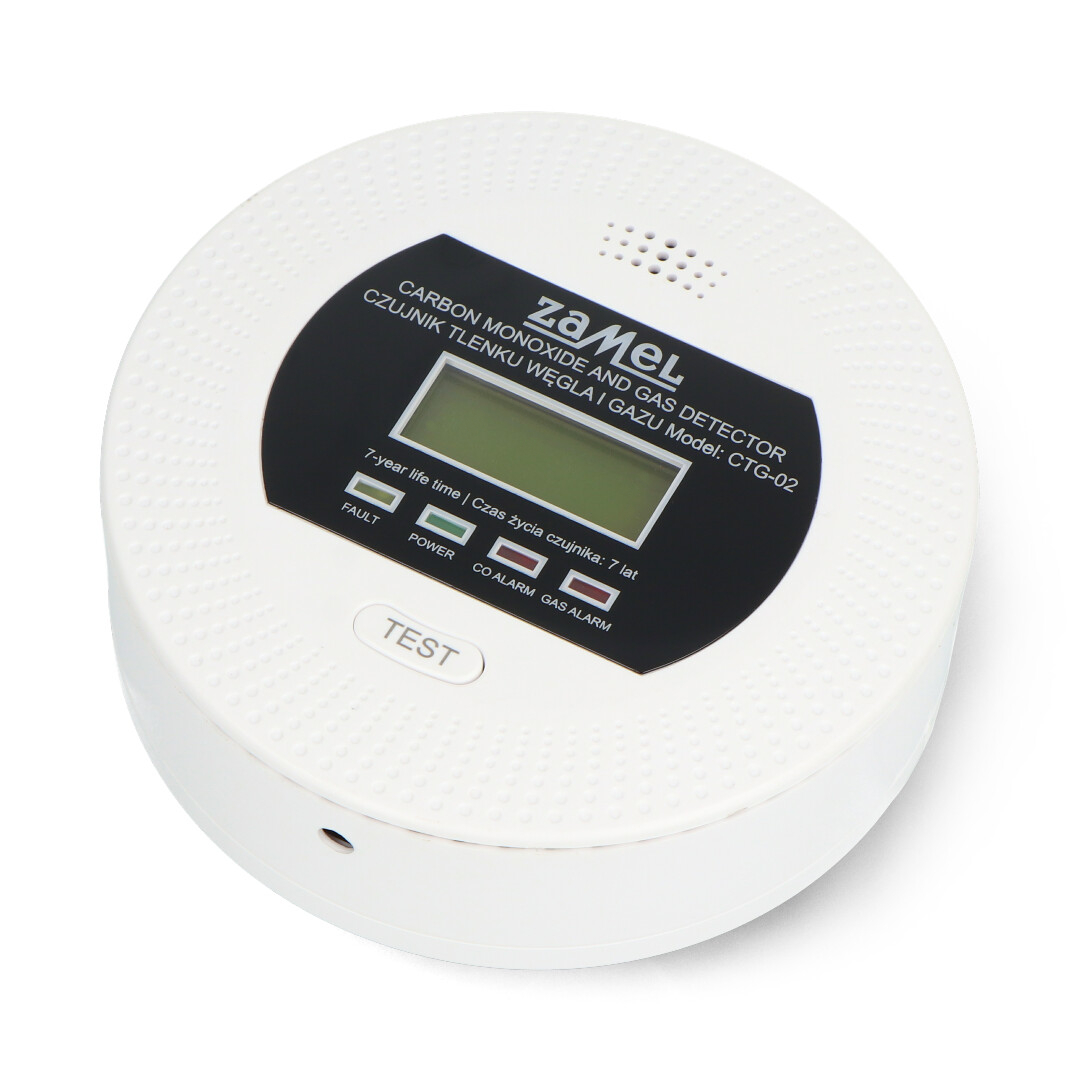

The sensor is used to monitor the concentration of both carbon monoxide and natural gas as well as propane-butane in the air.

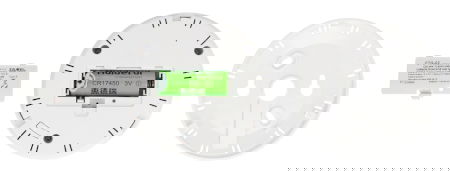

The sensor has an emergency battery power supply (CR17450) in the event of a mains power failure.
Practical applications
The Zamel CTG-02 carbon monoxide and gas detector is ideal for use in rooms where gas appliances are used or where there may be a risk of system leaks. It is recommended for installation in single-family homes, apartments, boiler rooms, garages, basements, and utility rooms . It is compatible with gas furnaces, stoves, water heaters, and boilers where combustion may be impaired. By combining carbon monoxide and flammable gas detection, a single device provides comprehensive protection in areas particularly exposed to the presence of hazardous gases.
Technical specifications of the CO and gas sensor
- Sensor type: electrochemical + semiconductor
- Primary Power: Mains powered using the included power supply
- Emergency power supply: 1x CR17450 battery
- Supply voltage: 5 V
- Operating temperature range: 0°C to 45°C
- Humidity operating range: 0% to 90% RH
- Minimum carbon monoxide detection level: 30 ppm
- Certified carbon monoxide detection level: 300 ppm
- Carbon monoxide detection levels (PN-EN50291-1:2018): 30 ppm (over 120 minutes), 100 ppm (from 10 to 40 minutes), 300 ppm (up to 3 minutes)
- Gas Detection Alarm Level: 10% LEL
- Optical signaling: LED diodes and messages on the LCD display
- Acoustic signal: 90 dB alarm
- Digital display: yes, LCD display
- Housing protection class: IP20
- Sensor lifespan: 7 years
- Dimensions: 95 x 95 x 30 mm
Kit contents
- 1x Zamel CTG-02 Carbon Monoxide and Gas Sensor
- 1x Power Supply
- 2x mounting screws

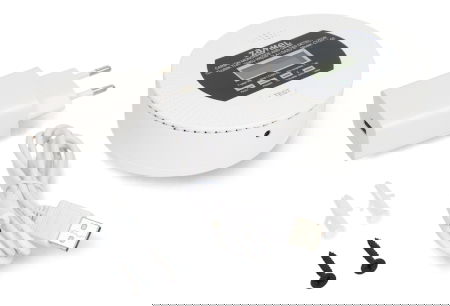

Elements included in the set.
