Product description: Battery-powered smoke detector - Zamel CDB-01
The Zamel CDB-01 smoke detector is designed for early detection of smoke, including smoke from fire . Thanks to photoelectric technology, the device responds quickly and effectively to the presence of smoke in a room, triggering an 85 dB audible alarm and visual indication . Battery power (1x 9 V 6F22 ) allows for easy installation without the need for wiring, and the TEST / HUSH button allows for testing the device's operation and temporarily muting the alarm . The detector complies with the EN14604:2005/AC1:2008 standard, which specifies the requirements for standalone smoke detectors.

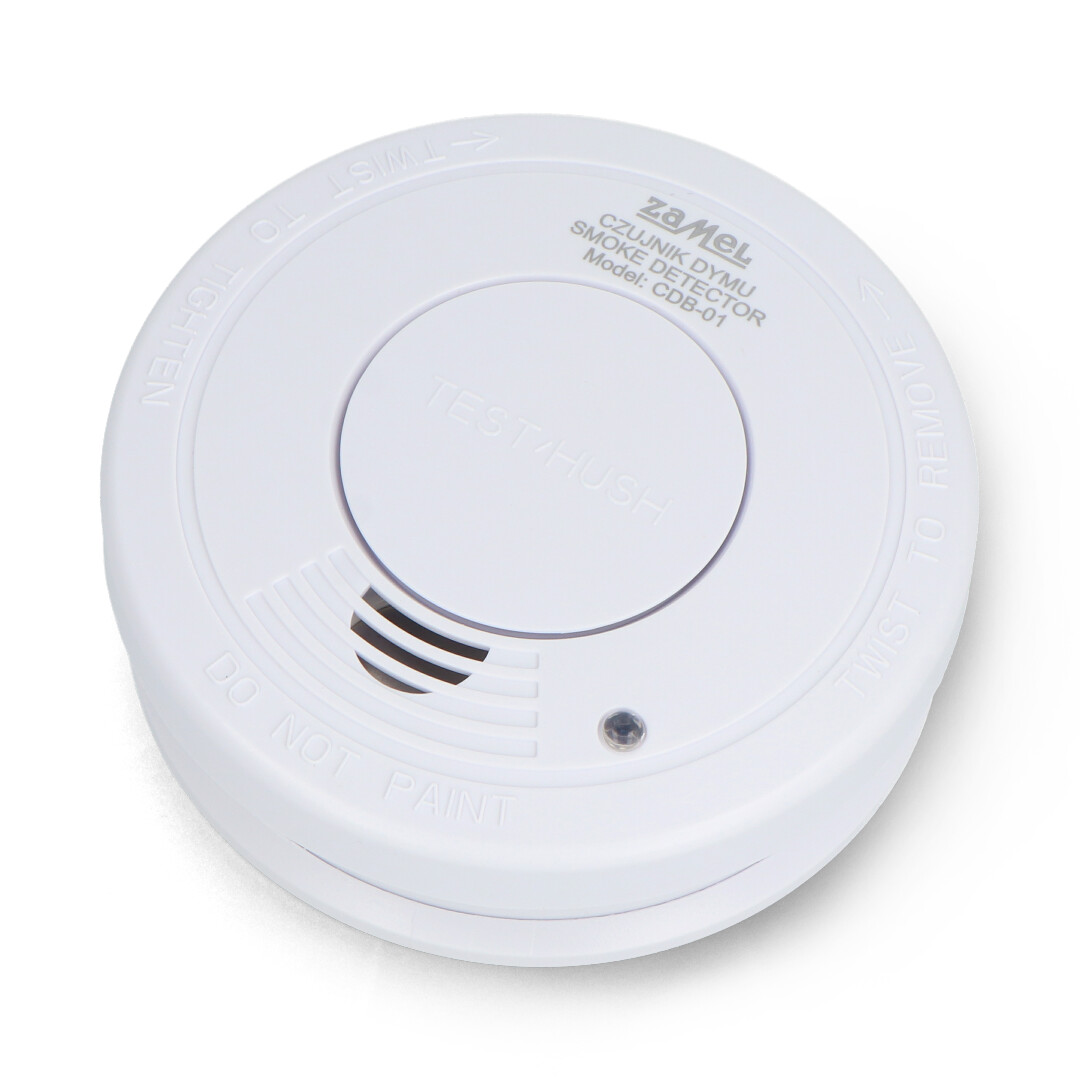

Battery-powered smoke detector - Zamel CDB-01.
The 85 dB acoustic signal and the optical LED signal enable the sensor to respond quickly in case of danger.
Main features of the Zamel CDB-01 sensor
- Smoke detection : quick response to fire hazards
- Photoelectric technology : high efficiency in smoke detection
- 9V battery powered : easy installation without wires
- 85 dB Audible Alarm : Loud warning signal for easy audibility
- Optical signaling : LED diode informs about operation, alarm and failures
- TEST/HUSH button : tests the functionality and temporarily silences the alarm
- Compliance with EN14604:2005/AC1:2008 : meets European requirements for autonomous smoke detectors
- Low battery indication : information about the need to replace the power supply
- Surface mounting : easy installation on the ceiling of the room
How does the CDB-01 smoke detector work?
The Zamel CDB-01 smoke detector uses photoelectric technology to detect smoke based on changes in light scattering within the measuring chamber. When smoke enters the detector, the device activates an 85 dB audible alarm and a flashing LED . The TEST/HUSH button allows you to verify proper operation and silence the alarm in the event of a false alarm. The system monitors battery status and signals the need for replacement with short audible signals. Thanks to its battery power, the detector operates even during a power outage in the building's electrical system.
CDB-01 effectively detects the presence of smoke in rooms.
Practical applications
The Zamel CDB-01 smoke detector is recommended for protecting homes, apartments, offices, and rooms where there is a risk of fire . It is best mounted centrally in the ceiling to ensure rapid detection of rising smoke. It is ideal for living rooms, bedrooms, hallways, and utility rooms. Installing the detector increases the safety of household members, allows for early fire detection, and enables a rapid response , significantly minimizing losses.
Smoke detector technical specifications
- Sensor type: photoelectric
- Power supply: 1x 9V battery (type 6F22)
- Current consumption - idle: 12 µA
- Current consumption - alarm: 20 mA
- Alarm sound level: 85 dB
- Optical signaling: LED
- Compliance with the standard: EN14604:2005/AC1:2008
- Degree of protection: IP20
- Operating temperature range: -10°C to +40°C
- Humidity operating range: up to 90% RH
- Installation: surface-mounted, with base
- Dimensions: 103 x 103 x 32 mm
Kit contents
- 1x Zamel CDB-01 smoke detector
- 1x 9V battery (6F22)
- 2x mounting screws

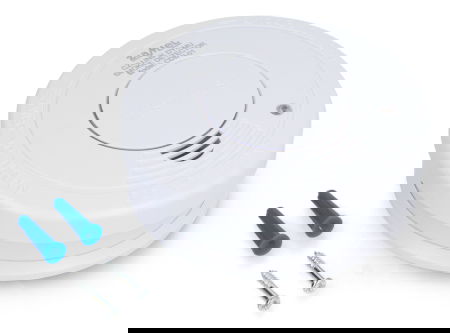

Elements included in the set.
