IO expander - 4 channel - with I2C multiplexer - PCA9546 - STEMMA QT / Qwiic - Adafruit 5664

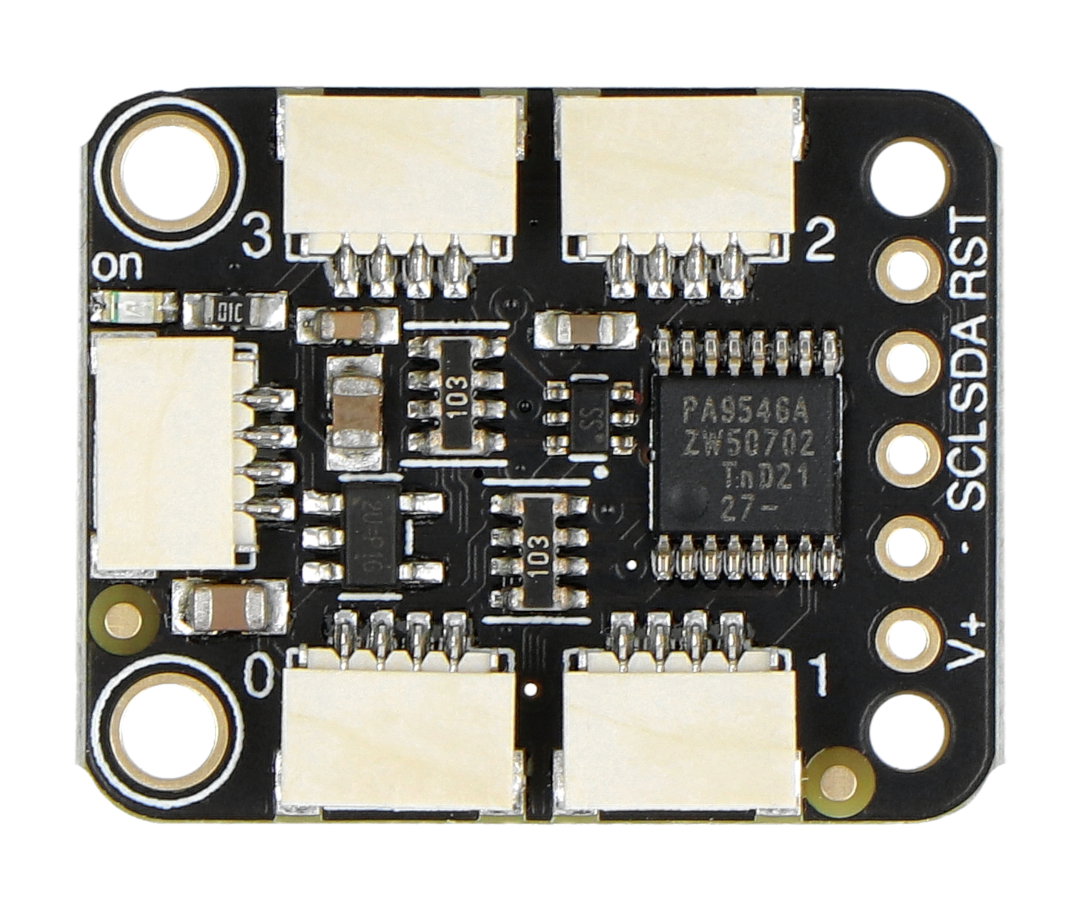

Module with a multiplexer manufactured by Adafruit and equipped with the PCA9546 chip, which is a replacement for the popular TCA9548A chip. The module allows you to connect up to 4 separate I2C digital buses to one microcontroller interface. The I2C bus address occupied by the multiplexer is 0x70 , it can also be configured in the range from 0x70 to 0x77 using jumpers located at the back of the module. The pinouts are STEMMA QT/Qwiic connectors, evenly spaced on both sides of the board.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: IO expander - 4-channel - with I2C multiplexer - PCA9546 - STEMMA QT / Qwiic - Adafruit 5664
Module with a multiplexer manufactured by Adafruit and equipped with the PCA9546 chip, which is a replacement for the popular TCA9548A chip. The module allows you to connect up to 4 separate I2C digital buses to one microcontroller interface. The I2C bus address occupied by the multiplexer is 0x70 , it can also be configured in the range from 0x70 to 0x77 using jumpers located at the back of the module. The pinouts are STEMMA QT/Qwiic connectors, evenly spaced on both sides of the board.
IO expander - 4-channel - with I2C multiplexer - PCA9546 - STEMMA QT / Qwiic - Adafruit 5664.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
Example connection diagram. The subject of the sale is only the pin expander - Raspberry Pi, cables and peripherals must be purchased separately.
Connection diagram and pin description
The pins of the module are STEMMA QT / Qwiic connectors that allow quick connection to peripheral devices without the need for soldering. Connect the pins according to the relations below:
- VIN - 3 V power pin (red wire)
- GND - system ground (black wire)
- SCL - clock line of the I2C bus (yellow wire)
- SDA - I2C bus data line (blue wire)
Product compatible with Arduino and Raspberry Pi!
The manufacturer has prepared a user's guide , which contains a detailed description of the pins and sample program code - check it out!
Module technical specification
- Type: IO expander with multiplexer
- Built-in chip: PCA9546
- Number of channels: 4
- Communication interface: I2C bus
- Bus address: 0x70, adjustable from 0x70 to 0x77
- Supply voltage: 3 V to 5 V or 3 V / 500 mA
- Pins: STEMMA QT/Qwiic connectors
- Board dimensions: 25.3 x 20.3 x 4.8 mm
- Weight: 2.5g
Kit contents
- Lead expander - 4-channel - with I2C multiplexer - PCA9546 - STEMMA QT / Qwiic
- Goldpin strip 1x6 - raster 2.54 mm

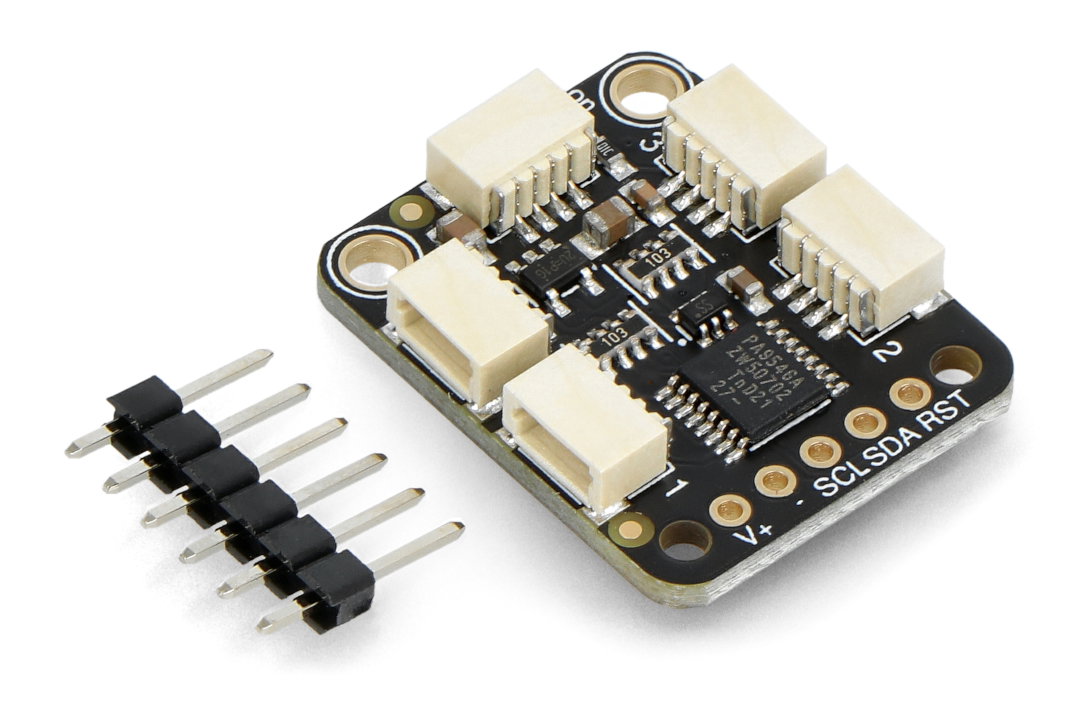

Components included in the set.
