Description: FeatherWing OLED display 128x64px - overlay for Feather - STEMMA QT/Qwiic - Adafruit 4650.
Featheroverlay with a monochrome OLEDdisplaywith128 x 32 pxresolution. The screen diagonal is1.3"and the high contrast of the display makes the presented dataextremely readable. The display produces its own light and does not need additional backlighting. Communication takes place via theI2C interface. The overlay for Feather has 4 buttons: reset and 3 general purpose buttons, which can be programmed at the user's preference.
|
Arduino compatible product The manufacturer has prepared auser guideandsample programfor Arduino. |

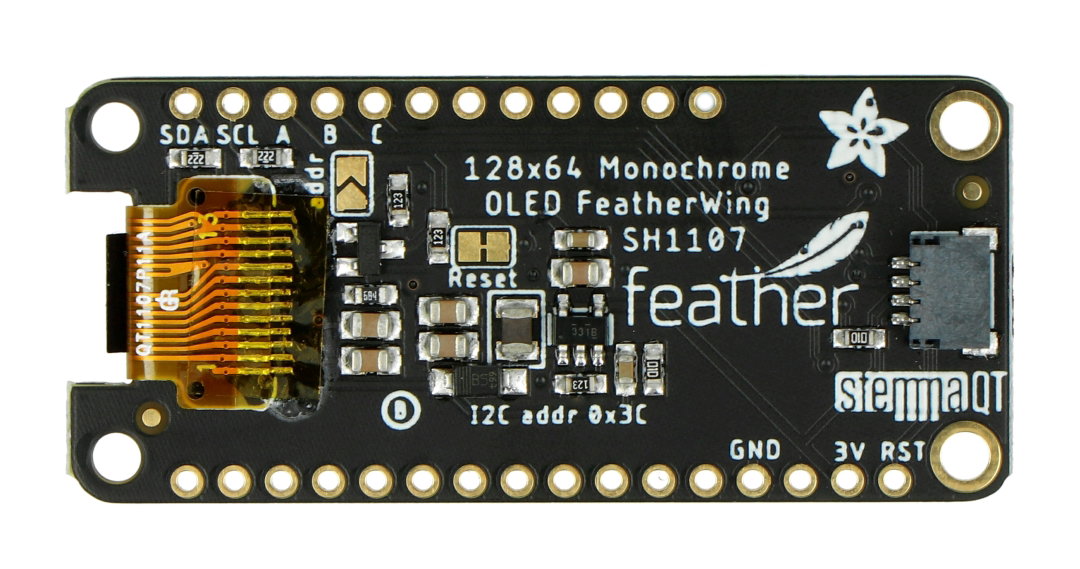

Connection of the module
The module has specialleadsto whichgoldpin connectors(included in the kit) must be soldered. Alternatively, the FeatherWing cap can be connected usingSTEMMA QT /Qwiicconnectors, which can be purchased additionally in our shop.
FeatherWing caps for Feather.
| Pin | Designation |
|---|---|
| 3V | 3 V power pin. |
| GND | The weight of the system. |
| SDA | I2C interface data line. |
| SCL | I2C interface clock line. |
| RST | Module reset. |
| A | Optional. |
| B | Optional. |
| C | Optional. |
|
Attention! When the display is not in use, switch it off. Displaying the image for too long may reduce the brightness of individual pixels. |
OLED display specification - Feather overlays
- Display model: SH1107
- Resolution: 128 x 64 px
- Diagonal of the screen: 1,3"
- Power supply voltage: 3 V
- Interface: I2C
- Interface address: 0x3C with the possibility of changing to 0x3D (by soldering the ADDR jumper)
- Reset button: Yes
- Three buttons are built in: A, B and C
- Buttons A, B and C are connected respectively:
- For Feather modules with 32u4 and M0 controller: pins 9,6 and 5
- For Feather Huzzah ESP8266 module: pins 0, 16 and 2
- Overlay dimensions: 22.9 x 50.9 mm
Set contents
- OLED display - Feather overlay
- Goldpin connectors
