Product description: SparkFun IoT RedBoard - RP2350 - Arduino R4 compatible development board - SparkFun WRL-27708
SparkFun IoT RedBoard - RP2350 is an innovative platform for creators and programmers built in Arduino R4 format . It combines a powerful, dual-core RP2350 microcontroller with an RM2 radio module operating in WiFi 4 and Bluetooth 5.2 standards. The unique ability to choose the core architecture (ARM Cortex M33 or Hazard3 RISC-V) and support for many programming environments (Arduino IDE, MicroPython, Raspberry Pi Pico SDK) gives great versatility in implementing various IoT projects. Additionally, built-in elements such as a Li-Pol battery charging system, a microSD card slot and rich connectors provide convenience and wide expansion possibilities.

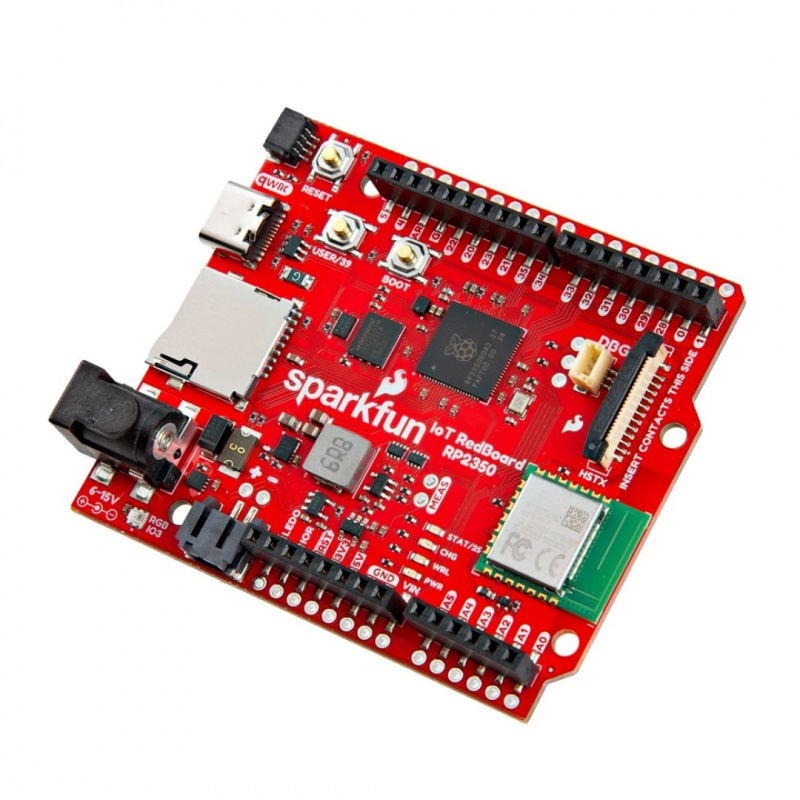

SparkFun IoT RedBoard - RP2350 - Arduino R4 compatible development board - SparkFun WRL-27708.

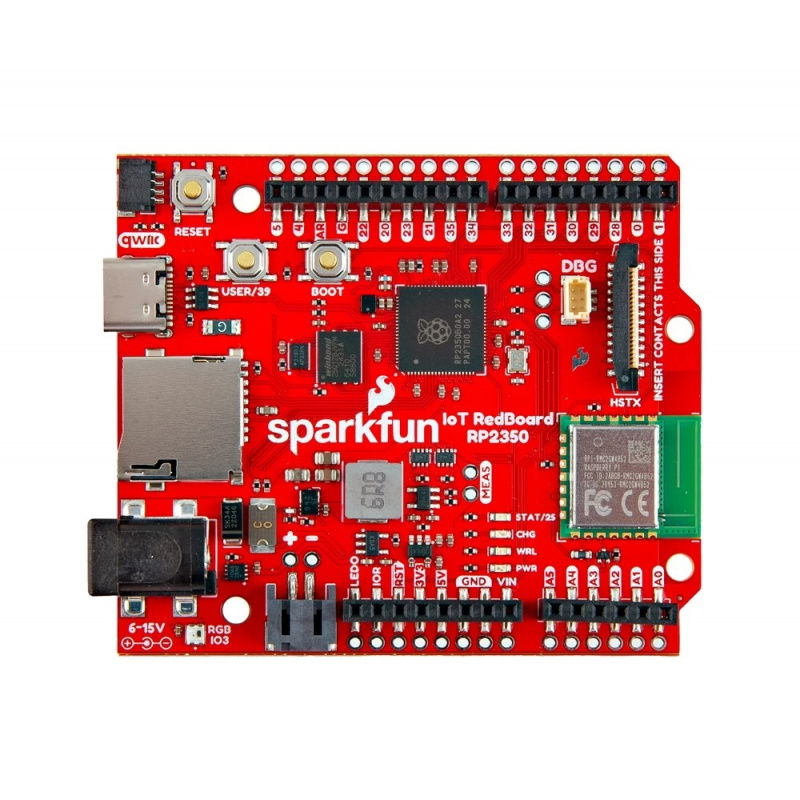

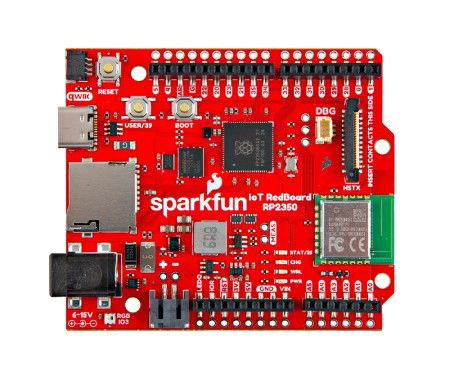

RedBoard connects the RP2350 microcontroller to the Raspberry Pi RM2 module.
Key Features of SparkFun IoT RedBoard - RP2350
- RP2350B : Dual-core microcontroller with a choice of ARM Cortex M33 or Hazard3 RISC-V architecture
- Wireless connectivity : WiFi 4 and Bluetooth 5.2 with BDR and EDR support
- Memory : 16 MB Flash and 8 MB PSRAM for extended applications
- Power supply : integrated MCP73831 battery charger and MAX17048 battery level meter
- Extensive interfaces : 48 GPIO, 8 analog inputs, UART, SPI, I2C, HSTX 22-pin
- Programming : Arduino R4, MicroPython, Raspberry Pi Pico SDK
- Additional elements : microSD card slot, Qwiic connector, debug connector, LED indicators
Practical applications
IoT RedBoard - RP2350 is perfect for projects requiring reliable wireless connectivity, such as smart environmental sensors, home automation devices, remote control and IoT system prototyping . Thanks to a rich set of interfaces and memory, it is possible to create advanced applications communicating in real time, with the possibility of expanding with external modules and sensors.
The board contains 16 MB of external Flash memory and 8 MB of PSRAM connected to the RP2350 QSPI interface.
The board was created in the Arduino R4 format.
SparkFun IoT RedBoard - RP2350 Technical Specification
- Microcontroller: Raspberry Pi RP2350B dual-core (ARM Cortex M33 / Hazard3 RISC-V), clocked at up to 150 MHz
- Memory: 16 MB Flash, 8 MB PSRAM, 520 kB internal SRAM in 10 banks
- GPIO: 48 pins, 8 ADC inputs
- Interfaces: 2x UART, 2x SPI, 2x I2C, 8x HSTX pins, 24 PWM channels, 12 PIO state machines
- Connectivity: WiFi 4, Bluetooth 5.2 (BDR 1 Mbps, EDR 2 and 3 Mbps)
- Extras: microSD card slot, Qwiic connector, 3-pin debug connector, 22-pin HSTX connector
- Power supply: built-in MCP73831 charging circuit for single Li-Pol battery, MAX17048
- LEDs: PWR (Red), CHG (Yellow), STAT (Blue), WRL (Blue), RGB WS2812 (Data to RP2350 IO3)
- Buttons: reset, boot, user button

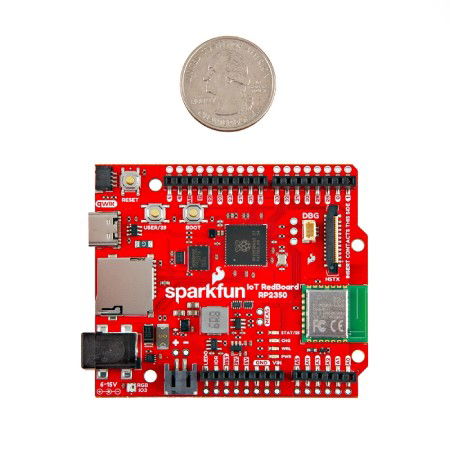

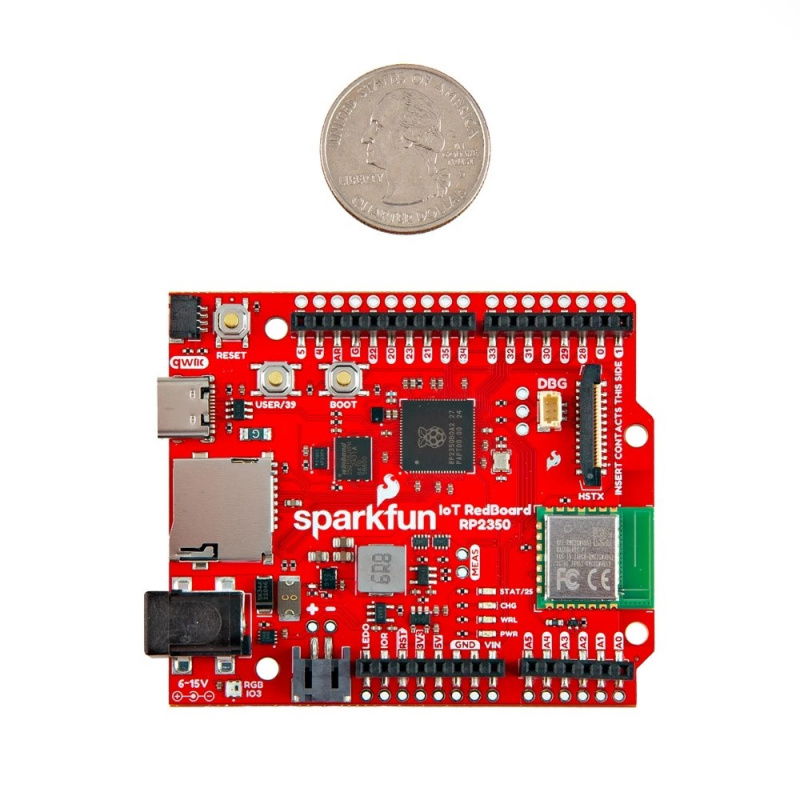

- Dimensions: approx. 68.58 x 58.42 mm
