Product description: SparkFun IoT RedBoard - ESP32 - Arduino compatible development board with MicroPython - SparkFun WRL-28434
IoT RedBoard is a universal development board from SparkFun , based on the ESP32-D0WDQ6 chip with a dual-core Xtensa LX6 processor (up to 240 MHz). Ready to work with MicroPython, it makes it easy to quickly start prototyping and programming IoT devices. Thanks to the built-in Qwiic interface, the user can quickly connect I2C devices without the need for soldering. The board offers a wide range of interfaces: UART, SPI, I2C, ADC, DAC, PWM, IR, touch sensors, as well as a microSD slot, a JST Li-Pol connector with a built-in charger (MCP73831) and a charge indicator (MAX17048) . The popular CH340G chip is used as a USB-UART bridge (USB Type-C connector), which ensures compatibility and ease of use.

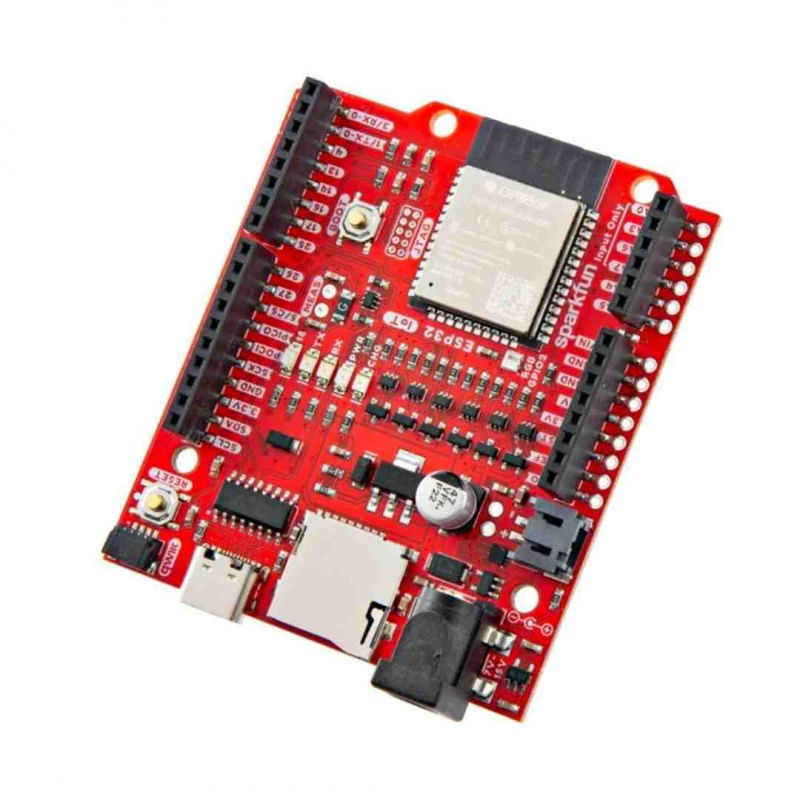

IoT RedBoard - ESP32 MicroPython development board - SparkFun WRL-28434.
IoT RedBoard is a universal development board from SparkFun, based on the ESP32-D0WDQ6 chip with a dual-core Xtensa LX6 processor.Special Features
- Dual-core microcontroller ESP32-D0WDQ6 (Xtensa LX6, 240 MHz) - high computing performance ideal for IoT, streaming, audio decoding and automation projects
- MicroPython pre-installed - ready to work immediately, no need for manual programming of the environment
- Wireless communication WiFi and Bluetooth 4.2 (BLE and EDR) - universal connectivity with local networks and mobile devices
- Integrated Qwiic port - quick and easy connection of I2C modules without wires and soldering
- MicroSD card slot - local storage for sensor data and system logs
- Li-Pol battery power support - JST connector, MCP73831 charging circuit and MAX17048 energy level sensor built into the board
- FreeRTOS operating system + TLS 1.2 encryption + OTA - high level of security and remote update capabilities
Application in practice
IoT RedBoard is perfect for building smart devices, data loggers, mobile devices and remotely controlled systems. It can handle sensors, control motors, log data to microSD, connect to the cloud or be the center of a small sensor network. Thanks to the built-in Qwiic, it is ideal for educational projects and as a platform for rapid prototyping.
Thanks to the built-in Qwiic interface, the user can instantly connect I2C devices without soldering.
The popular CH340G chip is used as a USB-UART bridge (USB Type-C connector), ensuring compatibility and ease of use.SparkFun IoT RedBoard Technical Specification
- Model: ESP32-D0WD-V3
- Processor: Xtensa LX6
- Number of cores: 2
- Core Type: 32bit
- Operating frequency: up to 240 MHz
- Memory
- ROM: 448kB
- SRAM: 520 kB (main memory)
- RTC SRAM: 16 kB (for low power mode)
- WiFi: 802.11b/g/n (up to 150 Mbps)
- Bluetooth: Version 4.2, Support BR/EDR and BLE
- Memory card slot: microSD
- Communication interfaces: UART, SPI, I2C, I2S, PWM (LED and motors), IR, ADC, DAC, CAN (TWAI - compatible with ISO 11898-1), capacitive touch sensors
- Qwiic Connector: 4-pin I2C connector (solderless)
- JST connector: 2-pin for power supply from Li-Pol battery
- Main Power: Via USB Type-C port (CH340G as USB–UART converter)
- Li-Pol charging system: MCP73831 (default charging current: 500 mA)
- Battery level indicator: MAX17048 chip
- Weight: 40 g
