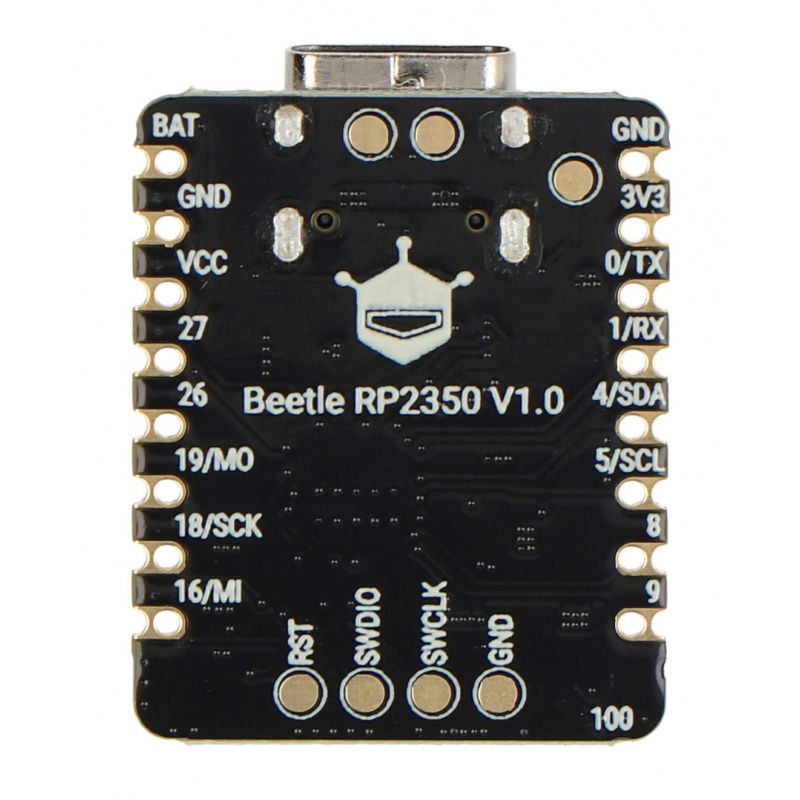

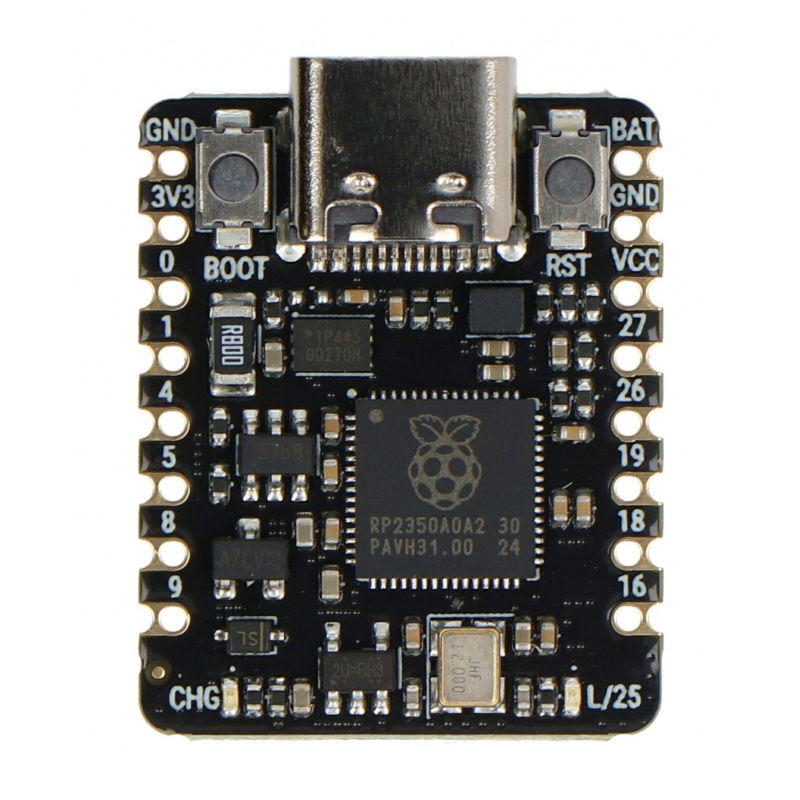

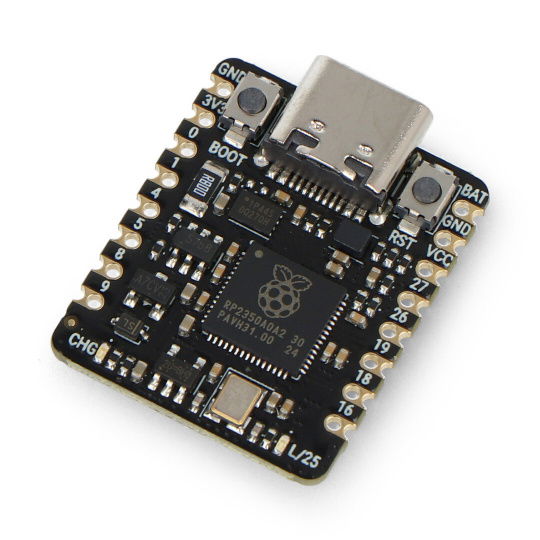

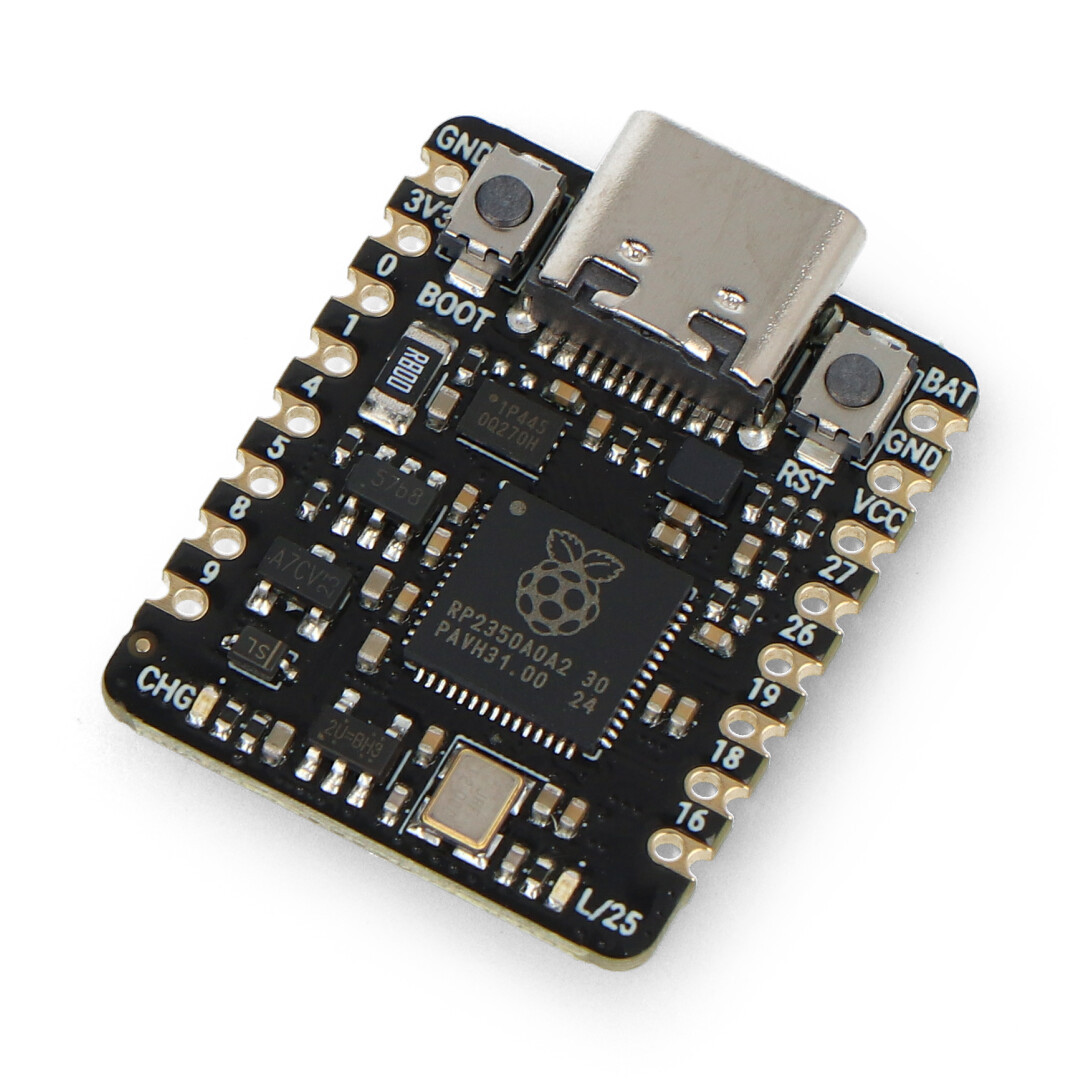

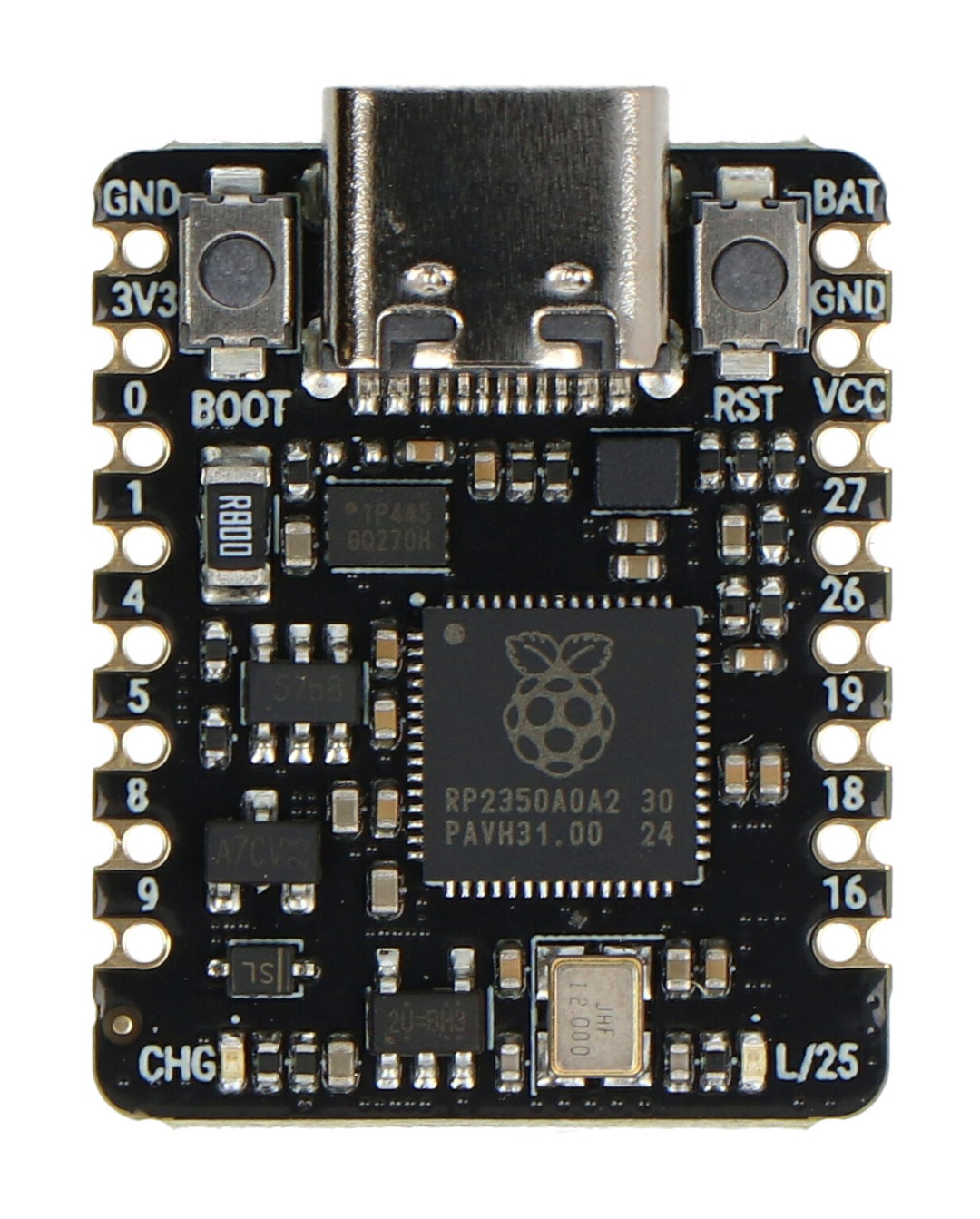

Beetle RP2350 - development board with RP2350 microcontroller - DFRobot - DFR1188
Beetle RP2350 is an exceptionally small but very powerful programmable board for embedded project developers and IoT applications. Built on the Raspberry Pi RP2350 microcontroller , it offers unprecedented versatility in its class - thanks to the dual-core architecture, it allows switching between the ARM Cortex-M33 core and Hazard3 RISC-V .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Beetle RP2350 - development board with RP2350 microcontroller - DFRobot - DFR1188
The Beetle RP2350 is an exceptionally small but very powerful programmable board for embedded project developers and IoT applications. Built on the Raspberry Pi RP2350 microcontroller , it offers unprecedented versatility in its class - thanks to the dual-core architecture, it allows switching between the ARM Cortex-M33 core and Hazard3 RISC-V . The board operates at 150 MHz and contains 520 KB of RAM and 2 MB of Flash memory, making it an excellent base for advanced projects with minimal dimensions. With a surface of just 25 x 20.5 mm , the Beetle RP2350 will fit even in the smallest housings . It has 11 available I/O pins , built-in lithium battery charging management and voltage monitoring , which allows the creation of fully mobile devices. Compatibility with popular environments - Arduino IDE, MicroPython and C/C++ - ensures quick integration in DIY and commercial projects.
Beetle RP2350 - development board with RP2350 microcontroller - DFRobot - DFR1188.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
The Beetle RP2350 is an extremely small but highly efficient programmable board for embedded developers and IoT applications.
Special Features
- Dual architecture microcontroller - integrated RP2350 can switch between ARM Cortex-M33 and RISC-V (Hazard3) cores, offering great design versatility
- 150 MHz operation - ensures high responsiveness and efficient handling of complex computational tasks
- Minimalist dimensions - compact form of 25 x 20.5 mm allows integration in the smallest devices
- Rich set of I/O pins - up to 11 programmable pins provide wide possibilities for connecting external components
- Universal development environments - C/C++, Arduino IDE, and MicroPython support for rapid prototyping
- Integrated power management - lithium cell charging and voltage monitoring system increases energy independence
Beetle RP2350 Technical Specifications
- Microcontroller: Raspberry Pi RP2350
- Cores: ARM Cortex-M33 + Hazard3 RISC-V (switchable)
- Clock speed: 150 MHz
- RAM: 520kB
- Flash Memory: 2MB
- Number of GPIOs: 11
- Operating voltage: 3.3 V
- Power supply:
- USB Type-C Port: 5V DC
- PIN VIN: 5VDC
- Operating temperature: -10°C to 60°C
- Dimensions: 25 x 20.5 mm

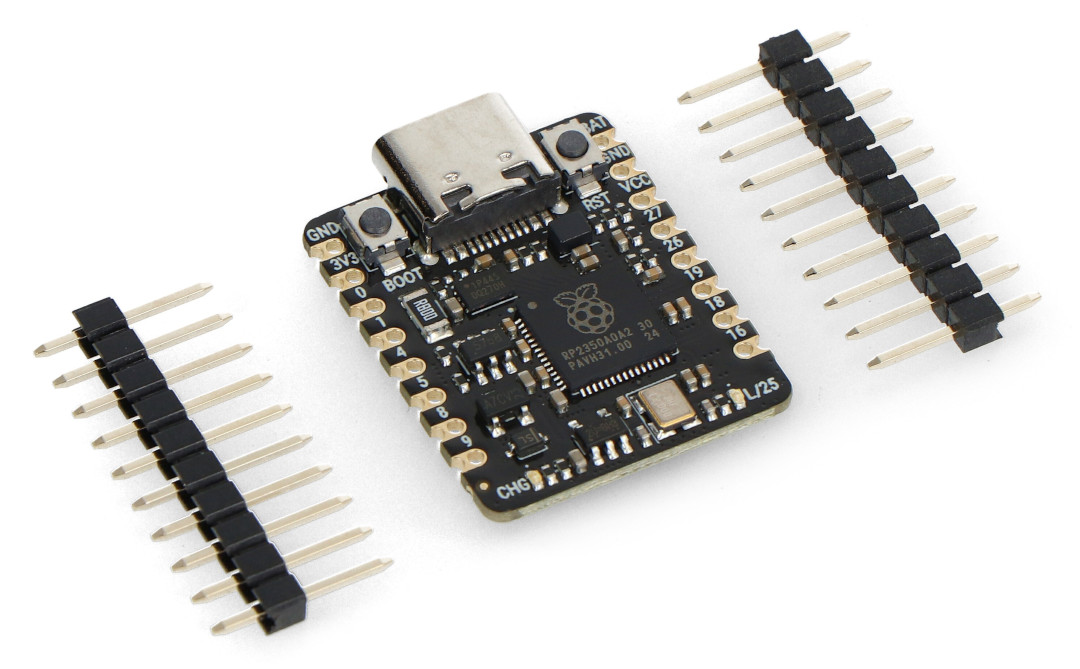

Kit Contents
- Beetle RP2350 board - 1 pc.
- Goldpin connectors 10-pin 2.54 mm - 2 pcs.
The board is built based on the Raspberry Pi RP2350 microcontroller and offers unprecedented versatility in its class.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | RP2350 |
| UC - Core |
|
| UC - Flash | 2 MB |
| UC - RAM | 520 kB |
| Width | 5.6 cm |
| Height | 6 cm |
| Depth | 2.5 cm |
| Weight | 0.008 kg |
