Product description: W6300-EVB-Pico2 - board with RP2050 microcontroller and Ethernet - WIZnet
The W6300-EVB-Pico2 is a compact development module based on the RP2350 microcontroller with 16MB of on-board Flash memory and a dual-core ARM Cortex-M33 processor. The W6300's integrated Ethernet controller supports IPv4/IPv6, TCP/UDP, ICMP, and IGMP standards, enabling the development of high-performance network applications without additional circuitry. The module offers a wide I/O voltage range (from 1.8V to 5V), a rich set of digital and analog peripherals, and advanced security features such as TrustZone, Secure Boot, and OTP . Thanks to compatibility with the Raspberry Pi Pico 2 and QSPI pins dedicated to Ethernet , the W6300-EVB-Pico2 is ready for integration into professional embedded and IoT projects.

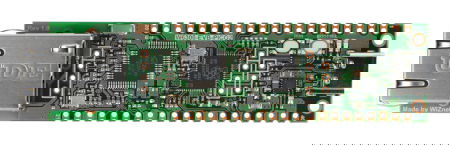

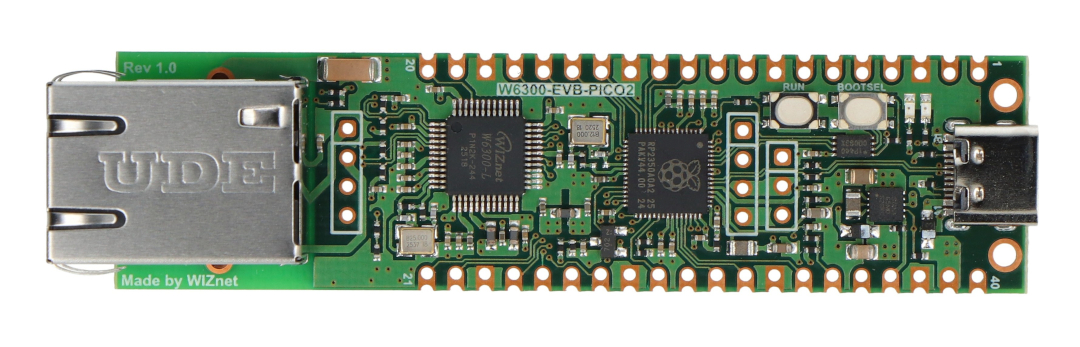

W6300-EVB-Pico2 - board with RP2050 microcontroller and Ethernet - WIZnet.The manufacturer has also prepared a detailed user guide that includes a description of the individual pins - check it out!

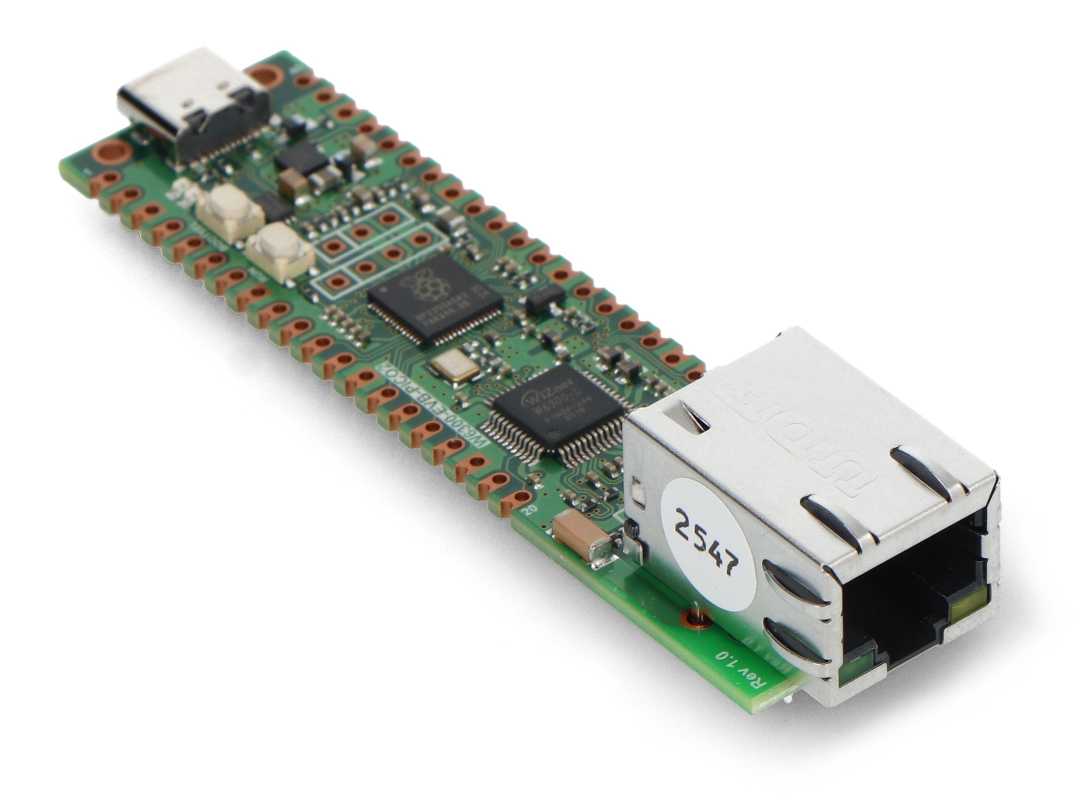

The W6300-EVB-Pico2 is a compact development module based on the RP2350 microcontroller with 16 MB of built-in Flash memory.Special features
- RP2350 microcontroller: dual-core ARM Cortex-M33, 150 MHz
- Built-in Flash memory: 16 Mbit, XIP (Execute In Place) capability
- Efficient crossbar bus: multitasking and fast memory access
- W6300 Integrated Ethernet Controller: Supports IPv4, IPv6, TCP/IP, UDP, Wake-on-LAN
- Ethernet TX/RX memory: 64 KB (32 KB + 32 KB)
- QSPI Compatibility: GPIO 15 to 22 reserved for communication with W6300
Practical applications
The W6300-EVB-Pico2 module is an excellent solution for projects requiring stable Ethernet communication and high performance at low power consumption. It is ideal for industrial applications, IoT devices, home automation, smart sensors, and as an educational platform for learning network communications. Compatibility with the Raspberry Pi Pico 2 and extensive documentation facilitates rapid application development and deployment in environments such as AWS IoT and Azure.

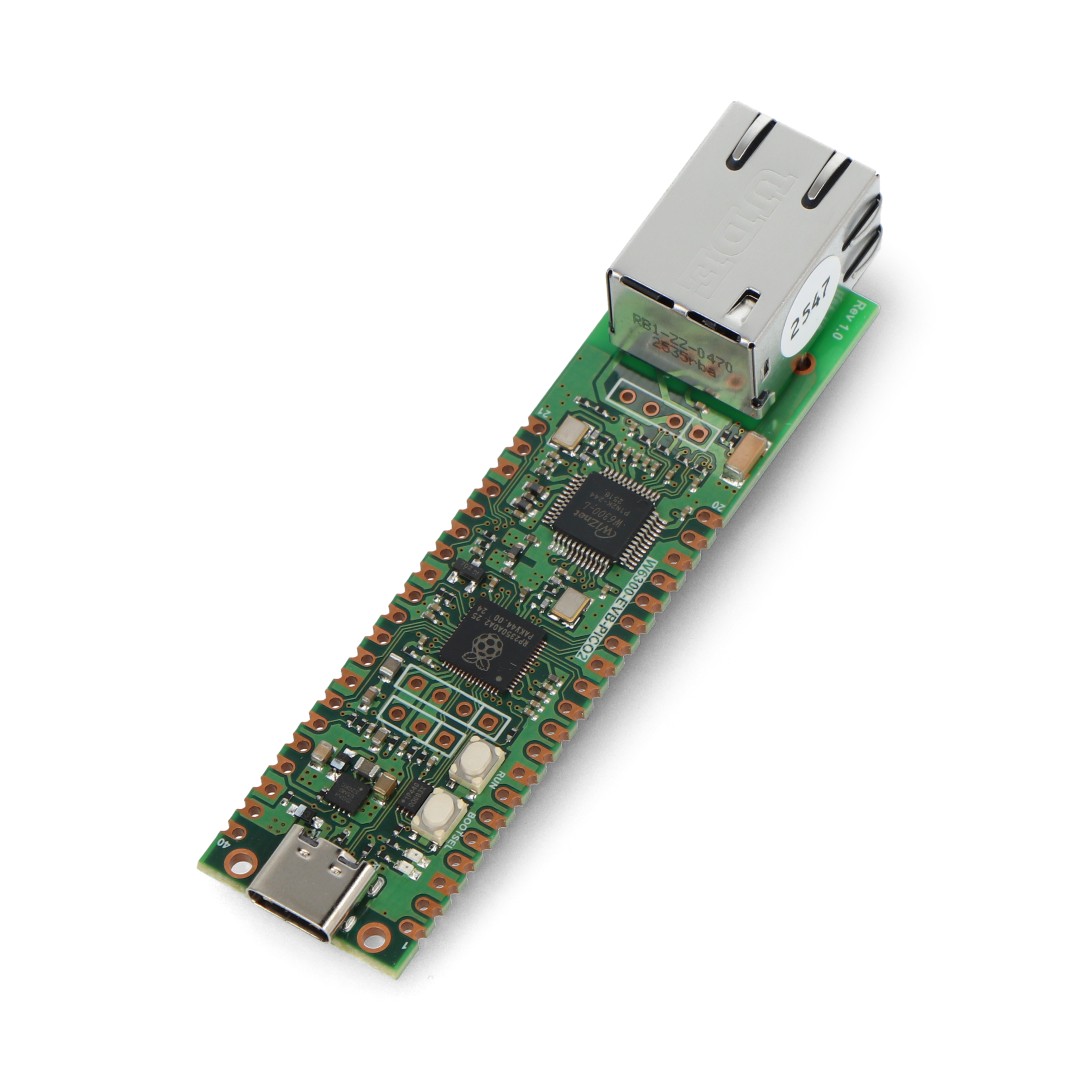

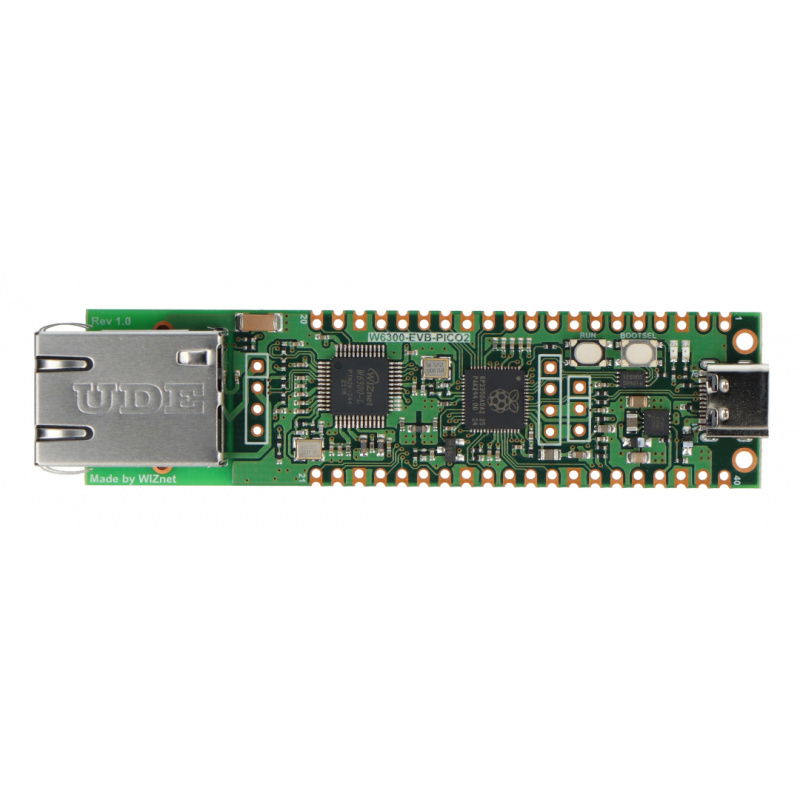

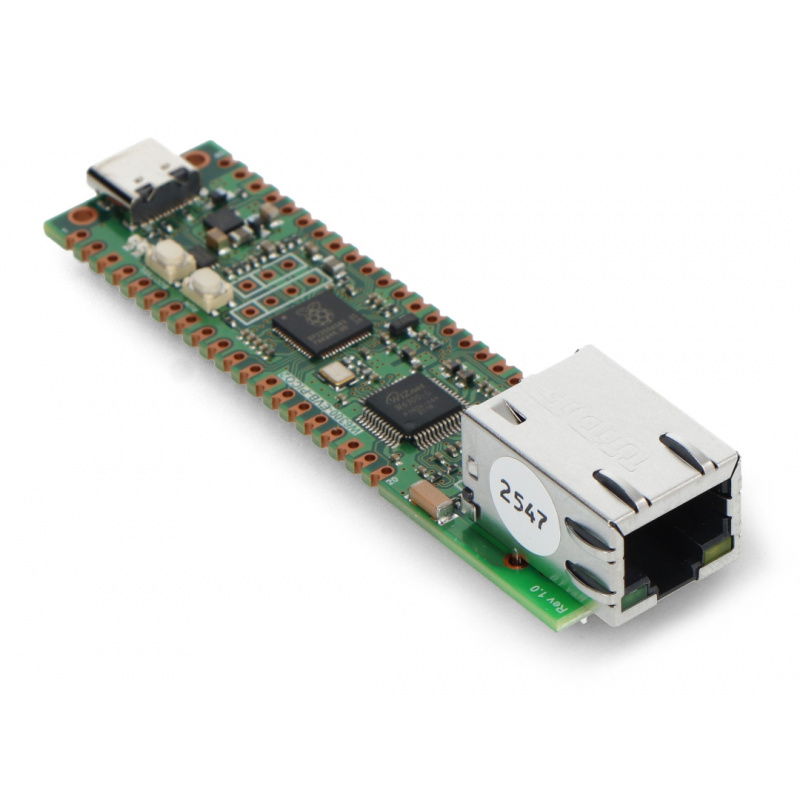

Technical specifications of the module
- Processor: RP2350 (2x Cortex-M33 up to 150 MHz)
- SRAM memory: 520 kB
- Flash memory: 16 Mbit (QSPI)
- Interfaces:
- 2x UART, 2x I2C, 2x SPI
- 16x PWM
- 3x PIO (12 state machines)
- 12-bit ADC 500 ksps (8 channels)
- Ethernet:
- W6300, 10/100 Mbps PHY with Auto-MDIX
- Support IPv4/IPv6, TCP, UDP, ICMP, Wake-on-LAN
- 64 kB memory for TX/RX
- Built-in RJ45 connector
- Security: TrustZone, Secure Boot, OTP
- Power supply:
- 3.3 V (from DC-DC converter)
- USB Type-C input: 5V

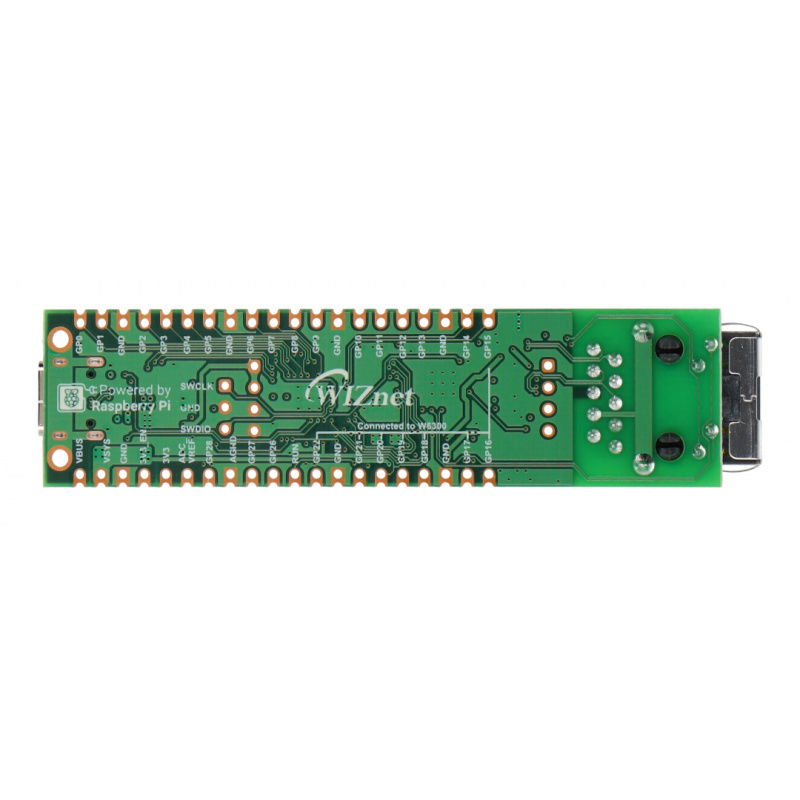

- Connectors:
- 40-pin Raspberry Pi Pico2 compatible chip
- 3-pin SWD port
- Operating temperature: -20°C to 85°C (recommended up to 70°C)
- PCB dimensions: 21 x 51 mm, thickness 1 mm
- Weight: 58 g
The W6300-EVB-Pico2 is ready for integration in professional embedded and IoT projects.
