Product description: Two Trees TTC3018 Pro CNC Milling Machine
The Two Trees TTC3018 Pro is an improved version of the popular CNC milling machine , equipped with a metal Z-axis module and a sturdy aluminum construction. The machine offers a work area of 300 x 180 x 40 mm , allowing for the implementation of a variety of projects in wood , plastic, and metal. Its operating speed reaches 1500 mm/min , and the spindle speed is 8000 rpm , enabling precise and efficient milling. The device is fully compatible with popular CAD/CAM programs such as Vectric, Fusion360, Easel, and CarvecoMaker .

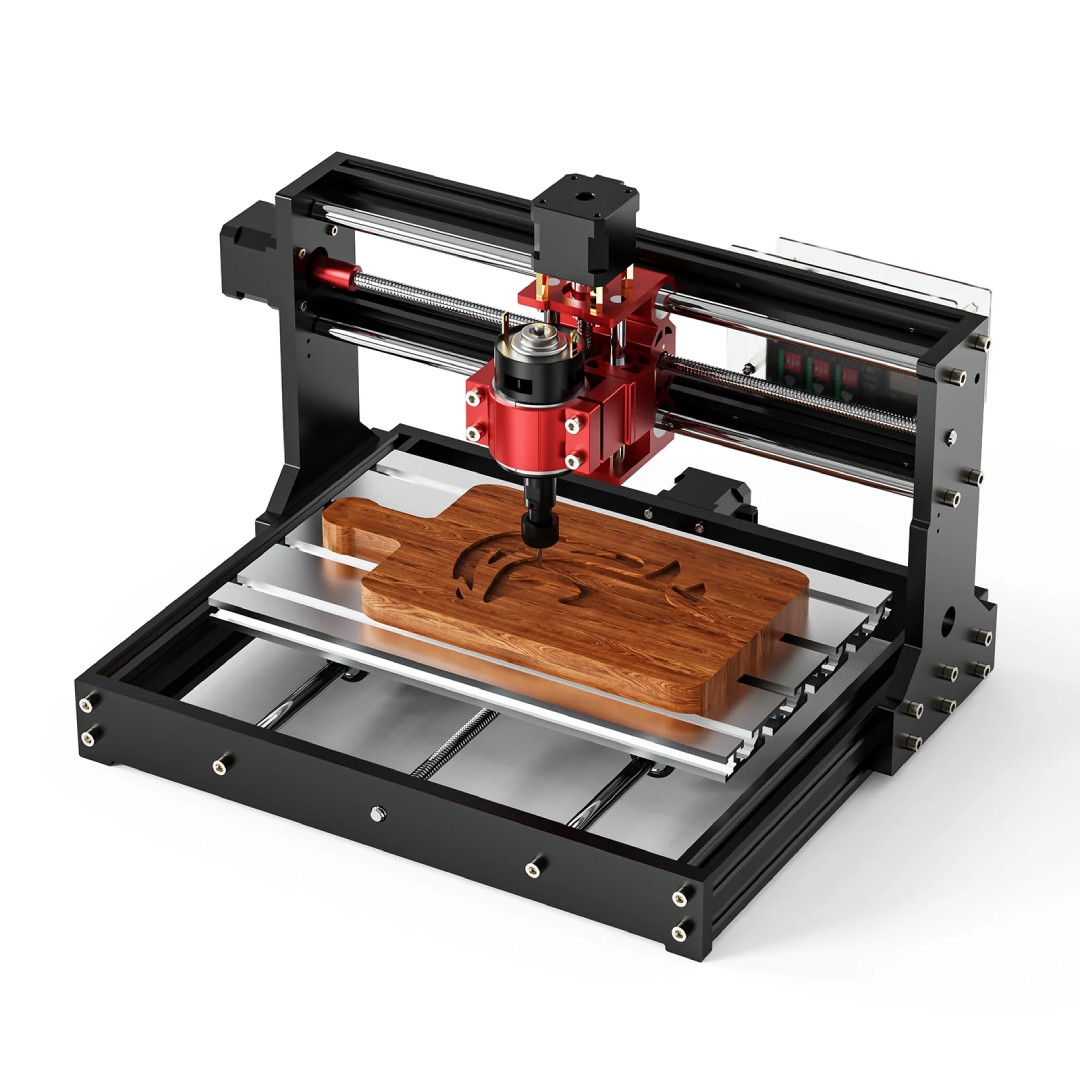

Two Trees TTC3018 Pro CNC Milling Machine.
The stable Z axis increases the overall stability and reliability of the structure.
Stable construction and metal Z axis
Thanks to its reinforced aluminum construction and improved Z-axis module, the milling machine offers improved rigidity and accuracy . The metal Z-axis reduces vibration and increases accuracy even with demanding projects. Engraving precision is 0.1 mm , making it suitable for detail machining.
Working with different materials
The TTC3018 Pro supports materials such as wood, plastic, brass, aluminum, acrylic, and PCBs . It can be used for milling prototype boards as well as creating ornaments and decorative elements. The design of the build platform allows for stable mounting of materials of various sizes.
Laser Extensions and Compatibility
With support for the optional TC20 Laser module, you can transform your device into a laser engraver. The module is available separately as a plug-and-play upgrade . It's the perfect solution for those looking to expand the capabilities of their machine.
Fast and precise work
The TTC3018 Pro allows for operation at speeds up to 1500 mm/min and offers a spindle speed of up to 8000 rpm . The design is based on 4 mm T8 guide screws , which ensures smooth movement and high engraving quality. The machine also supports separately available, interchangeable spindles with different rotational speeds: 7000 rpm, 8000 rpm, and 9000 rpm .

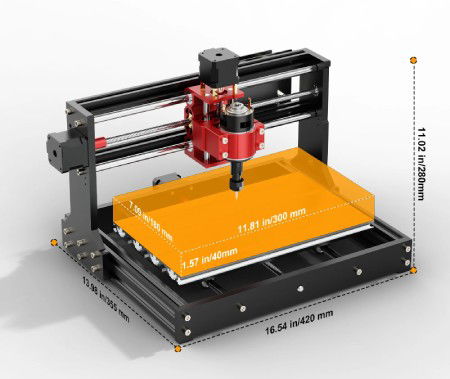

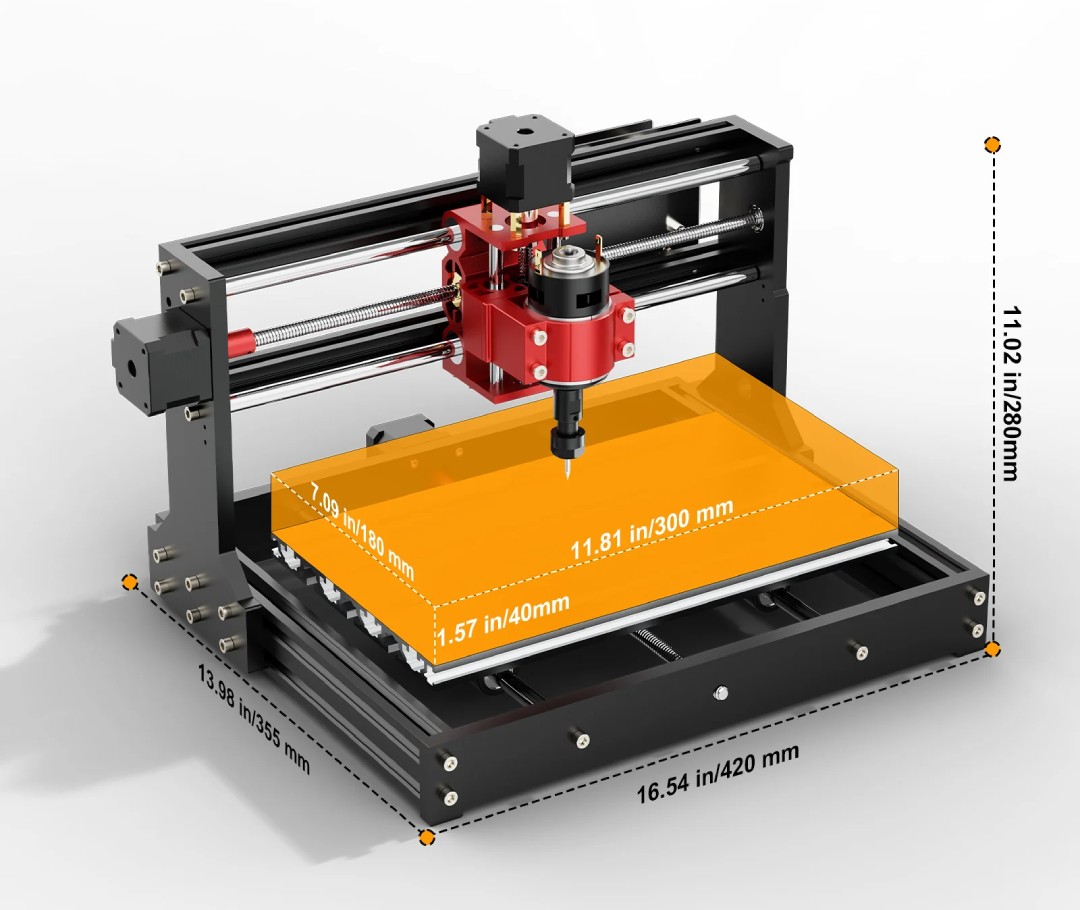

The working area of 300 x 180 x 40 mm ensures versatility of operation.

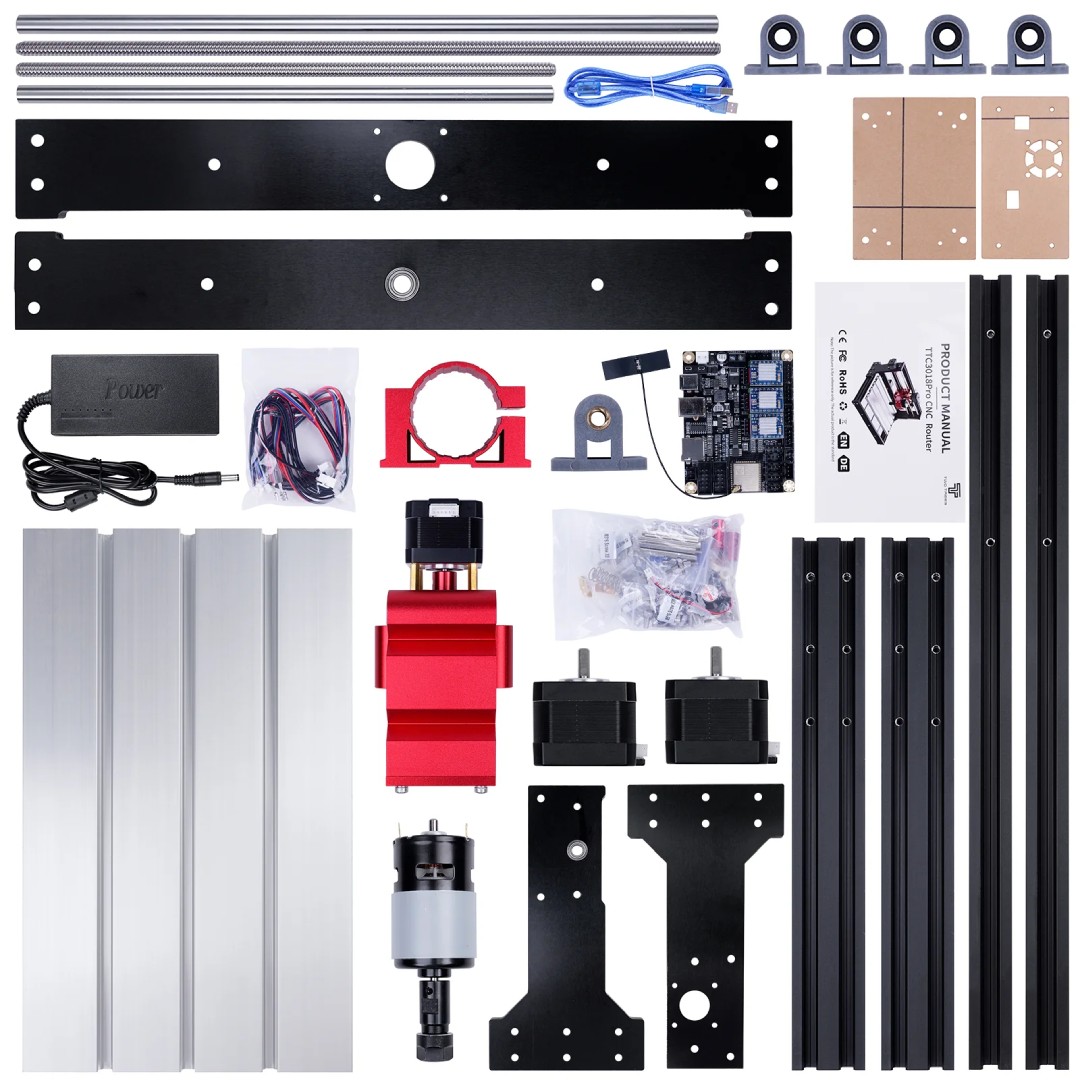

Elements included in the set.
Support for communication programs and ports
The machine uses a 32-bit ESP32 board , which ensures stable operation and support for various interfaces. It also includes a USB port and a TF card slot . It works with programs like Vectric, Fusion360, Easel, and CarvecoMaker , providing flexibility in design and milling.
Contents of the set
- Aluminum and steel structural elements
- Spindle 775 (8000 rpm)
- Z-axis module with stepper motor
- ESP32 motherboard + wiring
- Charger
- USB cable
- Screws, fasteners, screwdrivers
- Handles, guides, mounting accessories
- User manual
| Technical specifications of the Two Trees TTC3018 Pro CNC milling machine | |
|---|---|
| Work area | 300 x 180 x 40 mm |
| Engraving speed | up to 1500 mm/min |
| Spindle speed | 8000 rpm |
| Accuracy of work | 0.1 mm |
| Spindle type | 775 (12V to 24V), 7000 / 9000 rpm |
| Compatible cutters | ER11 collet supports cutters with a diameter of 0.5 mm to 7 mm |
| Stepper motor torque | 1.3 A / 0.25 N*m |
| Power supply | from 12 V to 24 V 5 A |
| System compatibility | Windows XP/7/8/10 Home version |
| Z axis material | metal |
| Guide screws | T8 4mm |
| Laser compatibility | yes (TC20 module - optional) |
| Supported materials | wood, plastic, acrylic, aluminum, brass, PCBs |
| Supported software | Vectric, Fusion360, Easel, CarvecoMaker |
| Supported formats | .nc, .gcode |
| Control board | ESP32 (32-bit) |
| Communication | WiFi, USB, TF card |
| Total power | 33 W |
| Dimensions | 420 x 355 x 280 mm |
| Mass | 7.38 kg |
