Product description: Two Trees TTC-450 Pro CNC Milling Machine
The Two Trees TTC-450 Pro is a CNC milling machine designed for precision machining of a variety of materials, from wood to metal. It offers a 460 x 460 x 80 mm work area , allowing for large projects or mass production. Equipped with a 775 brushed motor and open GRBL software, it supports both milling and laser cutting functions (with an optional module). Its stable aluminum and stainless steel construction and 3.5" touchscreen make operation intuitive and comfortable. Quick assembly (95% factory-assembled) and broad software compatibility make it an excellent choice for both hobbyists and professionals.

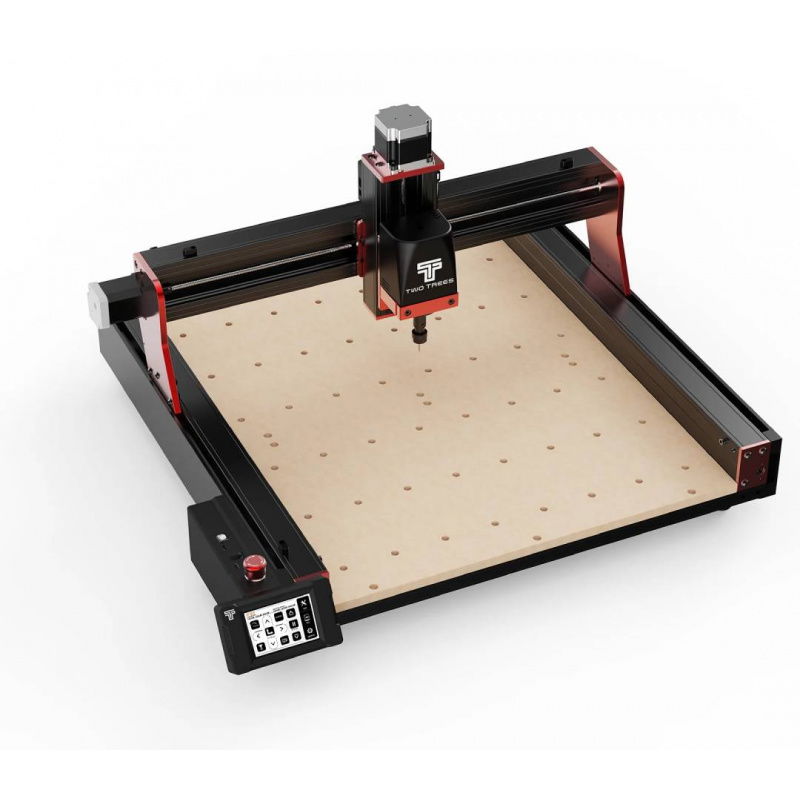

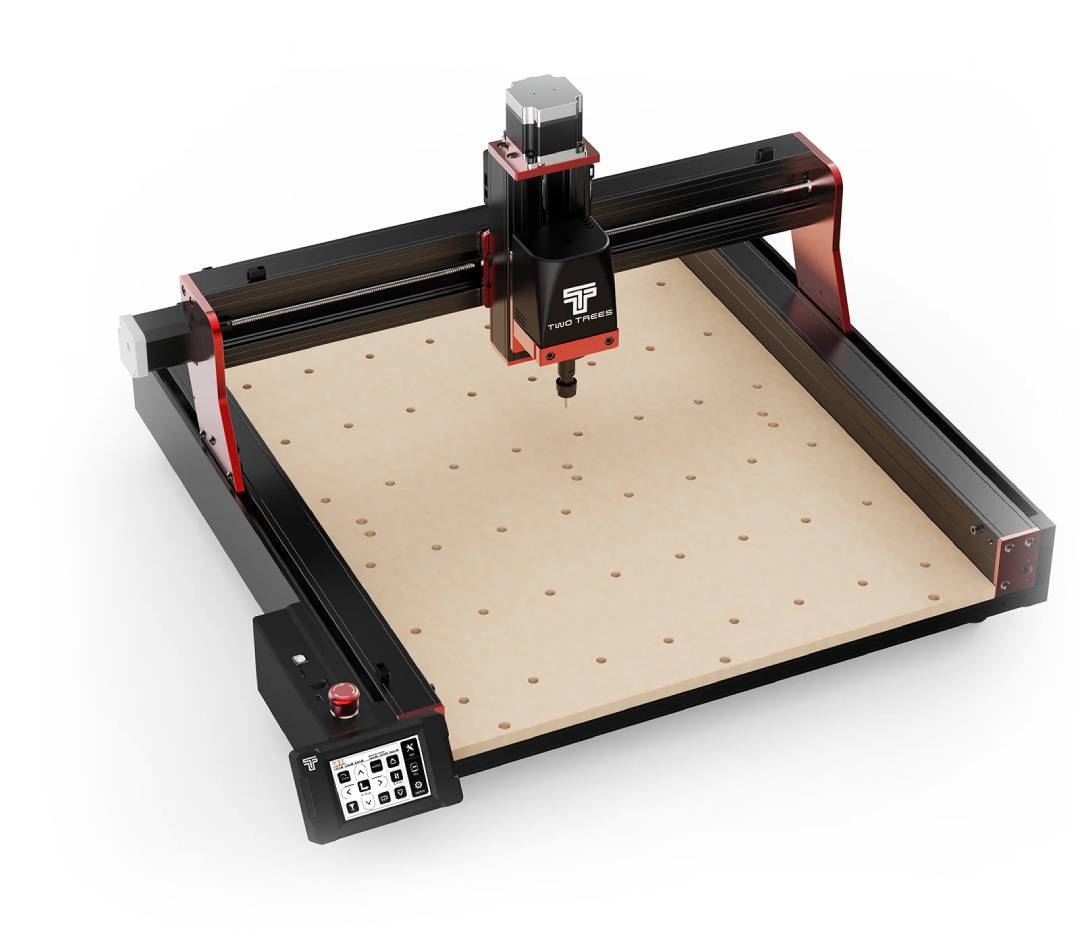

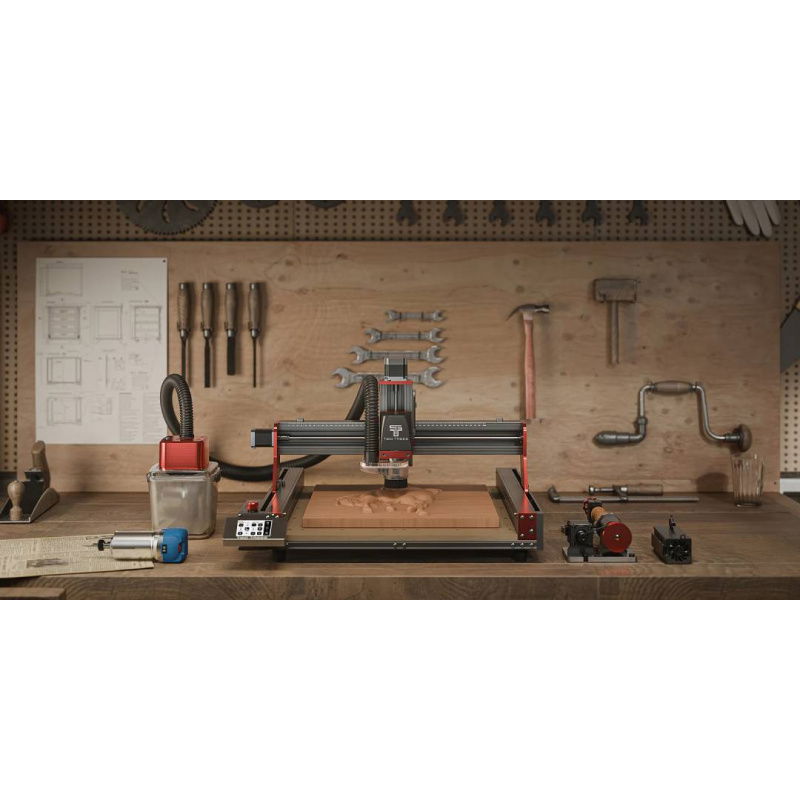

Two Trees TTC-450 Pro CNC Milling Machine.

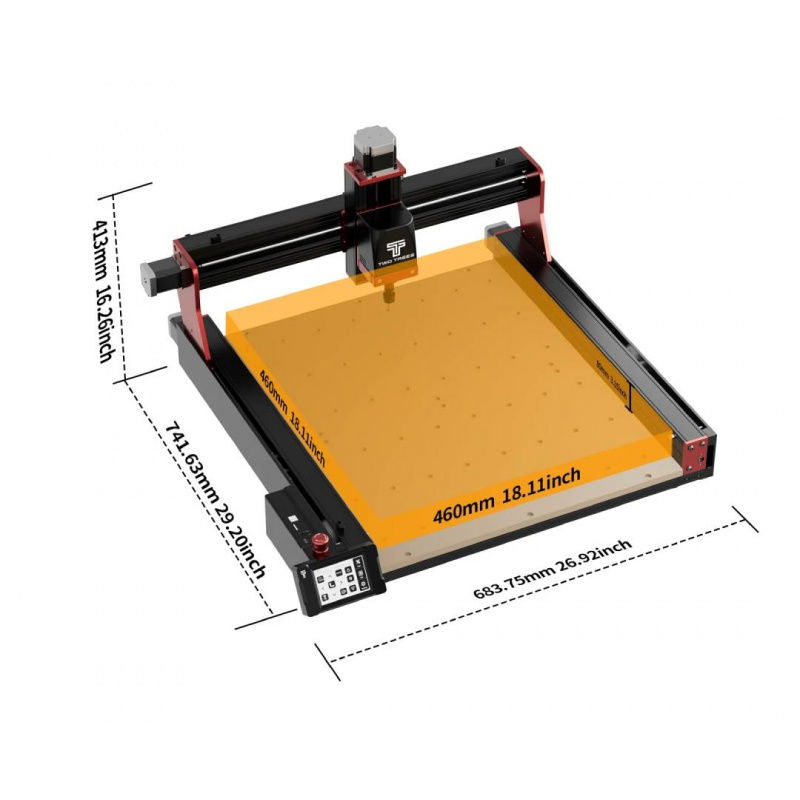

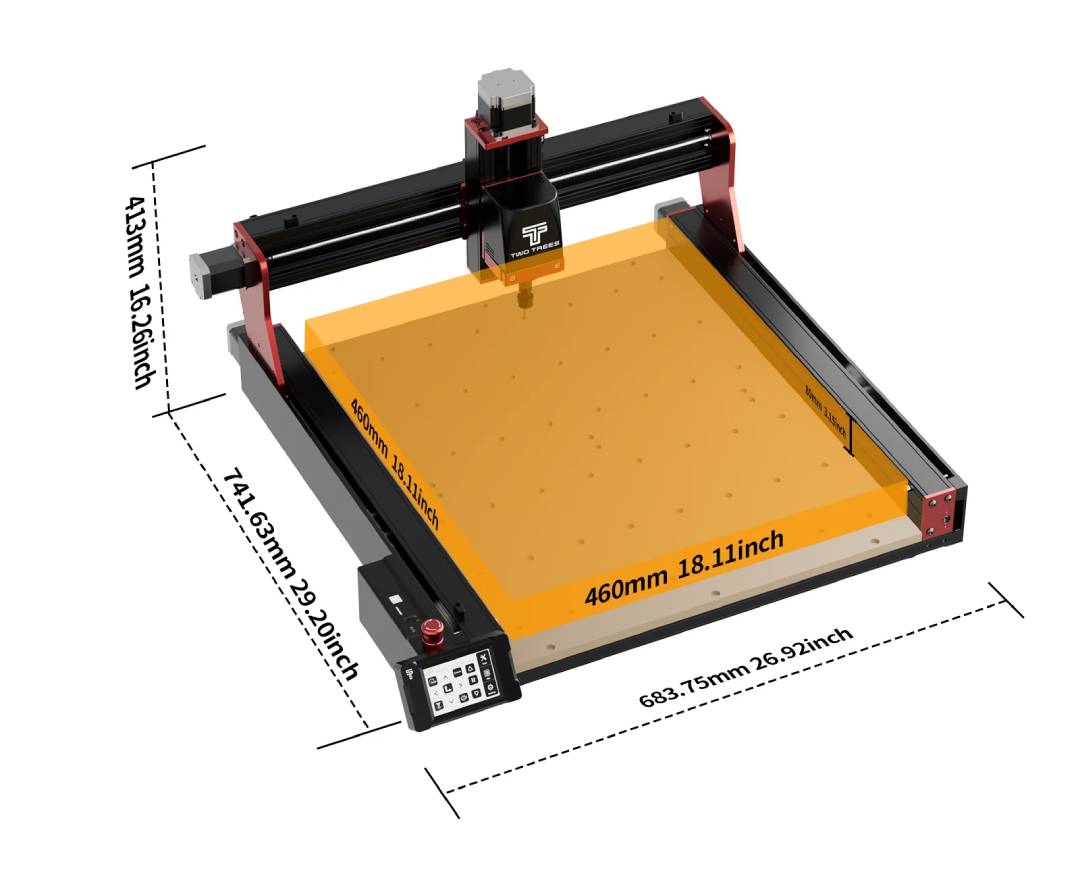

The large working area of 460 x 460 x 80 mm allows you to implement larger projects without space limitations.

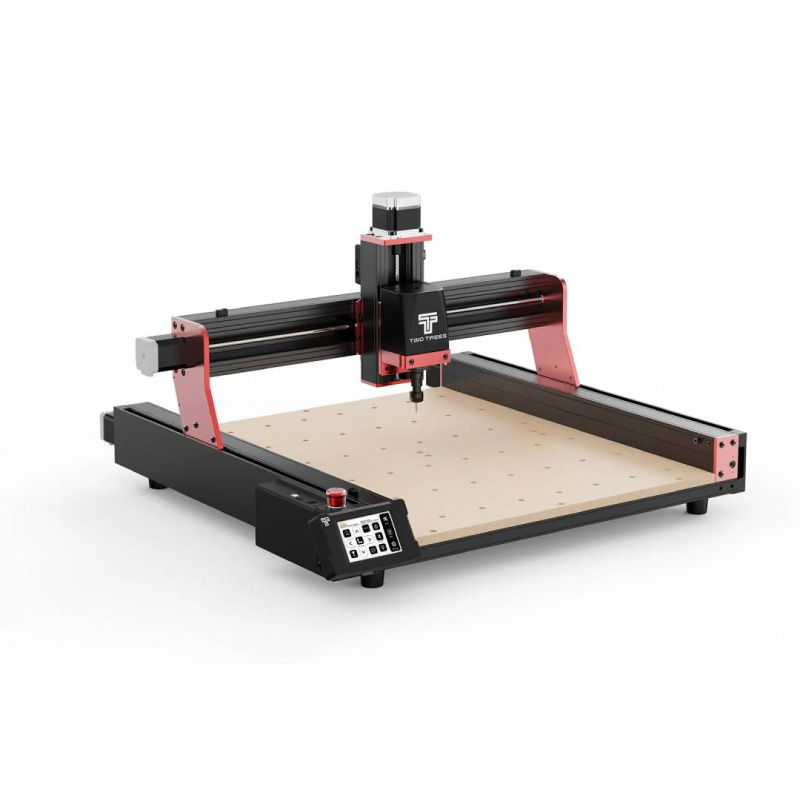

TTC-450 Pro CNC milling machine - stable construction and large working area
The Two Trees TTC-450 Pro CNC milling machine is designed for high precision and durability, featuring a solid combination of aluminum and stainless steel . Thanks to the 8mm thick side panels and the use of T8 screw guides with a 4mm pitch, the machine provides excellent rigidity during operation. The entire machine measures 742 x 689 x 413mm, providing a large and comfortable work area of 460 x 460 x 80mm . This workspace allows for both small projects and larger utility items.
Precise machining thanks to the 775 motor and high operating speed
The heart of the TTC-450 Pro milling machine is the proven 775 brush motor , which allows for spindle speeds ranging from 8,000 to 30,000 rpm , depending on the attachment used. Maximum engraving speed is 800 mm/min , and acceleration reaches 1,000 mm/s² , making the device exceptionally efficient for projects requiring precision and speed. High positioning accuracy of 100 ±0.05 mm and the ability to work with tools with diameters from 0.5 mm to 7 mm (ER11 chuck) guarantee excellent cutting and milling quality.

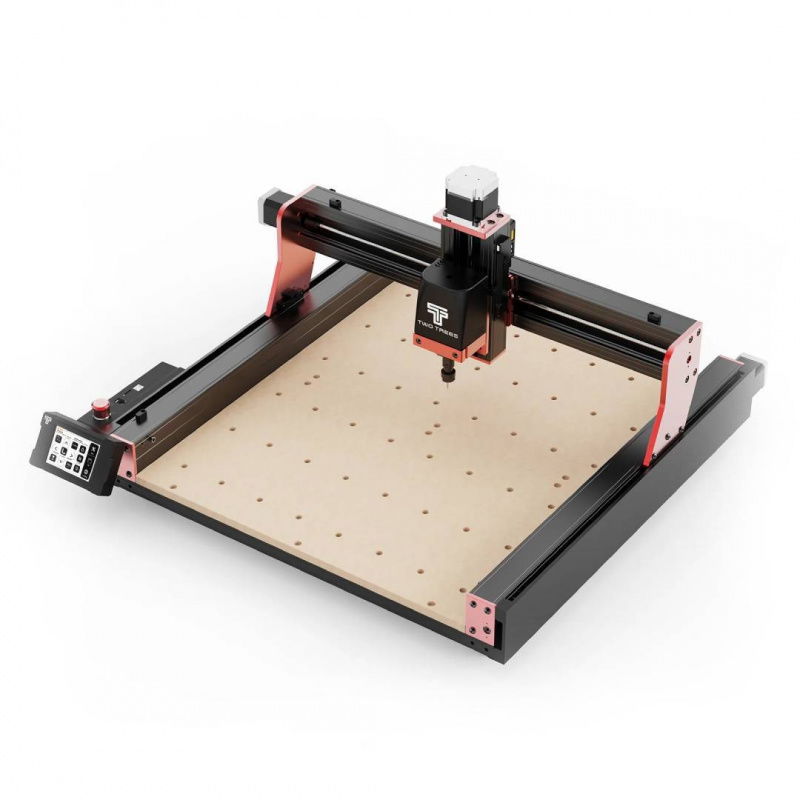

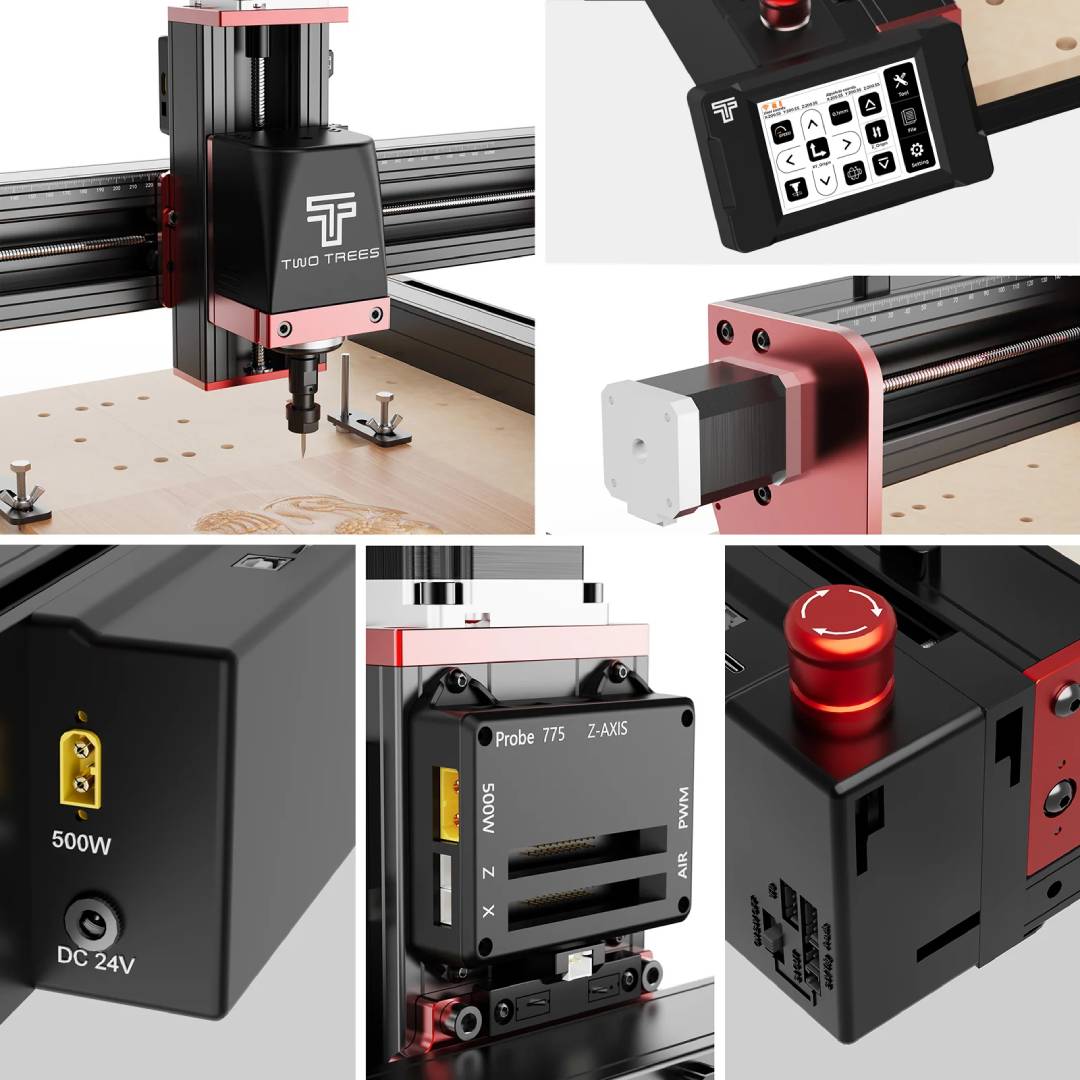

The frame is made of aluminum and stainless steel, guaranteeing stiffness and accuracy.

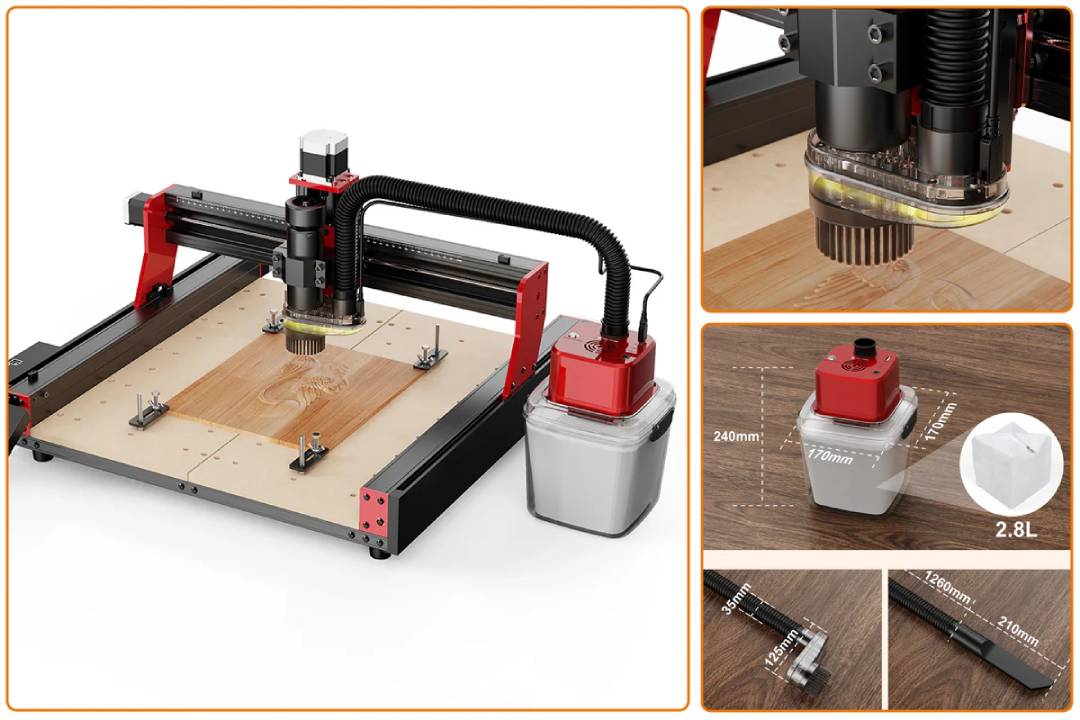

The milling machine, combined with the optional dust extraction system, effectively reduces the amount of dust generated during cutting and engraving, keeping the workplace clean.
Material and Extension Compatibility - The Versatility of the TTC-450 Pro
The TTC-450 Pro supports a wide range of materials—from solid wood, plywood , and MDF, through acrylic and plastics, to aluminum, copper, and stainless steel . Depending on the material being processed, the milling machine can work with various layer heights: from 0.1 mm to 20 mm for non-metals and from 0.1 mm to 0.2 mm for metals . Furthermore, the device supports expansion with additional modules available for purchase separately, such as a laser head or a rotary axis, allowing for cylindrical engraving and work requiring more complex geometry. The design also allows for quick switching between the spindle and laser—without the need for software modifications.
Intuitive operation and compatibility with popular CAD/CAM software
Thanks to the 3.5-inch color IPS touchscreen with a resolution of 480 x 320 pixels, operating the milling machine is incredibly easy, even for beginners. The machine runs on open GRBL firmware , which supports both CNC and laser engraving functions without the need for additional software. The TTC-450 Pro is compatible with popular operating systems— Windows, macOS, and Linux —and CAD/CAM software such as VCarve, Fusion360, EASEL, and Carveco Maker . It supports .nc and .Gcode formats, providing extensive design flexibility and easy integration into existing work environments.

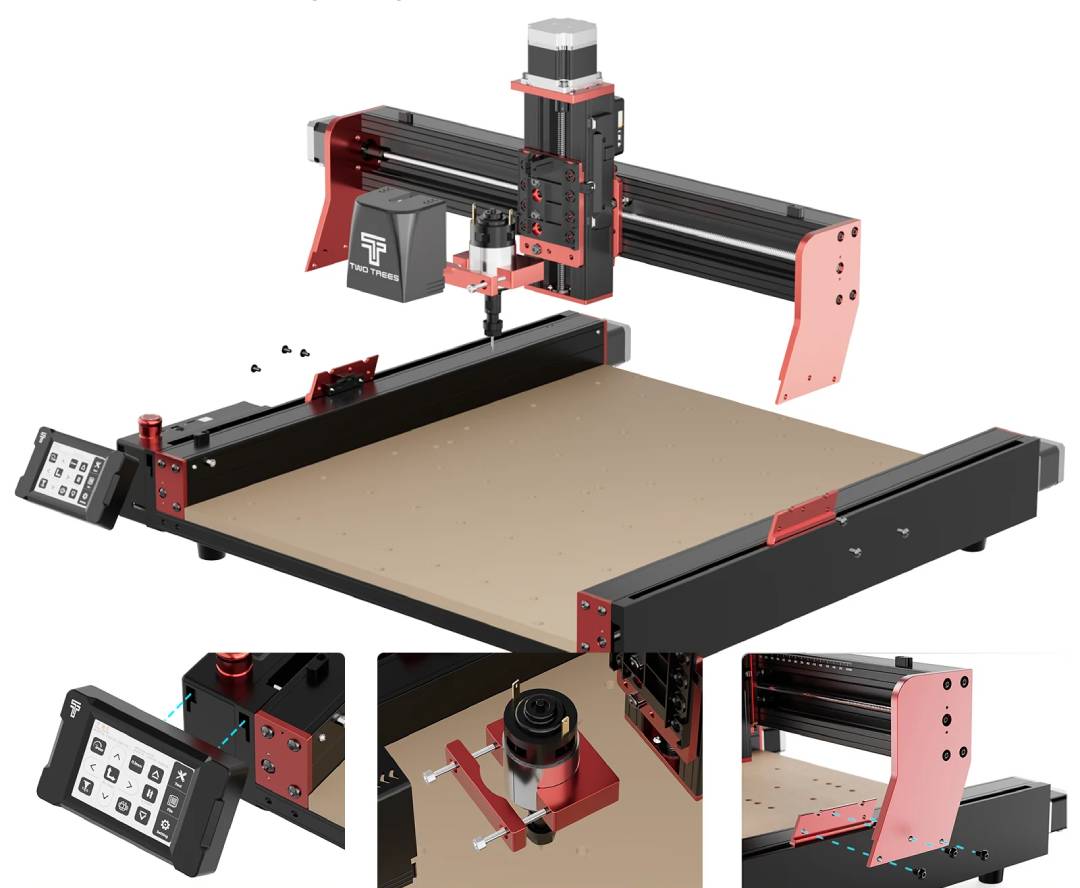

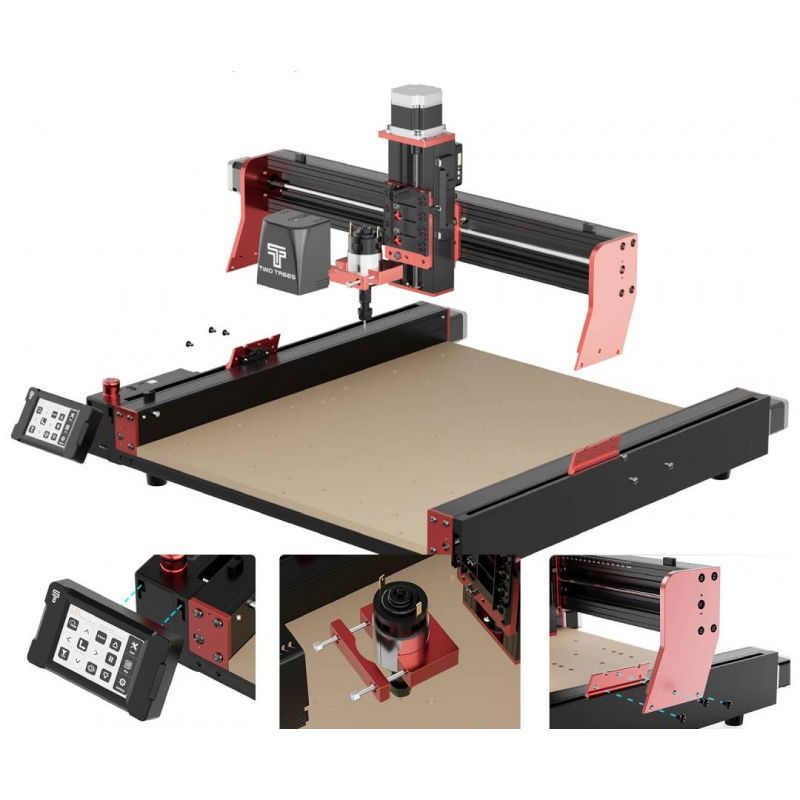

The milling machine is already 95% assembled, so starting to work with it will not be a problem even for beginners.
| Technical specifications of the Two Trees TTC-450 Pro CNC milling machine | |
|---|---|
| Spindle motor | 775 brush |
| Spindle speed | from 8000 rpm to 30000 rpm (depending on installation) |
| Working field | 460 x 460 x 80 mm |
| Positioning accuracy | 0.05 mm |
| Engraving accuracy | 100 ±0.05 mm |
| Maximum engraving speed | 800 mm/min |
| Maximum acceleration | 1000 mm/s² |
| Power supply | 24V / 3A |
| Input voltage | from 100 V to 240 V AC, 50 / 60 Hz |
| Total power | 72 W |
| Display | 3.5'' IPS touchscreen (480 x 320 px) |
| Firmware type | GRBL open source |
| Supported file formats | .nc, .gcode |
| Compatible operating systems | Windows, macOS, Linux |
| Compatible programs | Fusion360, VCarve, EASEL, Carveco etc. |
| Interface languages | EN, ES, DE, FR, RU, PT, IT, CN, JP, KO, TR |
| Supported materials | plywood, MDF, wood, acrylic, carbon fiber, aluminum, copper, stainless steel |
| Engraving layer height | from 0.1 mm to 20 mm (non-metallic materials), from 0.1 mm to 0.2 mm (metals) |
| Operating temperature | from 0°C to 40°C |
| Supported tool sizes | from 0.5 mm to 6 mm (ER11 holder) |
| Material of manufacture | aluminum + stainless steel + injection molded components |
| Dimensions | 742 x 689 x 413 mm |
| Mass | 15.45 kg |
