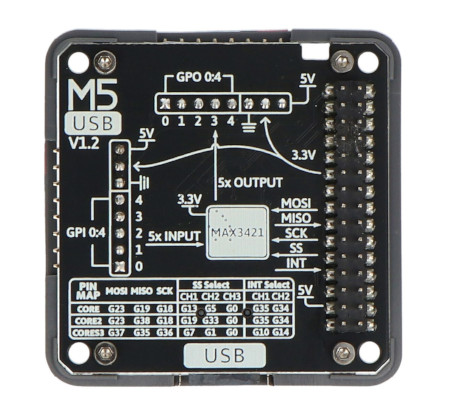

USB Module V1.2 - USB controller module - MAX3421E - M5Stack M020-V12
USB V1.2 module with MAX3421E chip from M5Stack, combines standard USB 2.0 interface with SPI communication . Supports both host and peripheral functions , enabling wide compatibility with USB devices and operating systems. Equipped with reserved pins for controlling or monitoring external devices, a battery connector and two DIP switches . Ideal for applications in smart homes, industrial controls, consumer electronics, medical devices, and education and research.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: USB Module V1.2 - USB driver module - MAX3421E - M5Stack M020-V12

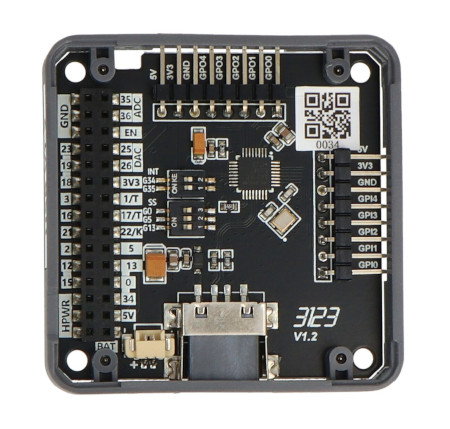

USB Module V1.2 from M5Stack is a versatile USB driver module . Using the MAX3421E chip, it supports the USB 2.0 standard, capable of working in both host and peripheral mode. Communication with the system is via the SPI interface, which ensures a fast and stable connection. The module is equipped with two DIP switches , which allow its functions to be adapted to various M5Stack development modules . Additional GPIO connectors allow for expansion with external devices and monitoring their status. The built-in lithium battery socket provides flexible applications and allows the module to operate for a long time.
USB Module V1.2 - USB driver module - MAX3421E - M5Stack M020-V12.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
Compatible with a wide range of USB devices.
Special features of the module
- Standard USB 2.0 interface : fully compatible with USB devices.
- SPI communication : fast and reliable connection to the system.

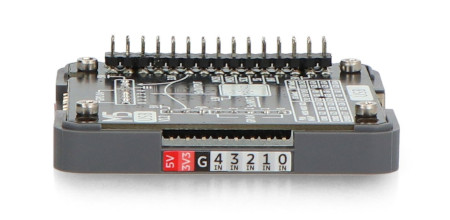

- GPIO expansion : 5 inputs and 5 outputs for additional functions.
- Battery slot : supports long-lasting operation.
- DIP switches : allow adaptation to different M5 series hosts.
Applications of USB Module V1.2
The USB V1.2 module is ideal for a variety of applications such as:
- USB Keyboard Recorders : Monitor and record keyboard inputs.
- USB Flash Drive Read and Write : Trouble-free communication with USB flash drives.
- Smart home systems : integration with USB devices in smart homes.
- Industrial control : communication with industrial devices.
- Consumer electronics : expanding the functions of consumer devices.
- Medical Devices : Integration with Medical Devices.
- Education and research : a tool for learning and experimenting in electronics.
Standard USB 2.0 interface.
Technical specification
- Model: USB Module V1.2
- Chip: MAX3421E
- Supported USB standard: USB 2.0
- Communication protocol: SPI
- GPIO: 5x input, 5x output
- Compatibility: M5Stack Core, Core2, CoreS3
- Operating temperature: 0°C to 40°C
- Dimensions: 54.2 x 54.2 x 12.8 mm
- Weight: 13 g
Useful links
| Name | Value |
|---|---|
| Width | 9.5 cm |
| Height | 13.5 cm |
| Depth | 1.7 cm |
| Weight | 0.028 kg |
