Product description: M5Stack CoreMP135 - development module - Linux control host - STM32MP135D
The CoreMP135 from M5Stack is an integrated industrial Linux control host based on the STM32MP135DAE7 , with a single-core ARM Cortex-A7 1 GHz processor and 4 GB DDR3L SDRAM. Equipped with 2 GbE ports, HD output, 2 USB 2.0 type A ports, USB type C (OTG and power supply), microSD slot, 2 CAN FD interfaces, PWR485 (from 9 V to 24 V + RS485) and 2 Grove interfaces (I2C) and UART). It has a 2-inch IPS touchscreen and a 1W speaker. With low power consumption, AXP2101 and RTC power management, and a built-in battery, it is ideal for industrial automation, IoT and robot control. M5Stack CoreMP135 is ready to use right out of the box, thanks to the included Debian microSD card. The device also has a DIN rail mounting base, making it easy to install in a variety of industrial environments.
The manufacturer has prepared a detailed user guide that makes it much easier to start working with the module.
M5Stack CoreMP135 - development module - Linux control host - STM32MP135D.
Special features of the module
- STM32MP135DAE7 with 1 GHz single-core ARM Cortex-A7 processor
- Standard Linux platform
- Numerous peripheral interfaces (CAN, RS485, gigabit network port, etc.)
- 2'' touch screen
- Power Management (PMU)
- Audio output
- Supports microSD cards and 4 GB DDR3L SDRAM memory
- M5BUS and PORT A/C connectors
- Easy installation thanks to the DIN rail on the bottom of the device
Applications of CoreMP135 from M5Stack
- Industrial automation
- Smart home systems
- Industrial IoT edge gateways
- Education and technological development
- Central control of robot movement

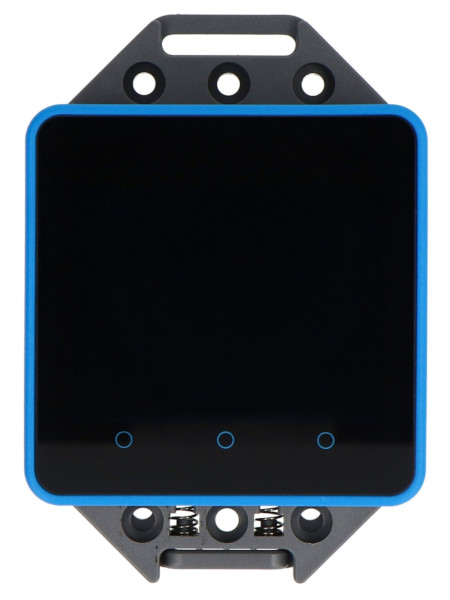

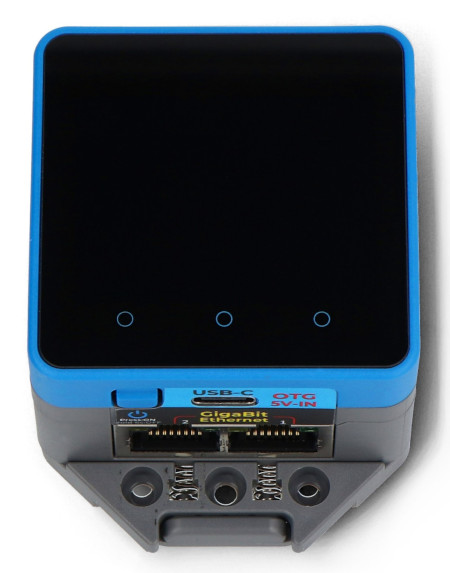

The module has a 2" IPS capacitive touch screen.
The module comes with a microSD card preloaded with Debian.
Programming the CoreMP135 module
The CoreMP135 module can be programmed using standard Linux tools. With Debian pre-installed on a microSD card , you can easily create and deploy industrial, IoT and home automation applications. The module supports various programming interfaces, enabling integration with various devices and systems. Built-in interfaces such as CAN, RS485 and USB ports provide flexibility and performance in various applications.
CoreMP135 technical specifications
- Controller: STM32MP135DAE7
- Processor: ARM Cortex-A7, 1 GHz
- Supply voltage: 12 V / 2 A DC or 5 V / 3 A via USB Type C
- Memory: 4 GB DDR3L SDRAM
- Power management chip: AXP2101
- Communication 485: MAX3485
- CAN communication: Dual channel SIT1051T/3 (high speed FDCAN)
- USB interface: GL852G (2x USB 2.0), 1x USB C (OTG and power supply)
- HD video interface: LT8618SXB, support up to 24-bit color depth
- Ethernet: RTL8211F (up to 1 Gbps)
- RTC: BM8563
- Screen: ILI9342C, 2" IPS LCD, 240 x 320 px
- Touch screen driver: FT6336U
- Amplifier: NS4168, mono class D
- Speaker: 1 W at 4 Ω
- Operating temperature: 0°C to 40°C
- Product dimensions: 54 x 54 x 34.5 mm
- Weight: 99.5 g

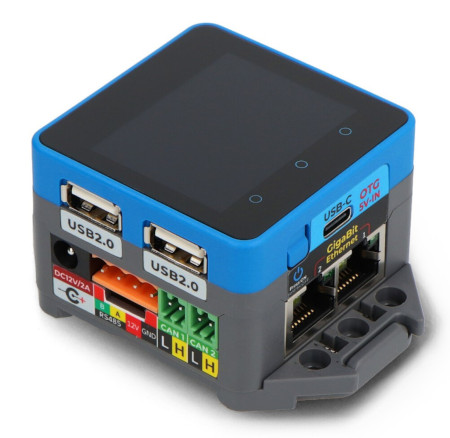

The device offers a rich set of interfaces.
Elements included in the set.

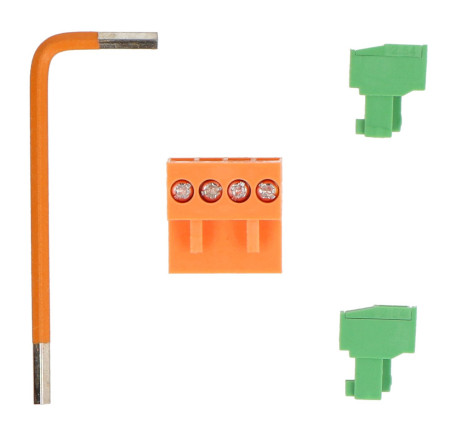

Set contents
- 1x M5Stack CoreMP135
- 1x M3 Allen key
- 1x 4-pin VH connector - 3.96 mm pitch
- 2x 2-pin terminal block - 2.54 mm pitch
- 1x microSD card (installed in the device)
- 1x User manual
