Servo 2040 - 18 Channel Servo Controller - Pimoroni PIM613

Index: PIM-21462 EAN: 769894021439
Servo 2040 is a servo driver manufactured by PiMoroni. It has 18-channels that allow you to control up to 18 servos simultaneously . What's more, it also supports servos operating in a higher voltage range (up to 11 V). Servo 2040 is equipped with 2 MB of QSPI Flash memory supporting XiP, USB type C connector for programming and power supply, 6 addressable RGB / Neopixel LEDs and as many as 6 additional 3-pin fields for connecting analog sensors.
Servo 2040 - 18 Channel Servo Controller - Pimoroni PIM613
€29.50
€23.98 tax excl.
Delivery 12 pcs scheduled for 2024-03-07
Waiting for delivery
PayPal payment
Manufacturer: PiMoroni

Product description: Servo 2040 - 18-channel servo controller - Pimoroni PIM613

Servo 2040 is a servo driver manufactured by PiMoroni . It has 18-channels that allow you to control up to 18 servos simultaneously . What's more, it also supports servos operating in a higher voltage range (up to 11 V). Servo 2040 is equipped with 2 MB of QSPI Flash memory supporting XiP, USB type C connector for programming and power supply, 6 addressable RGB / Neopixel LEDs and as many as 6 additional 3-pin fields for connecting analog sensors.

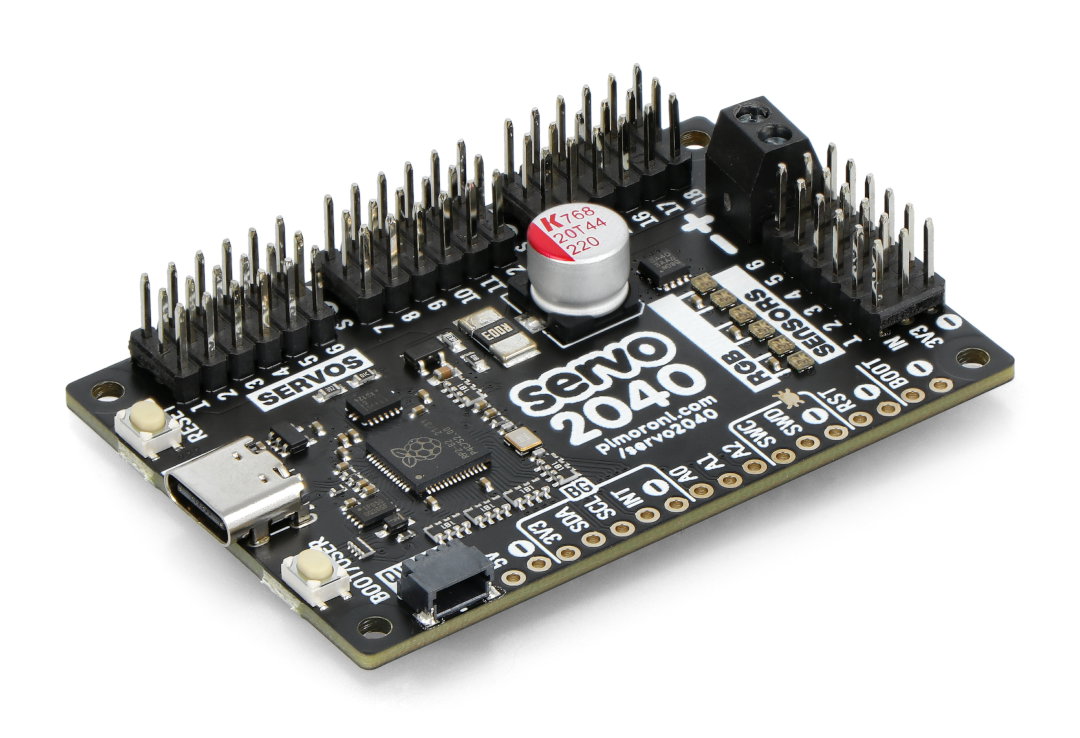

Servo 2040 - 18-channel servo driver - Pimoroni PIM613.

Servo 2040 - 18-channel servo driver - Pimoroni PIM613.

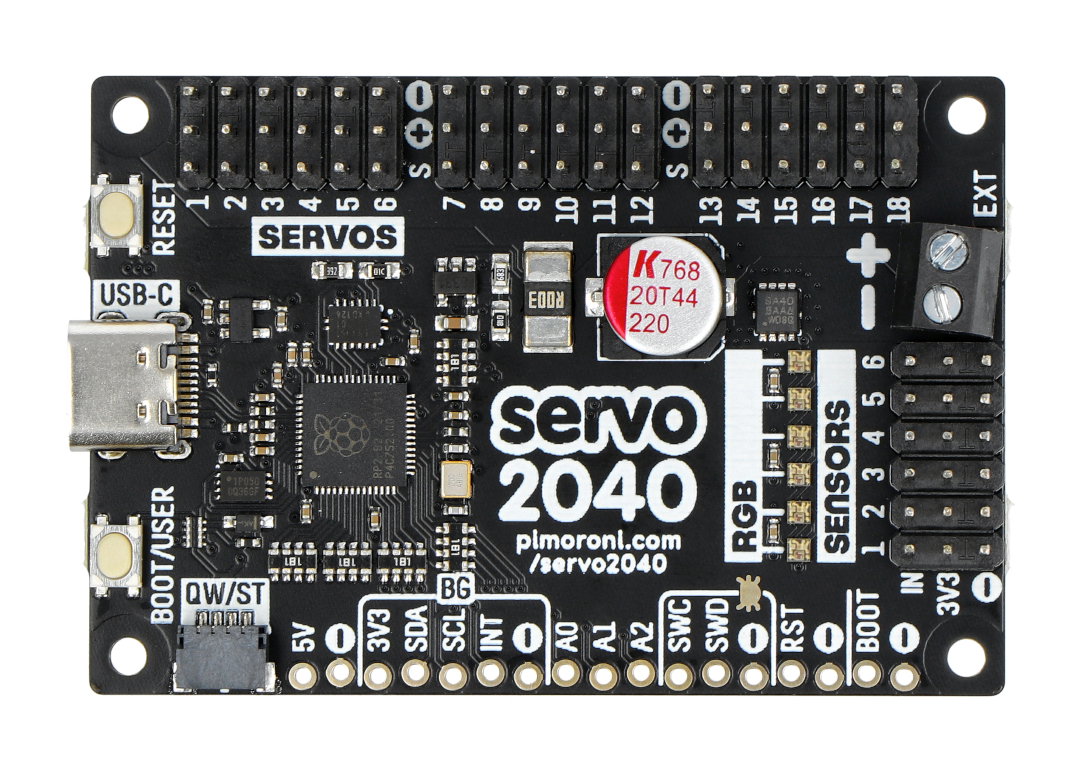

The board is equipped with 6 addressable LEDs.

The board is equipped with 6 addressable LEDs.

Special features of the Servo 2040

  • Based on the Raspberry Pi RP2040 system
  • Equipped with 2 MB of QSPI Flash memory supporting XiP
  • It has 3-pin outputs described from 1 to 18 for convenient connection of up to 18 different servos

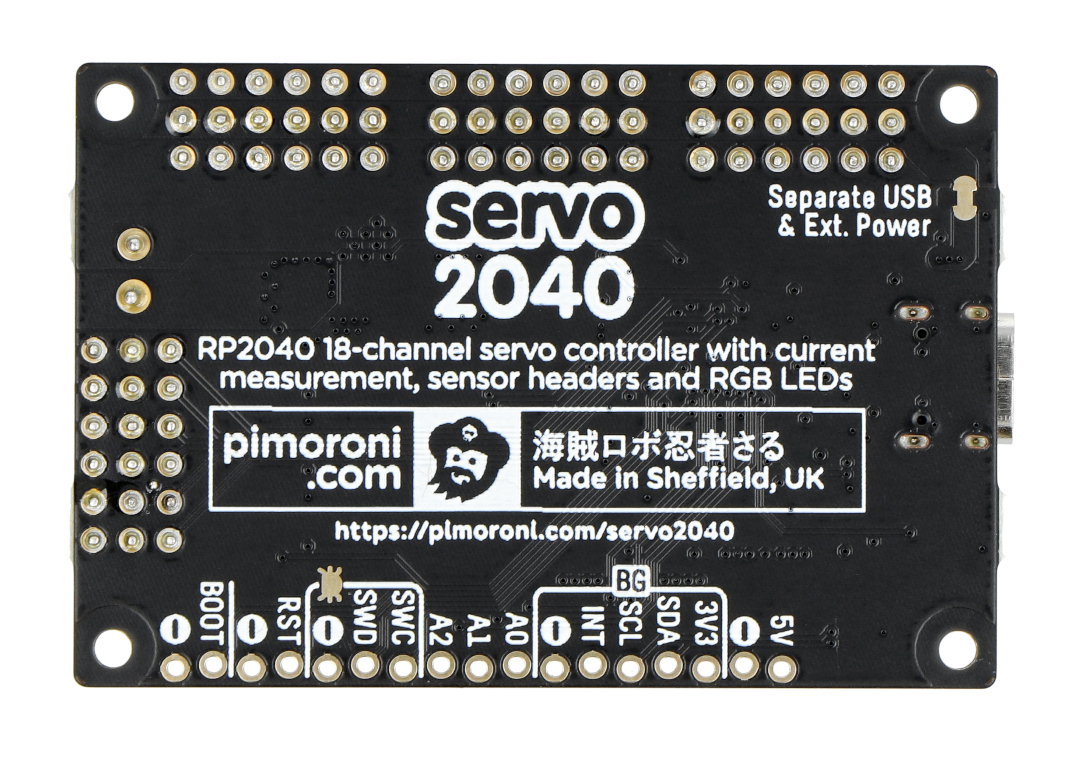

  • Supports higher voltage servos up to 11V - If you want to operate servos with a voltage higher than 5V you must cut the "Separate USB and Ext. Power" power jumper (located on the back of the board) to prevent damage to the RP2040 from excess voltage. If you cut the jumper you will have to provide separate power for the board logic (via USB or 5V)
  • Equipped with 6 addressable RGB / Neopixel LEDs
  • It has as many as 6 additional 3-pin fields for connecting analog sensors
  • Reset button and BOOT button (BOOT button can also be used as user button)
  • USB Type-C connector for programming and power (max. 3 A)
  • Screw terminals for external power supply (reverse polarity protected) - maximum continuous current is 10 A
  • Fully assembled and no soldering required

Technical specification of the module

  • Module type: servo driver
  • Number of channels: 18
  • Built-in chip: Raspberry Pi RP2040 (Dual Arm Cortex M0 + clocked up to 133 MHz with 264 KB of SRAM memory)
  • QSPI Flash Memory: 2MB (XiP Supports)
  • Tile sizes: 62 x 42 x 12 mm
  • Mounting holes: M2.5

Kit contents

  • Servo 2040 - 18-channel servo driver - Pimoroni PIM613
Servo 2040 - 18-channel servo driver.

Servo 2040 - 18-channel servo driver.

Package width 8 cm
Package height 2 cm
Package depth 11 cm
Package weight 0.02 kg
