Product description: Tab5 - IoT development module - ESP32-P4NRW32 and ESP32-C6-MINI-1U - M5Stack C145

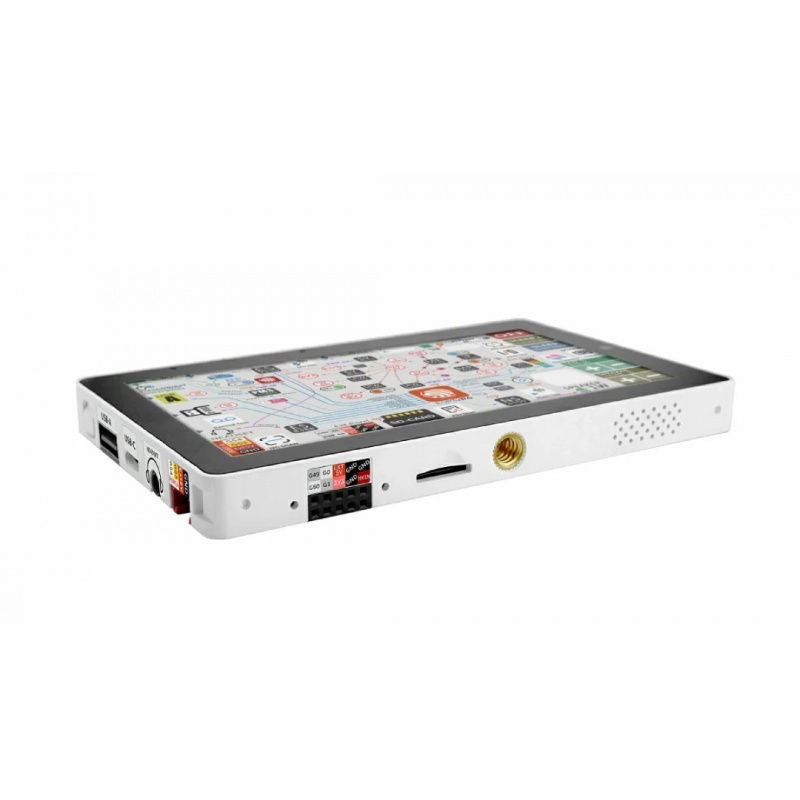

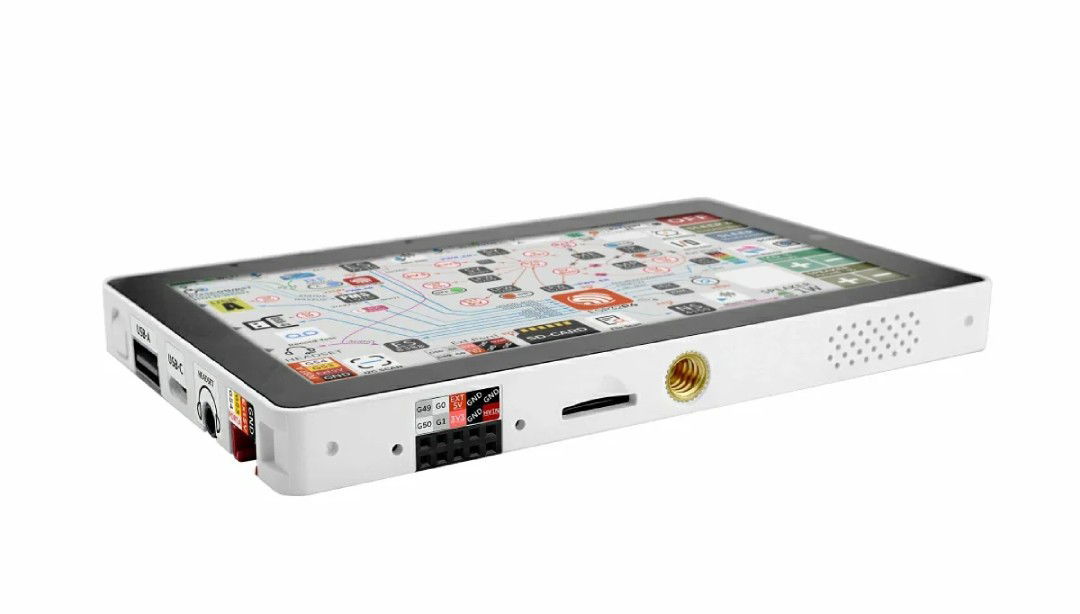

The Tab5 module from M5Stack is a powerful platform for building IoT projects, designed with developers, engineers, and embedded developers in mind. At its heart is the ESP32-P4 – a dual-core RISC-V chip, supported by 32MB of PSRAM and 16MB of Flash memory . Wireless communication is provided by the ESP32-C6 with support for WiFi 6, Thread, and ZigBee, ensuring high throughput, low latency, and flexible deployments. The Tab5 is equipped with a 5-inch IPS display with HD resolution and a GT911 capacitive touchscreen for precise control. A 2MP camera with a MIPI-CSI interface enables real-time image processing. Additional features, such as RS-485, USB Type-C OTG, a USB Type-A port, a microSD slot, and expansion connectors (GROVE, M5BUS, GPIO_EXT) , enable extensive functionality expansion. The device can be powered externally via USB Type-C or an optional NP-F550 battery (not included).
Tab5 - IoT development module - ESP32-P4NRW32 and ESP32-C6-MINI-1U - M5Stack C145.
The Tab5 module from M5Stack is a powerful platform for building IoT projects, designed with developers, engineers, and embedded solution creators in mind.Special features
- Dual-core ESP32-P4 microcontroller clocked at up to 400 MHz for local applications
- ESP32-C6 module with WiFi 6, Thread, and ZigBee support for maximum network compatibility

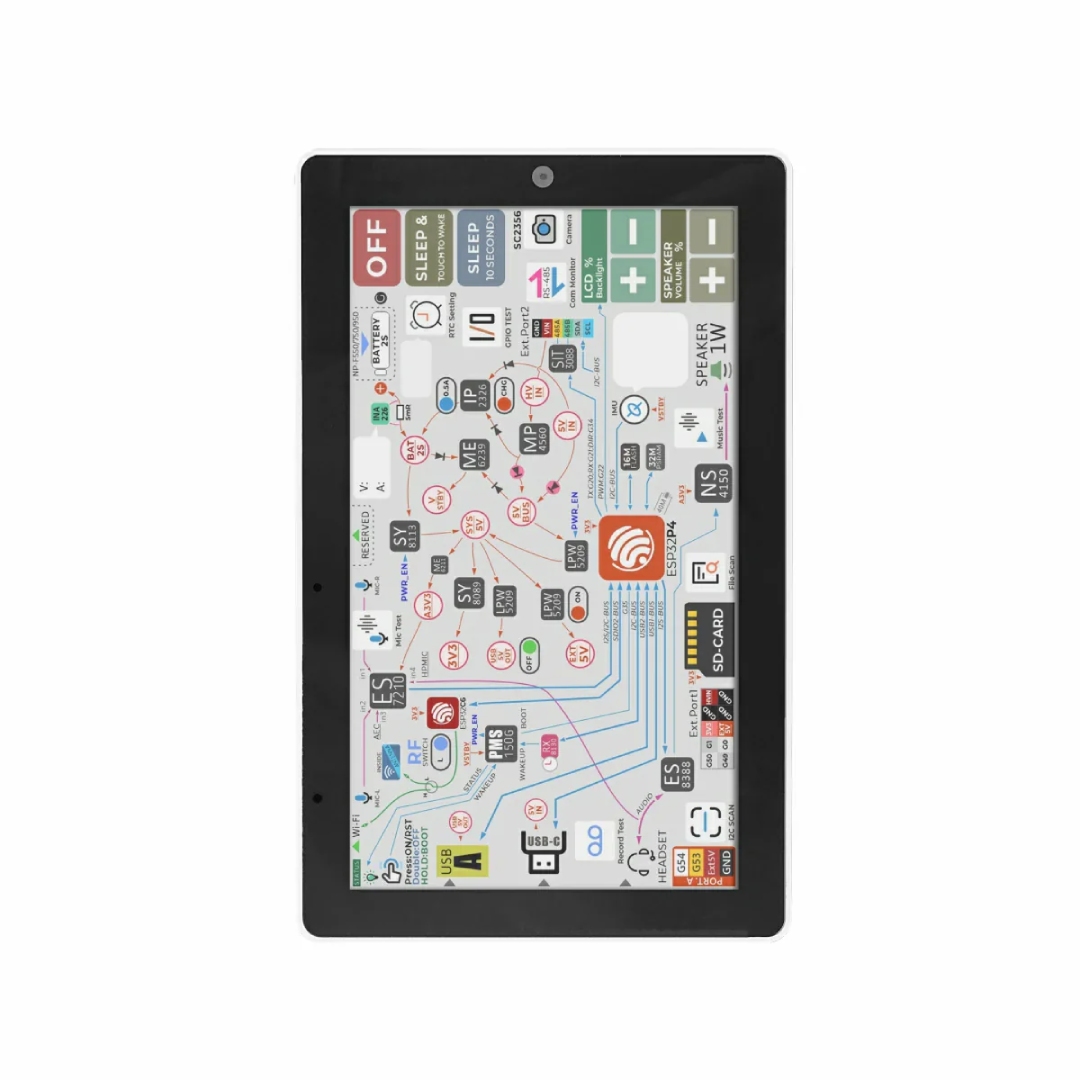

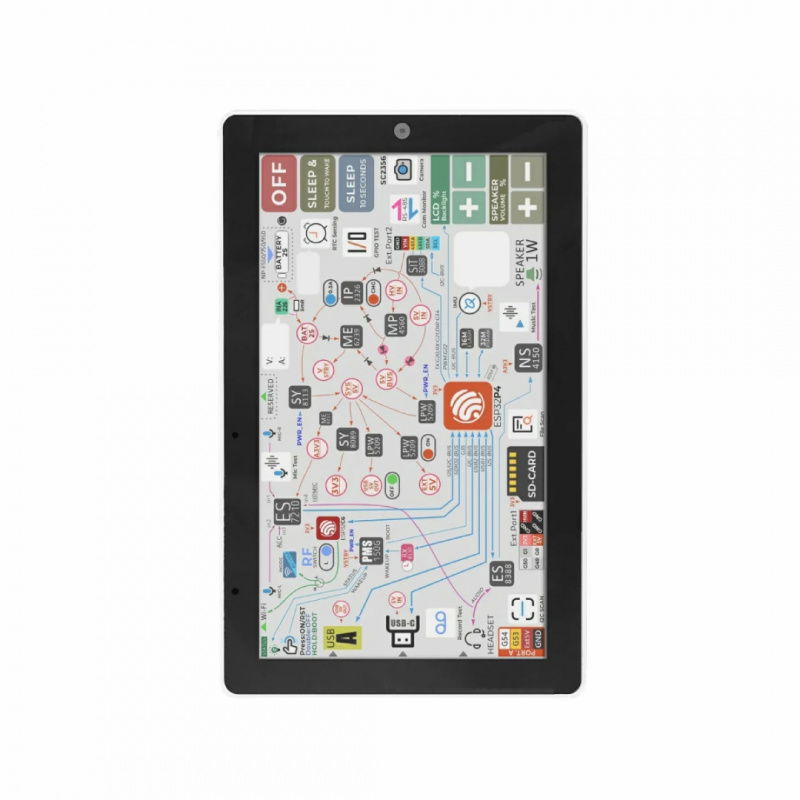

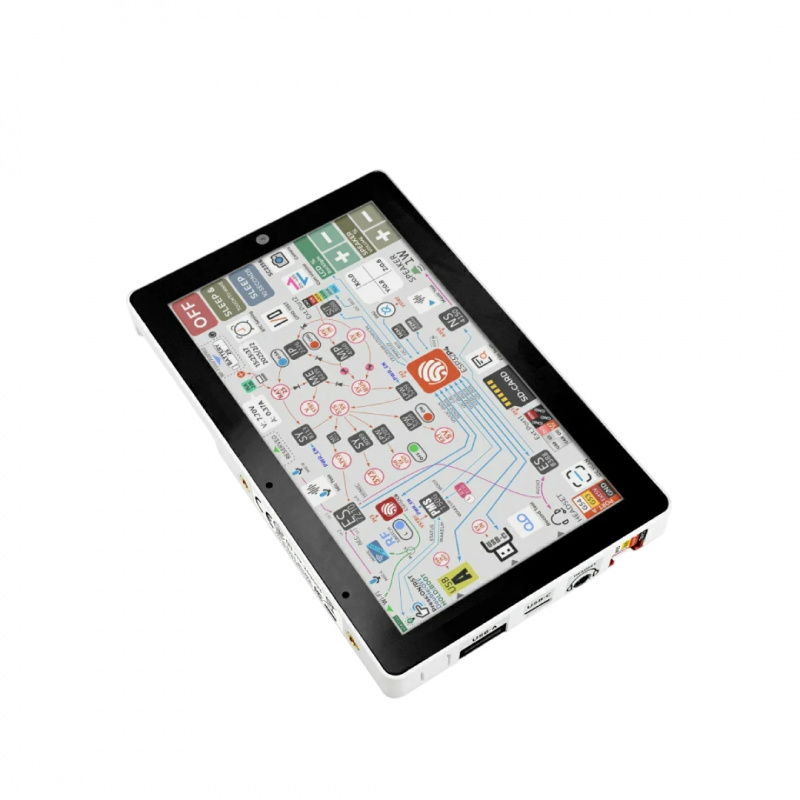

- 5″ IPS 1280 x 720 px display with MIPI-DSI interface and GT911 touchscreen for high image quality and responsiveness
- SC2356 2 MPx (1600 x 1200 px) camera connected via MIPI-CSI - ideal for image recognition applications
- Full audio support: ES8388 codec, AEC system with stereo microphones, 1W speaker and 3.5mm jack
- Industrial RS-485 port with switchable 120 Ω termination
- Expansion connectors: Grove, M5BUS, GPIO_EXT, microSD and STAMP pad for LPWAN modules
- Built-in BMI270 6-axis sensor and RX8130CE real-time clock with wake-up function

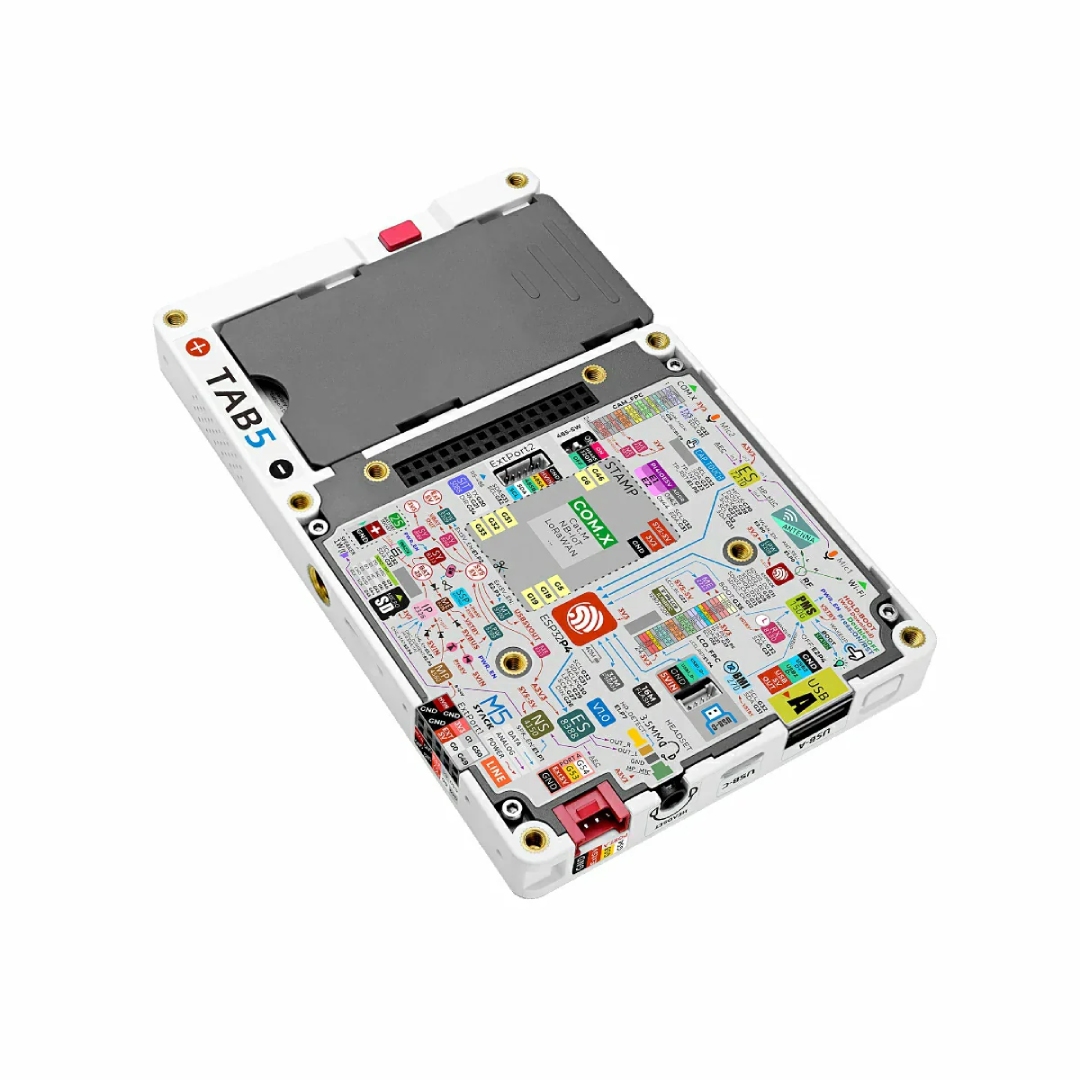

- Powered by removable NP-F550 2S battery (not included), charged via IP2326 and monitored by INA226
- Compatibility with ESP-IDF - a ready-made environment for C/C++ developers
Practical applications
The battery-free version is ideal for stationary applications—in laboratories, industrial halls, building management systems, or as a panel controller. Thanks to its extensive hardware interfaces and advanced wireless communication, it is ideal for automation, prototyping, and technical education.
Professional IoT control center in a compact housing
By combining powerful ESP32 chips and a rich set of interfaces, the Tab5 becomes a central control point for any IoT infrastructure. It's ideal for both smart home and industrial or research environments. Its touchscreen and camera enable the creation of interactive visual applications, while extensive inputs and outputs enable integration with sensors and automation systems.
The device can be powered externally via USB Type-C or an optional NP-F550 battery (not included).
Wireless communication is implemented by ESP32-C6 with support for WiFi 6, Thread and ZigBee, which ensures high throughput, low latency and flexible implementation.Technical specifications of the module
- Microcontroller: ESP32-P4NRW32 (RISC-V 32-bit, 2 cores, up to 400 MHz)
- Wireless module: ESP32-C6-MINI-1U (WiFi 6 / Thread / ZigBee)
- Antenna: Built-in 3D and MMCX port for external antenna
- Flash memory: 16 MB
- PSRAM memory: 32 MB
- Display: 5″ IPS TFT 1280 x 720 px, MIPI-DSI
- Touch: GT911, multi-point
- Camera: SC2356, 2 MPx (1600 x 1200 px), MIPI-CSI
- Audio: ES8388, ES7210 AEC, stereo microphones, 1W speaker, 3.5mm jack
- USB: USB Type A (host), USB Type C OTG (USB 2.0)
- RS-485: SIT3088 with switchable 120 Ω termination
- Extensions: Grove, M5BUS, GPIO_EXT, microSD slot, STAMP pad
- Motion sensor: BMI270, accelerometer + gyroscope
- RTC: RX8130CE with wake-up function
- Power supply: via USB Type-C or NP-F550 battery (not included)
- Power management: IP2326, INA226 monitoring
- Dimensions: 128 x 80 x 12 mm
- Weight: 124 g
Contents of the set
- 1x M5Stack Tab5 (basic version, without battery)
- 1x Signal cable with single 6-pin connector, 1.25 mm pitch
