Product description: Filament Rosa3D Flex 96A 1.75 mm 0.5 kg - Black
Filament Flex 96A is a thermoplastic polyurethane (TPU) in black , used in 3D printers working in FFF / FDM technology. It is intended for intermediate users who want to print from flexible materials. The material was pre-wound on a spool and vacuum-packed. The filament diameter is 1.75 mm . The material intended for technical applications, thanks to its flexibility and excellent interlayer adhesion, is suitable for applications where mechanical resistance and tensile strength are required. The filament is resistant to grease, oils and many solvents.
In our offer of filaments you will also find other materials and colors.
Filament Rosa3D Flex 96A 1.75 mm 0.5 kg - Black.
Main features of Flex 96A material
- Chemical resistance
- Flexibility
- Odorless
- Tensile strength
Practical application of Flex 96A filament
- Smartphone cases
- Parts for drones and RC cars
- Seals and covers
- Device housings
- The filament does not require a closed chamber
- In case of problems with adhesion, we recommend the use of an adhesive
- Filament can be printed on direct-feed and Bowden printers
Suggested filament printing parameters
| Printing temperature | From 210 ° C to 250 ° C |
| Table temperature | 50 ° C to 70 ° C |
| Recommended print cooling | 50% to 100% |
| Recommended print speed | 15 to 50 mm / s |
| Compatible work tables | Glass, smooth PEI, textured PEI, aluminum |
| Due to the differences in the design of printers, the above data should be treated as guidelines, and the appropriate values should be determined experimentally. |

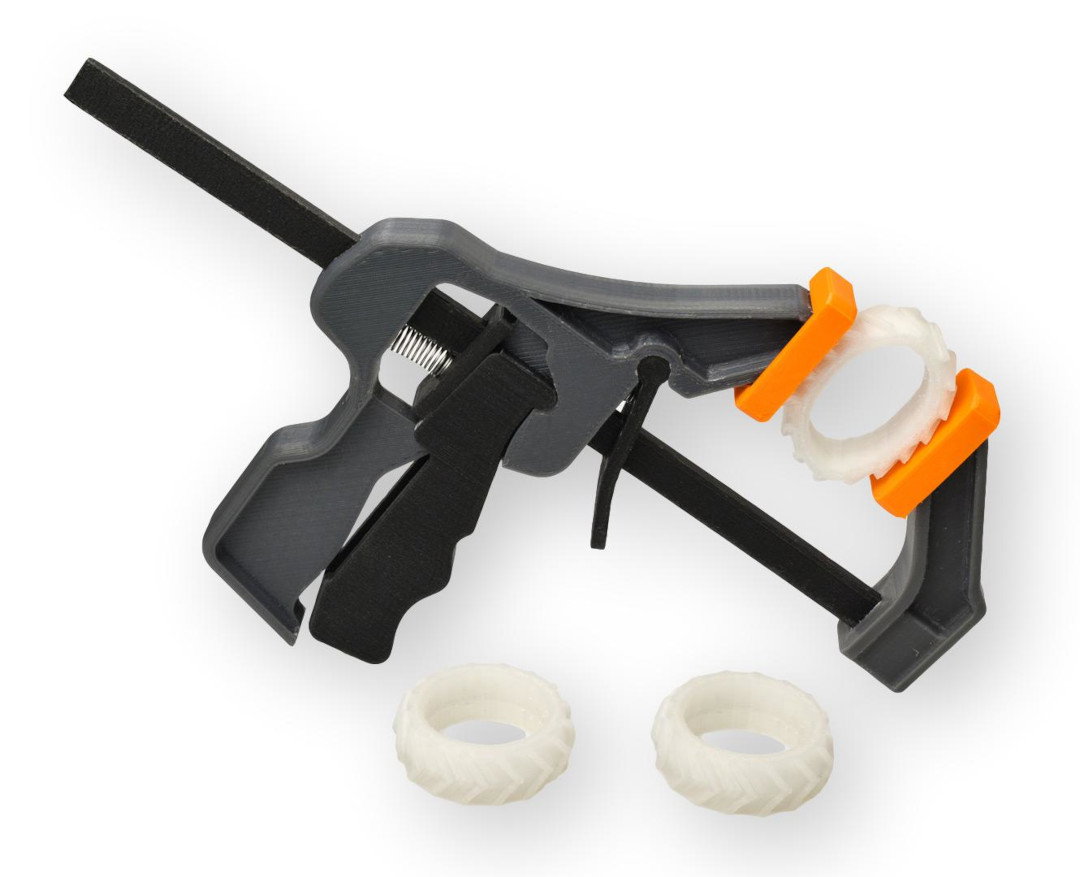

Sample printout from Flex 96A filament.
Technical specification and physical properties of the filament
| Parameter | Range |
|---|---|
| Filament diameter | 1.75 mm |
| Filament dimensional tolerance | +/- 0.05 mm |
| Color | Black |
| Printing temperature | From 210 ° C to 250 ° C |
| Recommended print speed | From 50 to 70 mm / s |
| Material | Flex 96A (TPU) |
| Spool diameter | 200 mm |
| Spool width | 55 mm |
| Mounting hole diameter | 52 mm |
| Desiccant | Yes |
| Vacuum packing | Yes |
| Material density | 1.22 g / cm 3 |
| Tensile strength at break | 55 MPa |
| Tensile elongation | 350% |
| Print speed | 15 to 50 mm / s |
| Net weight | 0.5 kg |
If there are problems with the extrusion of the filament, you should:
- Loosen the screw that adjusts the level of pressure of the knurl against the roller
- Reduce the printing speed
- Install a Teflon tube sealing the filament feeding path
