Product description: Inveo - RFID USB Pocket reader - Unique 125 kHz flash drive
The Inveo RFID USB Pocket is a compact RFID reader in the form of a flash drive, designed to read tags compliant with the Unique 125 kHz standard (EM4100 and EM4102). Supporting HID (keyboard) and CDC (virtual serial port) modes, the reader can automatically enter data or communicate directly with software. Advanced configuration features allow for modifying the data format and adding prefixes and suffixes. Built-in LEDs and an audible indicator enhance user comfort. The reader is powered directly from a 5V USB port and has a reading range of up to 5 cm .

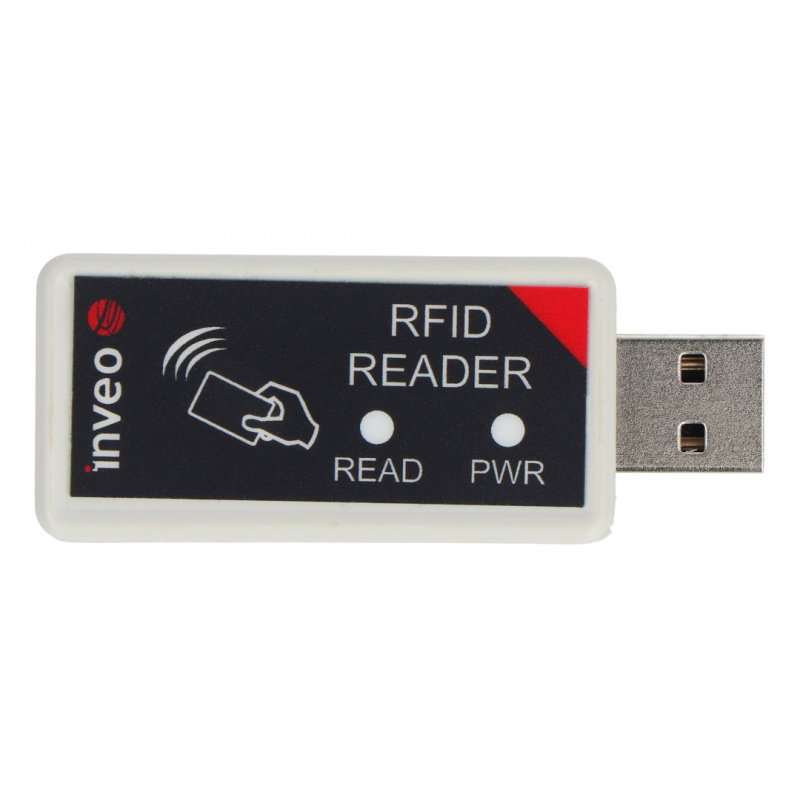

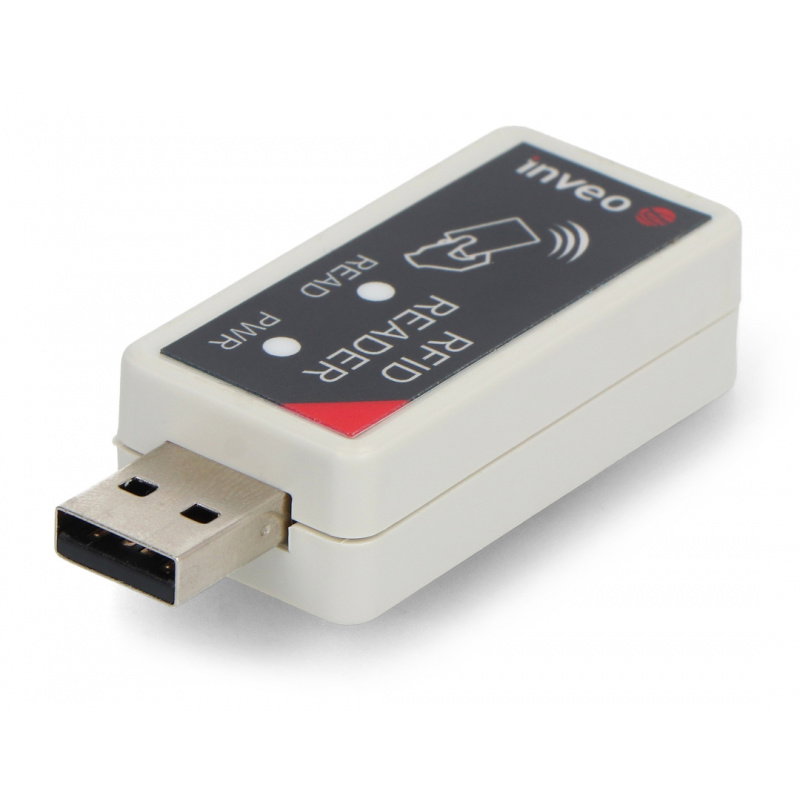

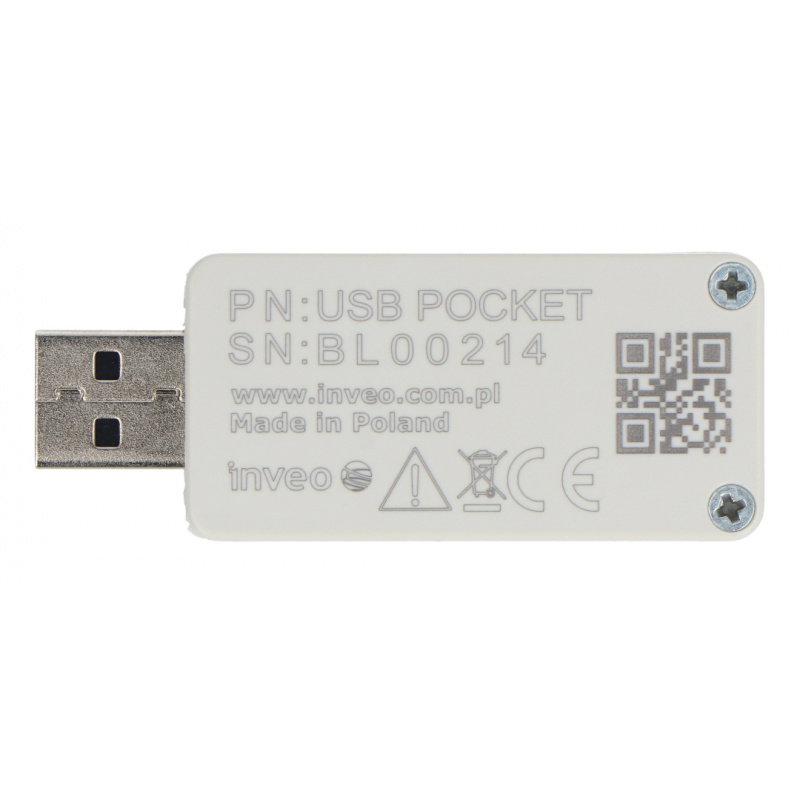

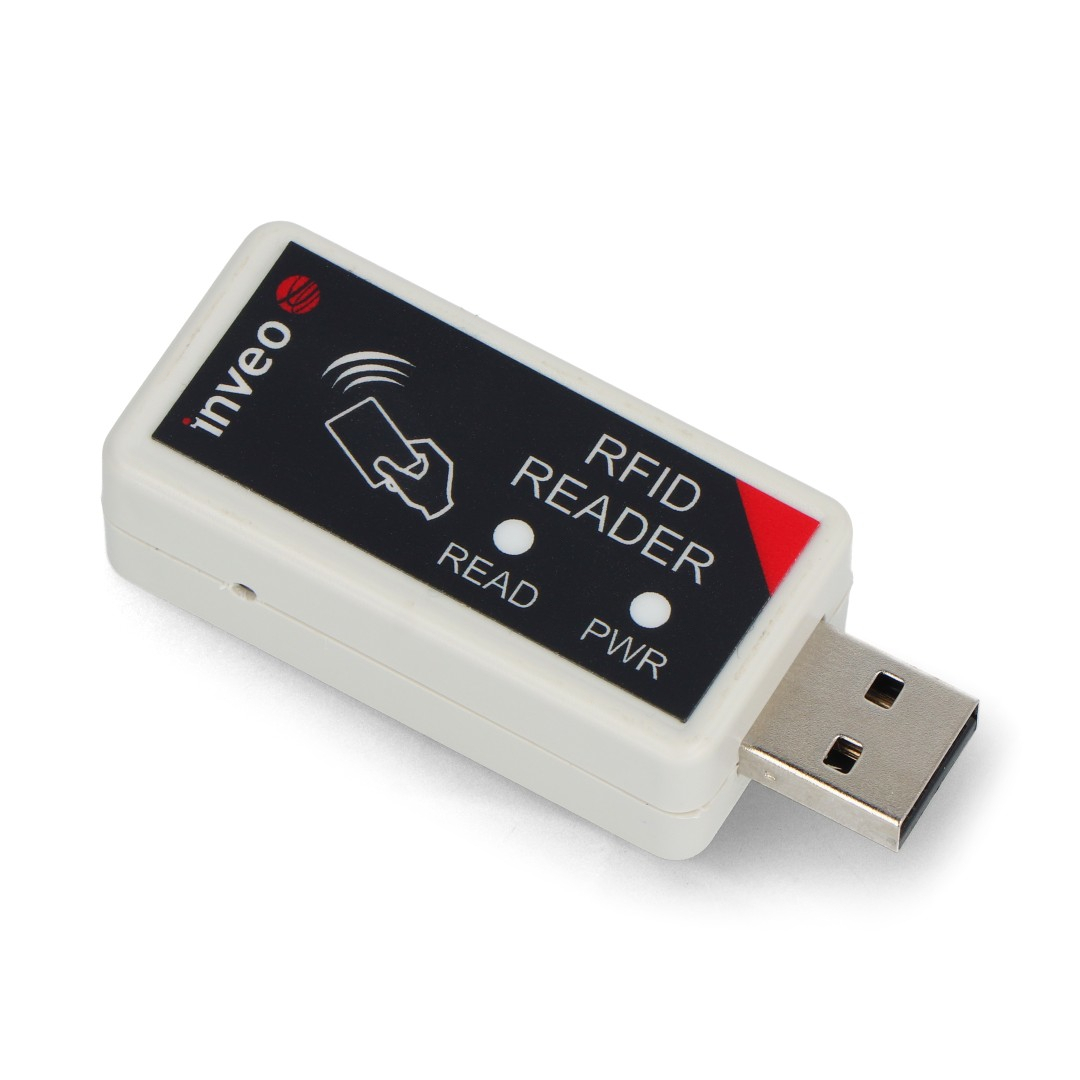

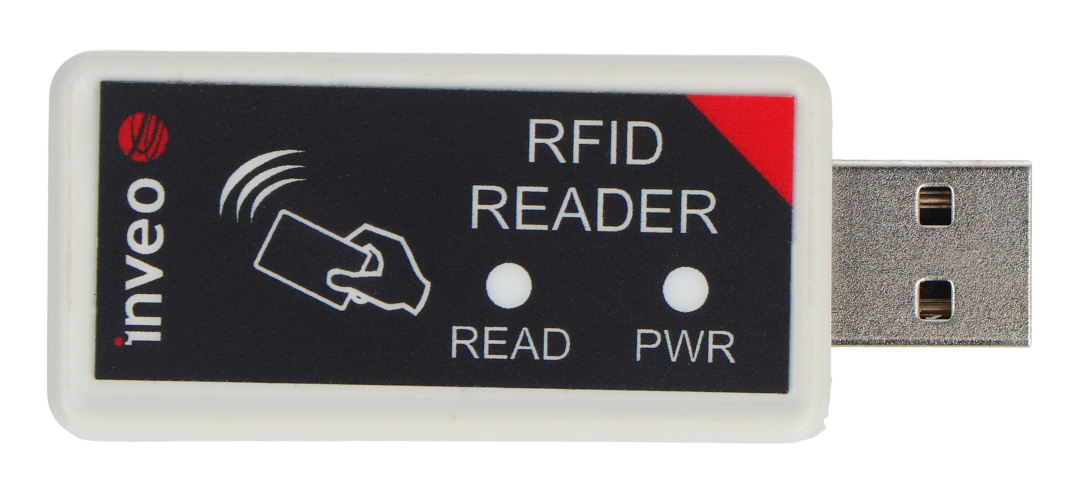

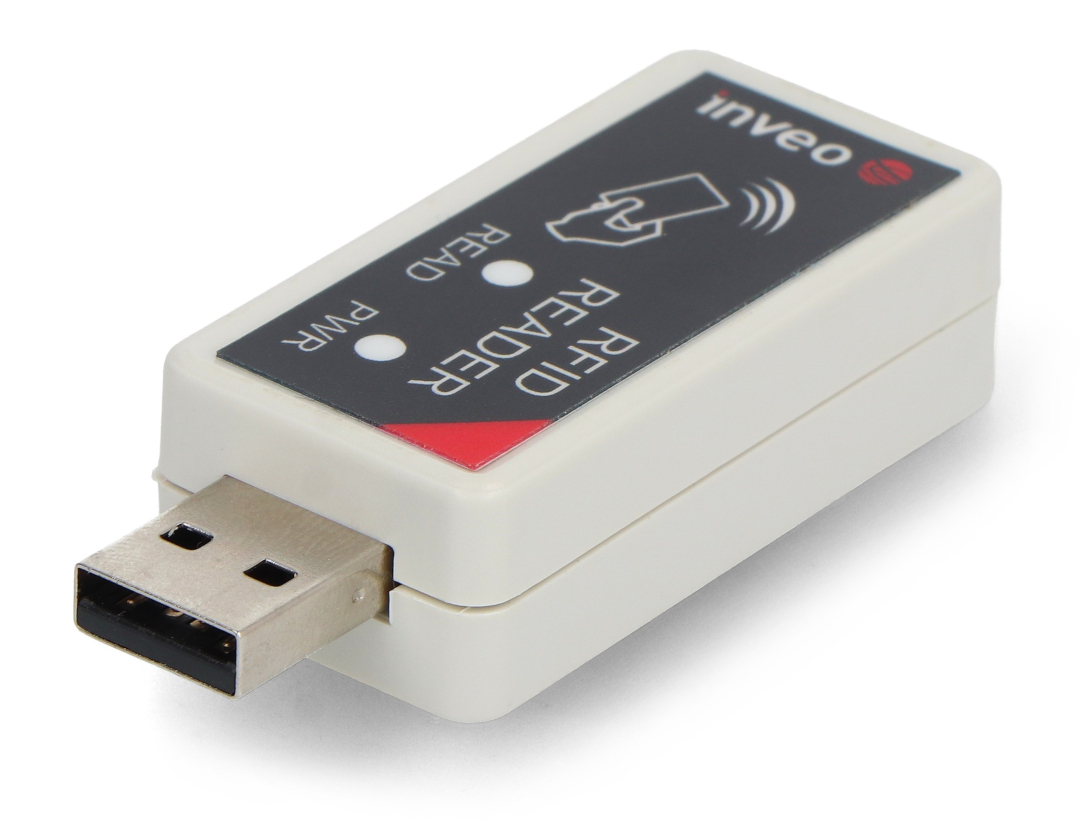

Inveo - RFID USB Pocket reader - Unique 125 kHz flash drive.
Pocket RFID reader.
Key Features of the Pocket USB RFID Reader
- 125 kHz RFID support : compatible with EM4100 and EM4102 transponders
- Plug and play USB : immediate operation after connection, no additional power supply required
- Two operating modes : HID keyboard emulation and CDC virtual COM port
- Configurable data format : HEX, Decimal and Binary support
- Prefix and Postfix : ability to add your own strings and commands
- Advanced data processing : bit swap, byte swap, bit negation functions
- LED and buzzer indication : information about power supply and tag reading
- Compact housing : the pendrive shape ensures mobility and convenience
Technical specifications of the reader
- Power supply: 5V DC (USB)
- Frequency: 125 kHz
- Transponders: EM4100, EM4102
- Reading range: up to 5 cm
- Interface: USB HID, USB CDC
- Data format: HEX, Decimal, Binary
- Signaling: 2 LEDs, buzzer
- Dimensions: 62.5 x 15.5 x 25 mm
Contents of the set
- USB Pocket RFID Reader
Used to read tags in the Unique 125 kHz standard.
