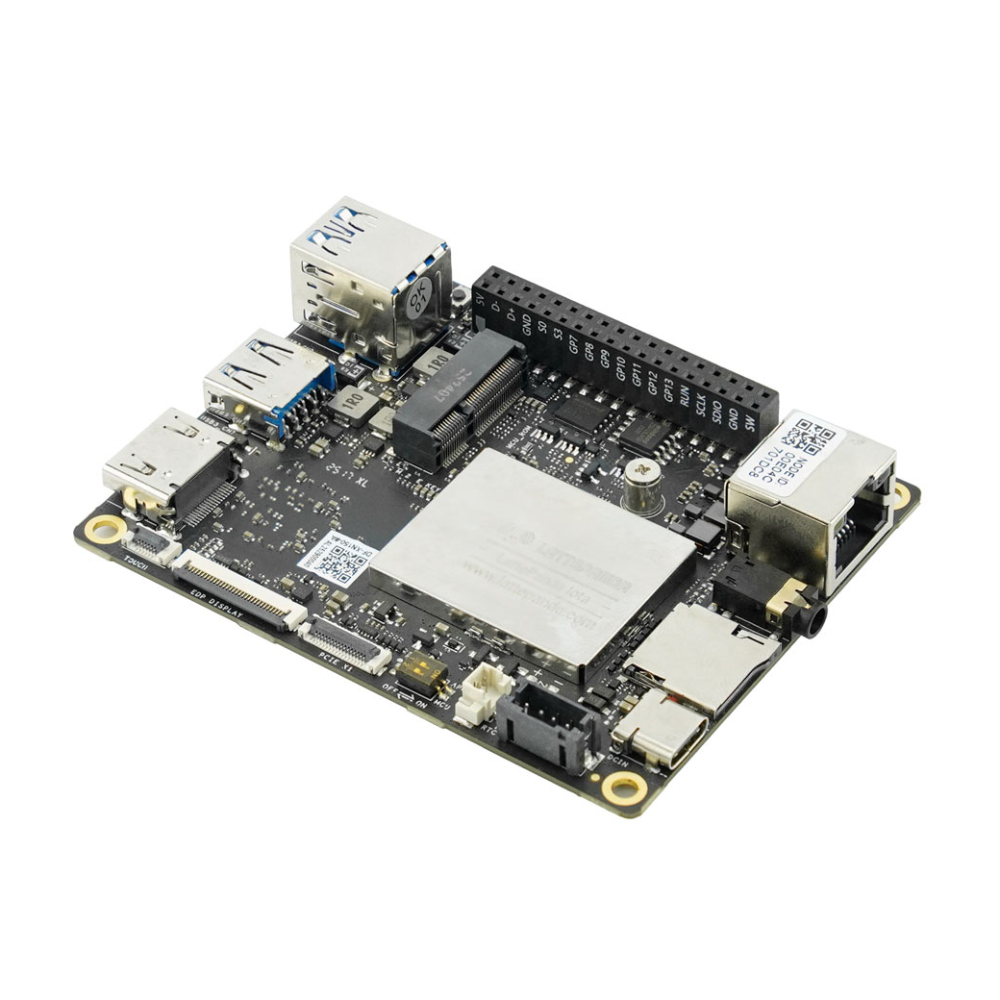

Product description: LattePanda IOTA - 8 GB RAM + 64 GB eMMC - Intel N150
The LattePanda IOTA is a powerful, pocket-sized x86 single-board computer (SBC) , designed to bridge the gap between rapid prototyping and commercial-ready implementations. This is the next generation of the popular LattePanda V1 series, retaining the same mechanical form factor and connector layout while offering significantly improved computing performance and modern interfaces . At the heart of the device is the Intel N150 (Twin Lake) processor , supported by the RP2040 coprocessor , allowing it to combine the world of traditional operating systems (Windows, Ubuntu) with precise real-time I/O support . This makes the LattePanda IOTA ideal for both miniature industrial computers and advanced platforms for embedded robotics and automation .
The heatsink is required before first use of the device - it is not included in the kit and must be purchased separately.
The operating system is not pre-installed - the user must install the selected, licensed system (e.g. Windows or Ubuntu) themselves.
LattePanda IOTA - 8 GB RAM + 64 GB eMMC - Intel N150.
LattePanda IOTA is a high-performance, pocket-sized x86 single-board computer (SBC).Special features
- Intel N150 Processor (4 cores/4 threads, up to 3.6 GHz)
- Up to 8x higher performance than LattePanda V1
- 8GB LPDDR5 memory with IBECC support for increased reliability
- Integrated RP2040 coprocessor for real-time tasks and GPIO support
- LattePanda V1 format and connector layout preserved – easy project migration
- Configurable TDP from 6W to 15W (passive or active cooling)
- Supports Windows 10, Windows 11, and Ubuntu
- A rich set of USB, video and expansion interfaces
- Ready for expansion with NVMe, PoE, UPS, 4G LTE or AI accelerators
Practical applications
- Industrial automation and machine control
- Intelligent IoT gateways and edge computing
- Robotics and autonomous systems
- Interactive multimedia installations and kiosks
- Monitoring, control and diagnostic systems
- Mobile and portable inspection devices
Energy flexibility and cooling
LattePanda IOTA allows you to tailor power consumption to your specific application . In 6W mode, it can operate passively and silently, ideal for noise-sensitive systems. In 15W mode, with active cooling, it offers full processor performance, enabling you to handle demanding tasks.
Intel N150 and RP2040 collaboration
The integrated RP2040 acts as a dedicated I/O controller that can handle sensors, motors, communication interfaces, or even emulate HID devices . This approach offloads the main Intel processor and significantly improves system responsiveness in industrial and robotic applications.
The new generation of the popular LattePanda V1 series, which retains the same mechanical format and connector layout, while offering much higher computing performance and modern interfaces.
LattePanda IOTA will work perfectly both as a miniature industrial computer and as an advanced platform for embedded robotics or automation.LattePanda IOTA Technical Specifications
- Processor: Intel Processor N150, 4C/4T, up to 3.60 GHz
- RAM: 8GB LPDDR5 4800MT/s (IBECC)
- Storage: 64GB eMMC 5.1
- Coprocessor: RP2040
- Video outputs:
- HDMI 2.1 up to 4096 x 2160 @ 60 Hz
- eDP 1.4b, up to 1920 x 1080 @ 60 Hz
- USB:
- 3x USB 3.2 Gen 2 type A (10 Gb/s)
- 1x USB 2.0 (pin header)
- 1x USB Type-C PD (power supply)
- Network: Gigabit Ethernet RJ45 (WOL support)
- Extensions:
- M.2 E-Key 2230
- TF card slot
- PCIe FPC connector
- Audio: 3.5mm combo jack (microphone/headphone)
- Power supply:
- USB Type-C PD 15V
- PH2.0 4-pin: 10V to 15V DC
- Operating conditions: 0°C to 60°C, 0% RH to 80% RH

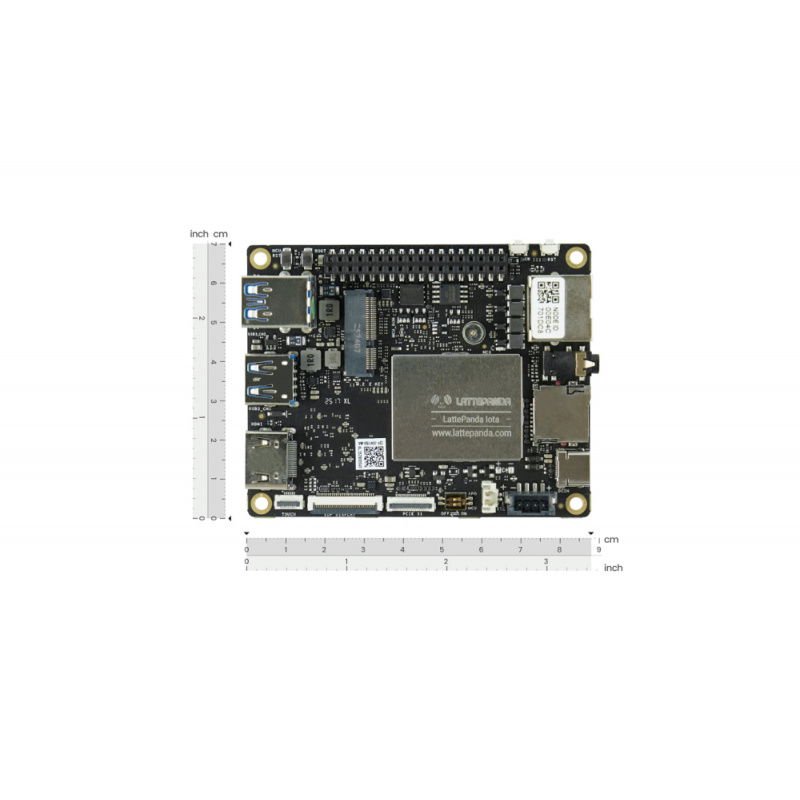

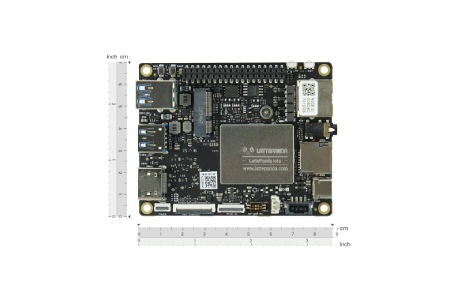

- Dimensions: 88 x 70 x 19 mm

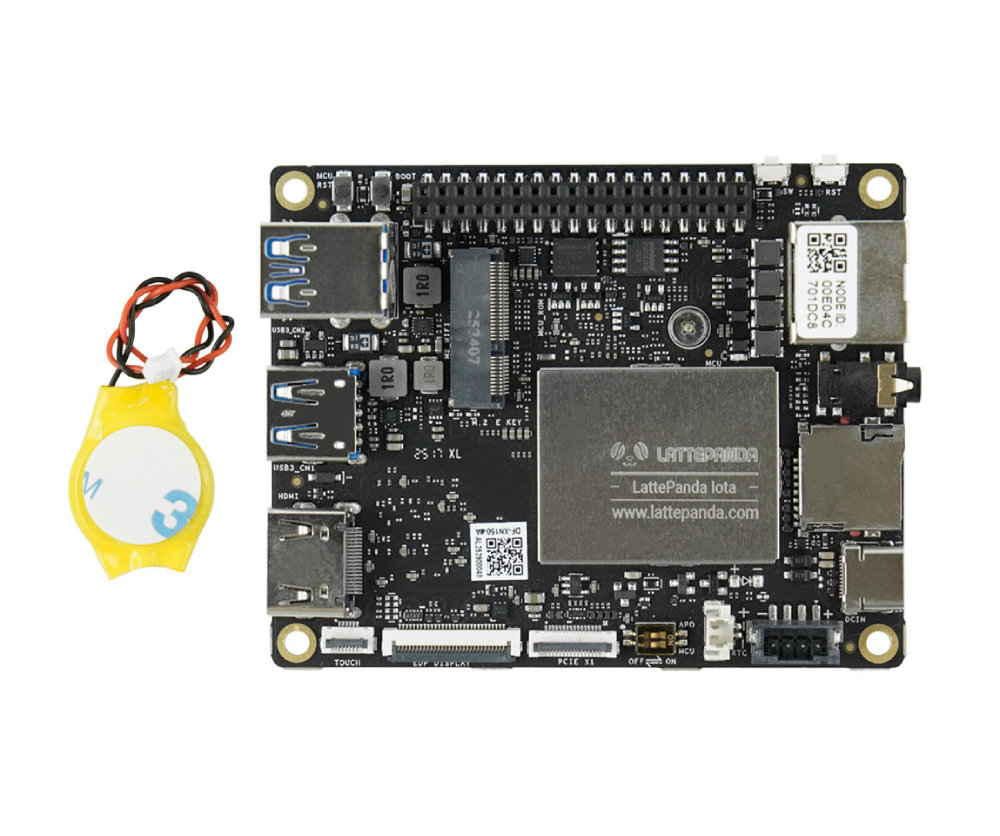

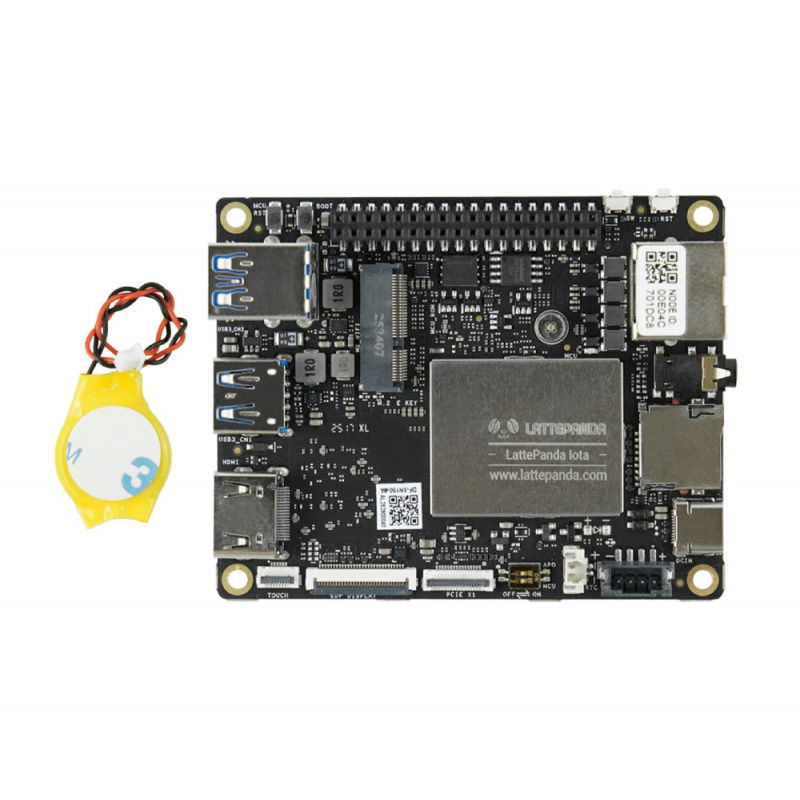

Contents of the set
- 1x LattePanda IOTA
- 1x RTC CR2032 battery (3V)
- 1x User Manual
