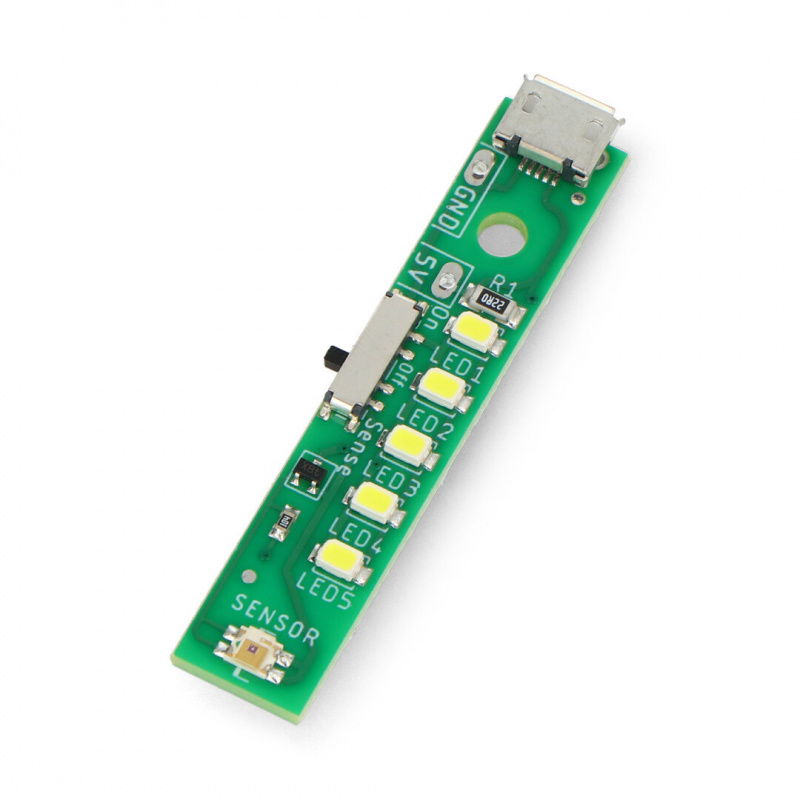

Product description: LED strip 5 x 5V USB diodes with light sensor - Kitronik 3562
The LED strip has been designed for use in non-standard housings and low-power lighting. Thanks to the use of a light sensor in the strip, the device works great in the form of automatically activated lighting. The strip's operating mode can be changed using a switch mounted on the board. In addition, the strip is equipped with a microUSB socket. The board's current consumption is small - it is below 100 mA, so it can also be powered from the computer's USB port. On the side of the board there is a switch with three positions: On, Off and Sense. The Sense item is responsible for activating the light intensity detection mode.
There is a project available on the manufacturer's website - an automatic bedside lamp.

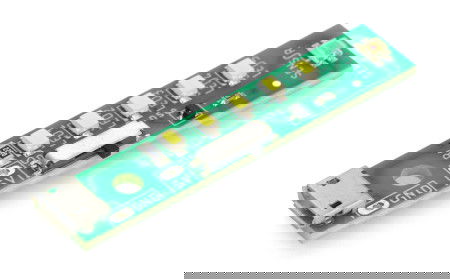

USB LED strip with light sensor.
Features of USB LED strip
- The board contains 5 natural white LEDs.
- The product is designed for projects with low power consumption.
- The board has a light sensor activated by a switch.
- The device has 3 modes: On, Off and Sense.
- The board is powered by the microUSB port with an intensity below 100 mA.
The set does not include the USB cable needed to power the board.
product specification
- Type: LED strip
- Light color: neutral white
- Number of LEDs: 5 pieces
- Control mechanism:
- Switch
- Light sensor
- Light brightness: ~ 8000 mCd
- Available lighting options:
- Constant lighting
- Lighting controlled by a light sensor
- Power supply: 5 V via the microUSB connector
- Dimensions:
- length: 50 mm
- width: 10 mm
- maximum height: 4.5 mm
- mounting hole: M3

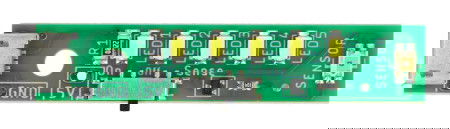

USB LED strip.
