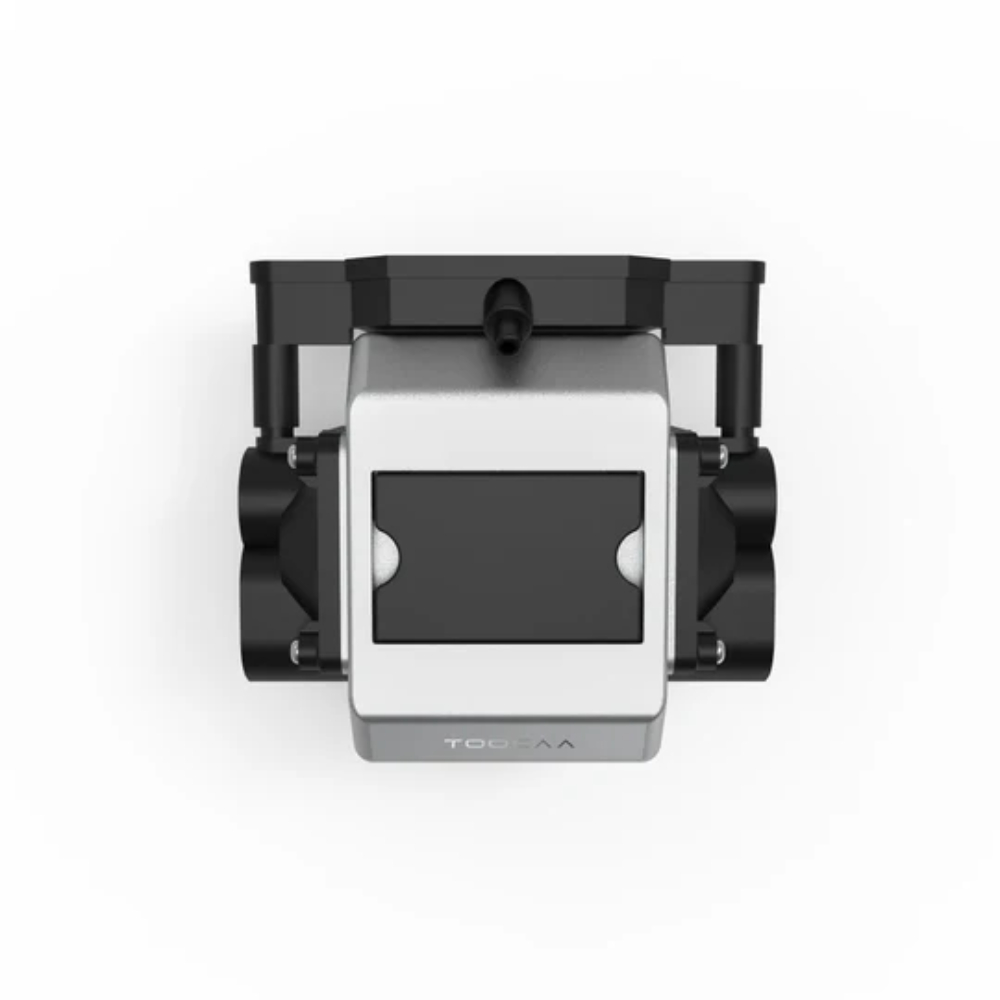

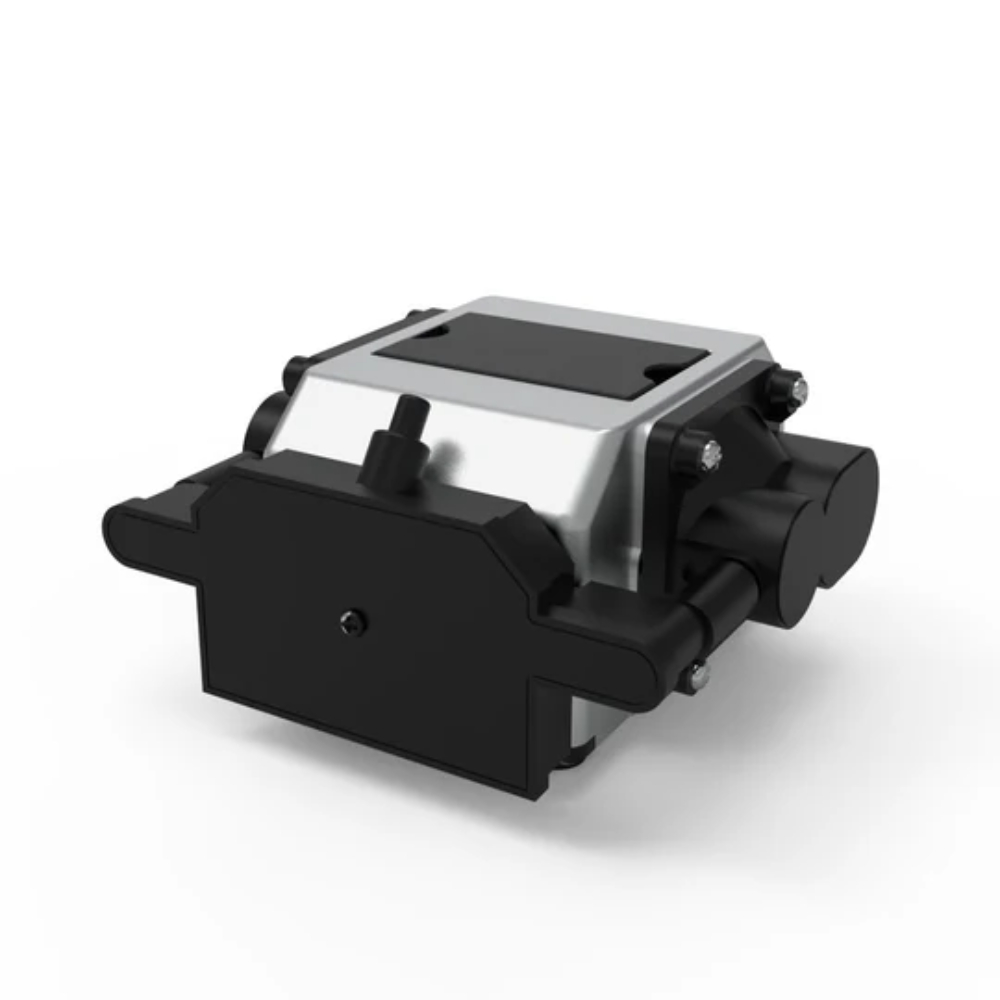

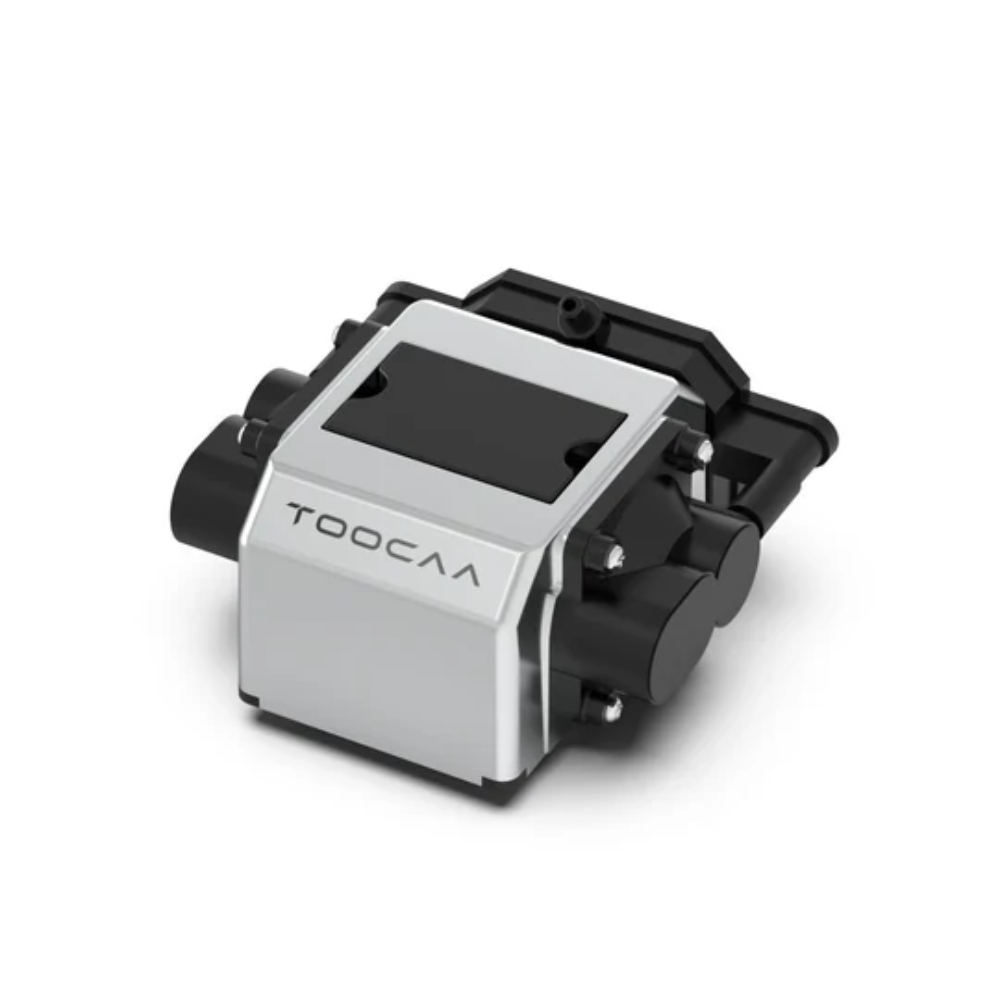

Product description: Air Assist - air pump for TOOCAA L2 laser plotter
Laser operation produces smoke, dust, and material debris that can settle on the lens, causing discoloration and degrading cut quality. The TOOCAA Air Assist kit eliminates this problem with a powerful airflow (up to 28 L/min) that instantly removes contaminants from the cutting area . The airflow system significantly lowers the temperature of the processed surface , preventing deformation, burns, and contamination. Cutting lines become smoother, edges cleaner, and details more precise. Furthermore, the laser module lens remains protected , allowing the laser to operate more efficiently and last longer.
Special features
- Effective protection of the laser lens - the airflow removes smoke and dirt, keeping the lens clean and the laser module working longer
- Clean and precise cut - temperature reduction protects the material from burning, discoloration and deposits
- High efficiency: up to 28 L/min - strong and stable air flow ensures professional cutting quality
- Low operating noise - only 40 dB, comfortable use even in living rooms
- Smooth adjustment of blowing power - adjusting the flow force to the type of material and task
- Simple installation - the kit includes all the elements needed for installation (air hose, power supply, pump, accessories)
Practical applications
The Air Assist kit is perfect for:
- cutting and engraving wood - eliminates burn deposits and improves edge quality
- processing leather, MDF, thin plywood, paper or cardboard
- precise decorative designs that require clean and aesthetic elements
- producing gifts, decorations, plaques, puzzles, models
- hobby and semi-professional applications - where repeatability and quality of results are important
By improving the quality of the Air Assist laser, it significantly shortens the cleaning time of finished projects and reduces the risk of material damage.
Air Assist Technical Specifications
- Operating voltage: DC 24 V
- Current consumption: 830 mA (±15%)
- Air flow capacity: up to 28 L/min
- Working pressure: ≥ 34 kPa
- Noise level: ≤ 40 dB
Contents of the set
- 1x Air pump
- 1x Power Supply
- 1x Air supply tube
- 1x User Manual
