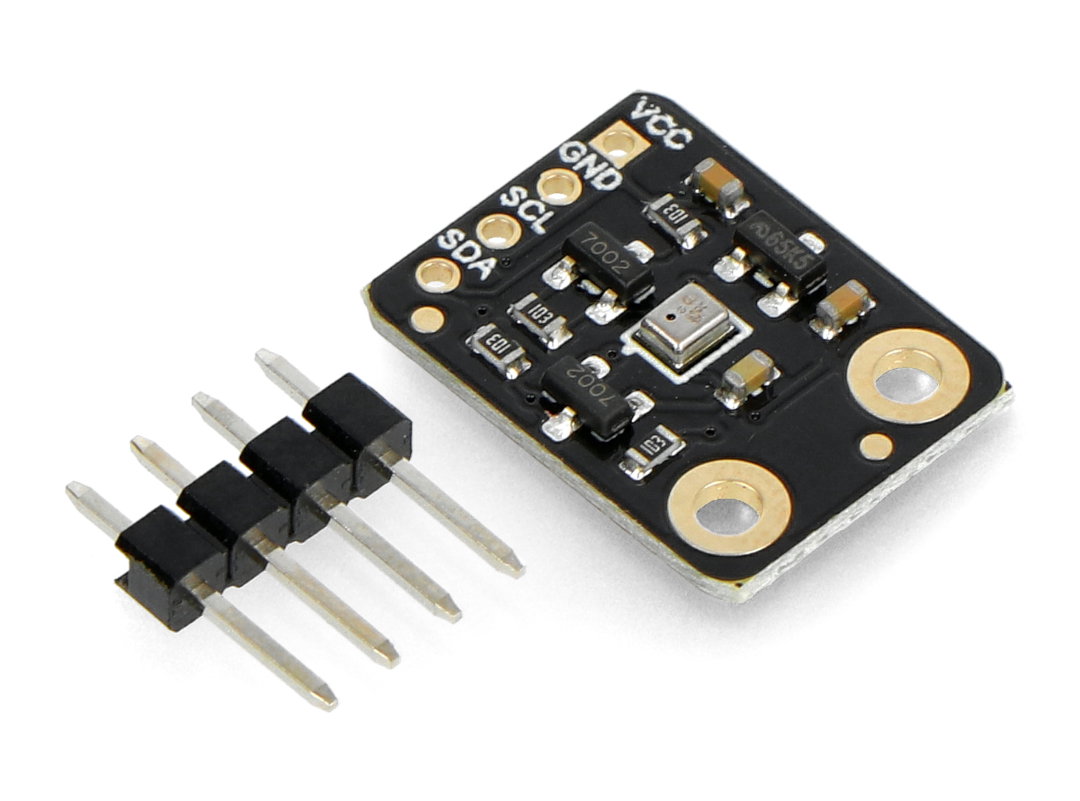

Fermion - Pressure Sensor ICP-10111 - DFRobot SEN0516
The Fermion temperature and barometric pressure sensor module from DFRobot, features a built-in ICP-10111 sensor, made with MEMS technology. It is powered by 3.3 V to 5.5 V. The sensor communicates via an I2C interface. It consumes very little power while being very accurate.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Fermion - ICP-10111 pressure sensor - DFRobot SEN0516
The Fermion temperature and barometric pressure sensor module from DFRobot, features a built-in ICP-10111 sensor, made with MEMS technology. It is powered by 3.3 V to 5.5 V. The sensor communicates via an I2C interface. It consumes very little power while being very accurate.
Product compatible with Arduino
The manufacturer has prepared detailed user guide and library for Arduino IDE environment.
Fermion - ICP-10111 pressure sensor - DFRobot SEN0516.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

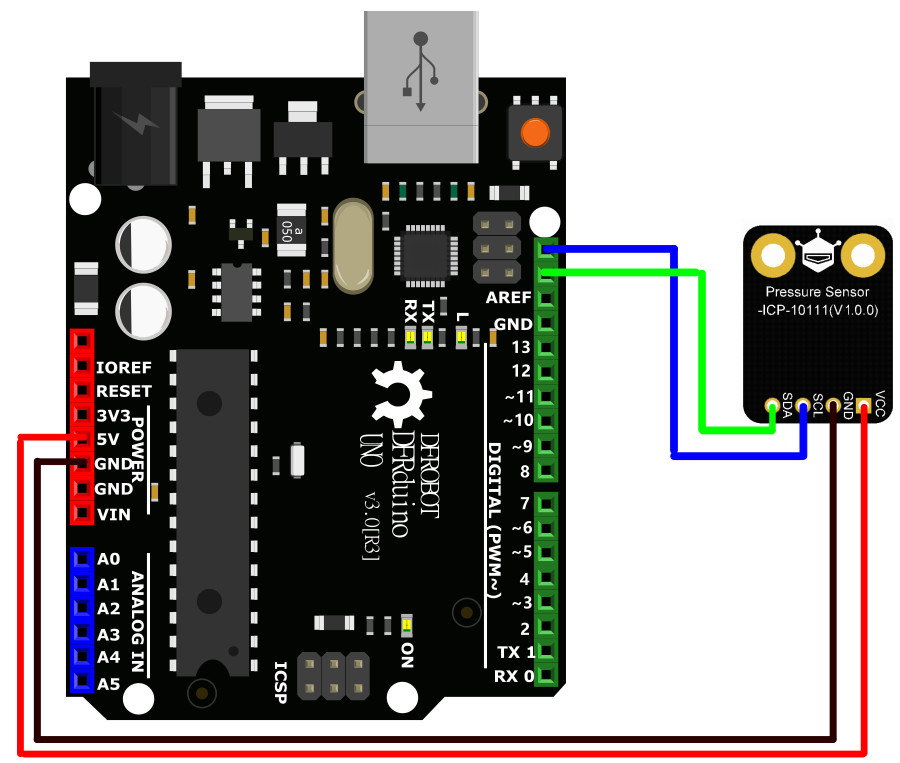

Example of sensor connection with DFRduino Uno R3.
Features of the pressure sensor from DFRobot
- Measurement accuracy: ± 1 Pa
- Measurement distortion: 0.4 Pa
Leads description and connection example
The diagram opposite shows the connection of the module to the DFRduino board. Pinouts of ICP-10111 pressure sensor:
- VCC - power supply
- GND - ground
- SCL - I2C interface clock line
- SDA - I2C interface data line
Pressure sensor specification
- Arduinocompatible sensor
- Supply voltage: 3.3 V to 5.5 V
- Current consumption: 2 mA
- Communication interface: I2C
- I2C address: 0x63
- Barometric pressure measurement range: from 30 kPa to 110 kPa
- Relative barometric pressure measurement accuracy: ± 0.01 hPa (950 hPa to 1050 hPa, 25°C)
- Accuracy of absolute barometric pressure measurement: ±1 hPa (from 950 hPa to 1050 hPa, 0°C to 65°C)
- Absolute temperature measurement accuracy: ± 0,4°C
- Operating temperature: from -40°C to 85°C
- Dimensions: 16.5 x 12.5 mm
Set contents
- Gravity - pressure sensor ICP-10111 V1.0.0
- Connector goldpin 4-pin single row with 2,54 mm pitch
Module dimensions.
Useful links
| Name | Value |
|---|---|
| Width | 6 cm |
| Height | 5.5 cm |
| Depth | 2.5 cm |
| Weight | 0.006 kg |
