Description
The Raspberry Piis a very useful minicomputer but creating a precise PWM signal to control servos by the Linux core, is not its best. Shield Servo Hat allows you to control 16 servos. The system generates the PWM signal with frequency of up to 1.6 kHz with 12-bit precision, it communicates through I2C interface using only two pins of the Raspberry Pi.
Board works withRaspberry Pimodel A+, B+ and with the new version 2 B. To connect to older versions, i.e. A and B, you must use the adapter. The module has a separate power supply, you must connect the power adapter 5 V - 6 V to the DC connector.

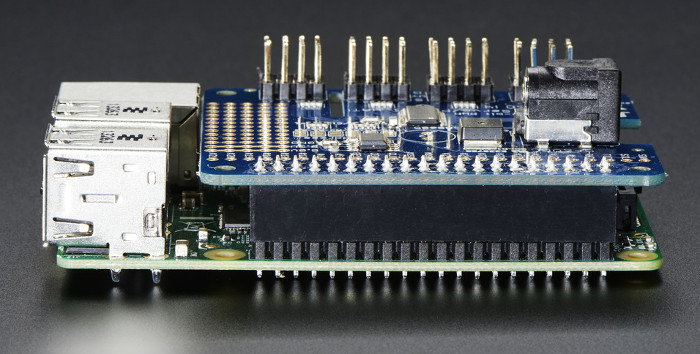

Included is a connector 2x40 pin that allows for direct connection of the module to pins of the Raspberry Pi A+, B+ or 2. The connector must be self-soldered.
Specification
- The number of PWM channels: 16
- Resolution: 12-bit
- Maximum frequency: 1,6 kHz
- Communication: I2C (SCL, SDA)
- Separate power connector: from 5 V to 6 V
- It works with Raspberry Pi: A+, B+, 2 B (version A and B requires an adapter 2x20 pin)
- Board size: 65 x 56 x 13 mm
