Bigtreetech TFT35 v3.0 display- two working modes

Index: BTT-18758 EAN: 5904422358846
A 3.5'' display, which can work in two modes, depending on the way it is connected to a motherboard and the chosen firmware. It can function as a screen with touch functionality, or as a simple LCD display type 12864. It works with voltage of 5 V. The display is equipped with a 32-bit STM32F207VCT6 chip with ARM Cortex-M3 core. There is additionally a USB port and an SD card reader on the board. Bigtreetech TFT35 V3.0 offers the possibility to extend its functionality with WiFi connectivity based on ESP-8266 module.
Bigtreetech TFT35 v3.0 display- two working modes
€42.50
€34.55 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Bigtreetech

Product description: Bigtreetech TFT35 v3.0 3,5'' touch screen display - two operating modes

Bigtreetech TFT35 v3.03,5''displayallows to work in two modes, depending on the way of connection to the motherboard (eg.Bigtreetech SKR v1.4) and chosen firmware. It can work astouchscreen or as simpleLCDdisplaytype 12864. It works with voltage of 5V. The display is equipped with 32-bit STM32F207VCT6 chip with ARM Cortex-M3 core. There is additionally a USB port and anSD cardreader on the board. Bigtreetech TFT35 V3.0 offers the possibility to extend its functionality with WiFi connectivity based on ESP-8266 module. Connection cables are included.

Wyświetlacz dotykowy Bigtreetech TFT35 v3.0 3,5''

Bigtreetech TFT35 v3.0 3,5'' touch screen display.
Dwa sposoby podłączenia wyświetlacza

Two ways of connecting display to Bigtreetech SKR board.

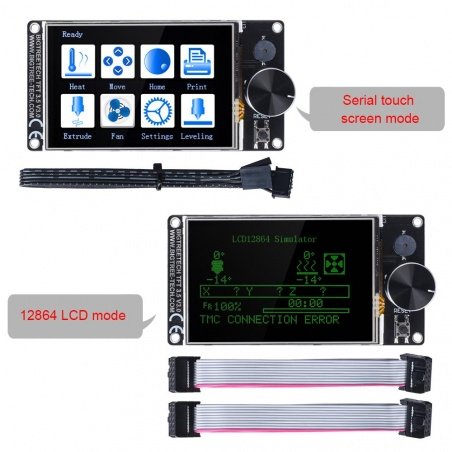

Two display working modes.

Depending on how the display is connected to the motherboard, it can work inone of two modes. In case of working as 12864 LCD display, screen module should be connected to connectors on mainboard, marked as EXP1 and EXP2. Touch mode requires connection under dedicated TFT socket.

Bigtreetech TFT35 v3.0 3.5'' display specifications

  • Supply voltage: 5 V
  • SD card reader logic voltage: 3.3 V / 5 V
  • Display diagonal: 3,5''
  • Controller chip: STM32F207VCT6 32-bit with ARM Cortex-M3 core
  • Two operating modes: touch screen display or LCD 12864
  • Module equipped with USB port and SD card socket
  • Dimensions: 110 x 58 mm

Set contents

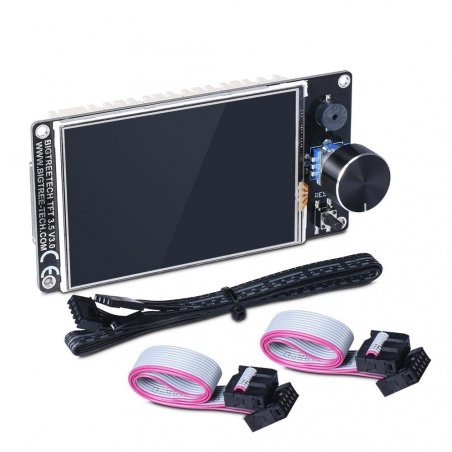

  • Bigtreetech TFT35 v3.0 3,5'' touch screen display
  • Cable for connection in TFT mode
  • Two IDE cables

Gniazda modułu wyświetlacza

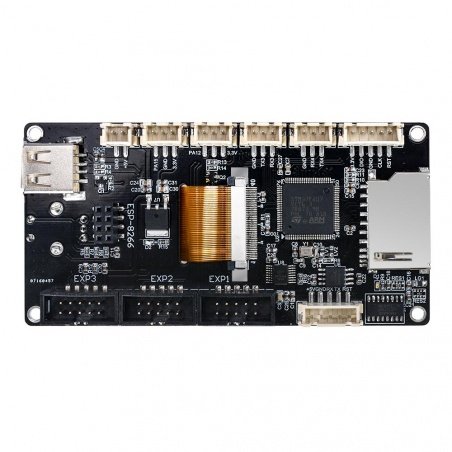

Description of the elements of BTT TFT35 v3.0 3.5'' display module.

Screen - diagonal 3.5''
Screen - touch yes
Package width 15.5 cm
Package height 5.5 cm
Package depth 8.8 cm
Package weight 0.157 kg
