Product description: ST3235 30kg Serial Bus Servo - UART servo with 360 degree magnetic encoder - Waveshare 27166
The ST3235 from Waveshare is a high-end UART servo designed for advanced robotic projects. With an aluminum housing, reinforced steel gears and a non-contact 360-degree magnetic encoder , it offers long life and high control accuracy. It supports closed loop with current readings of position, voltage, temperature and load. It can operate in servo, motor or stepper mode , making it an extremely versatile solution for many applications. The servo can be easily configured and updated via the provided open source software. The input voltage ranges from 6 V to 12.6 V and the torque at a stopped shaft is 30 kg * cm / 12 V.
The manufacturer has also prepared a detailed user guide that significantly facilitates work with the servo.

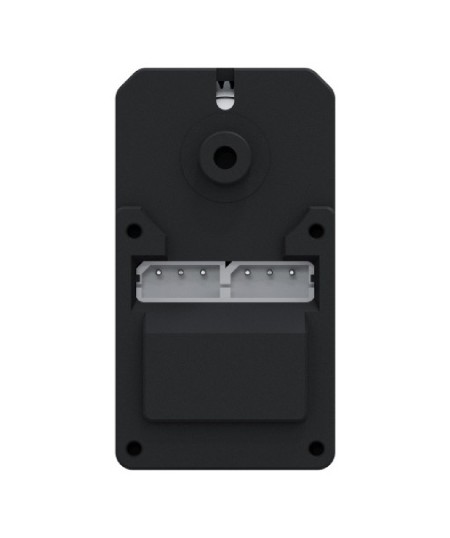

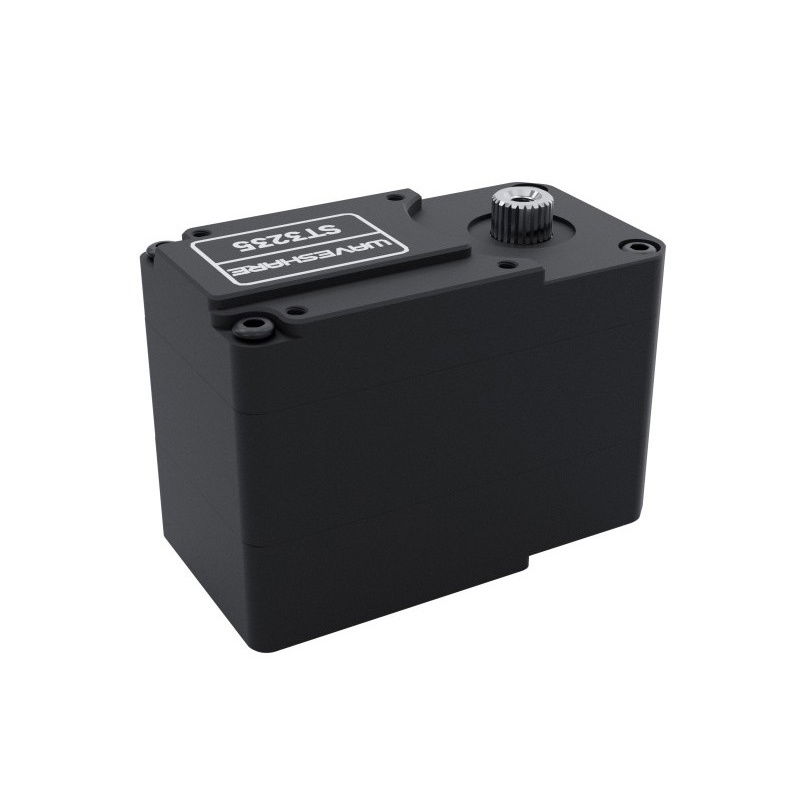

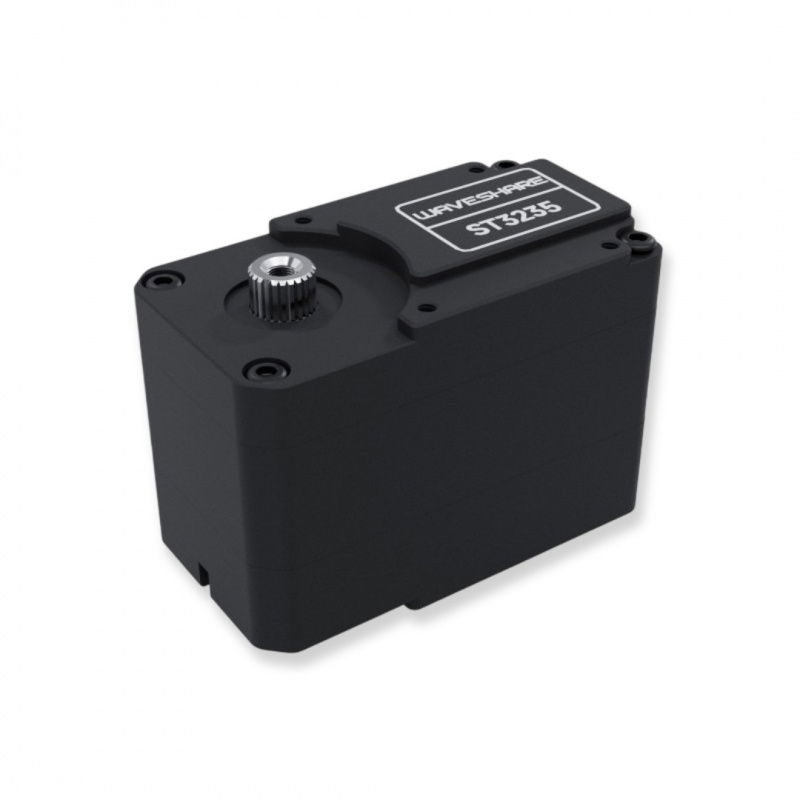

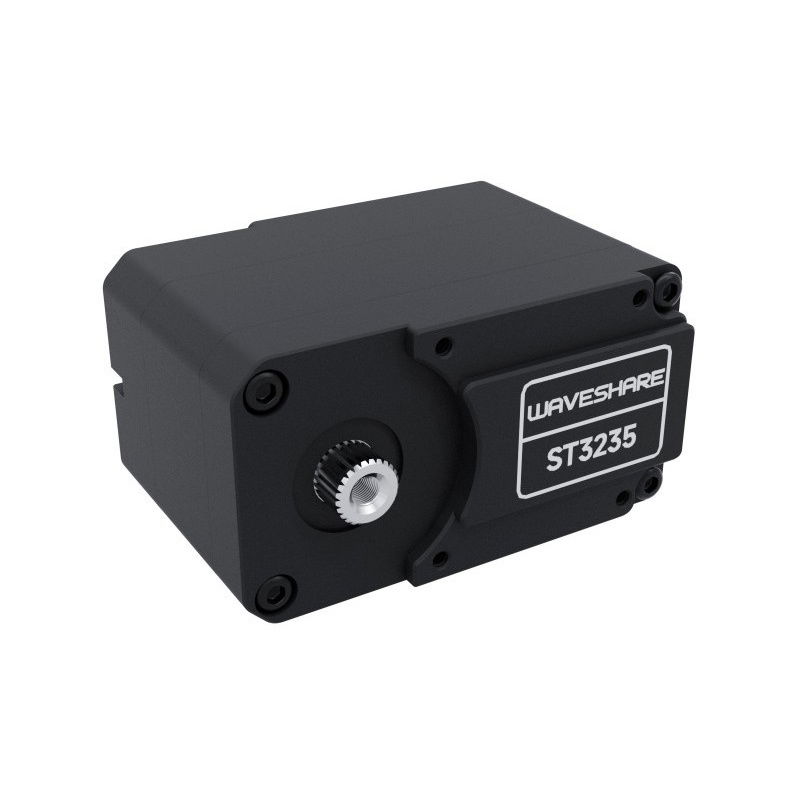

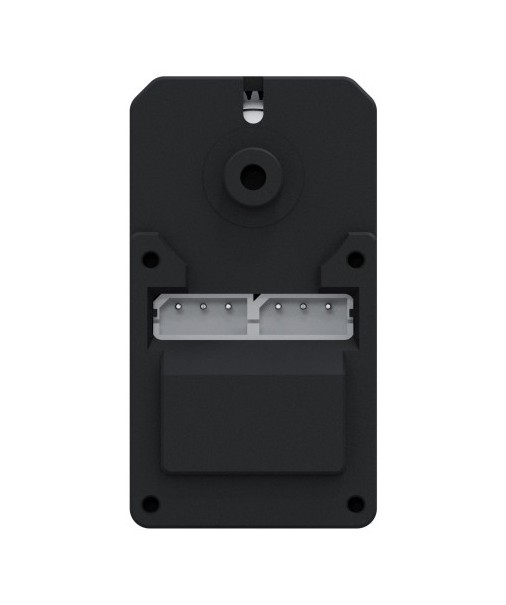

ST3235 30kg Serial Bus Servo - UART servo with 360 degree magnetic encoder - Waveshare 27166.

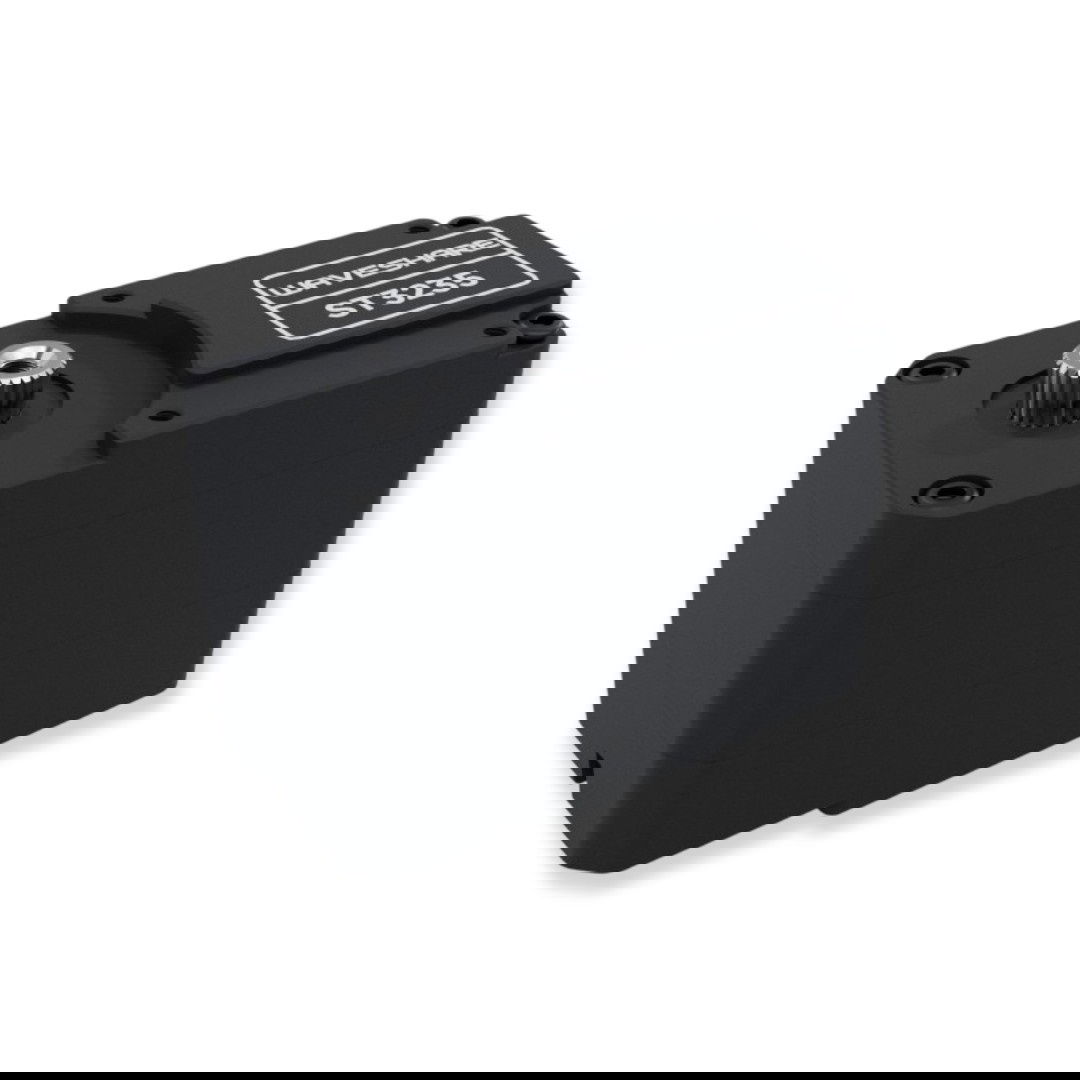

The aluminum housing improves heat resistance and increases operational stability.
Main features of the servo
- High torque up to 30 kg*cm at 12V : ideal for complex structures requiring high force
- 360° multi-function magnetic encoder : increased accuracy (0.088°), frictionless and longer service life

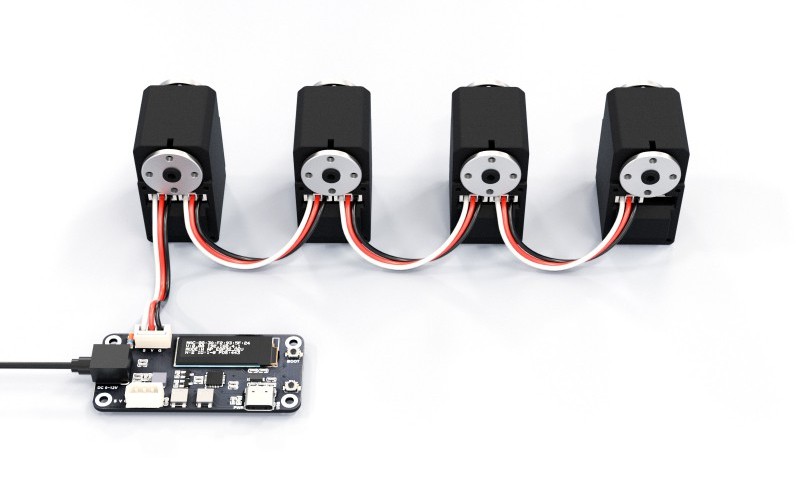

- UART communication : supports up to 253 servos with one signal wire
- Closed control loop : real-time reading of position, voltage, temperature, speed and load
- CNC aluminum housing : heat resistant and mechanically strong
- Supports multiple operating modes : angle, motor and stepper mode with center position calibration
- Open source : fully compatible with Arduino IDE and Waveshare drivers
- Integrated acceleration/deceleration function : smoother movements and less mechanical stress
Practical applications
ST3235 is perfect for robotic projects requiring high precision and power . It can be used in robotic arms , quadruped robots (e.g. robotic dogs), humanoid structures, mobile carts, or complex manipulators. Thanks to closed-loop operation and multiple control modes, it is great for educational, research and industrial projects .

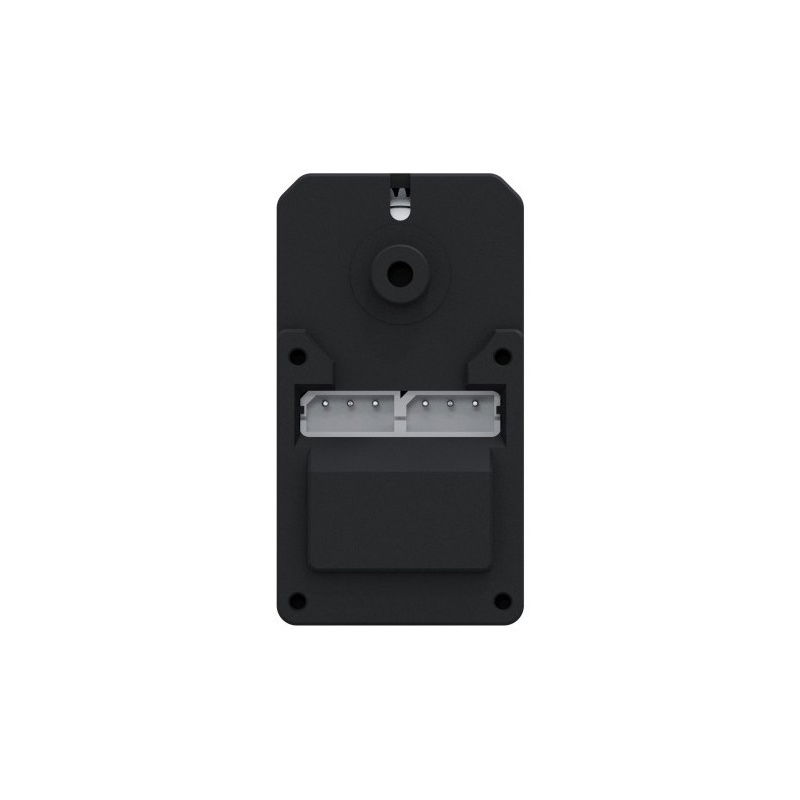

The servo provides a variety of feedback information, such as position, load, speed, and input voltage.

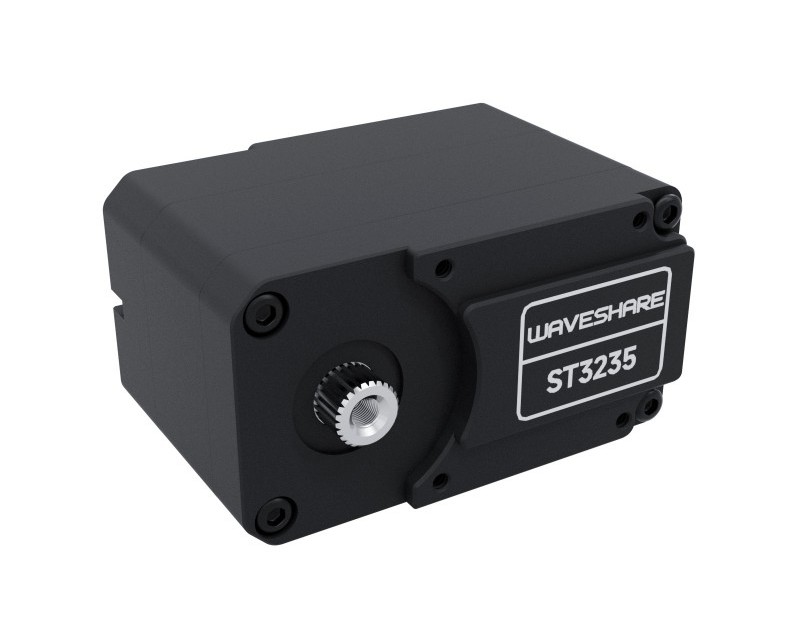

Servo technical specification
- Device type: ST3235 servo
- Communication: Serial Bus
- Control: TTL
- Torque: 30 kg*cm at 12V
- Supply voltage: 6 V to 12 V (typically 12 V)
- No load speed: 0.222 s/60° (45 RPM at 12V)
- Rotation range: 360° (from 0 to 4095 units)
- Mechanical limitation: none
- Encoder type: 12-bit magnetic 360°
- Positioning resolution: 0.088°
- No-load current: 190 mA
- Blocked current: 2.7 A
- Torque constant: 11 kg*cm/A
- ID range: 1 to 253 (default 1)
- Baud rate: 38400 bps to 1 Mbps (default 1 Mbps)
- Gear: steel, ratio 1:345
- Housing: T6061 aluminum alloy, CNC

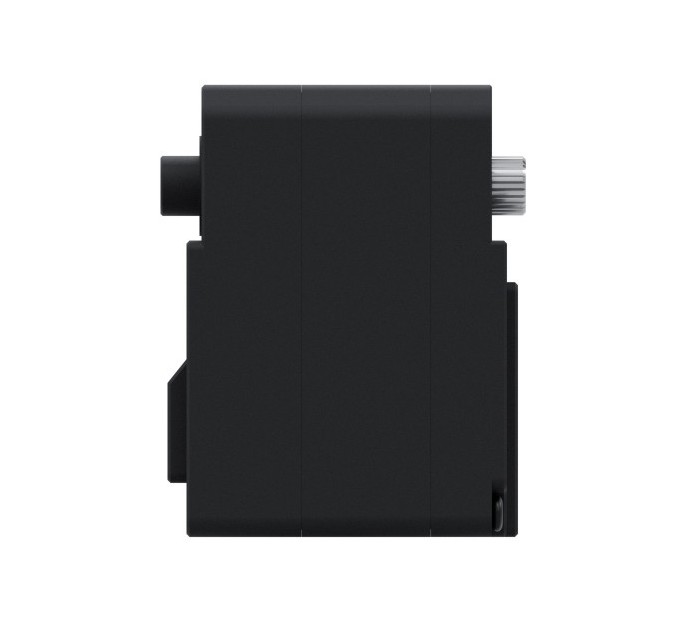

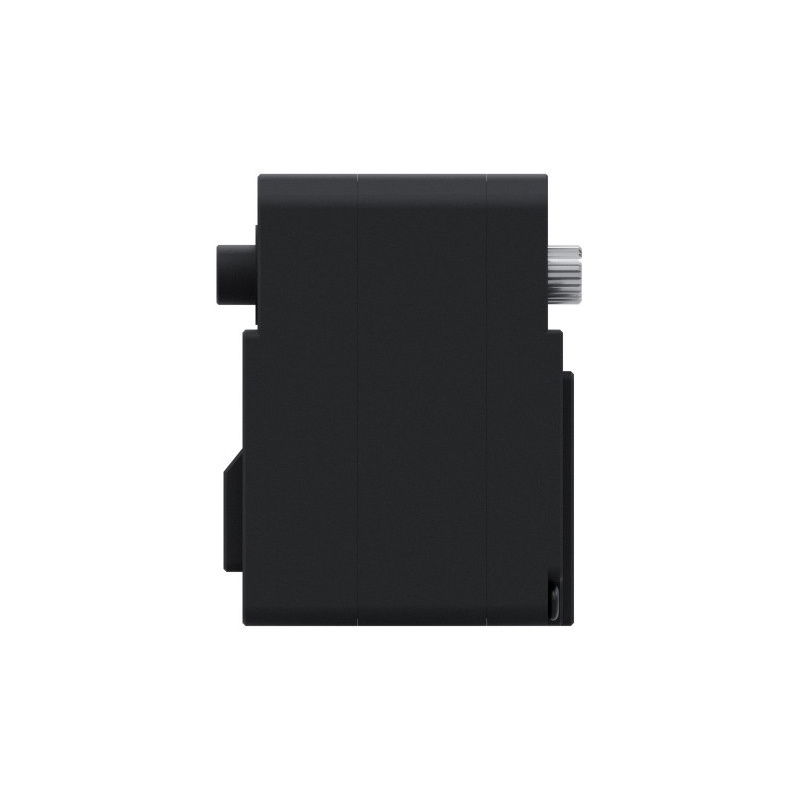

- Dimensions: 45.22mm x 35mm x 24.72mm
- Weight: 70.5 g
Kit Contents
- 1x ST3235 Waveshare Servo
- 1x Power and signal cable (3-wire, terminated with JST connectors)
- 3x Mounting bracket
- 2x Metal T-bars
- 1x Set of mounting screws and nuts
