Product description: Gas sensor - 230 V AC - Zamel CGZ-01
The Zamel CGZ-01 gas detector is designed to detect the presence of explosive gases , such as natural gas and propane-butane , which can pose a serious threat to the safety of household members. Thanks to its semiconductor sensor, the device responds to elevated gas concentrations by triggering an 85 dB optical and acoustic alarm . Equipped with a self-diagnostic system , it also signals sensor damage, increasing reliability and operational certainty. A 230 V mains power supply ensures constant readiness for operation. The device is surface-mounted, and its design allows for installation in rooms particularly susceptible to gas leaks, such as kitchens or boiler rooms.

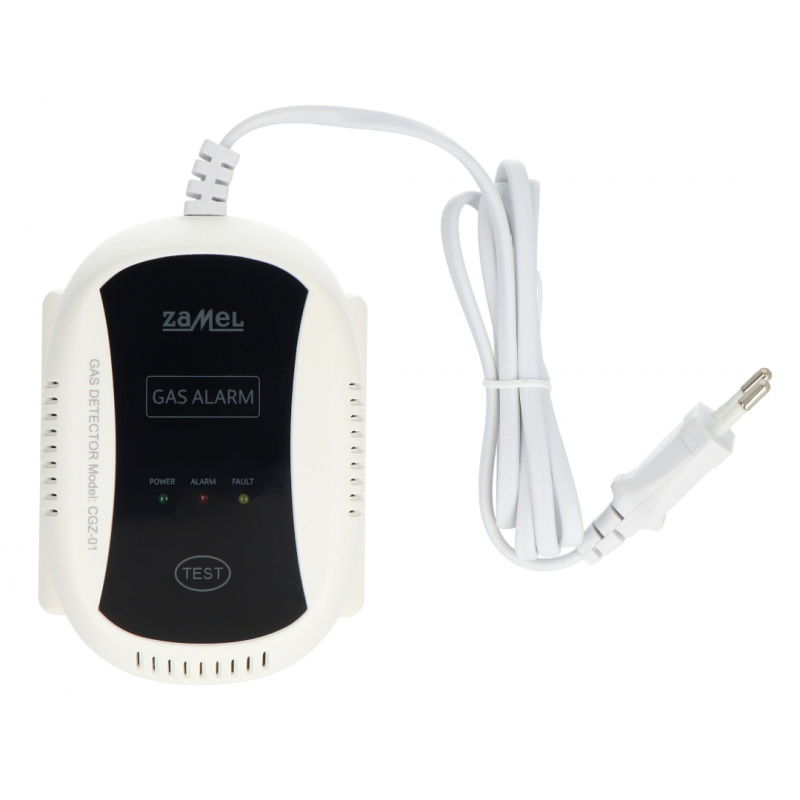

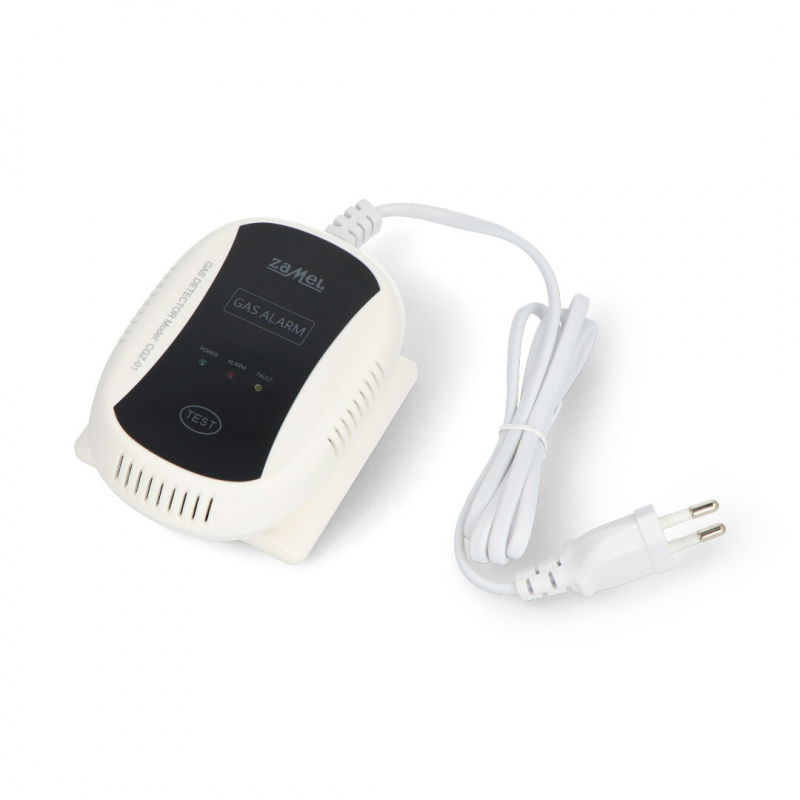

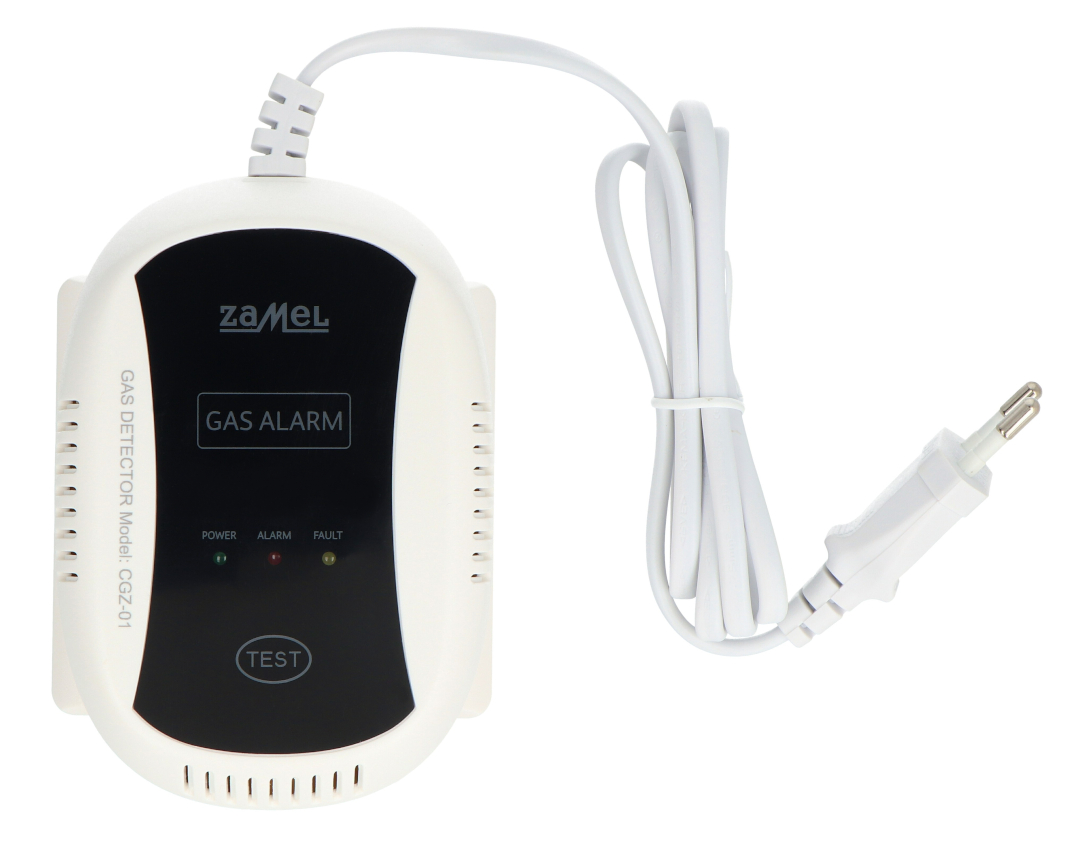

Gas sensor - 230 V AC - Zamel CGZ-01.
When the sensor detects an increased gas concentration, it activates an audible and visual alarm.
Main features of the Zamel CGZ-01 sensor
- Explosive gas detection : responds to natural gas and LPG (propane-butane)
- Semiconductor sensor : fast and precise response to elevated gas concentrations
- Optical and acoustic signaling : a light alarm and an 85 dB signal warn of gas detection
- 230 V AC power supply : the device is always ready for operation
- Alarm level around 10% LEL : complies with safety requirements for gas detectors
- Self-diagnostic system : indication of damage and irregularities in the sensor operation
- Surface mounting : easy installation in rooms exposed to gas leaks
Practical applications
The Zamel CGZ-01 gas detector is suitable for use anywhere gas leaks from gas installations or appliances are possible. It is recommended for kitchens, boiler rooms, basements, and rooms containing stoves, ovens, boilers, water heaters, and gas valves . Installing sensors in these locations significantly increases safety, enabling a quick response in the event of a gas buildup in the air.
How does the CGZ-01 gas sensor work?
The Zamel CGZ-01 gas detector uses a semiconductor sensor that responds to the presence of explosive gases in the air. When the gas concentration reaches an alarm level of approximately 10% of the lower explosive limit (LEL) , the device activates an 85 dB siren and a visual alarm. The detector constantly monitors its operating status, and in the event of a malfunction, a self-diagnostic system notifies the user of the problem with an appropriate alarm. Powered by a 230 V mains supply , the device operates continuously, ensuring constant supervision of the safety of the premises.

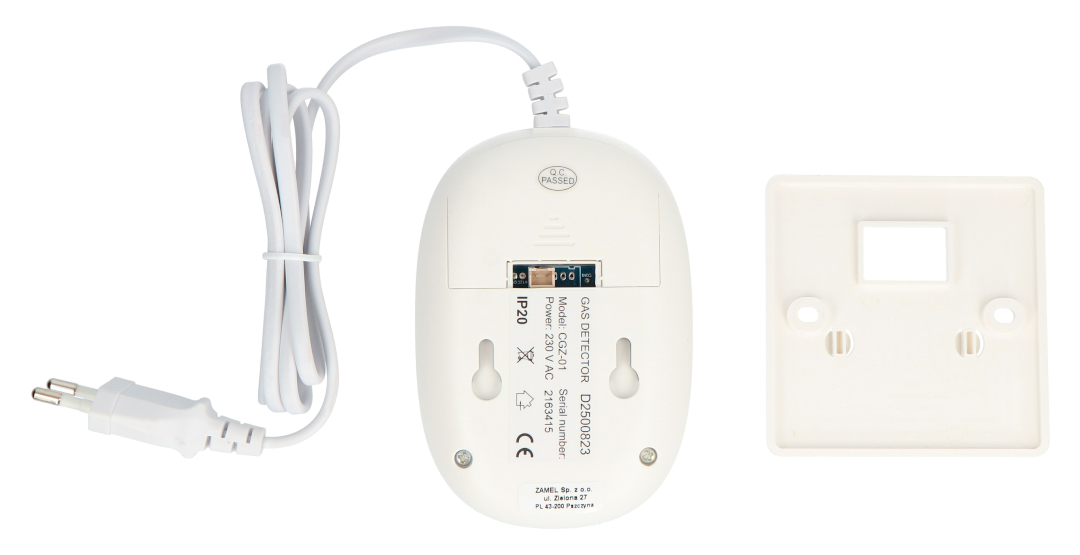

The sensor has an electronic self-diagnostic system.

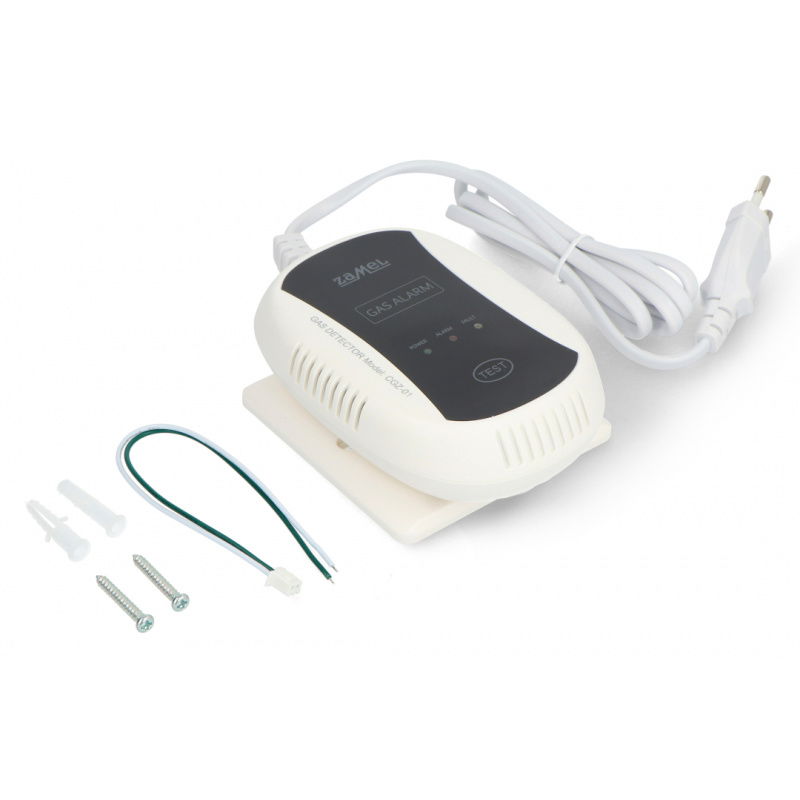

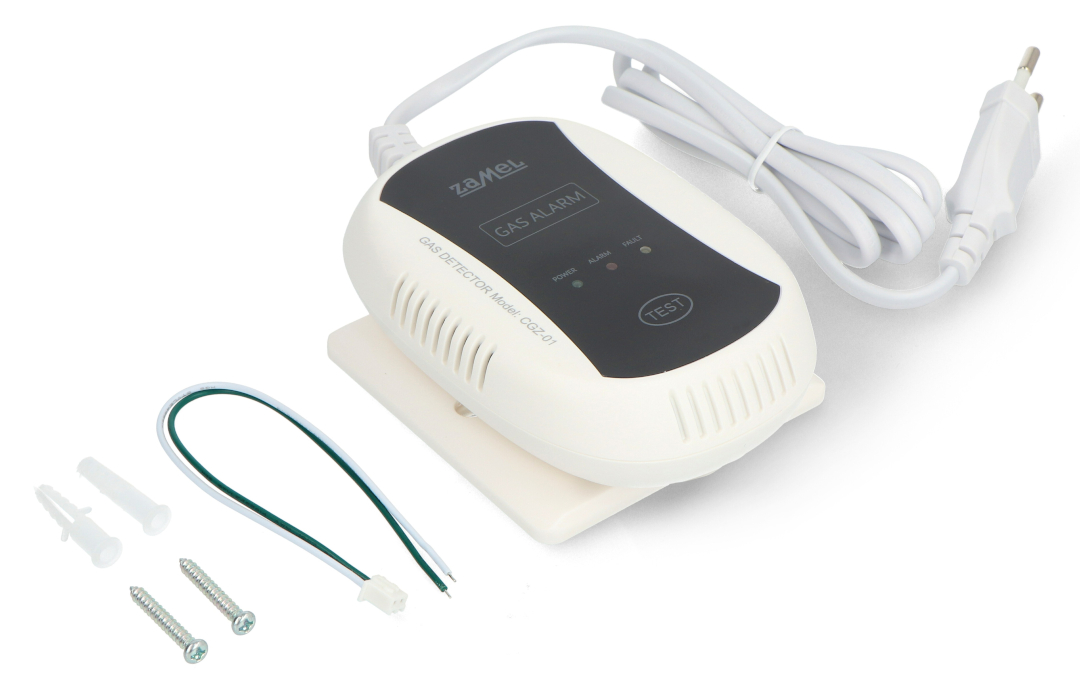

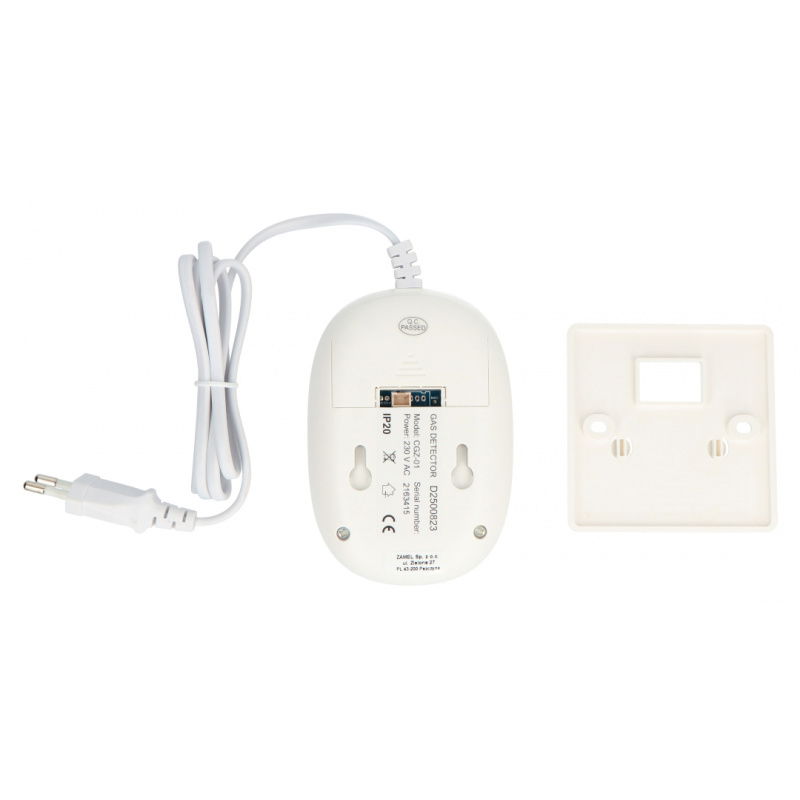

Elements included in the set.
Technical specifications of the gas sensor
- Sensor type: semiconductor
- Power supply: 230 V AC
- Power consumption: about 1.5 W
- Gas detection alarm level: approximately 10% LEL
- Acoustic signal: 85 dB
- Optical signaling: yes
- Operating temperature range: 0°C to 40°C
- Humidity operating range: 10% to 95% RH
- Installation: surface-mounted
- Degree of protection: IP20
- Color: white
- Dimensions: 120 x 85 x 32 mm
- Weight: 0.169 kg
Kit contents
- 1x Zamel CGZ-01 gas sensor
- 1x Cable
- 2x mounting screws
