Product description: Fermion - 3-axis accelerometer - LIS2DW12 - DFRobot SEN0405
Fermion series module with powerful 3-axis accelerometer LIS2DW12, manufactured by DFRobot. It features low power consumption (50nA), as well as low noise. The module has a user-selectable measurement scale (±2 g / ±4 g / ±8 g / ±16 g) and is able to measure accelerations with a data rate of 1.6 Hz to 1.6 kHz. It communicates over an I2C interface and is powered by 3.3 V . The sensor features two independent programmable interrupt outputs and internal circuitry for motion and acceleration detection, free-fall detection and orientation determination, as well as single / double touch recognition.
Arduinocompatible product
A detailed user guide is available on the manufacturer's website to help you get started with the module.
Fermion - 3-axis accelerometer - LIS2DW12.
Module equipped with LIS2DW12 chip.
Technical specifications of the Fermion accelerometer:
- Operating voltage: 3,3 V
- Operating current:
- 50 nA (low power mode)
- 0.17 mA (high performance mode)
- Interface: SPI / I2C
- I2C address: 0x19 (default address) / 0x18 (selectable)
- Optional measuring scale: ±2 g / ±4 g / ±8 g / ±16 g
- Operating temperature: -40°C to 85°C
- 16-bit data output
- Frequency: 1.6 Hz to 1600 Hz
- Very low noise level: 1.3 mg RMS (low power mode)
- 32-level FIFO
- Shock resistance 10000 g
- Module dimensions: 15 mm x 20 mm

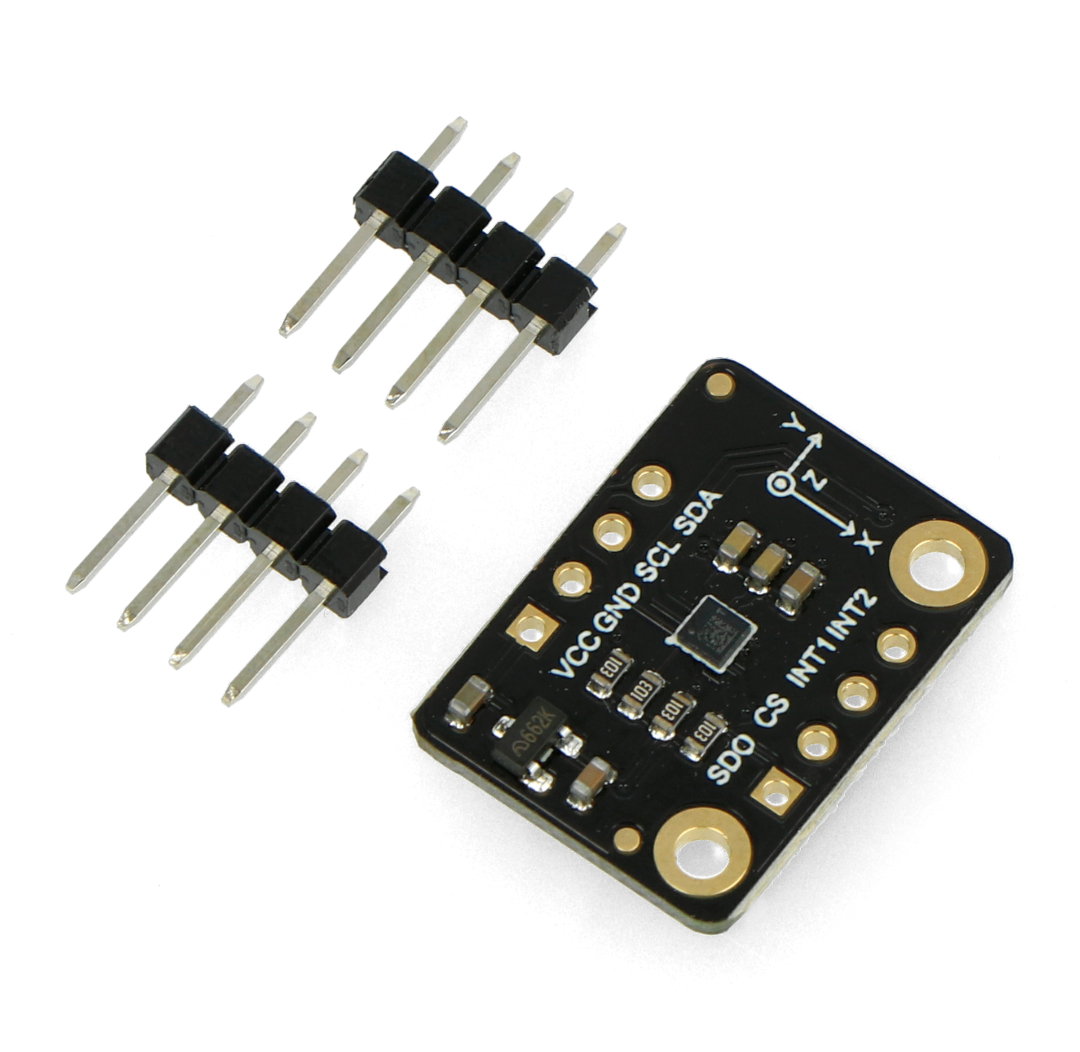

Kit includes:
- 1 x Fermion - LIS2DW12 3-axis accelerometer
- 2 x 4-pin goldpin connector - 2.54 mm pitch

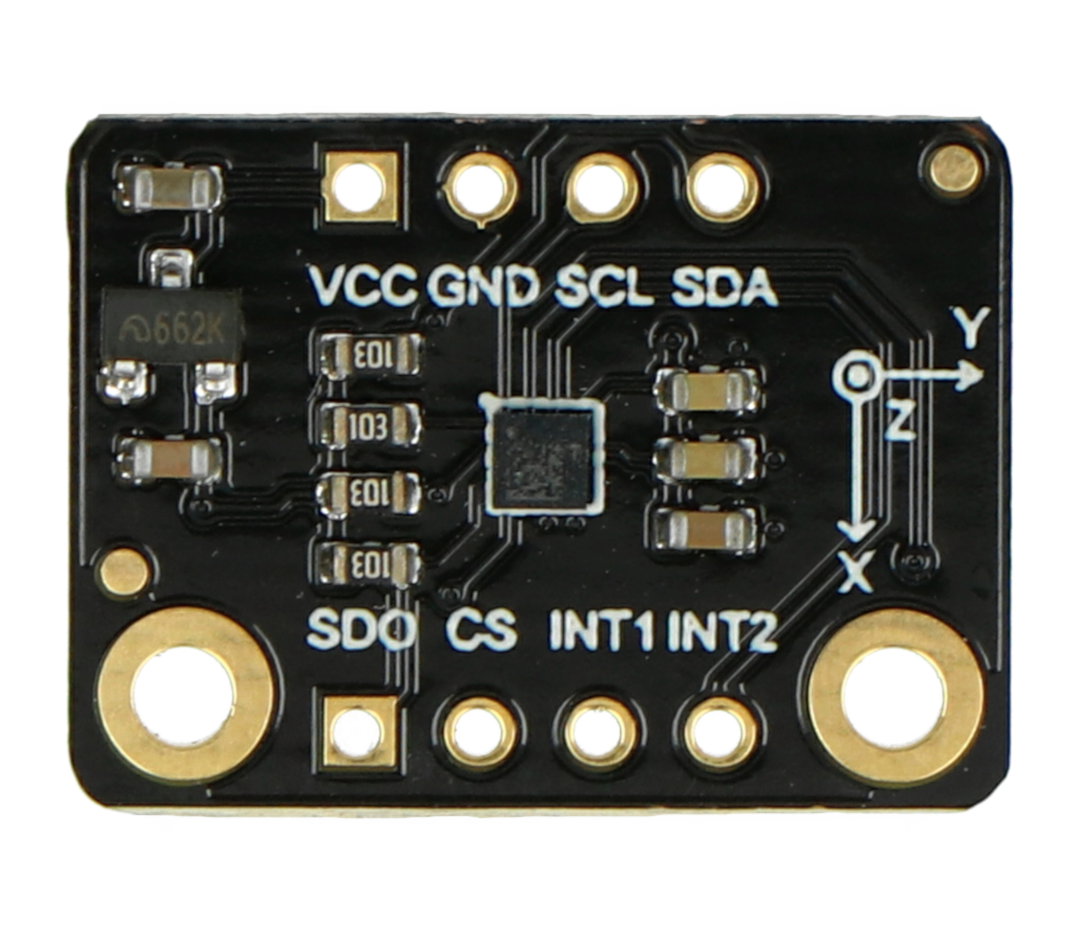

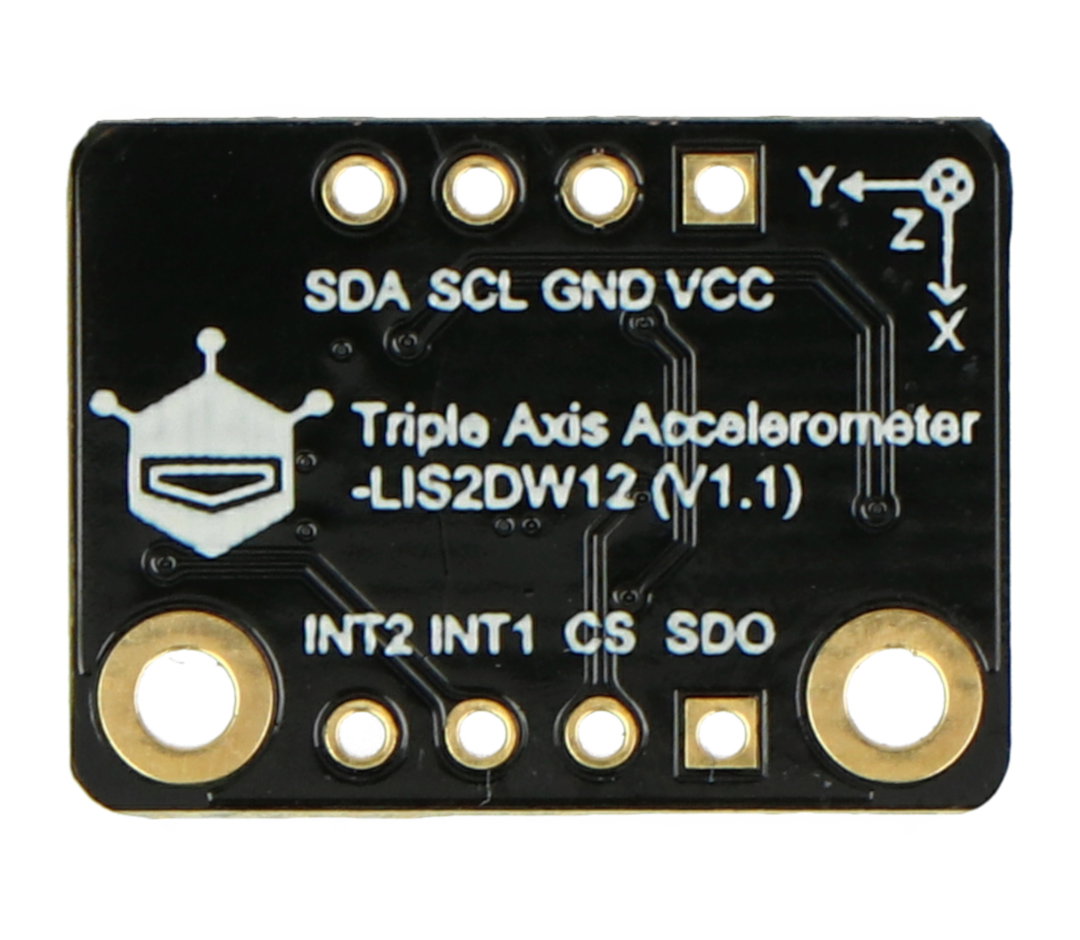

Pinout description
- VCC - power supply pin 3,3 V
- GND - system ground
- SCL - I2C interface clock line pin
- SDA - I2C data line pin
- INT2 - interrupt 2 pin
- INT1 - interrupt 1 pin
- CS - select SPI
- SDO - I2C address selection / SPI MOSI data line
Overview of the module functions
- Selectable measurement scale: ±2 g / ±4 g / ±8 g / ±16 g
- Two independent programmable interrupt outputs
- Intelligent sleep and wake-up function
- Free fall detection
- Dedicated internal circuitry to perform various functions such as 6D / 4D orientation detection, configurable single touch, double touch recognition, etc.
Two 4-pin goldpin strips are included - 2.54 mm raster.
