Product description: Nvidia Jetson IO Base-A V2 - expansion board for Nvidia Jeston Nano - Waveshare 21650
The Jetson IO Base-A V2 board was designed to work with the Nvidia Jetson Nano module. On the board you can find an Ethernet Gigabit port, 4x USB 3.0, HDMI, DisplayPort, GPIO, I2C, I2S, SPI, UART, 2x camera connectors and a microSD card slot. The V2 version additionally has a PWR button, which is responsible for controlling the power supply. Nvidia Jetson Nano is installed in the extension through a dedicated SODIMM connector. On the board, you can also find an M.2 key E slot, to which you can connect, for example, a WiFi module. The Nvidia Jetson Nano module is based on a quad-core ARM Cortex A57 clocked at 1.43 GHz and an Nvidia Maxwell graphics processor with 128 CUDA cores . Jetson Nano has 4 GB of DDR4 RAM - the Nvidia module must be purchased separately.
The kit does not include the Nvidia Jetson Nano module, it must be purchased separately.
Expansion board for Nvidia Jetson Nano.
The module is equipped with two CSI camera connectors.Purpose of the Nvidia Jetson Nano minicomputer
Nvidia Jetson Nano is a very efficient minicomputer designed to implement artificial intelligence in all kinds of applications. The device allows you to run multiple neural networks in applications that perform operations in the field of image classification, object detection and segmentation, and voice command processing. Jetson Nano will find a solution in applications related to automation, robotics and artificial intelligence.

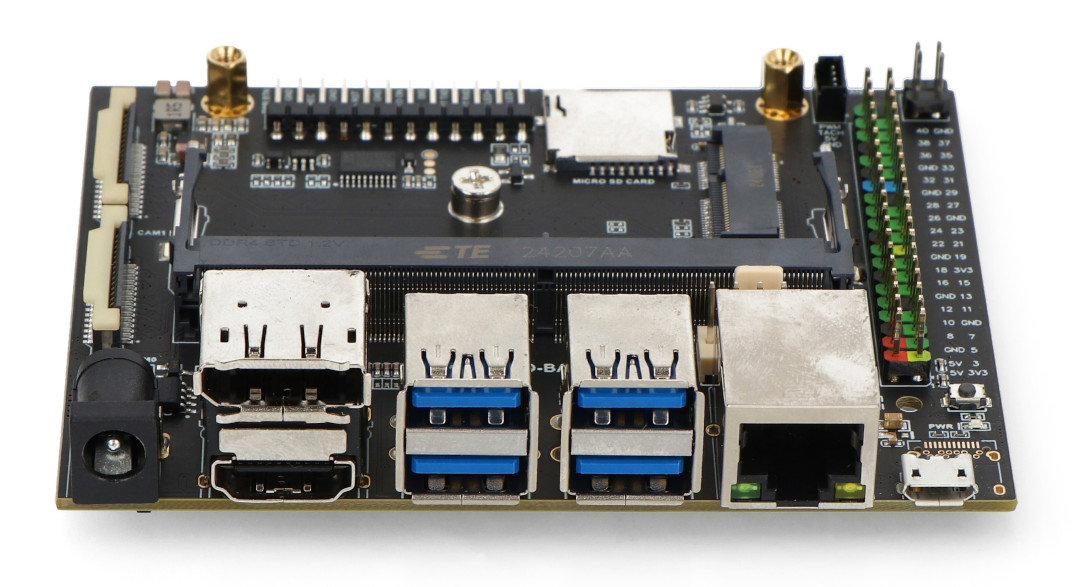

The distribution of elements on the Nvidia Jetson IO Base-A V2 board
- SODIMM socket for connecting the Nvidia Jetson Nano module
- MicroSD memory card slot
- M.2 key E connector
- 1.25mm fan connector
- PoE pins (PoE module not included)
- Leads of GPIO 40-pin
- 2.54mm fan connector
- MicroUSB port to power the board with 5 V or to transfer data
- 10/100/1000 Base-T Gigabit Ethernet port
- 4x USB 3.0 port
- HDMI port
- DisplayPort connector
- DC 5.5 / 2.1 mm power socket
- 2x MIPI CSI camera connector
- Multifunctional 12 pin connector
- PWR button (power on/off control)

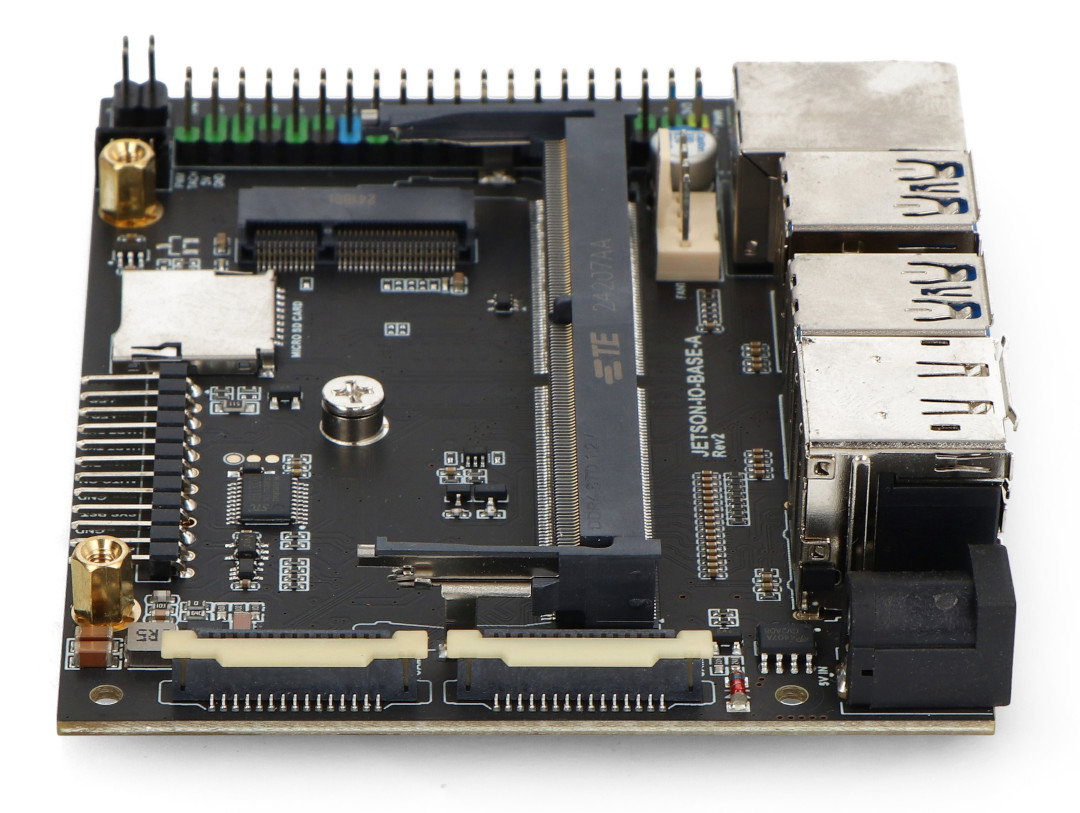

The distribution of elements on the board.
Kit contents.Nvidia Jetson IO Base-A V2 module specification
- Type: expansion board
- Designed for Nvidia Jetson Nano
- Connector: 260-pin
- Interfaces:
- microUSB
- Gigabit Ethernet
- 4x USB 3.0
- M.2 key E
- HDMI
- DispayPort
- Power connector: DC 5.5 / 2.1 mm
- Dimensions: 100 x 80 x 29 mm

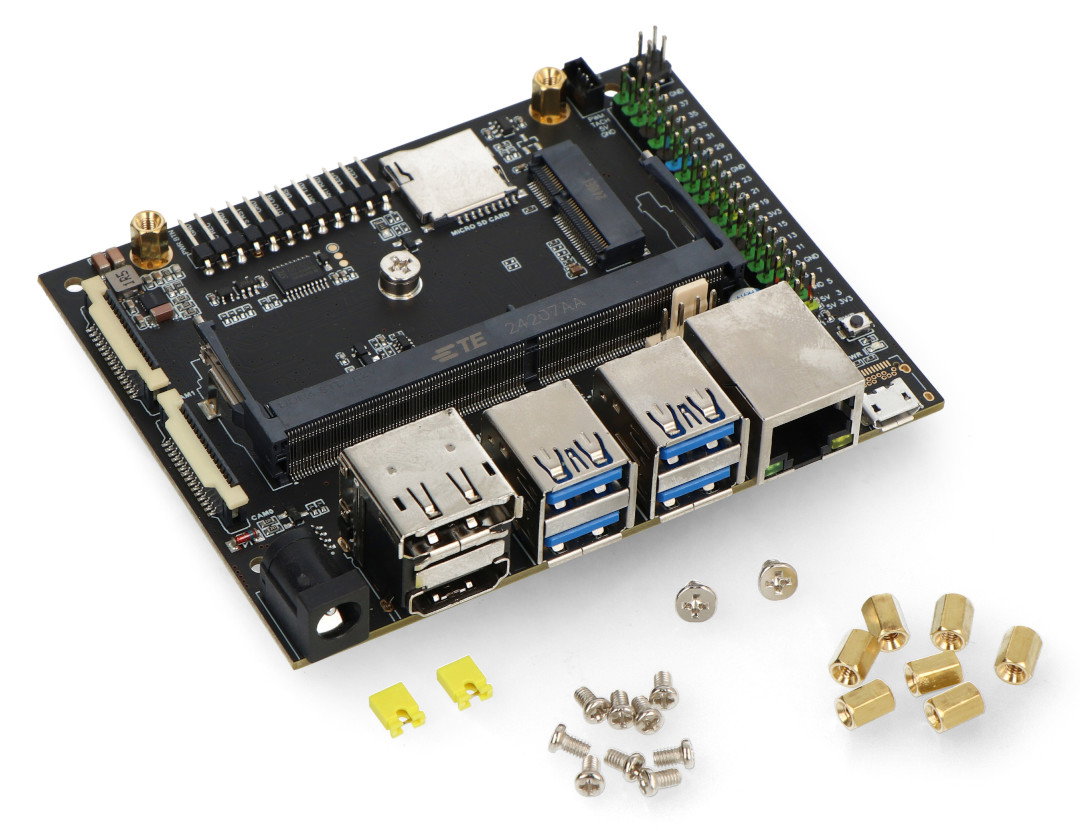

Kit contents
- Nvidia Jetson IO Base-A V2 - expansion board for Nvidia Jeston Nano - Waveshare 21650
- Set of screws, spacers and jumpers
