Dust / air quality sensor PM1.0 / PM2.5 / PM10 - 5V UART - PlanTower PMSA003-A

Index: PLA-17769 EAN: 5904422366643

Dust sensor module that allows you to measure the degree of air purity. Enables precise analysis of the pollution in the environment, measures the concentration of PM1.0 / PM2.5 / PM10 particles. During the measurement, detects a 0.3 μm diameter particles. The PMSA003 sensor supply votlage is 5 V. The communication between the sensor and the microcontroller is via the UART interface.

Dust / air quality sensor PM1.0 / PM2.5 / PM10 - 5V UART - PlanTower PMSA003-A
€25.39
€20.64 tax excl.
Available
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: PlanTower
Compatibility: Arduino Raspberry Pi

Product description: Dust / air purity sensor PM1.0 / PM2.5 / PM10 - 5V UART - PlanTower PMSA003-A

A laser dust sensor module that allows you to measure the degree of air purity. Enables precise analysis of the pollutants in the environment as it measures the concentration of PM1.0 / PM2.5 / PM10 particles. During the measurement, detects a 0.3 μm diameter particles. Contaminants of this type include, among others cigarette smoke and car exhaust fumes. The PMSA003 sensor supply votlage is 5 V.  The communication of the sensor with the microcontroller is via the UART interface, which operates at voltages with a logical level of 3.3 V.

The module is equipped with a silent fan that accurately transports the particles during the measurement. The sensor has a blue protective foil (shown in the photo).

The voltage on the signal lines RX, TX, RESET, SET must not exceed 3.3 V. When controlling the module with a higher voltage, we recommend using a voltage converter .

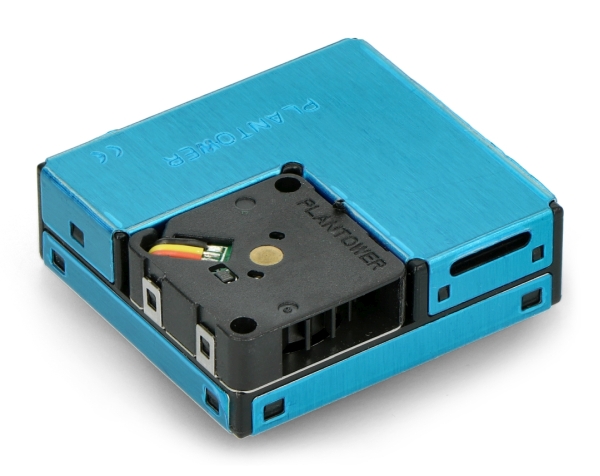

PlanTower air purity sensor.

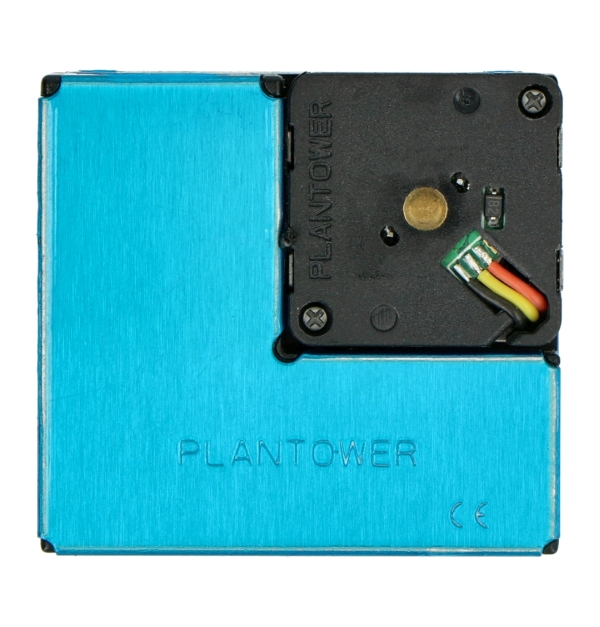

PlanTower PMSA003.

PlanTower PMSA003.

Technical specification of the sensor

  • Developer: PlanTower
  • Supply voltage: from 3.3 V to 5 V
  • Current consumption: up to 100 mA
  • Interface: UART
  • Measurement range:
    • from 0.3 µm to 1.0 µm
    • from 1.0 µm to 2.5 µm
    • from 2.5 µm to 10 µm
  • Sensitivity:
    • 50% for 0.3 μm
    • 98% for 0.5 μm and greater
  • Working temperature: from -5°C to 60°C
  • Response time: less than 10 seconds
  • Data interface level: 3.3 V
  • Connector: 10 pin 1.25 mm
  • Silver color
  • Dimensions: 38 x 35 x 12 mm
  • Weight: 20.7 g

Connecting the air purity sensor

The sensor has 10 pins, including double VCC and GND power pins. Two NC pins remain inactive for this module. A detailed description of ech pin can be found in the table below or in the technical documentation.

Pin Description
Pin 1 (VCC) Power supply 5 V.
Pin 2 (VCC) Power supply 5 V.
Pin 3 (GND) Ground of the system.
Pin 4 (GND) Ground of the system.
Pin 5 (RESET) Reset. It works with a voltage of 3.3 V.
Pin 6 (NC) (Inactive)
Pin 7 (RX) Serial Receiver Pin / TTL Level @ 3.3V
Pin 8 (NC) (Inactive)
Pin 9 (TX) Serial transmit pin / TTL level at 3.3V
Pin 10 (SET) Changing the normal / sleep mode.

Characteristics of the PMSA003 sensor

The PMSA003 is a digital sensor designed to test the number of particles suspended in the air. The dust level of PM1.0 / PM2.5 / PM10.0 is digitized according to the UART interface specification. This sensor can be used to build various instruments designed to measure the concentration of airborne particles, as well as in other equipment designed to evaluate environmental parameters in real time.

How does the PMSA003 air purity sensor work?

The PMSA003 sensor bases its operation on the emission of laser light. The laser light emitted into the atmosphere is scattered by solid particles present in it. On this basis, an internal algorithm calculates a time domain light scattering curve. The final result of the concentration of solid particles in the air is calculated according to the theory of MIE solutions. By using PlanTower air purity sensors, accurate measurements can be obtained.
