Product description: Two Trees TTC-450 Ultra CNC Milling Machine
The Two Trees TTC-450 Ultra is a CNC milling machine designed for creative DIY enthusiasts, designers, and prototypers. It offers an impressive work area of 460 x 460 x 100 mm , allowing for large projects or mass production. A powerful 500 W spindle ensures efficient processing of metal, wood, plastics, and composites. The machine boasts quiet and stable operation thanks to 12-axis linear guides on all axes, and a 3.5" touchscreen ensures intuitive operation. The milling machine is 90% pre-assembled , making it easy for even beginners to get started.

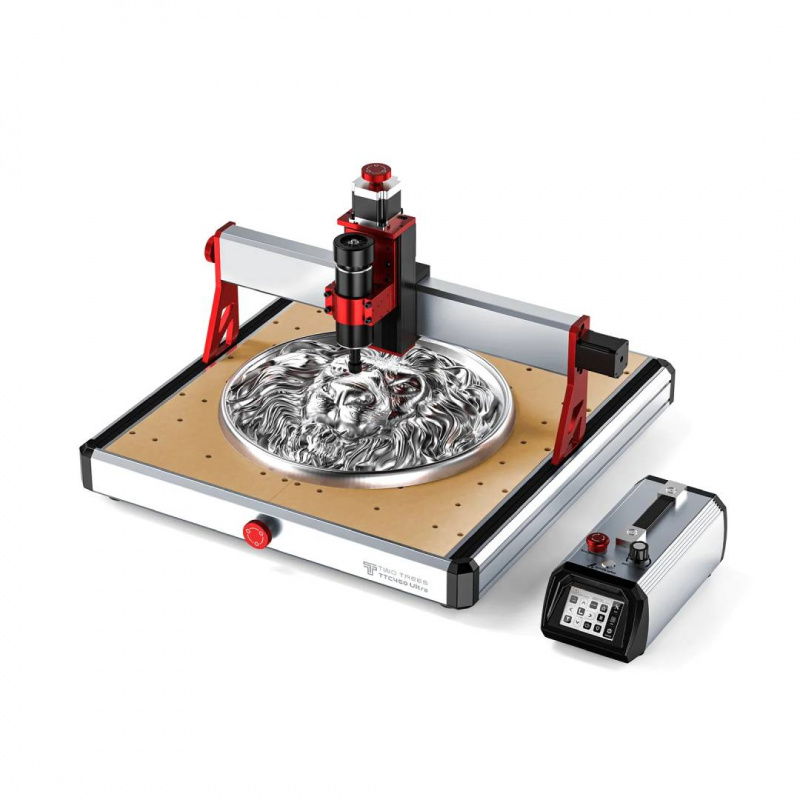

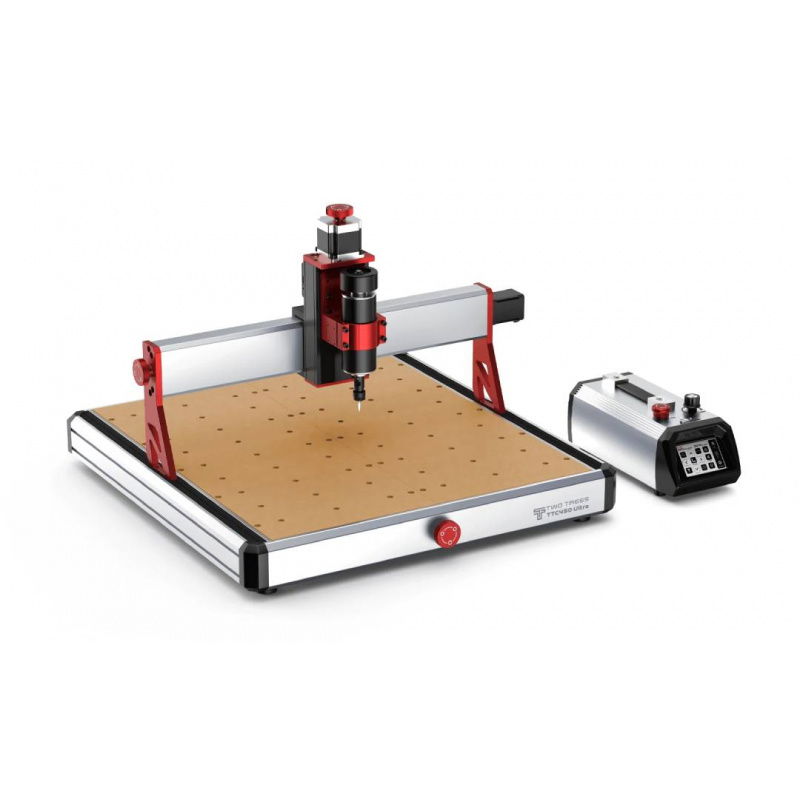

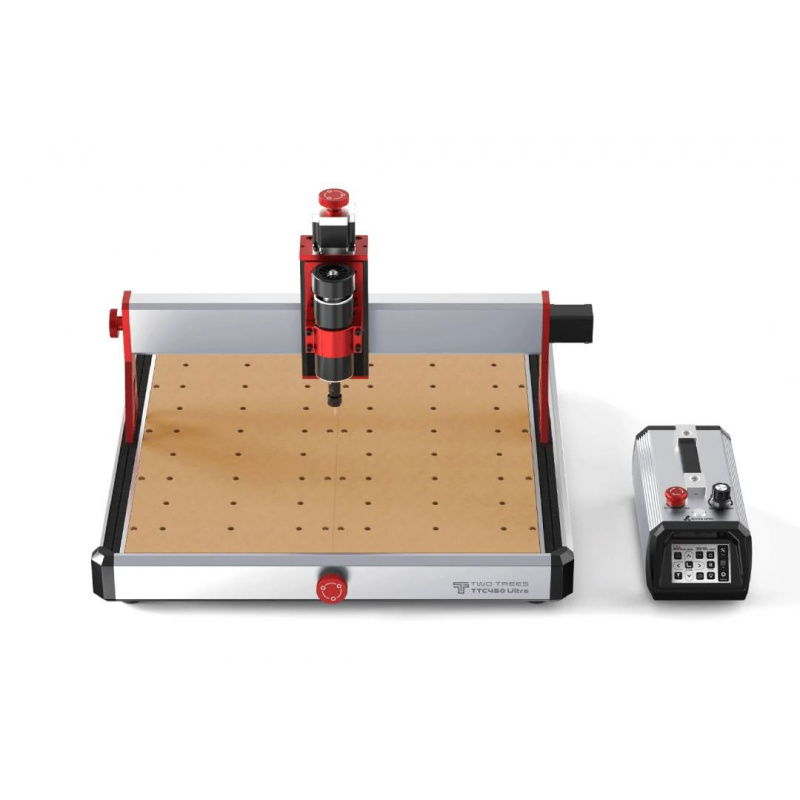

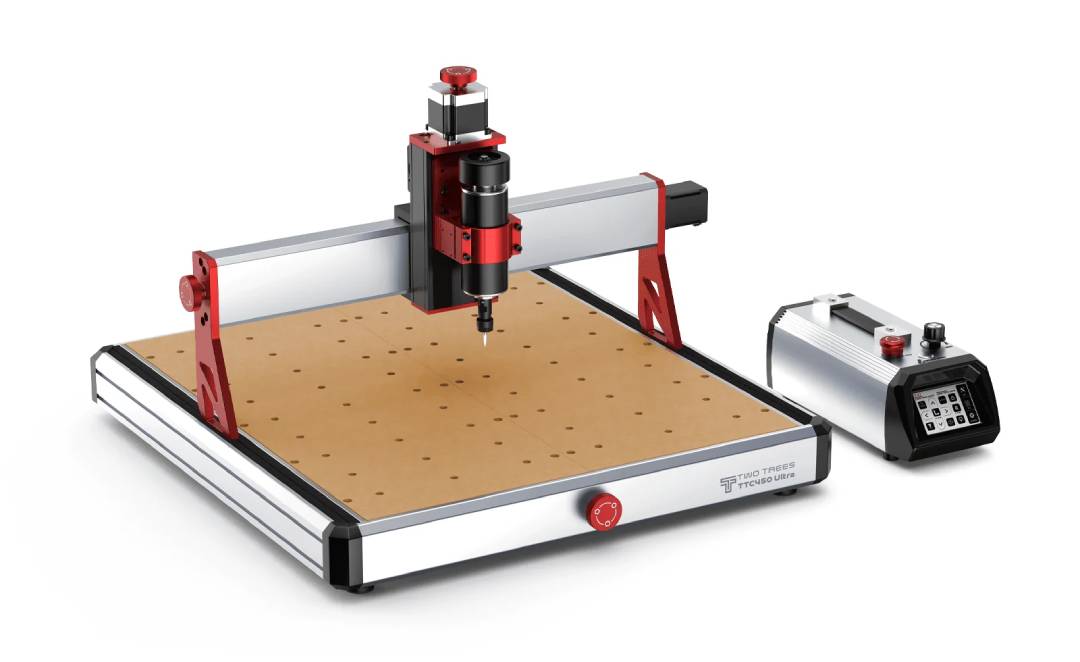

Two Trees TTC-450 Ultra CNC Milling Machine.
The TTC-450 Ultra is a versatile and ready-to-use device with a large working area of 460 x 460 mm.
Extended CNC milling workspace for greater design efficiency
The Two Trees TTC-450 Ultra router is designed for projects requiring a larger workspace. Its 460 x 460 x 100 mm engraving area increases work efficiency by up to 135% compared to models with a 300 x 300 mm area, allowing you to complete larger projects without having to divide them up. This workspace is ideal for both individual and mass production, enabling cutting, milling, and engraving of plywood , MDF, acrylic, plastics, and even aluminum .
Precision 12H linear guides - stability and milling accuracy

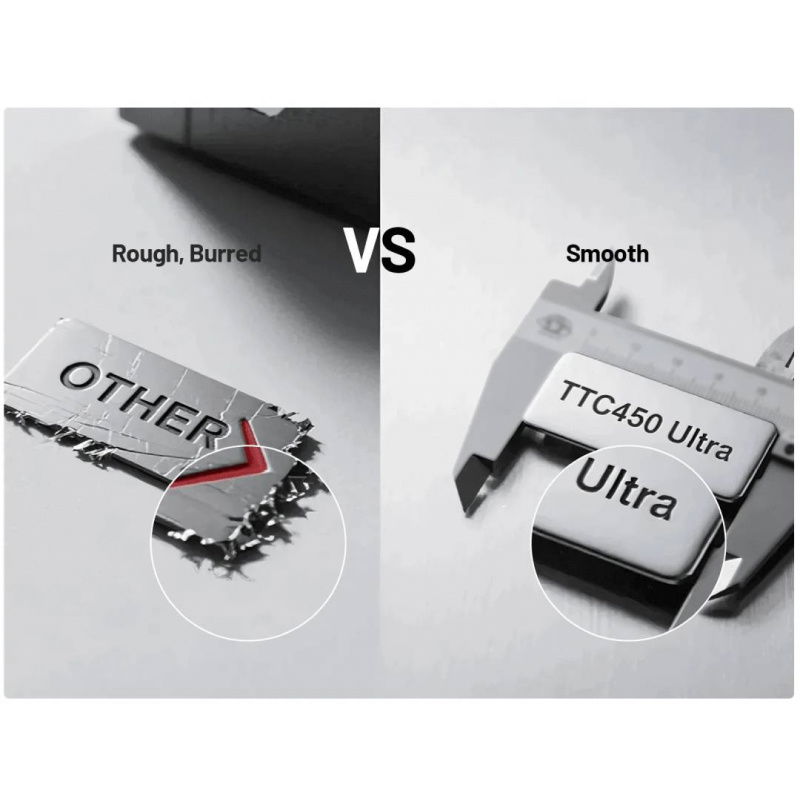

The TTC-450 Ultra's accuracy and repeatability are ensured by 12H linear guides on each axis (X, Y, and Z), providing exceptional rigidity throughout the entire structure. These guides enable the device to achieve positioning accuracy of 0.01 mm on the XY axis and 0.025 mm on the Z axis, resulting in smooth, burr-free edges . This design allows the machine to effortlessly handle precise designs in wood, metal, and composite materials , while also offering acceleration of up to 500 mm/s² , ensuring dynamic and smooth operation.

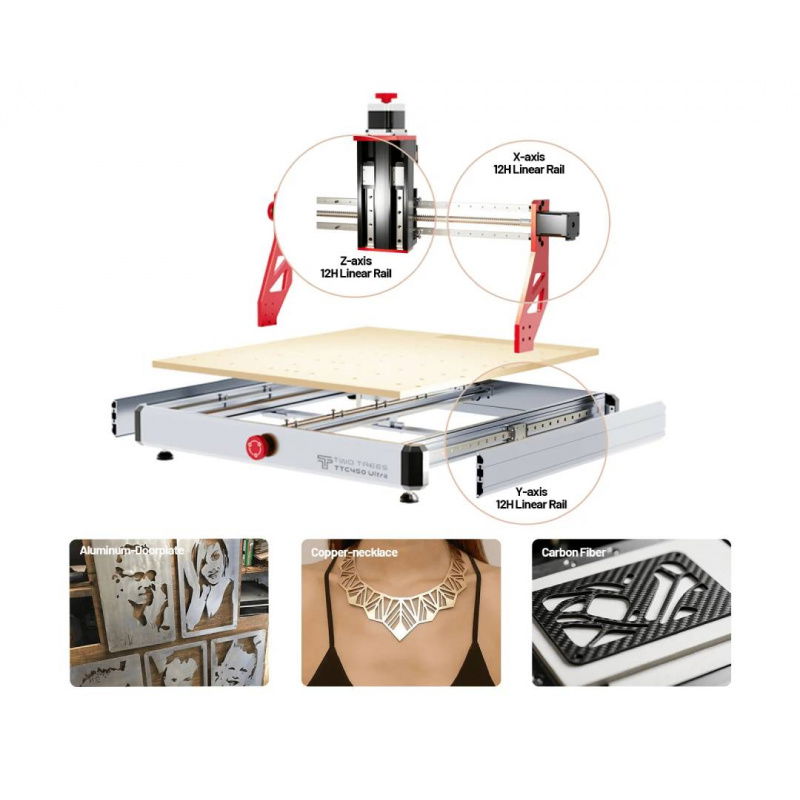

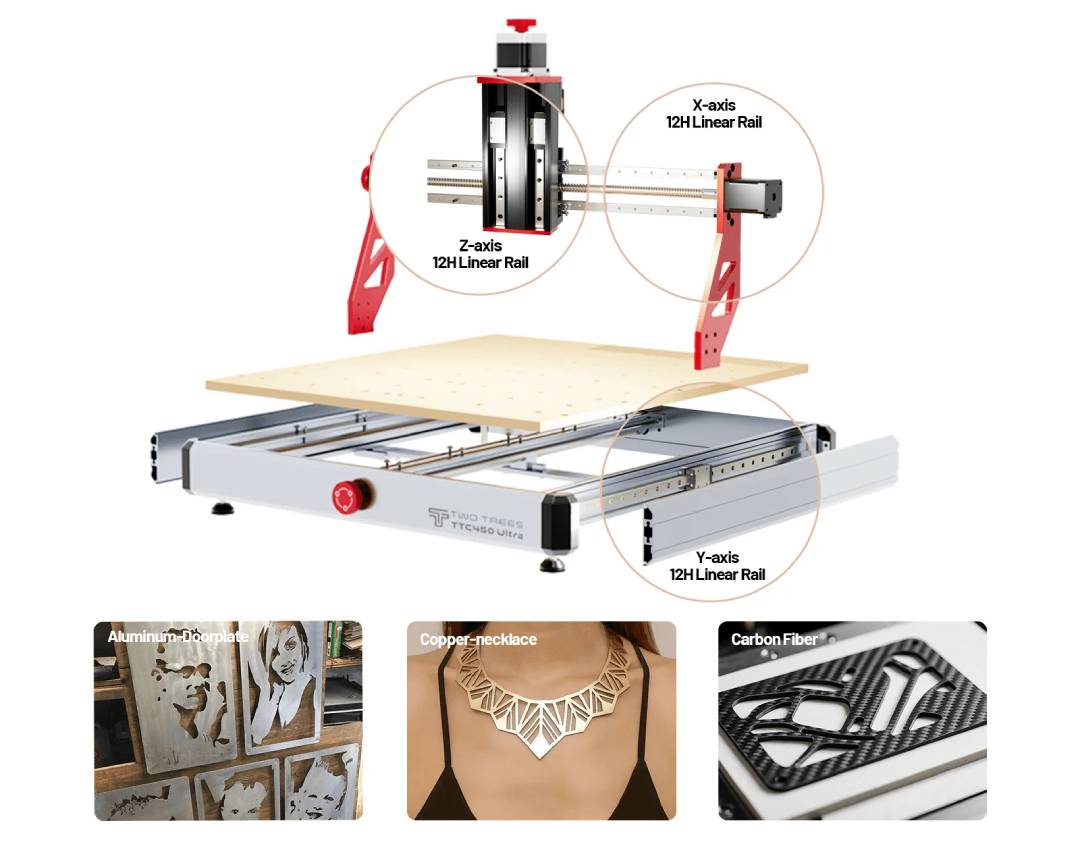

Thanks to 12H linear guides, it ensures precise engraving and milling of many materials.

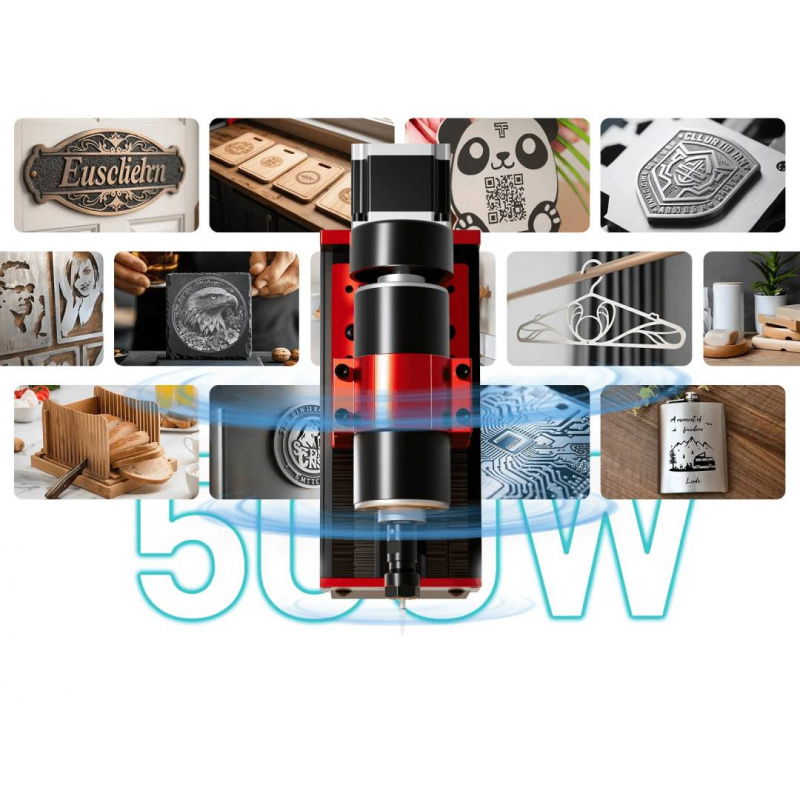

The 500W spindle motor ensures efficient processing of metal, wood, acrylic and other materials.
Powerful 500W spindle - metal milling and engraving with efficiency
The heart of the machine is a standard 500W spindle , reaching speeds from 8,000 to 30,000 rpm depending on the configuration. This high power allows for efficient milling of soft metals like aluminum and copper, as well as cutting organic materials like wood, leather, and bamboo. Tool diameters ranging from 0.5 mm to 7 mm (ER11) allow the use of both thin cutters for precise details and thicker tips for rapid material removal. The increased spindle performance—up to 40% higher than standard versions—shortens project completion times.
Advanced electronics and touchscreen CNC control interface
The TTC-450 Ultra is equipped with a 3.5-inch IPS touchscreen with a resolution of 480 x 320 px , allowing for quick and intuitive management of all device parameters. Thanks to software based on the open GRBL standard, the machine supports both milling and laser module modes—no firmware flashing required. Compatibility with popular operating systems (Windows, macOS, Linux) and design programs (including Fusion360, VCarve, EASEL, FlatCAM ) makes the milling machine exceptionally versatile. Additional features, such as an emergency stop button, automatic leveling, and operating temperature control (from 0°C to 40°C), increase safety and comfort of use.

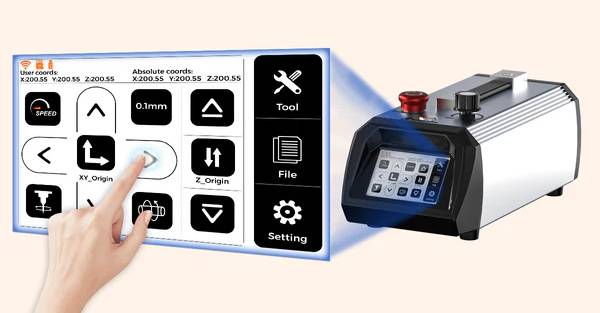

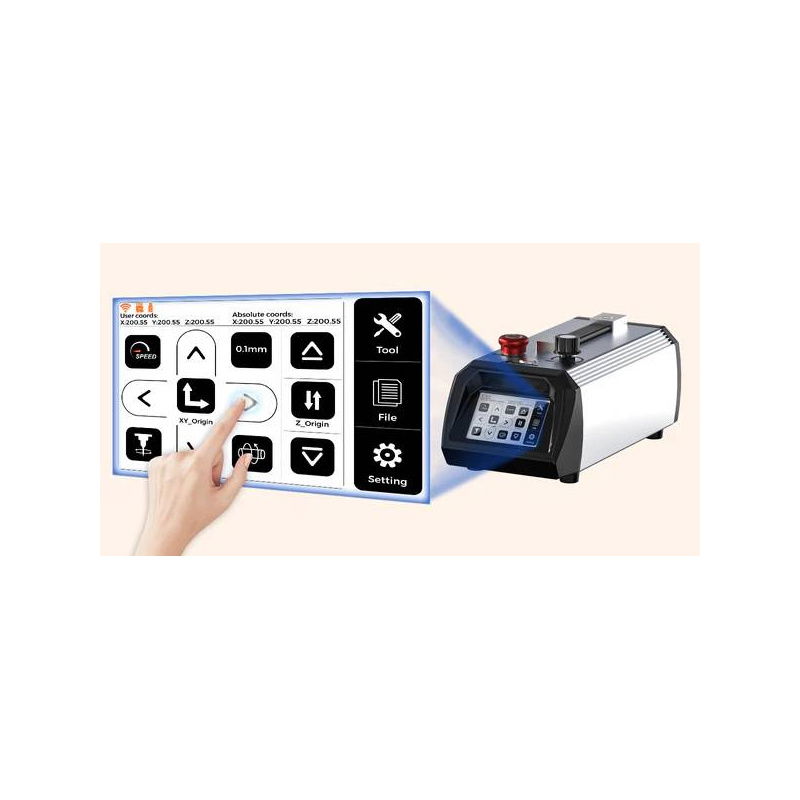

The 3.5'' IPS touchscreen offers a user-friendly interface and quick access to settings.
| Technical specifications of the Two Trees TTC-450 Ultra CNC milling machine | |
|---|---|
| Spindle power | 500 W |
| Spindle speed | from 8000 rpm to 30000 rpm (depending on installation) |
| Working field | 460 x 460 x 100 mm |
| Positioning accuracy (XY / Z) | 0.01 mm / 0.025 mm |
| Engraving accuracy | 100 ±0.05 mm |
| Maximum engraving speed | 3000 mm/min |
| Maximum acceleration | 500 mm/s² |
| Power supply | 216 W (switching power supply), input: 24 V |
| Power consumption | 80W maximum, 12.6W in standby mode |
| Display | 3.5'' IPS touchscreen (480 x 320 px) |
| Firmware type | GRBL open source |
| Supported file formats | .nc, .gcode |
| Compatible operating systems | Windows, macOS, Linux |
| Compatible programs | Fusion360, VCarve, EASEL, Carveco, FlatCAM, Carbide3D, Vectric |
| Interface languages | EN, ES, DE, FR, RU, PT, IT, CN, JP, KO, TR |
| Supported materials | plywood, MDF, wood, acrylic, carbon fiber, aluminum, copper, stainless steel |
| Engraving layer height | from 0.1 mm to 20 mm (non-metallic materials), from 0.1 mm to 0.2 mm (metals) |
| Operating temperature | from 0°C to 40°C |
| Construction type | XYZ axis with double 12H linear guides |
| Supported tool sizes | from 0.5 mm to 7 mm (ER11 holder) |
| Material of manufacture | aluminum + stainless steel + injection molded components |
| Dimensions | 745 x 660 x 473 mm |
| Mass | 19 kg |
