Product description: Thingy:91 X - Cellular IoT prototype platform with LTE-M, NB-IoT, WiFi 6 and GNSS - Nordic

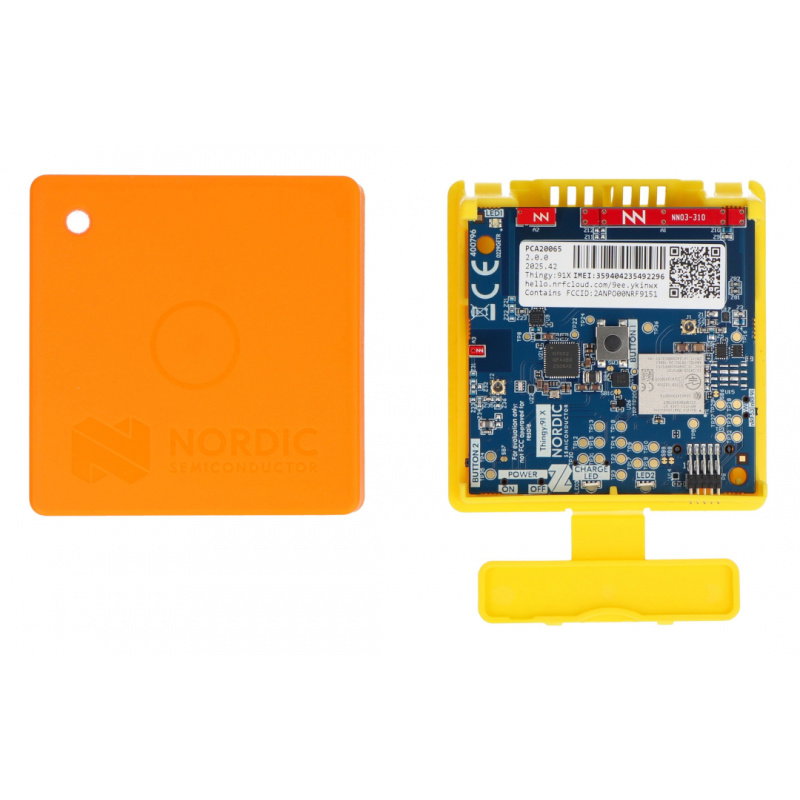

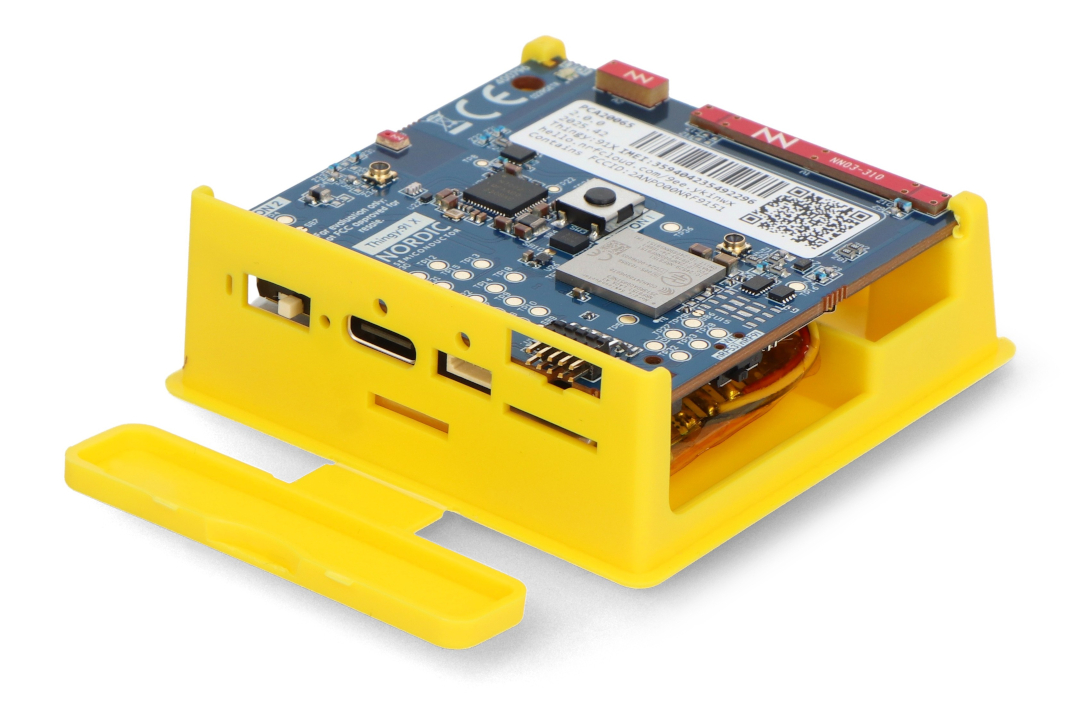

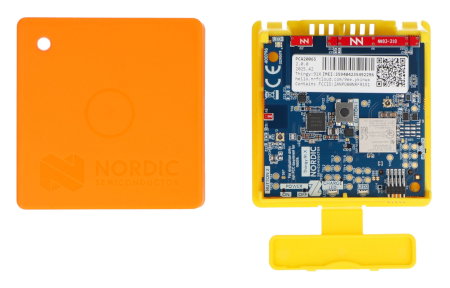

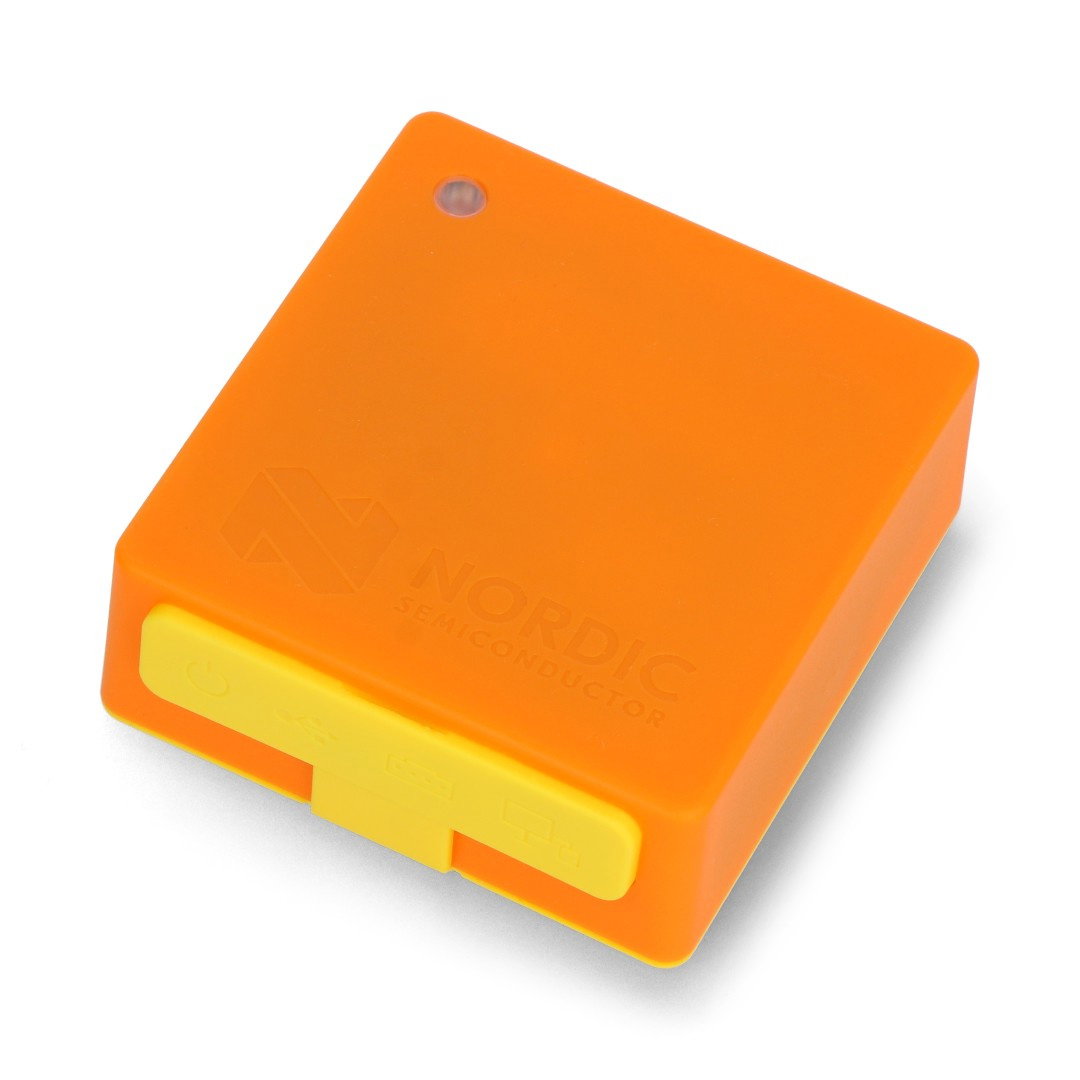

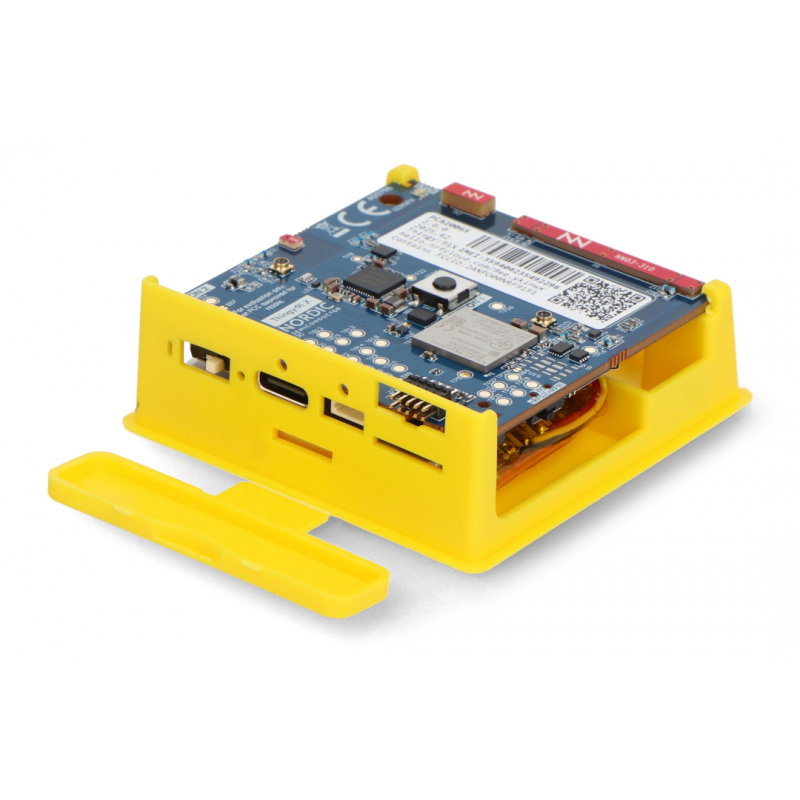

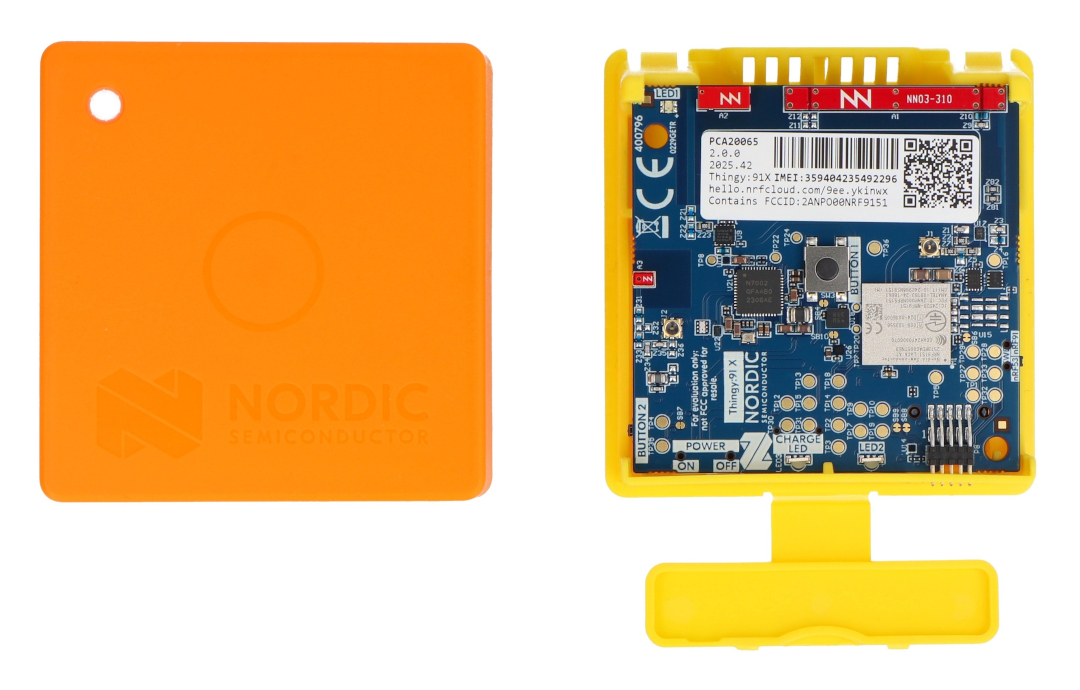

The Nordic Thingy:91 X is an advanced prototyping platform designed for creating IoT solutions using cellular communication . The device is based on the nRF9151 SiP chip, which supports LTE-M, NB-IoT, and GNSS , enabling global deployment—especially in projects such as environmental monitoring and asset tracking . The platform also integrates the nRF7002 chip for WiFi 6 connectivity and the nRF5340 SoC with Bluetooth Low Energy and communication interfaces . This allows the Thingy:91 X to offer comprehensive communication capabilities and enable the creation of advanced IoT systems. Built-in environmental, motion, and magnetic field sensors enable data collection without the need for additional modules.
Thingy:91 X - Cellular IoT prototype platform with LTE-M, NB-IoT, WiFi 6 and GNSS - Nordic.
Nordic Thingy:91 X is an advanced prototyping platform designed for creating IoT solutions using cellular communication.Special features
- Advanced IoT connectivity: LTE-M, NB-IoT, DECT NR+, WiFi 6 and Bluetooth Low Energy support
- Global location: built-in GNSS module and support for location via cellular and WiFi networks
- Powerful nRF9151 chip: 64 MHz Arm Cortex-M33 processor with TrustZone and CryptoCell security
- Additional microcontroller: nRF5340 SoC for communication and interfaces
- A rich set of sensors: temperature, humidity, pressure, air quality, movement, orientation and magnetic field
- WiFi 6: nRF7002 chip for modern wireless communication
- Built-in battery: battery power for field use
- Expandability: Compatible with Qwiic, STEMMA QT and Grove connectors
- Debugging and Energy Analysis: Measurement and Debugging Board Included
- SIM card support: nano-SIM slot and eSIM support
- Programmable elements: user buttons and RGB LEDs
- nRF Connect SDK support: a powerful development environment with Zephyr RTOS
- Cloud integration: interoperability with nRF Cloud and location services
Practical applications
The Nordic Thingy:91 X is ideal for IoT projects , especially where cellular connectivity and device mobility are required. It can be used for asset tracking, environmental monitoring, fleet management, and creating intelligent industrial systems . Built-in sensors and wireless communication enable rapid prototyping without the need for additional components. It's also an ideal tool for engineers, startups, and R&D teams looking to quickly move from concept to working prototype.
Advanced energy management and field work
Nordic Thingy:91 X is designed for long-term operation in mobile and field conditions . Thanks to the nPM6001 and nPM1300 power management systems, the device effectively controls energy consumption, offering features such as battery charging, battery health monitoring, and intelligent power source switching. Combined with energy-saving operating modes (PSM, eDRX), this allows for significantly extended operating time without the need for frequent recharging.
A ready-made environment for rapid IoT prototyping
The platform offers full support for the nRF Connect SDK, which is based on the Zephyr RTOS and provides access to a wide range of libraries, protocols, and application examples. This allows developers to quickly get started and easily scale solutions from prototype to final product. Furthermore, integration with the nRF Cloud enables secure data transfer, analysis, and real-time device management, significantly accelerating the implementation of IoT solutions.
The device is based on the nRF9151 SiP chip, which supports LTE-M, NB-IoT and GNSS, which allows for global use.
Built-in environmental, motion and magnetic field sensors enable data collection without the need for additional modules.Technical specifications
- Main Chip: nRF9151 SiP
- Processor: Arm Cortex-M33, 64 MHz
- Memory: 1 MB Flash, 256 kB RAM
- Additional SoC: nRF5340 (up to 128 MHz, 1 MB Flash, 512 kB RAM)
- Cellular connectivity: LTE-M, NB-IoT, DECT NR+
- GNSS: yes
- WiFi: nRF7002, WiFi 6 (2.4 GHz and 5 GHz)
- Bluetooth: Bluetooth 5.2 Low Energy
- Antennas: LTE/DECT NR+, WiFi/Bluetooth, GNSS
- Sensors: temperature, humidity, pressure, air quality, 3-axis accelerometer, 6-axis IMU, 3-axis magnetometer
- External memory: 256 Mbit Flash
- Connectors: Qwiic / STEMMA QT / Grove
- Interfaces: SPI, UART, I2C, PWM, ADC, PDM
- Power supply: Li-Po battery (charging via USB Type-C)
- Power Management: nPM6001, nPM1300 PMIC
- SIM slot: nano-SIM (4FF) + eSIM
- Operating temperature: 0°C to 35°C

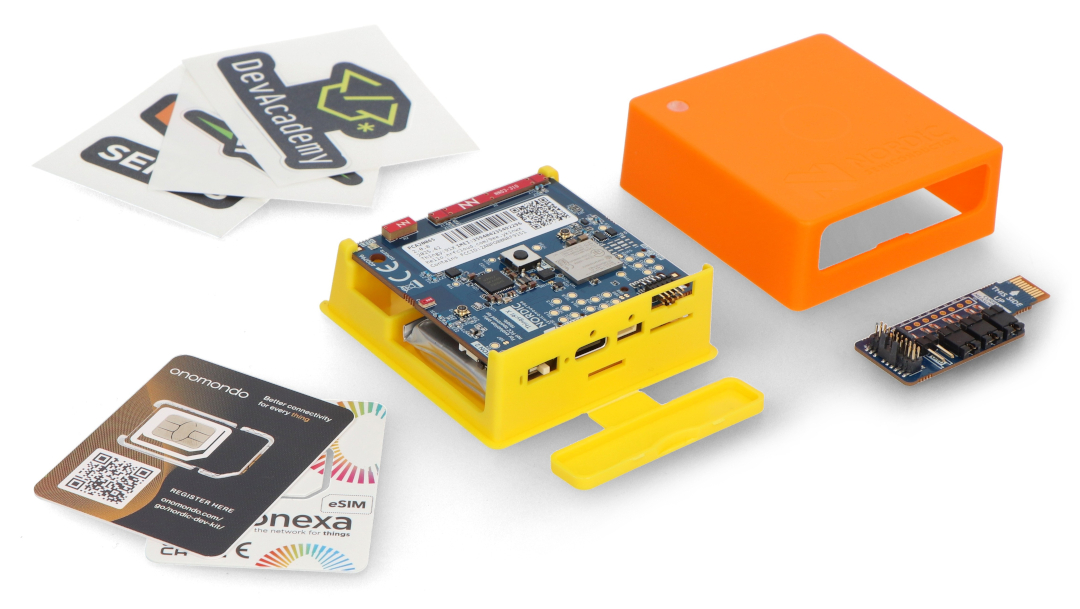

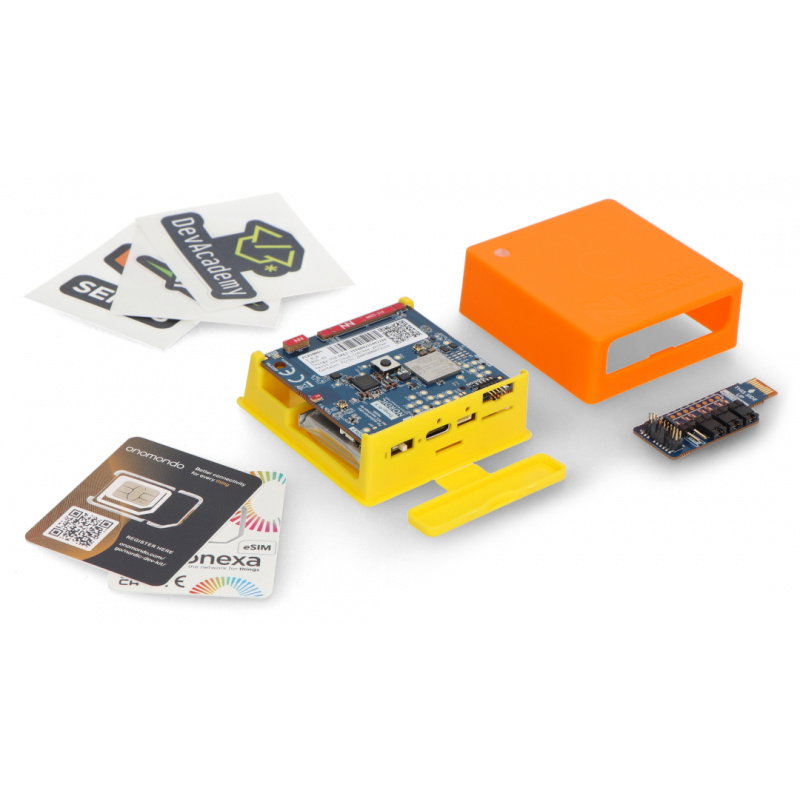

Contents of the set
- Nordic Thingy:91 X
- Debugging and power consumption measurement board
