Product description: ESP32-P4-Function-EV-Board - development kit with 7'' LCD display and 2 MPx camera - WiFi / Bluetooth - Espressif
ESP32-P4-Function-EV-Board by Espressif is an advanced development platform designed for IoT, multimedia and smart device projects. Equipped with the ESP32-P4 chip, offering high performance and energy efficiency. The ESP32-C6-MINI-1 module provides reliable wireless connectivity via WiFi 6 and Bluetooth 5.0 , enabling a wide range of applications. The board supports USB 2.0, MIPI-CSI / DSI and hardware H264 encoder , making it a great choice for video and audio systems. With 55 GPIO pins , you can easily connect additional modules and sensors. The built-in microphone , audio amplifier and speaker port make the board also suitable for projects related to speech recognition and sound. The set includes a 7-inch capacitive touch screen with a resolution of 1024 x 600 px and a 2 MPx camera with a MIPI-CSI interface, which allows for the implementation of visual projects such as video intercoms or monitoring systems. The extensive set of interfaces makes the ESP32-P4-Function-EV-Board an excellent base for modern network and AI applications.
ESP32-P4-Function-EV-Board - development kit with 7'' LCD display and 2 MPx camera - WiFi / Bluetooth - Espressif.

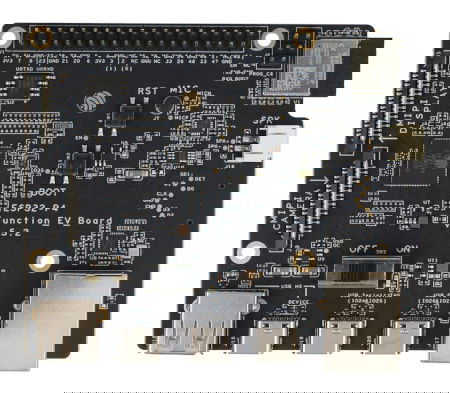

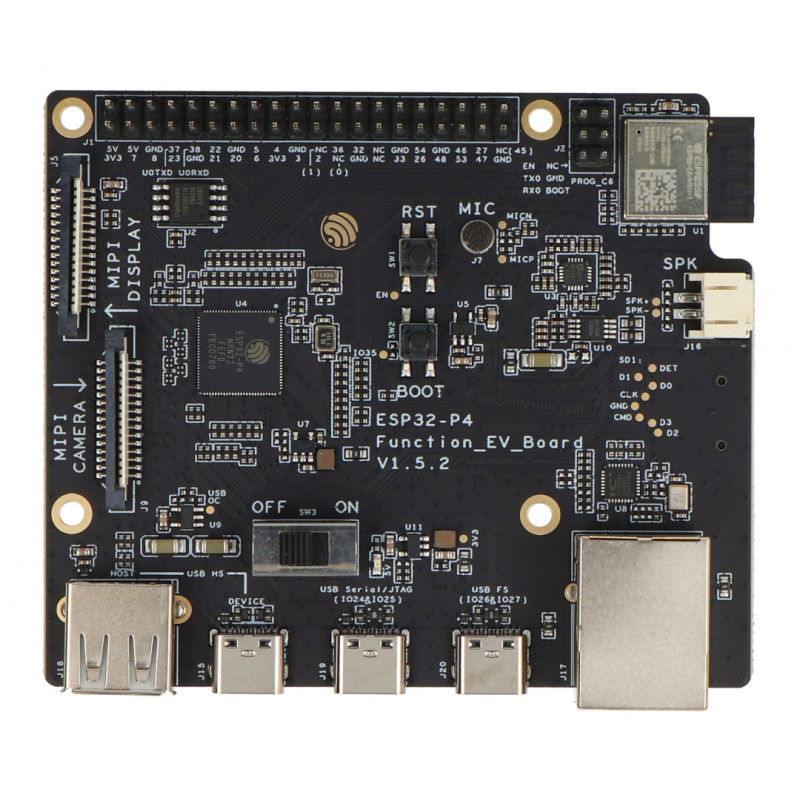

The board is equipped with the ESP32-P4 chip, offering high performance and energy efficiency.
Main Features of ESP32-P4-Function-EV-Board
- Dual‑core RISC‑V ESP32‑P4: a powerful processor ideal for audio and video processing
- WiFi 6 and Bluetooth LE: ESP32‑C6‑MINI‑1 module provides fast, energy-efficient wireless connections
- Rich multimedia: USB 2.0 support, MIPI‑CSI (camera), MIPI‑DSI (display), H.264 encoder
- Built-in 7″ screen: 1024 x 600 px capacitive touch LCD enhances usability in UI designs
- 2 MPx camera: enables the use of video, video intercoms, image analysis
- PSRAM memory: up to 32 MB, supports multimedia applications and image caching
- USB OTG and debug: two USB Type-C ports - for power, communication and JTAG/debug
- Audio hardware: ES8311 (ADC/DAC), NS4150B 3W amplifier, microphone and audio output
- Selective power supply: buck/LDO regulator, 500mA USB switch (TPS2051C)
Pins and interfaces
Most of the I/O pins, such as UART, I2C, I2S, SPI and GPIO , are brought out on the J1 connector, which significantly facilitates integration with sensors and peripheral modules. The board also offers MIPI‑CSI connectors for the camera and MIPI‑DSI for the display , both in the form of FPC sockets. Additionally, there are audio interfaces on board (microphone connector, audio input and output) and an RJ45 Ethernet port supporting 10 / 100 Mb/s transmission.
Programming and Compatibility
The ESP32‑P4‑Function‑EV‑Board supports the ESP‑IDF environment and platforms based on the RISC‑V architecture . Programming is done via the USB‑UART port or the JTAG interface (e.g. using the ESP‑Prog programmer). Bootloader mode is started by a combination of the Boot and Reset buttons. The board is compatible with Linux, Windows and macOS operating systems , and ready-made application examples are available in the official project repository.

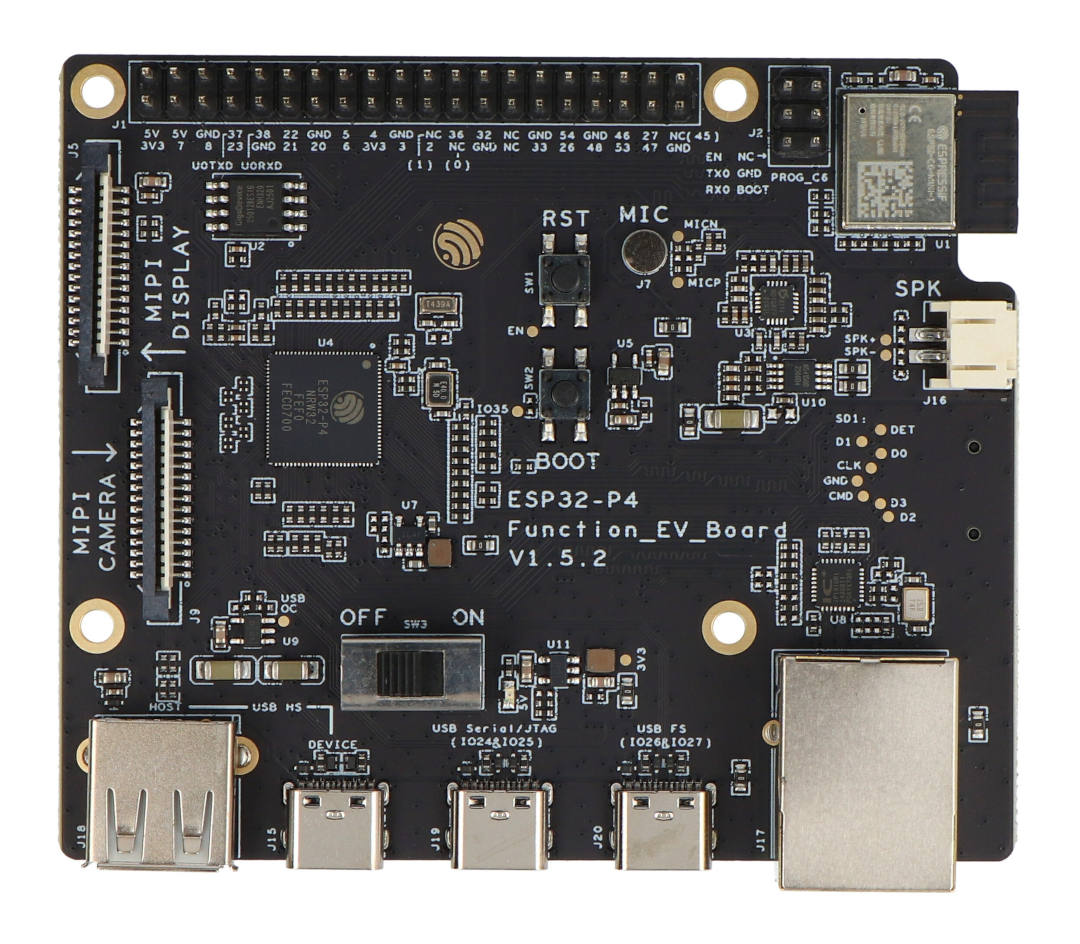

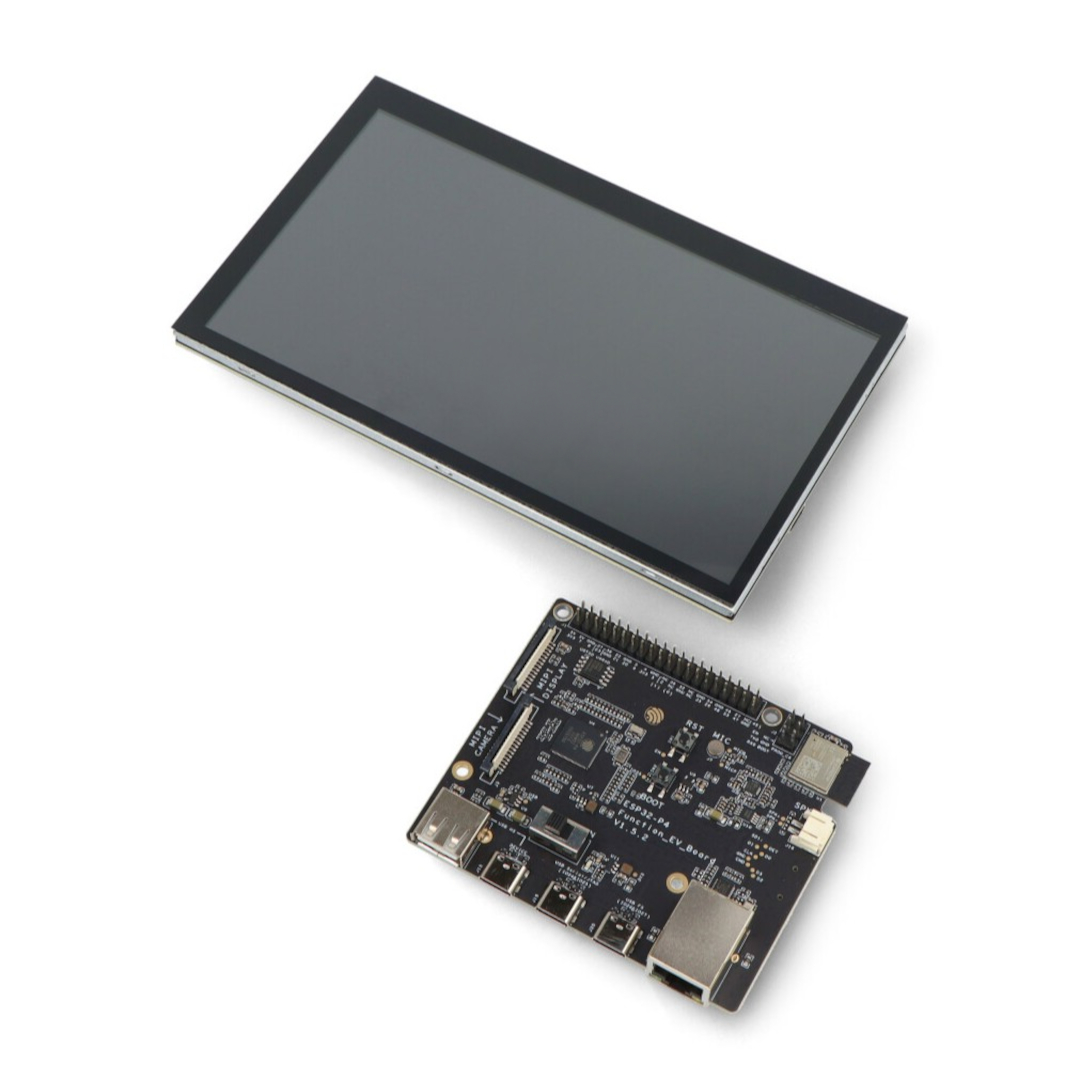

The ESP32-P4-Function-EV-Board offers a rich set of interfaces, including USB 2.0 OTG, Ethernet, MIPI-CSI / DSI, as well as built-in audio solutions.

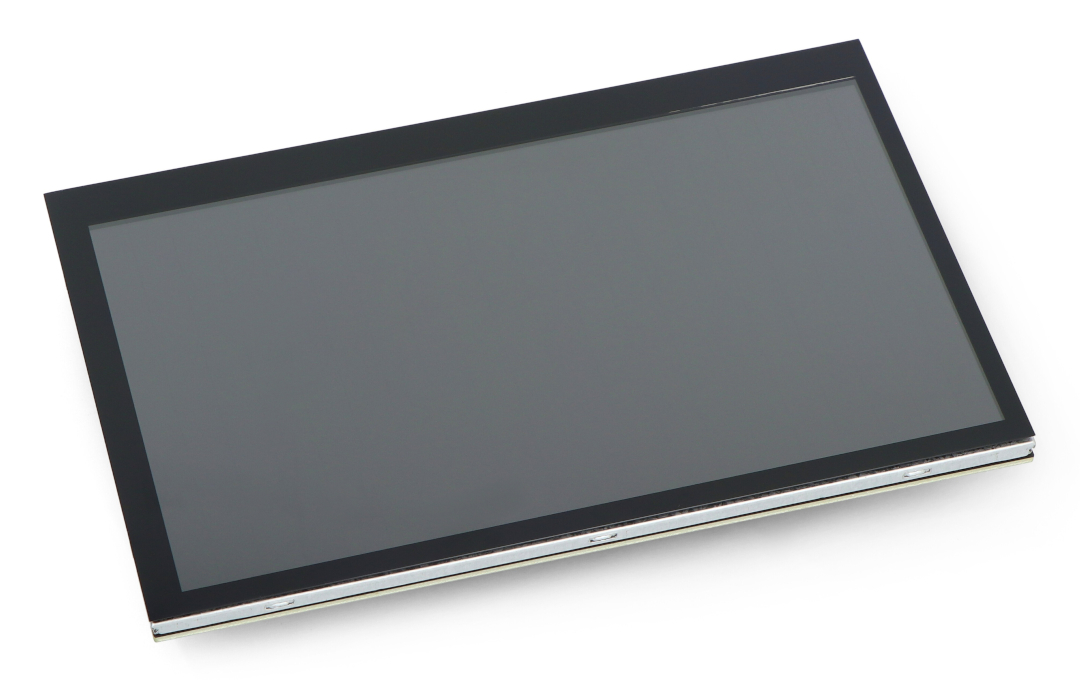

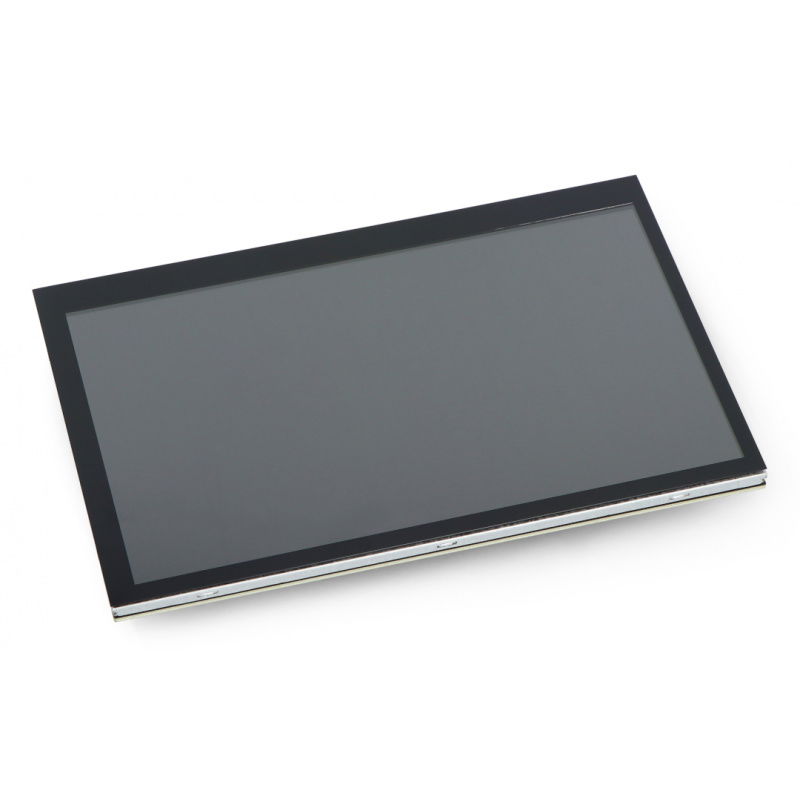

The set includes a 7-inch touch display with a resolution of 1024 x 600 px.
Practical applications
Thanks to its advanced capabilities, ESP32-P4-Function-EV-Board will prove useful in many projects, such as:
- Smart homes - device control, interactive touch screens, monitoring
- Multimedia and IoT - video intercoms, IP cameras, smart LCD labels
- Automation and industry - HMI interfaces, remote machine control, control panels
- Audio projects - sound recording, speech recognition, sound systems
- Education and prototyping - the perfect tool for learning programming and electronics
Technical specification of the set
- Microcontroller: ESP32-P4
- Processor: RISC-V, Dual Core, 400 MHz
- PSRAM memory: 32MB
- Flash Memory: 16 MB (on board), 4 MB (in ESP32-C6 module)
- WiFi/Bluetooth module: ESP32-C6-MINI-1
- WiFi Support: WiFi 6 (2.4GHz)
- Bluetooth support: Bluetooth 5.0 (LE)
- USB ports: USB 2.0 Type C, USB 2.0 Type A (OTG)
- Number of GPIOs: 55
- MicroSD card support: Yes
- Video interfaces: MIPI-CSI (2 MPx camera), MIPI-DSI (7'' 1024 x 600 px display)
- Audio systems: ES8311 audio codec, NS4150B amplifier (4 Ω, 3 W)
- Ethernet port: 10/100 Mbps, RJ45
- Operating voltage: 3.3 V
- Dimensions: 74 x 88 mm
Kit Contents
- ESP32‑P4‑Function‑EV‑Board v1.5.2
- 7-inch LCD display (1024 x 600 px) with touch screen
- 2MPx camera (MIPI-CSI)
- LCD adaptor
- Camera adapter
- Additional accessories (DuPont cables, flat flexible cables and brass spacers)

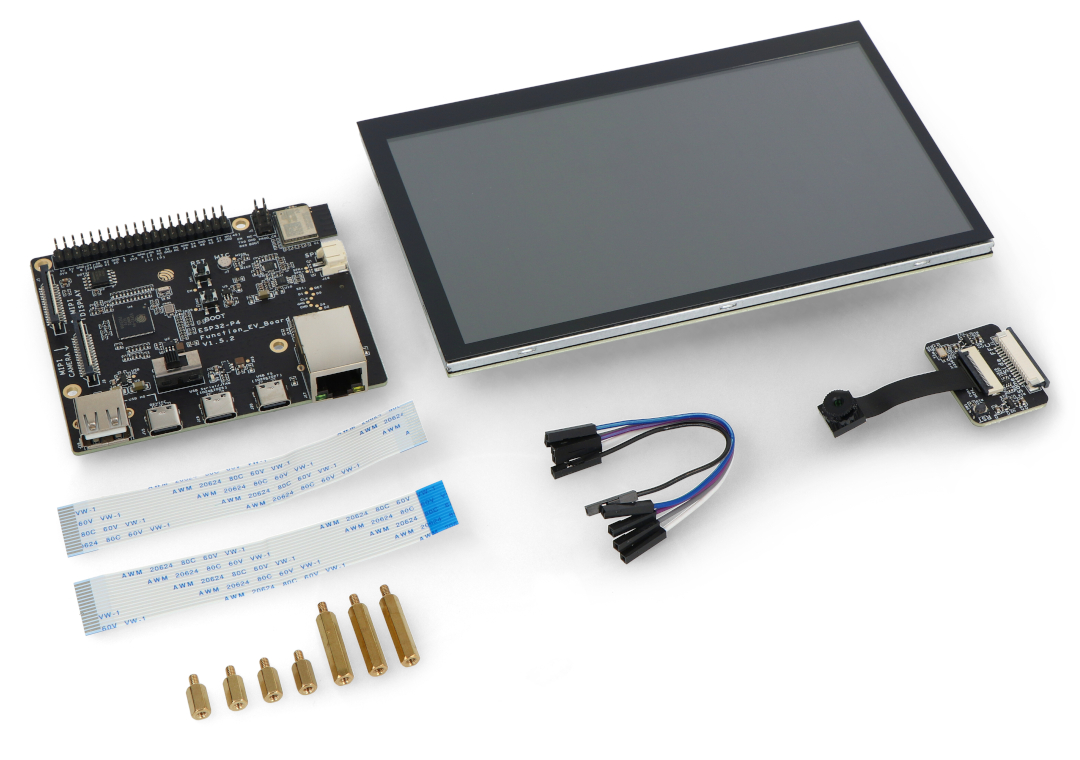

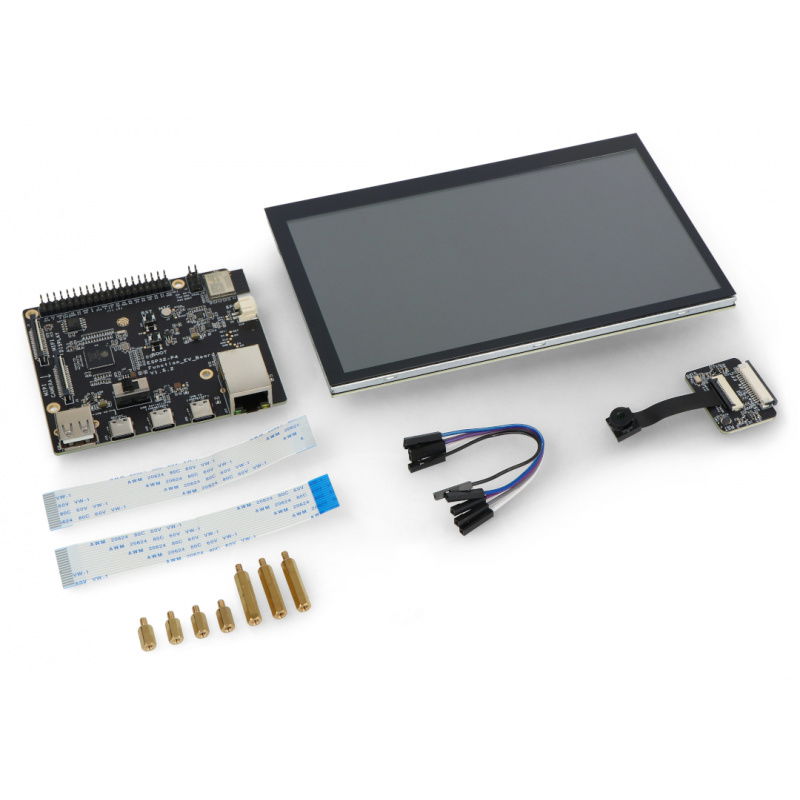

Items included in the set.
