Product description: Arcade console builder kit for Raspberry Pi
The Arcade Console Building Kit for Raspberry Pi includes components for arcade games, such as buttons and a joystick. These types of devices are used in video game machines, as well as old-style consoles. They allow you to assemble your own single-player arcade console. The kit includes a zero latency control board that makes it very quick and easy to connect the Raspberry Pi via a USB cable.
The kit does not include the Raspberry Pi minicomputer, the board must be purchased separately.
The control board works with emulators such as MAME or RetroPie. Currently, the capabilities of these programs include not only emulators for various arcade machines, but also emulation of game systems such as Amiga, Atari, Commodore C64, Game Boy, SNES and many others.
All elements included in the set are characterized by high quality of materials used and production. The buttons are chromium plated and backlit by LEDs (included in the set). Microswitches used in buttons and joystick are very durable, their tested durability is up to 1,000,000 cycles.
Arcade console kit for Raspberry Pi.

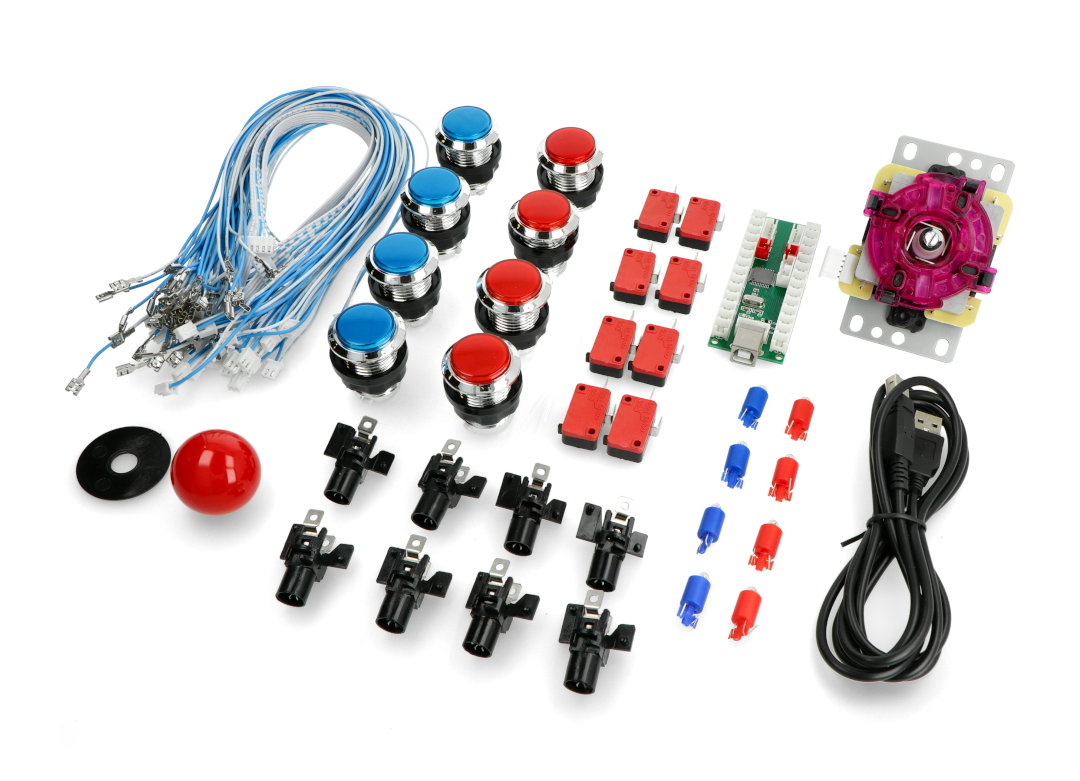

The picture shows all the components included in the kit.
Arcade Console kit specification for Raspberry Pi
- Buttons
- Mounting hole: from 24 mm to 28 mm
- Total diameter: 33 mm
- Voltage: 5 V / 12 V
- Chrome plated
- Colour: red / blue
- Control board
- Zero latency
- Supports Windows, Raspberry Pi, Android
- Compatible with PS3 (can be used as a controller)
- Easy installation
- Sanwa type joystick
- 9-way
- Knob size: 35mm
- Colour: red
- Micro switches tested up to 1,000,000 times
Set contents
- 1 x control board with zero delay
- 4 x red push button with microswitch
- 4 x blue push button with DIP switch
- 8 x LED 5 V
- 1 x joystick (red knob) with DIP switches
- 1 x joystick cap and dust cap
- 28 x push-button cable
- 2 x cable for joystick
- 1 x USB cable
